Bang & Olufsen Beosound Shape - Custom Design Wall-Mounted Speaker

Transform your wall into a canvas of sound with Beosound Shape, an architectural audio system that fuses immersive performance with bold, customisable design. More than just a speaker, it's a modular soundscape that enhances both the acoustics and aesthetics of your space. Built on a flexible tile-based concept, each hexagonal unit serves a distinct role—speaker, amplifier, or acoustic damper—allowing you to sculpt a layout that’s as unique as your environment. Whether it's a stylish living room, a modern hotel lobby, or a dynamic restaurant setting, Beosound Shape adapts in form and function. With endless configuration possibilities, a rich palette of colour options and integrated noise management, this system is as visually striking as it is sonically refined. Beosound Shape invites you to design your own sound signature, blurring the line between high-fidelity audio and interior art.

Warranty

1-year manufacturer's warranty

Beosound Shape Key Features

• Modular, wall-mounted system
• Built-in noise-dampers
• Stream via Wi-Fi and Bluetooth
• Band on the wall
• Built for multiroom music experiences

Benefits of Bang & Olufsen Beosound Shape - Custom Design Wall-Mounted Speaker

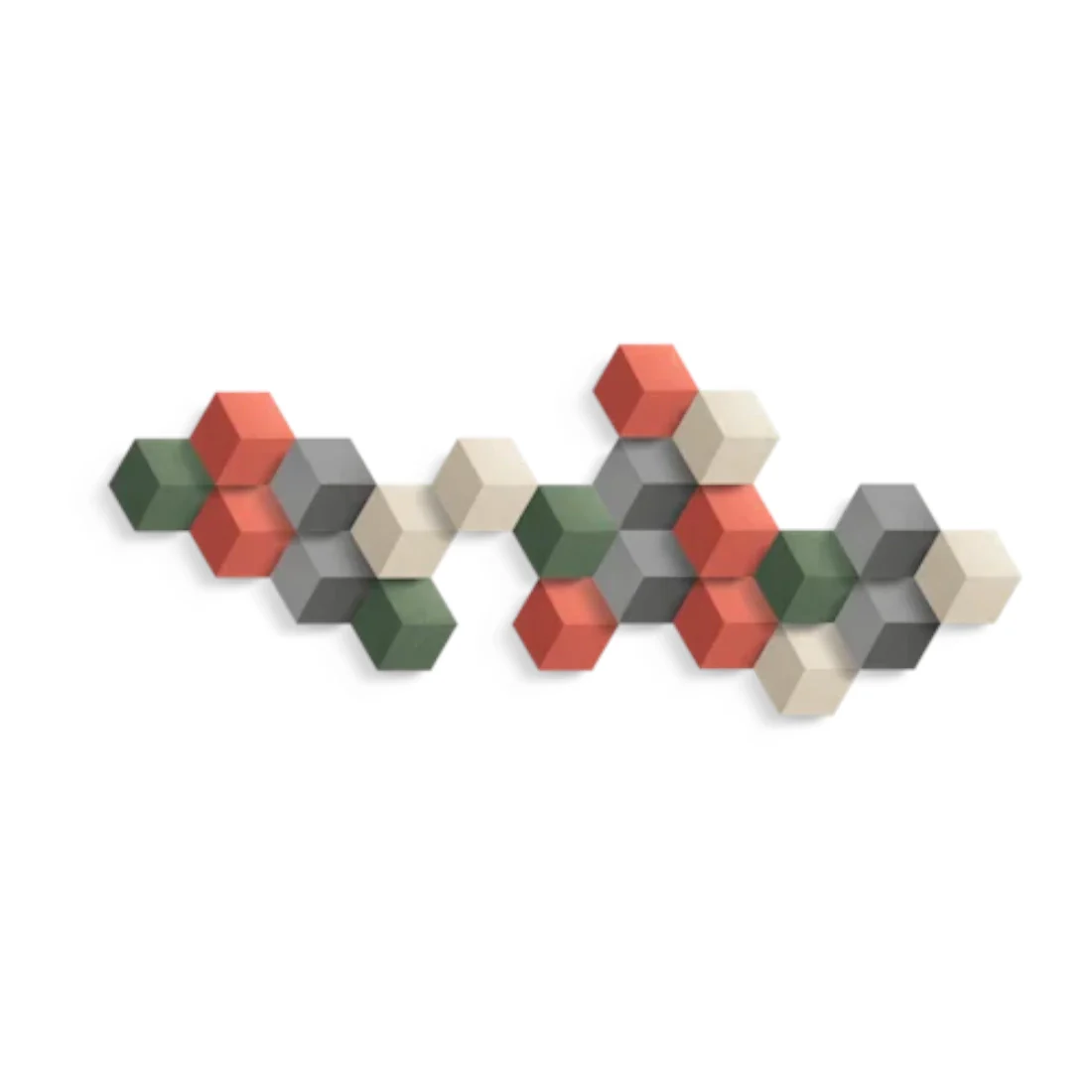

Define and redefine your perfect shape

Beosound Shape is a uniquely flexible speaker system that can grow and evolve with the changing ways you live. Rearrange the tiles to form a new pattern, change the colours when you redecorate or add more tiles to boost sound performance or acoustic damping properties.

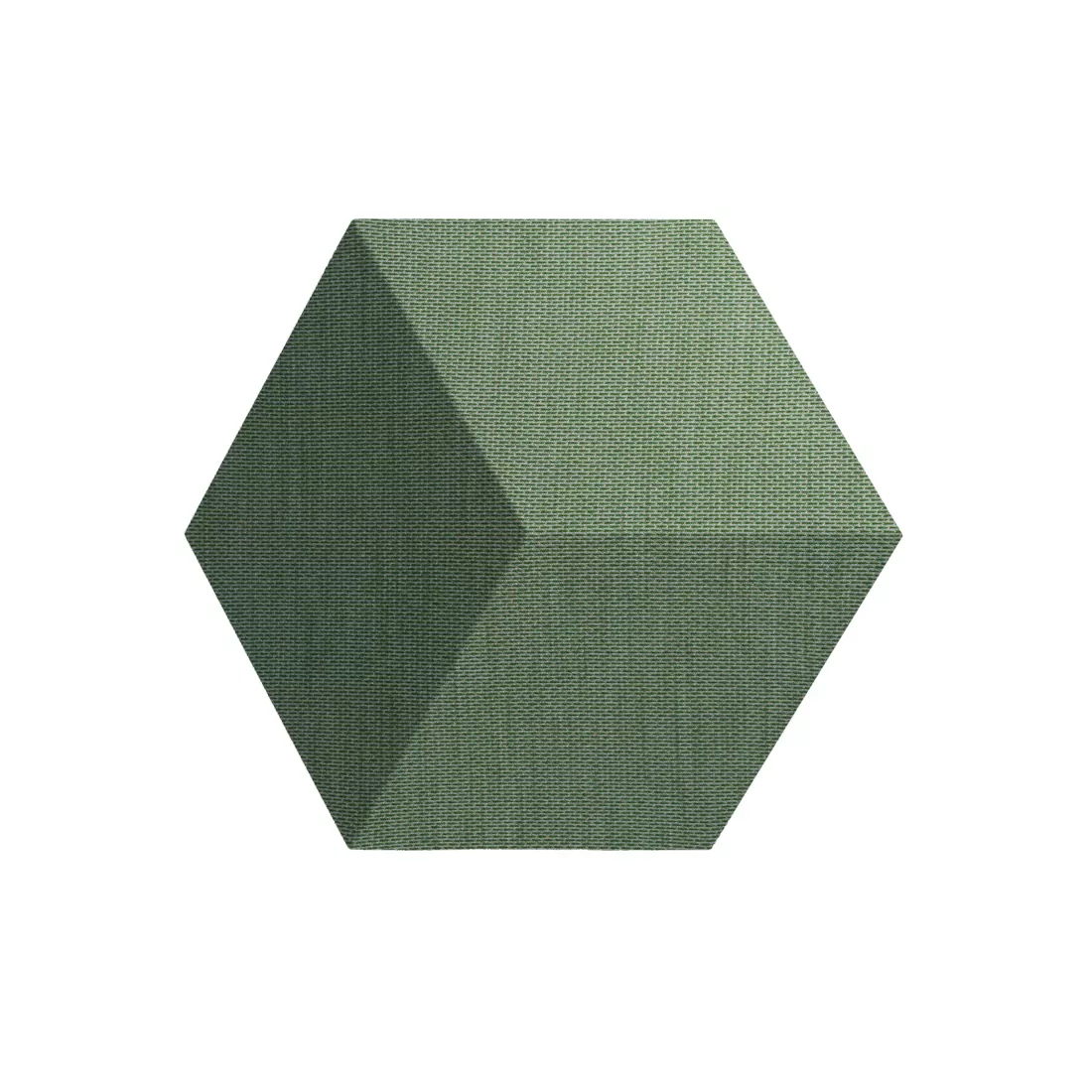

Fabrics from Kvadrat

Make music a tactile and aesthetic experience with high-quality fabric covers, including exclusive fabrics from Kvadrat.

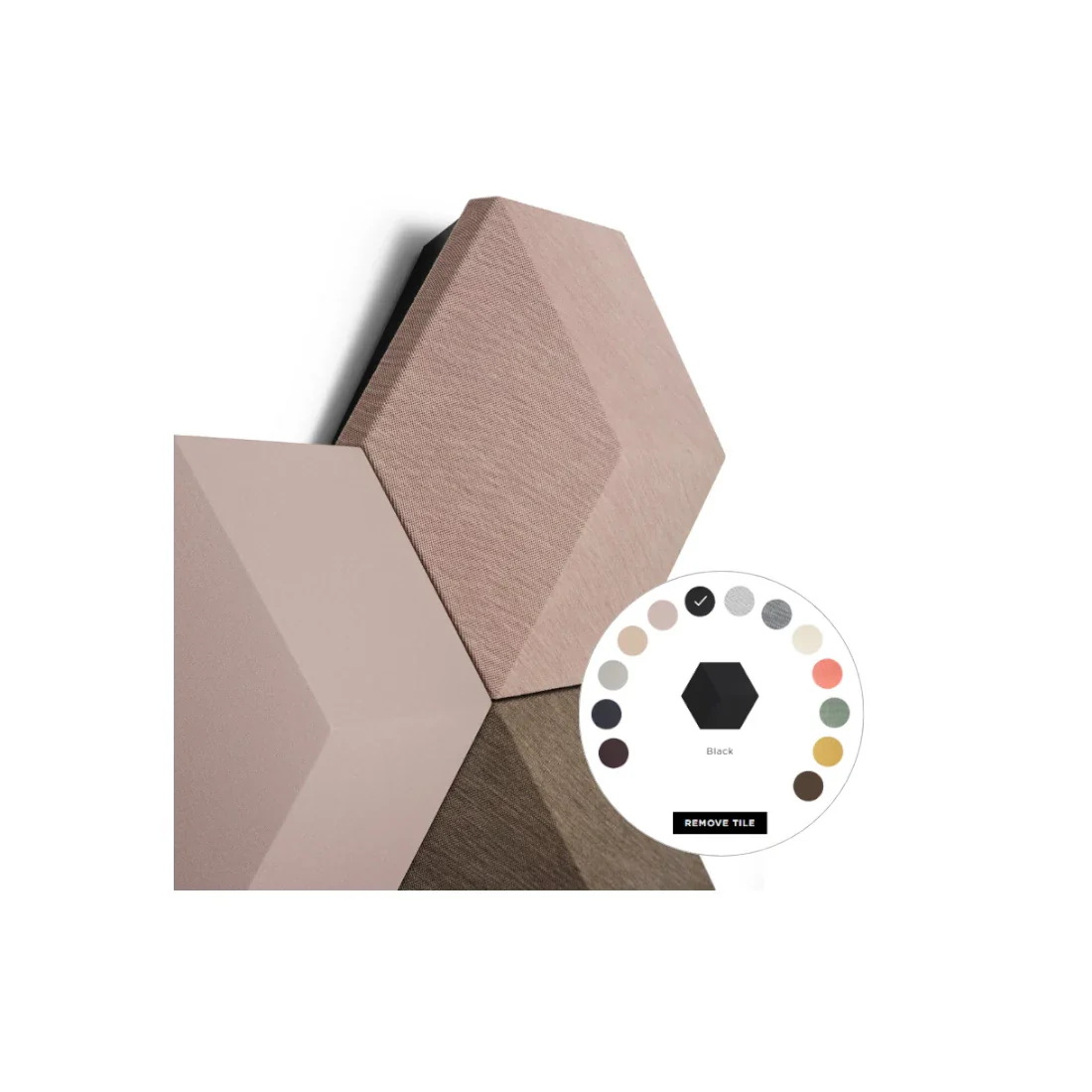

Create your own design

No two configurations are likely to be the same, and that's the whole beauty. Yet each one will undoubtedly leave a lasting visual imprint – on every wall and every room. Try the configuration tool to create your personal Beosound Shape design. Start by defining the pattern and look. Complete your design by choosing a performance level that matches your needs. Kitchen? Executive boardroom? Public restaurant? With the vast colour choices and modular design concept, Beosound Shape can be customised to match and elevate any living space.

The heart of your music

At the heart of the system lies B&O's Beoconnect Core connectivity hub. A small built-in box that lets you stream music directly from your phone or tablet via Google Cast, Apple AirPlay and Bluetooth.

A band on your wall

Prepare for an innovative and social music experience that brings ‘the band’ right into your room. Beosound Shape cleverly utilises a setup with multiple speakers to deliver a concert-like perception of singer and instruments. Book a demo, to feel the sensation.

Turn down the noise

Poor indoor acoustics makes even the most beautiful room unpleasant to be in. Relieve the problem by integrating acoustic damper tiles when you design your Beosound Shape.

All-in-one speaker system

Beosound Shape is more than just a wireless speaker. It is a complete audio system that can boast as many as 40 individual speakers, playing your digital music in rich and high-res audio quality.

Technical Specifications of Bang & Olufsen Beosound Shape

Brand & Model #	B&O Beosound Shape
Recommended Room Size	20-100 m²
Speaker Configuration Per Speaker Tile:	1 x ¾” tweeter 1 x 5 ¼” woofer
Amplifier Per Amplifier:	8 x 80 Watt class D Maximum speakers per amplifier: 4
Frequency range	30 - 22.000 Hz (8 tiles set up)
Maximum Sound Pressure Level @1m	105 dB (8 tiles set up)
Bass Capability	89dB (SPL) (8 tiles set up)
Advanced Sound Features	Adaptive Bass Linearization Thermal Protection
Customizable Sound EQ	Presets available and fully customisable through the Bang & Olufsen App
Power Supply	100-240V 50/60Hz mains cable
Designer	Øivind Alexander Slaatto
Materials	Textile Polymer
Dimensions (Width x Height x Depth)	36.4 W x 32.0 H x 11.1 D cm (1 Tile) Maximum Amplifier Tiles: 11 Maximum Speaker Tiles: 44 Acoustic Damper Tiles: unlimited
Weight	Speaker Tile: 1.9 kg + 0.4 kg (fabric cover) Amplifier Tile: 2.0 kg + 0.4 kg (fabric cover) Damper Tile :0.51 kg + 0.4 kg (fabric cover)
Connectivity	Bluetooth version Bluetooth 5.3 Bluetooth Codecs Android: SBC iOS: SBC, AAC Wi-Fi Dual-Band Wi-Fi (2.4 & 5 GHz) IEEE 802.11 b/g/a/n/ac/ax Streaming Services Apple AirPlay Spotify Connect Google Cast TIDAL Connect B&O Radio Deezer QPlay 2.0 Beolink Multiroom Seamlessly connect multiple Bang & Olufsen speakers to expand your music experience. Physical Connections Speaker Tile: 1 x Speaker 4-Wire Input Amplifier Tile: 4 x Speaker 4-Wire Output 1 x Optical-In 1 x Power Link (RJ45) 1 x Comm In (Amplifier Input) 1 x Comm Out (Amplifier Output) 1 x USB-B 1 x Power Beoconnect Core: 1 x Power 1 x USB-C (Digital Performance Output) 1 x HDMI eARC (for TV-integration) 1 x Ethernet 1 x COMM (for Beosound Shape) 1 x Powerlink (Stereo) 1 x Line-In Remote Controls Bang & Olufsen App Beoremote One BT Beoremote Halo
