Features

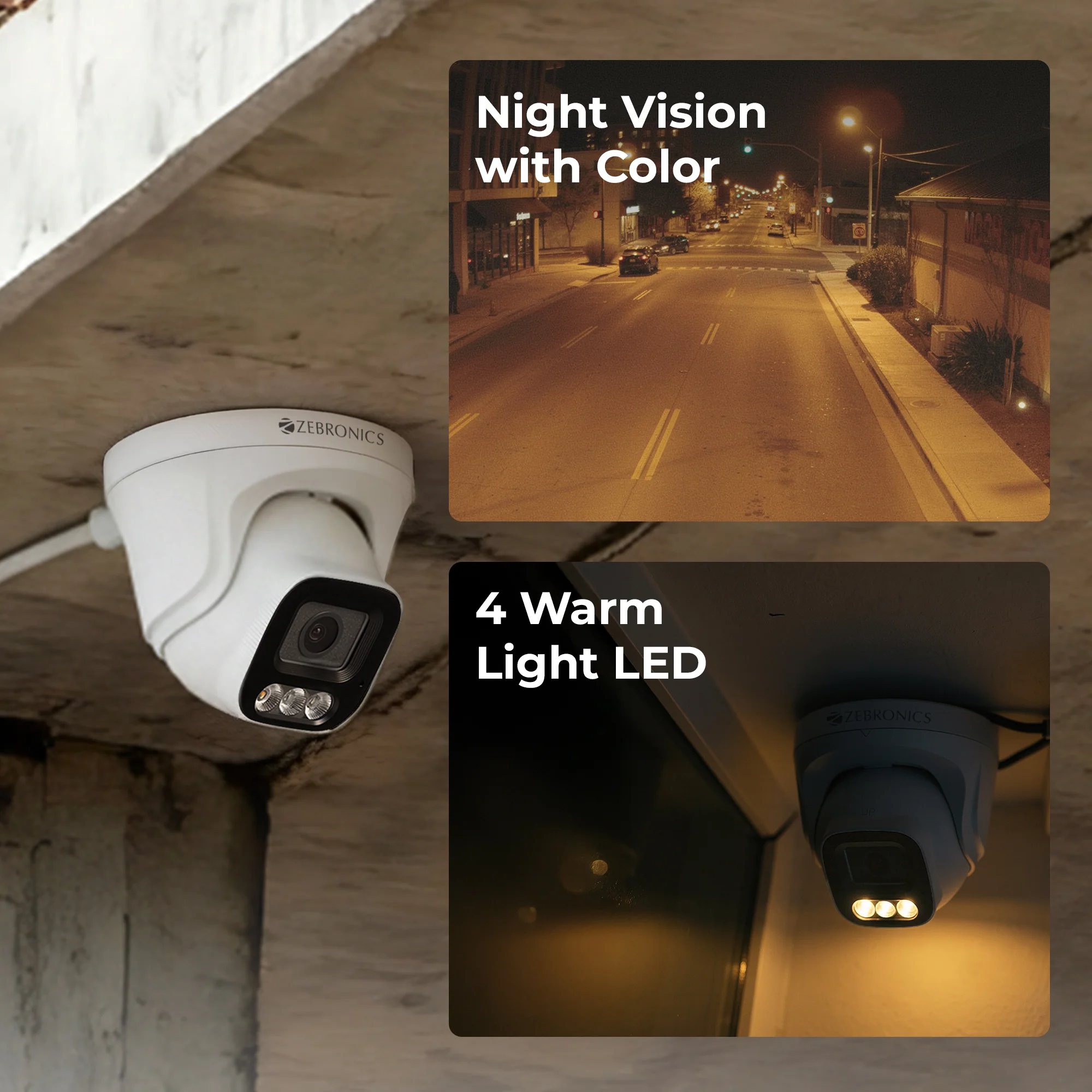

| Night Vision With Color | |
| AGC | AWB | |
| 2-DNR | BLC | ICR | |
| AHD | CVI | TVI | CVBS | |
| 3 Warm Light LED | |

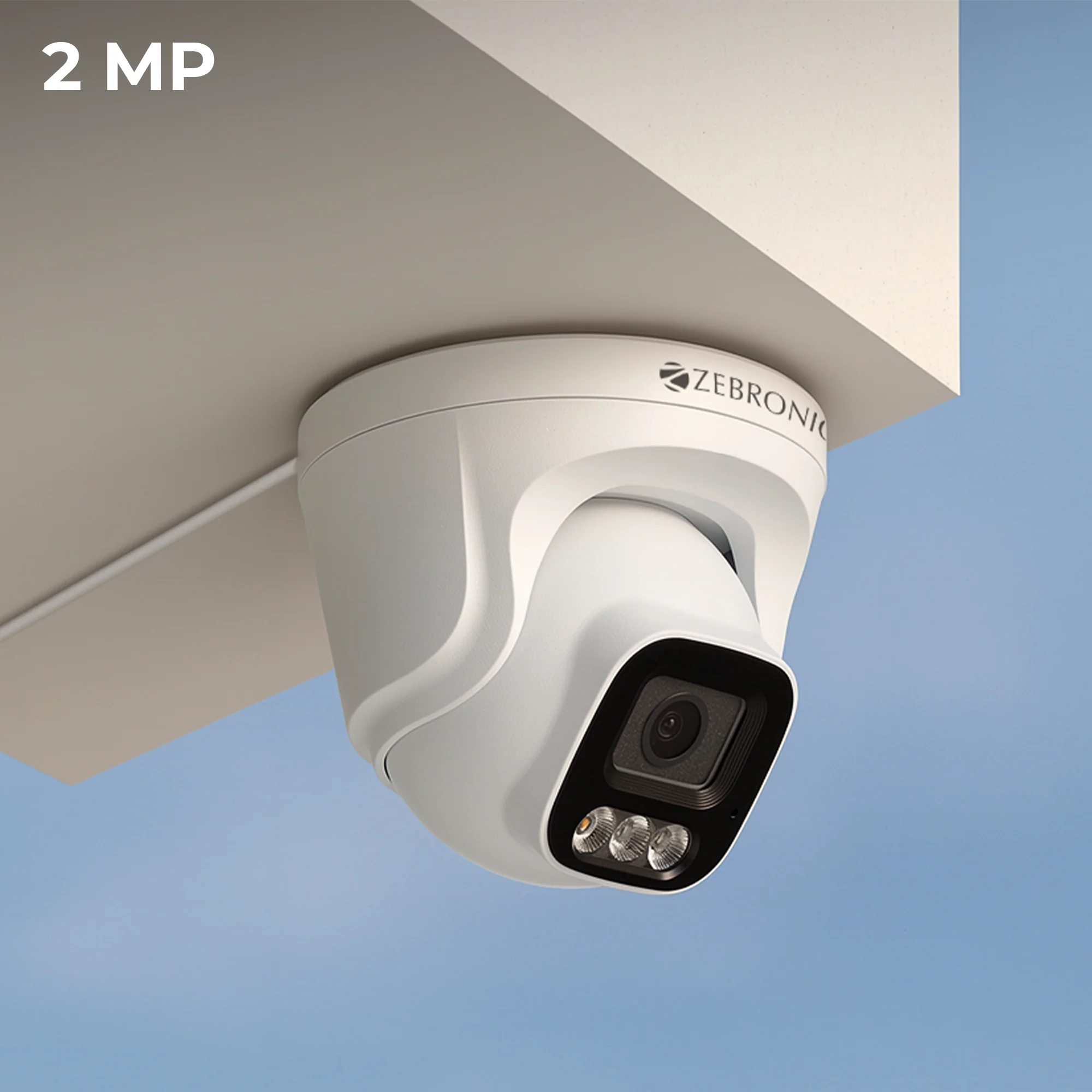

| 2 MP | |

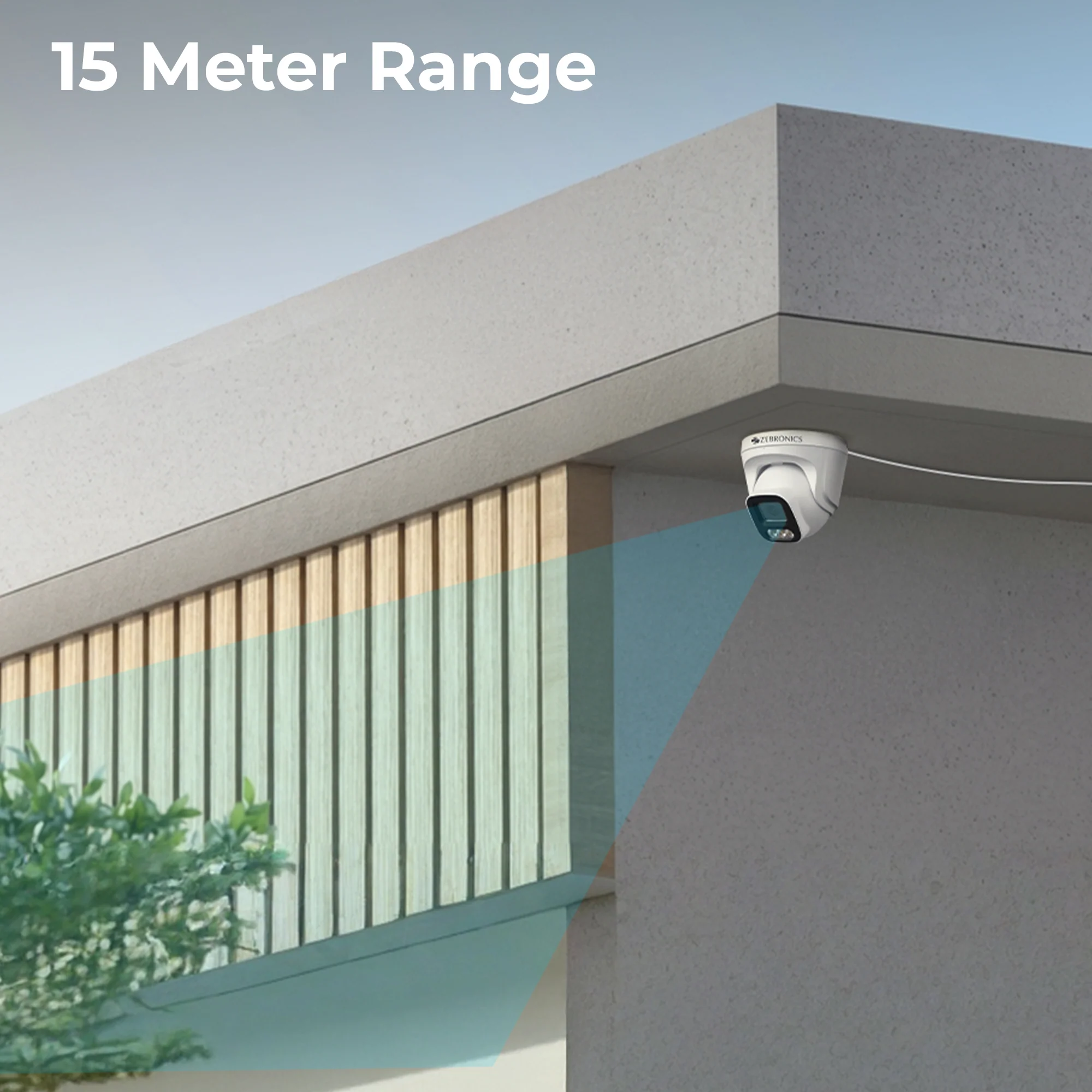

| Up to 15 meter Range | |

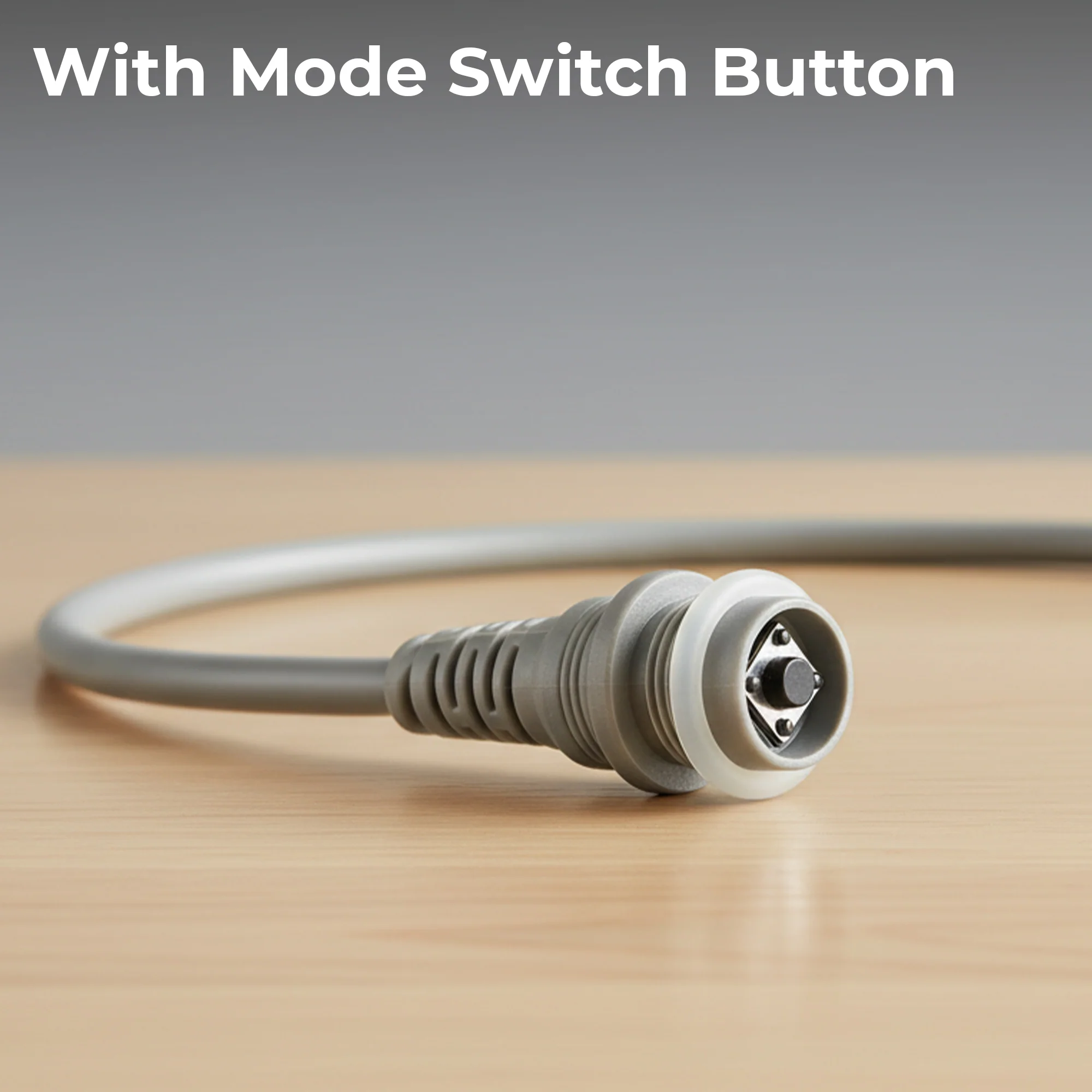

| With Mode Switch Button | |

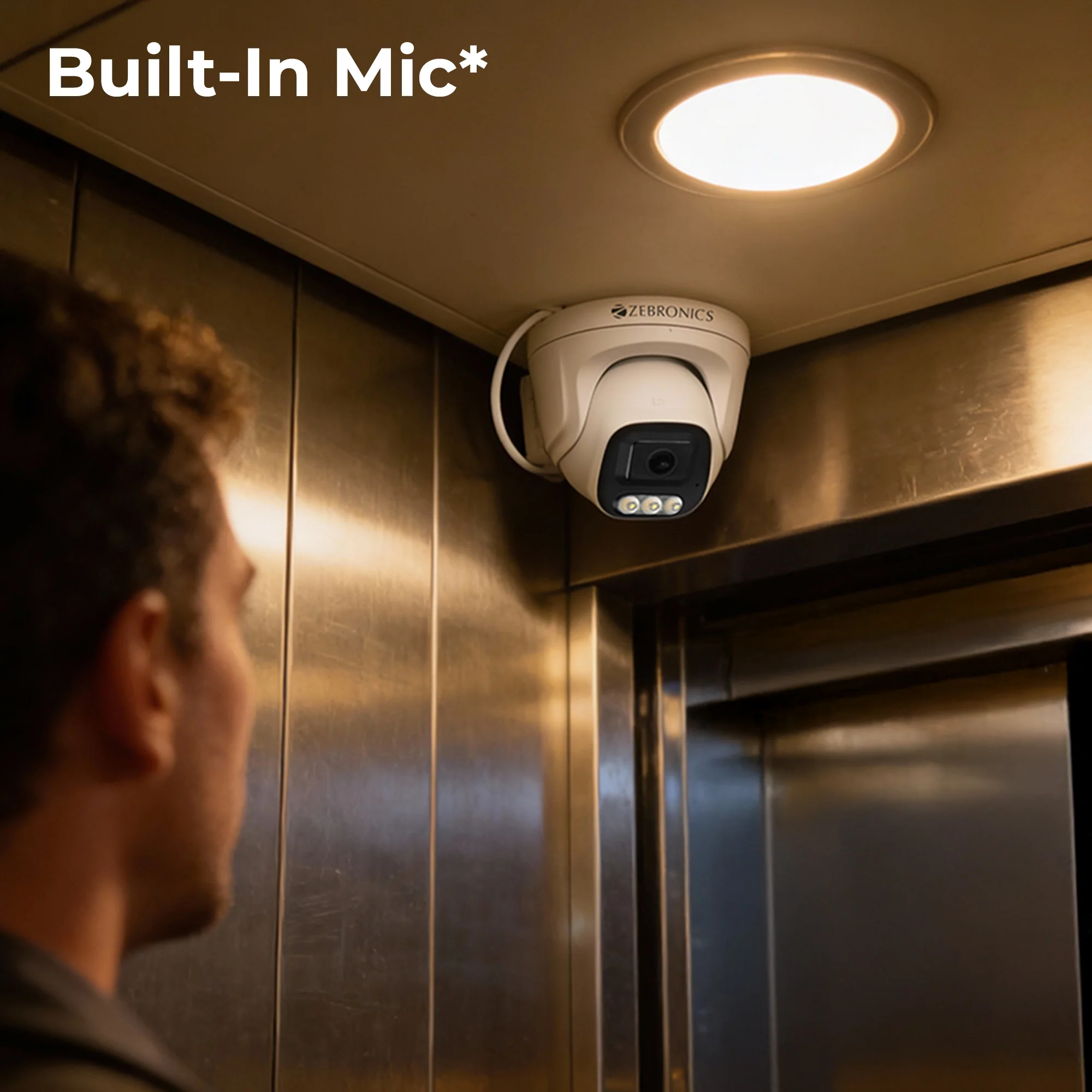

| Built In Mic* | |
| Flicker Adjust | |
| *Audio In TVI Mode |
Specifications
| Camera | ||
| Minimum illumination | 0.2 lux | |
| Image Sensor |
GC20C3 | |
| Shutter speed |
1/26 to 1/10000 seconds | |
| Angle of view |
Horizontal: 72°; Vertical: 40°; Diagonal: 82° | |
| Scanning system |
Progressive Scan | |
| Lens | ||
| Focus Length |
3.6mm (Fixed) | |
| Mount Type / Lens | M12 | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Lens | 3.6mm | |
| Max. Aperture | F1.6 | |
| Night Vision | ||
| LED type | Warm Light LED | |
| No. Of LEDs | 3 | |
| IR Cut filter | Yes | |
| Light Range | 12 to 15 meter | |
| LED Power On | Auto | |
| LED Color | Warmlight | |
| Camera Features | ||
| OSD Support | Yes | |
| Day/Night Switch | Auto | |
| Noise Reduction |
Yes | |
| Picture Adjustment | Yes | |
| WDR | Yes(D-WDR) | |
| White Balance | Yes | |
| AGC (Gain Control) | Yes | |
| ICR (Infrared Cut Removable Filter) | Auto (ICR) | |
| Back Light | Yes | |
| Video output |
TVI : 1920 x 1080 (25fps) AHD : 1920 x 1080 (25fps) CVI : 1920 x 1080 (25fps) CVBS : PAL: 1200 x 576 / NTSC: 1200 x 480 |
|
| Weatherproof Standard | IP44 | |
| S/N Ratio | ≥52dB ( AGC OFF ) | |
| General | ||
| Power Consumption | DC12V ( ± 10% ) | |
| Operating Temperature |
-20°C~50°C / Less than 90% RH | |
| Weight | 138g | |
| Body type | ABS Plastic | |
| Dimension (Dia x H) |
9.2 x 8.5 cm | |
| Country of Origin | India | |
| Package Contents | ||
| CCTV Camera | 1 U | |
| Mounting Kit | 1 U | |
| QR Code Guide | 1 U |
Details
| Country Of Origin | ["India"] |
