Specifications

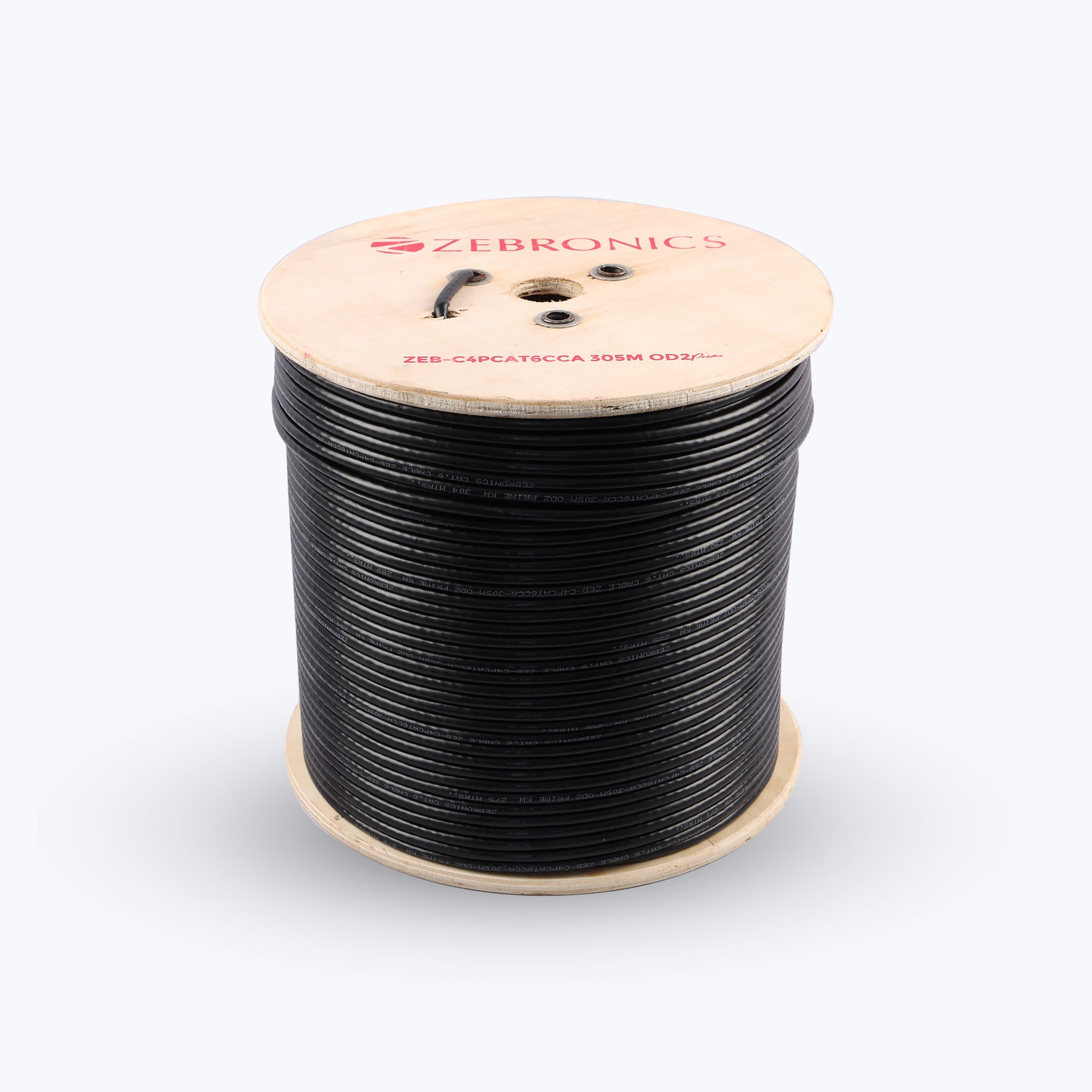

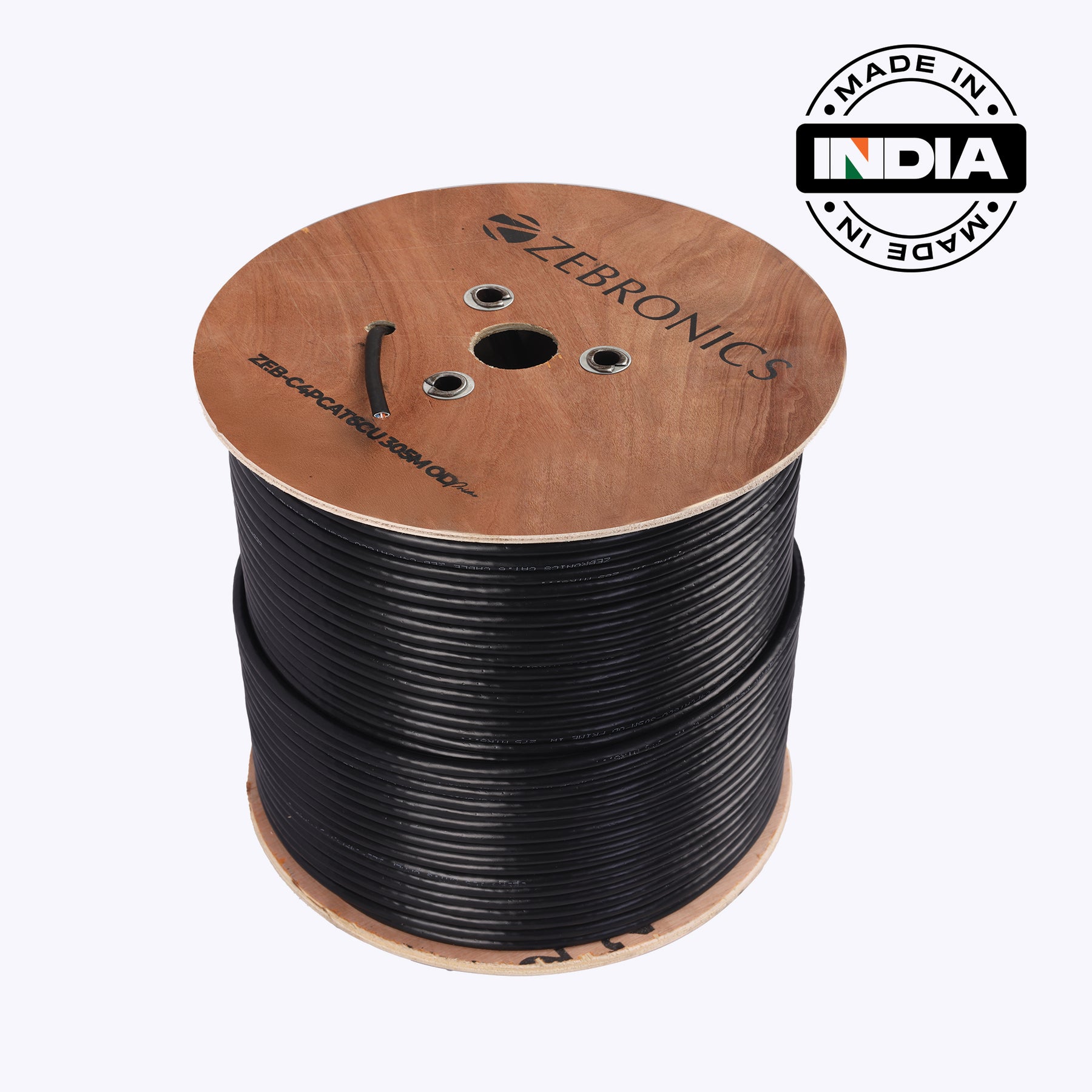

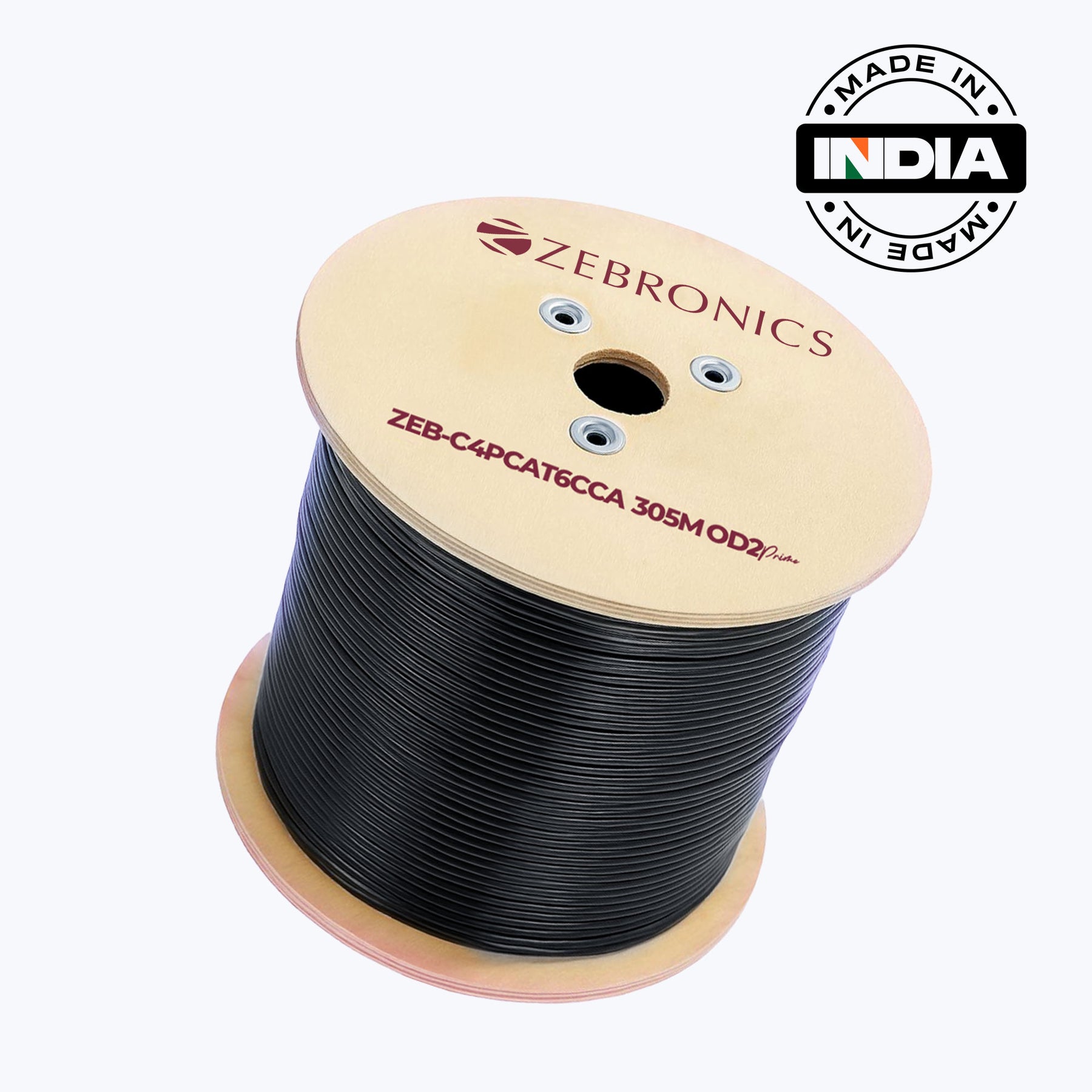

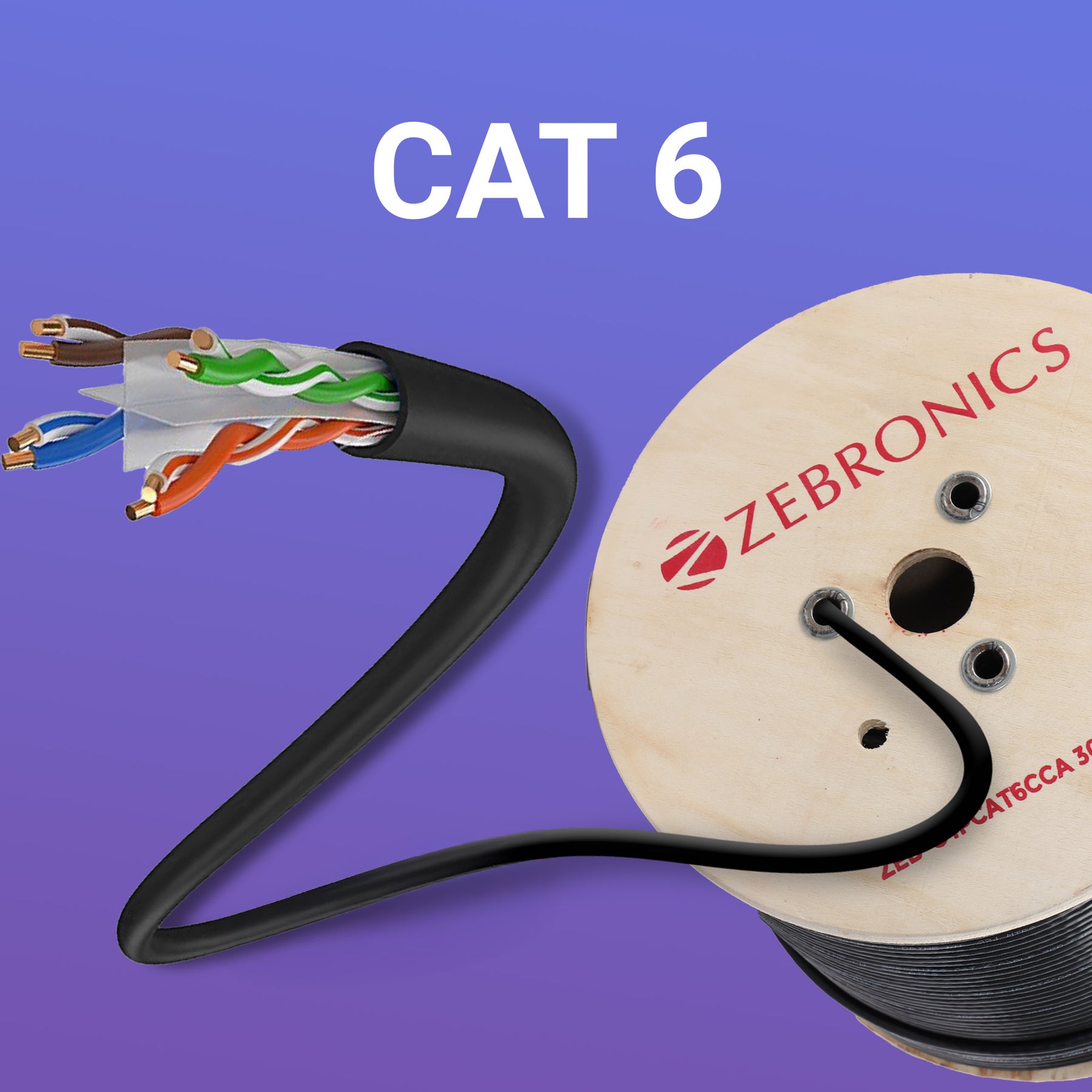

| Model Name | ZEB-C4PCAT6CCA-305M- OD2 - PRIME | |
| No. of wires | 4 pairs | |

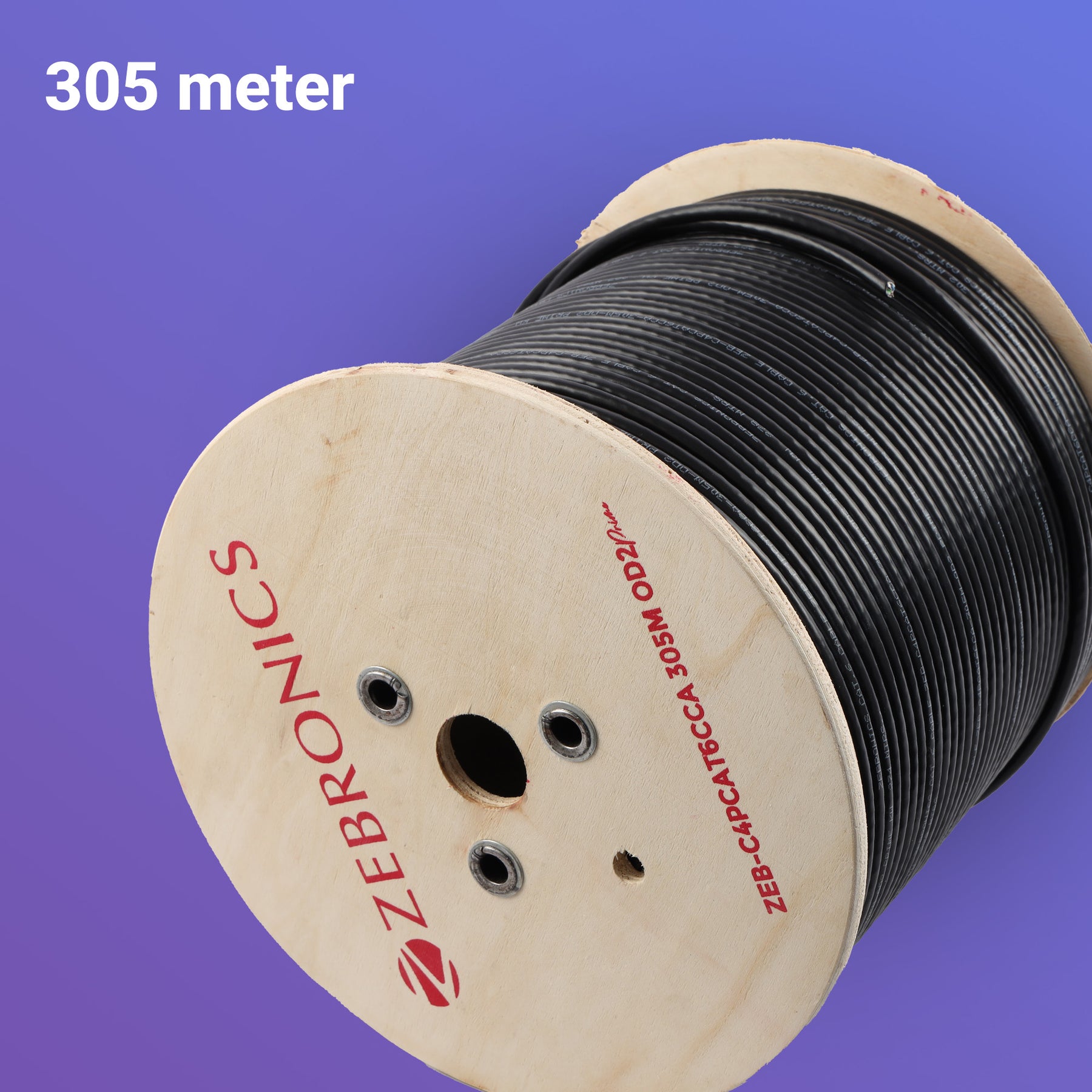

| Cable length | 305 meter | |

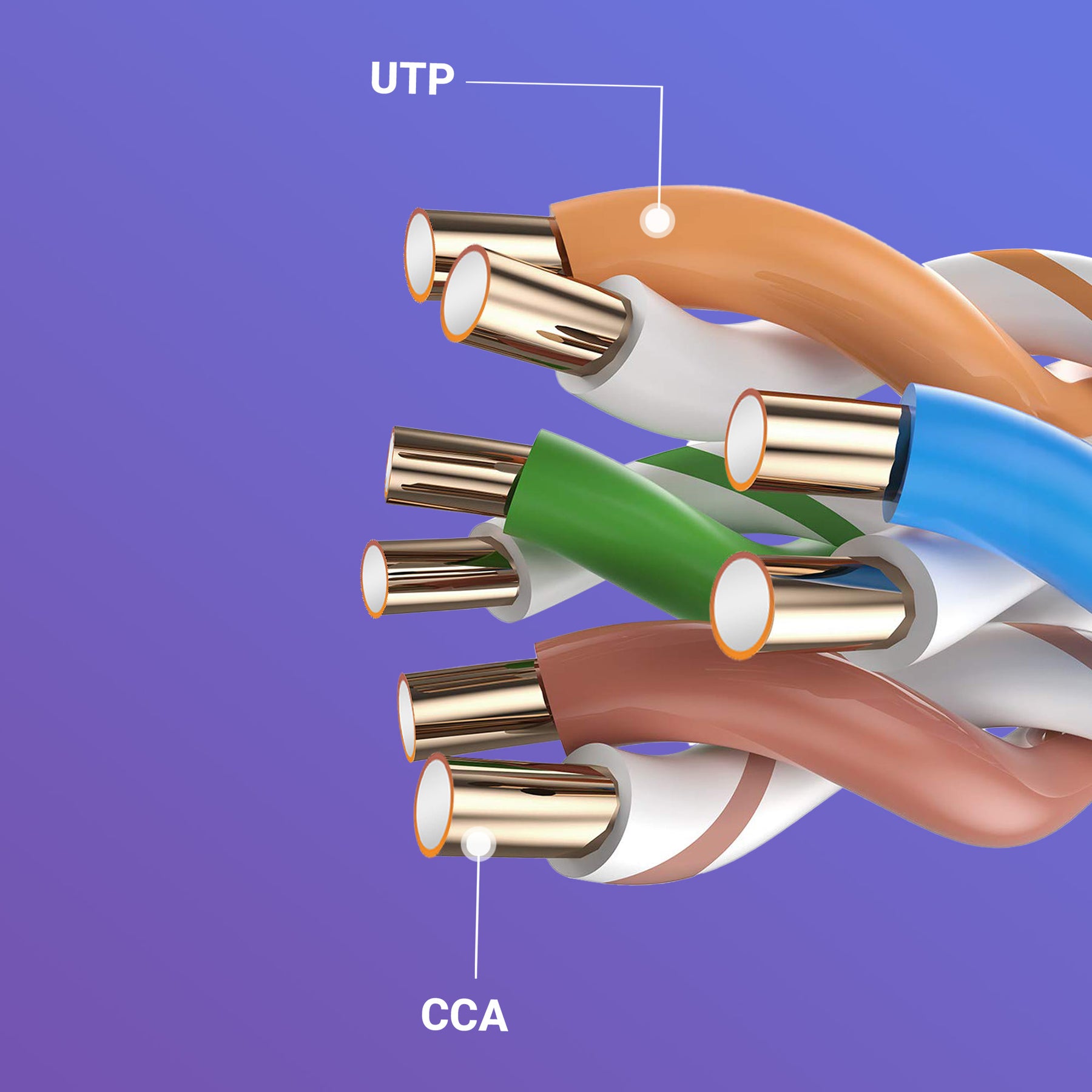

| Conductor material | 24 AWG Solid Bare Copper | |
| Construction diameter | 0.55mm | |
| Insulation material |
IPE | |
| Insulation thickness | 0.25mm | |
| Insulation diameter | 0.93mm | |

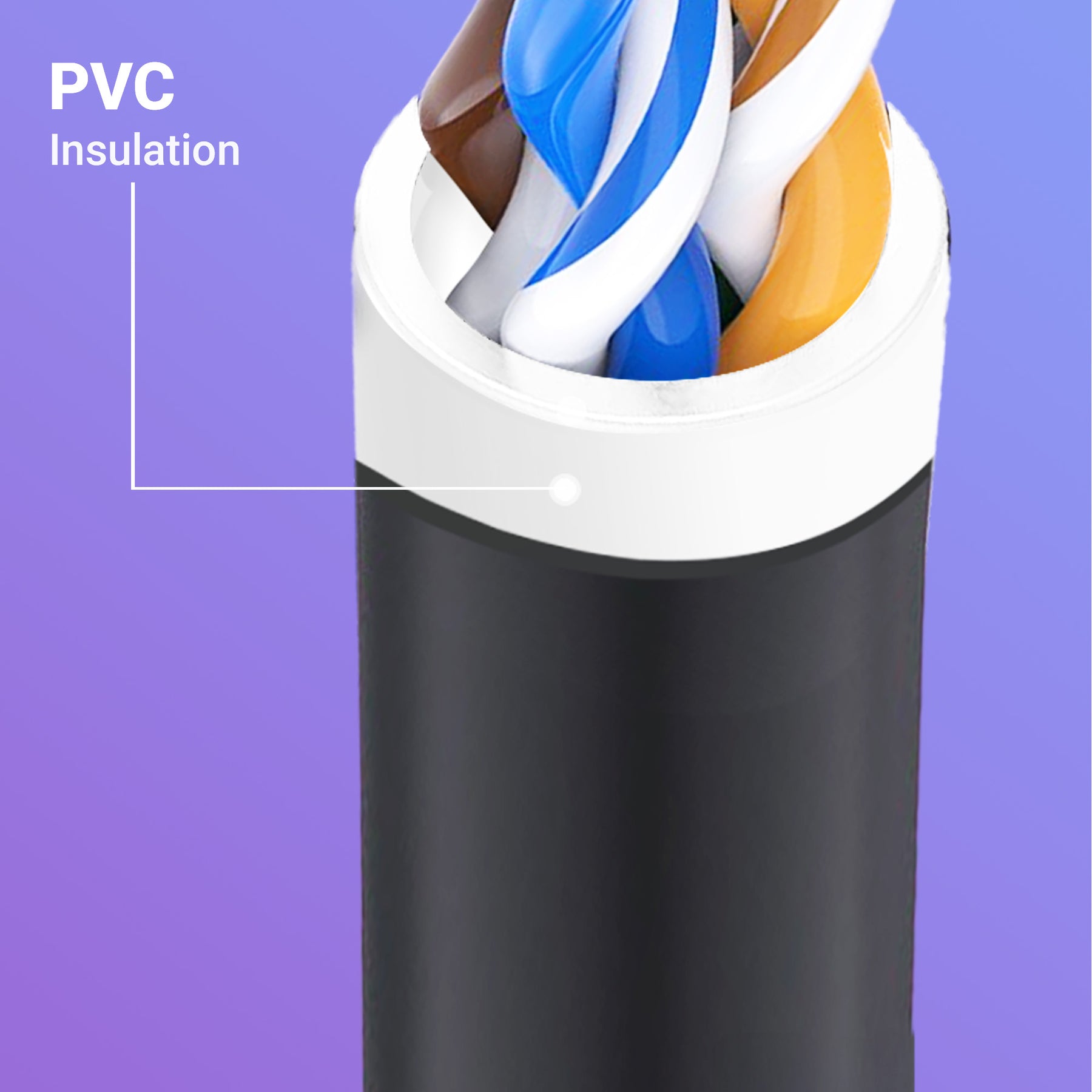

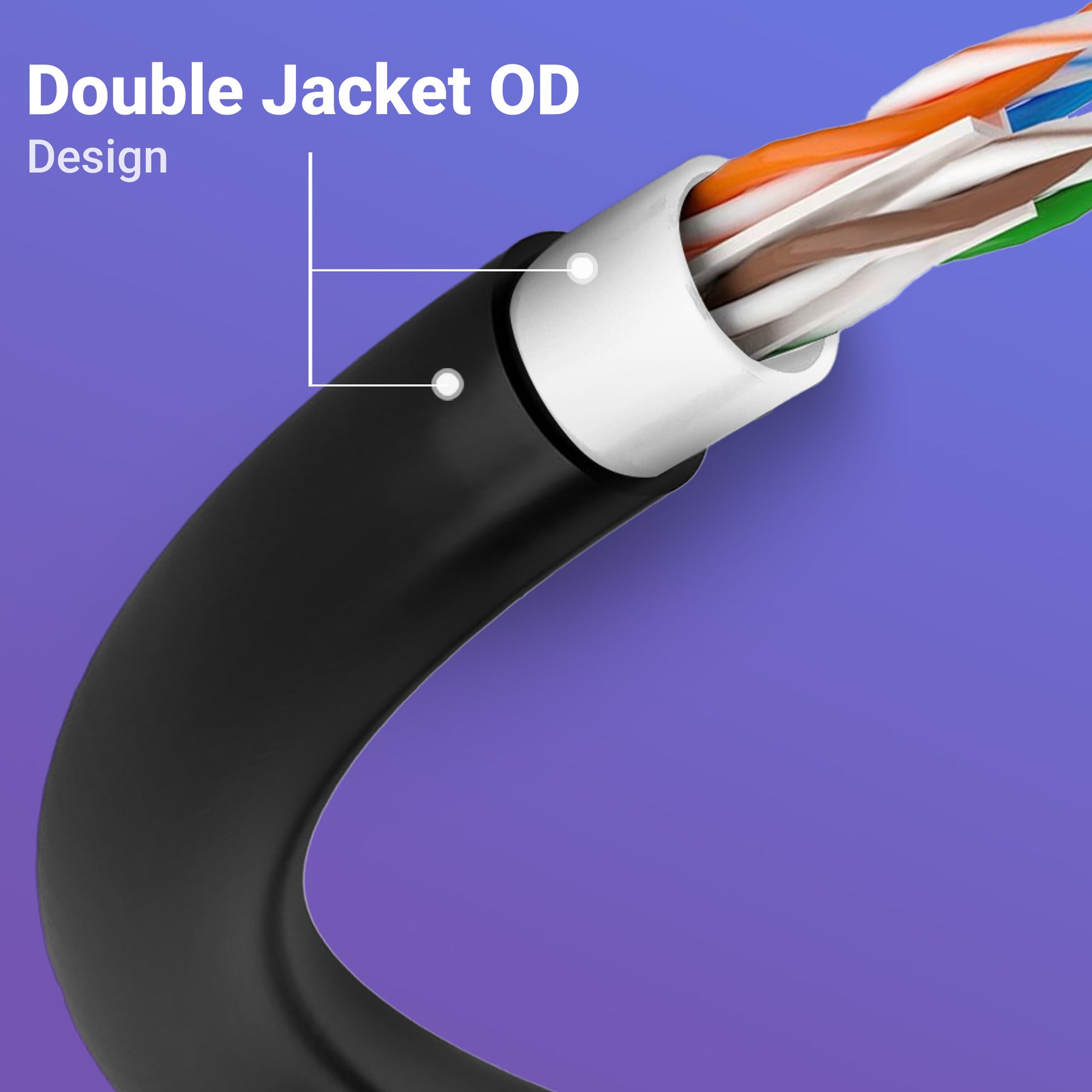

| Jacket material inner | PVC | |
| Jacket material outer | PE | |
| Jacket thickness | 0.44 mm | |
| Jacket diameter |
5.50 mm | |
| Jacket thickness | 0.55 mm | |
| Jacket diameter | 6.45 mm | |
| Jacket color Inner | Gray | |
| Jacket color Outer | Black | |
| Separator | PE Central cross separator | |
| Conductor resistance | <9.38Ξ©/km at 20Β°C | |
| Weight | 11.5 Kg | |
| Country of Origin | India | |
| Mechanical Properties | ||
| Operation Temperature | -10Β°C to +70Β°C | |
| Storage Temperature | 0Β°C to +50Β°C | |
| Bending Radius | <25.4 mm at -20Β°C to Β±1Β°C | |
| Pulling Force | 11.5 Kgs | |
| Packing Contents | ||
| Cable | 305 Meter x 1U |
