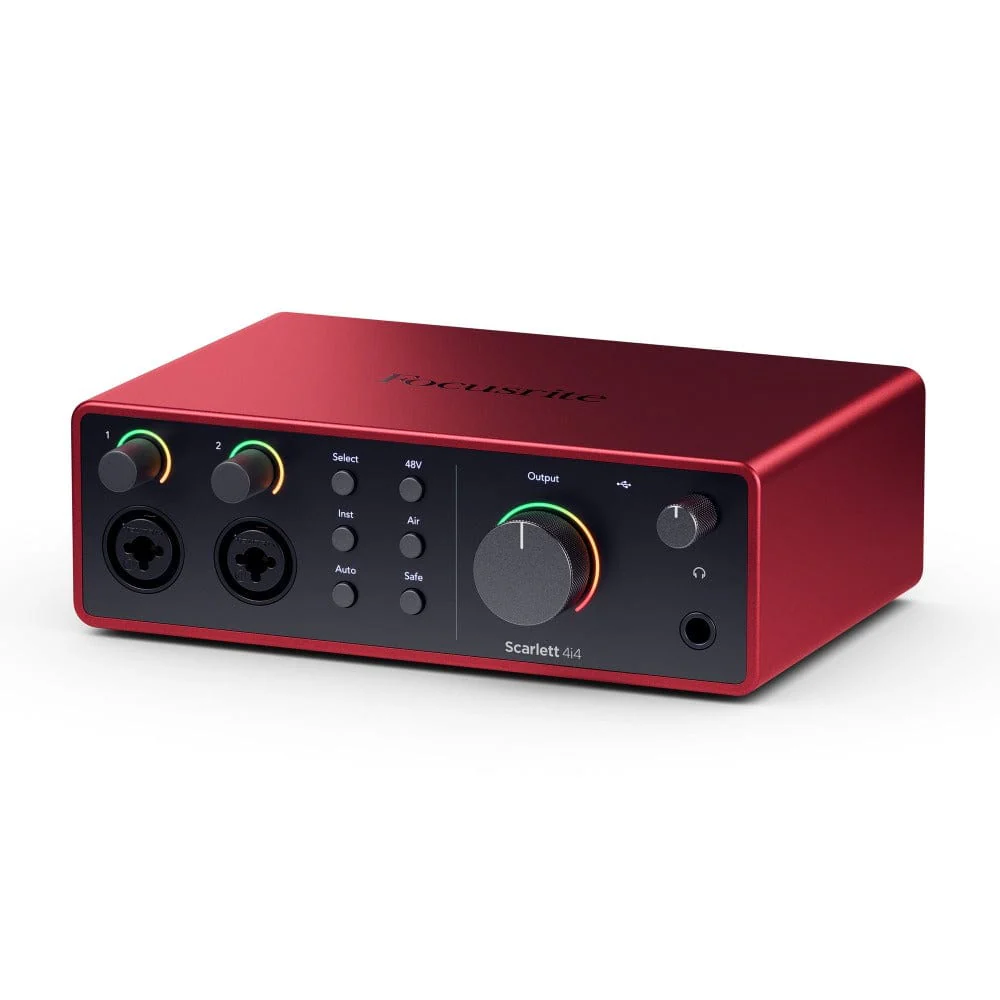

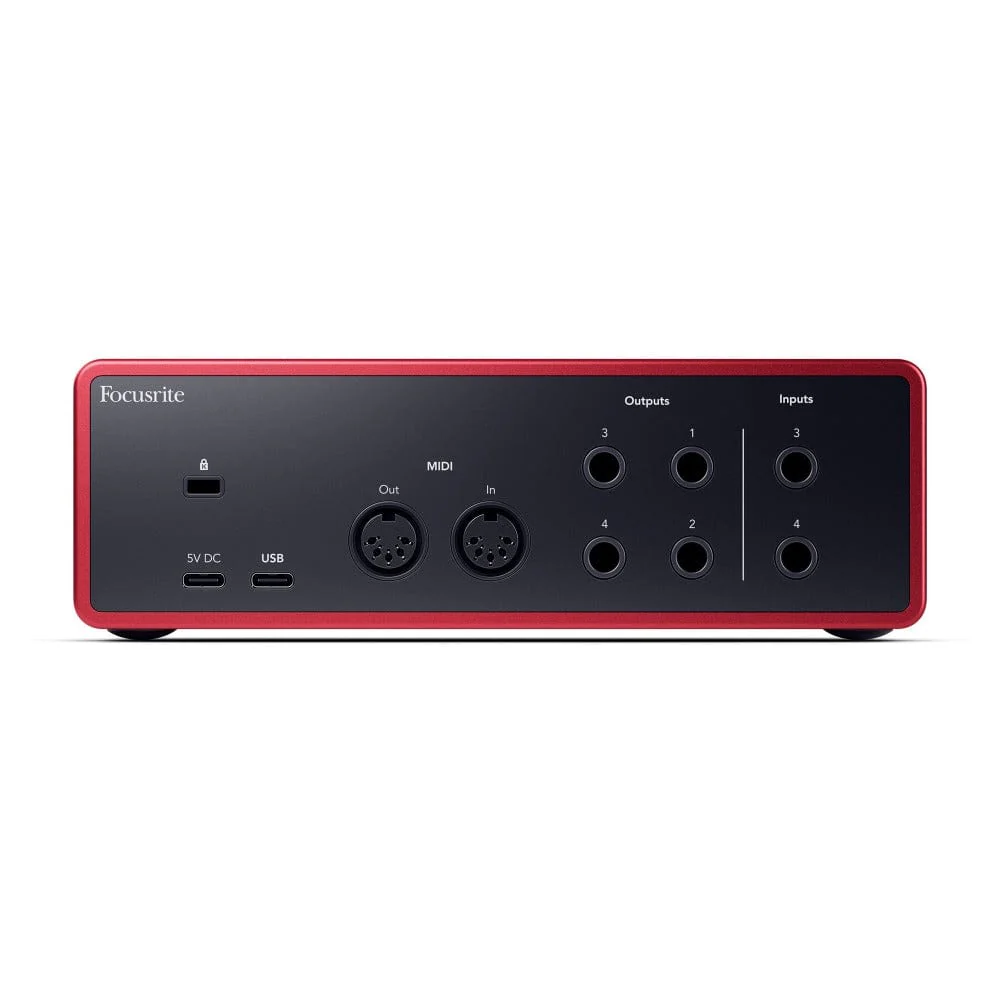

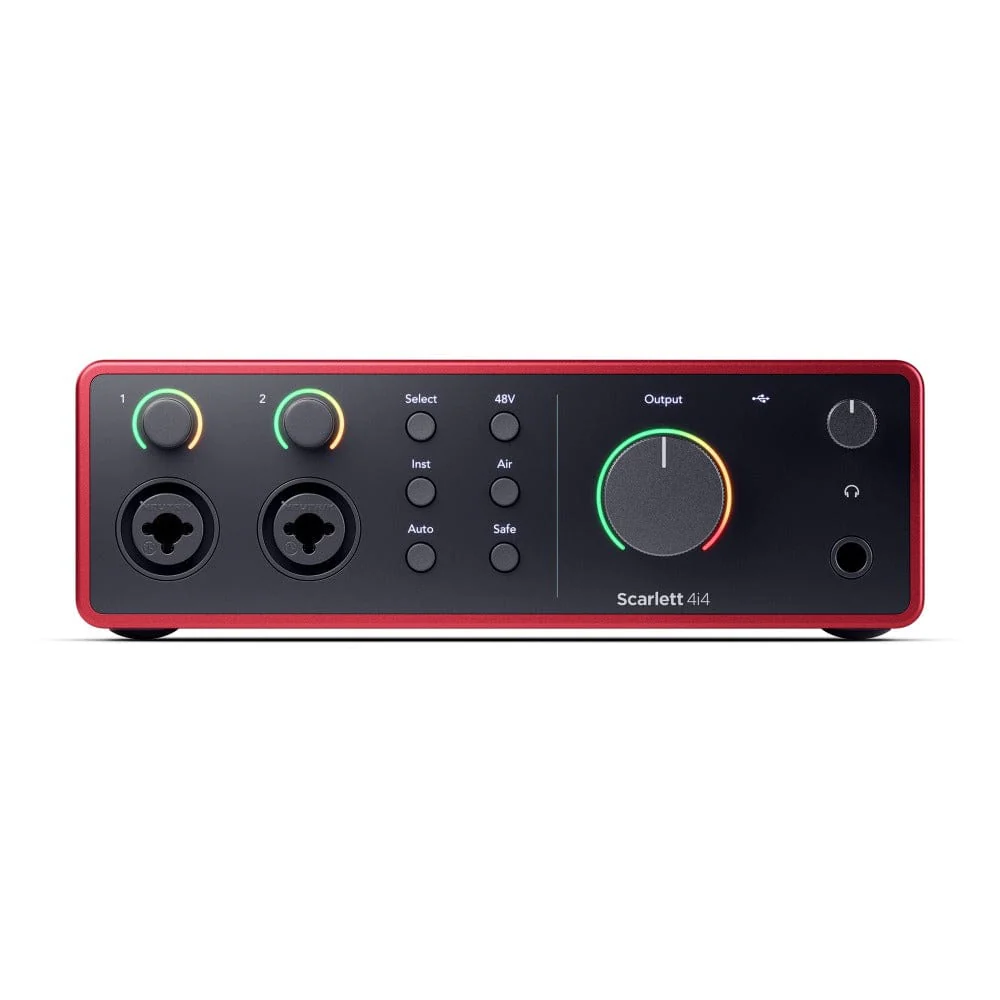

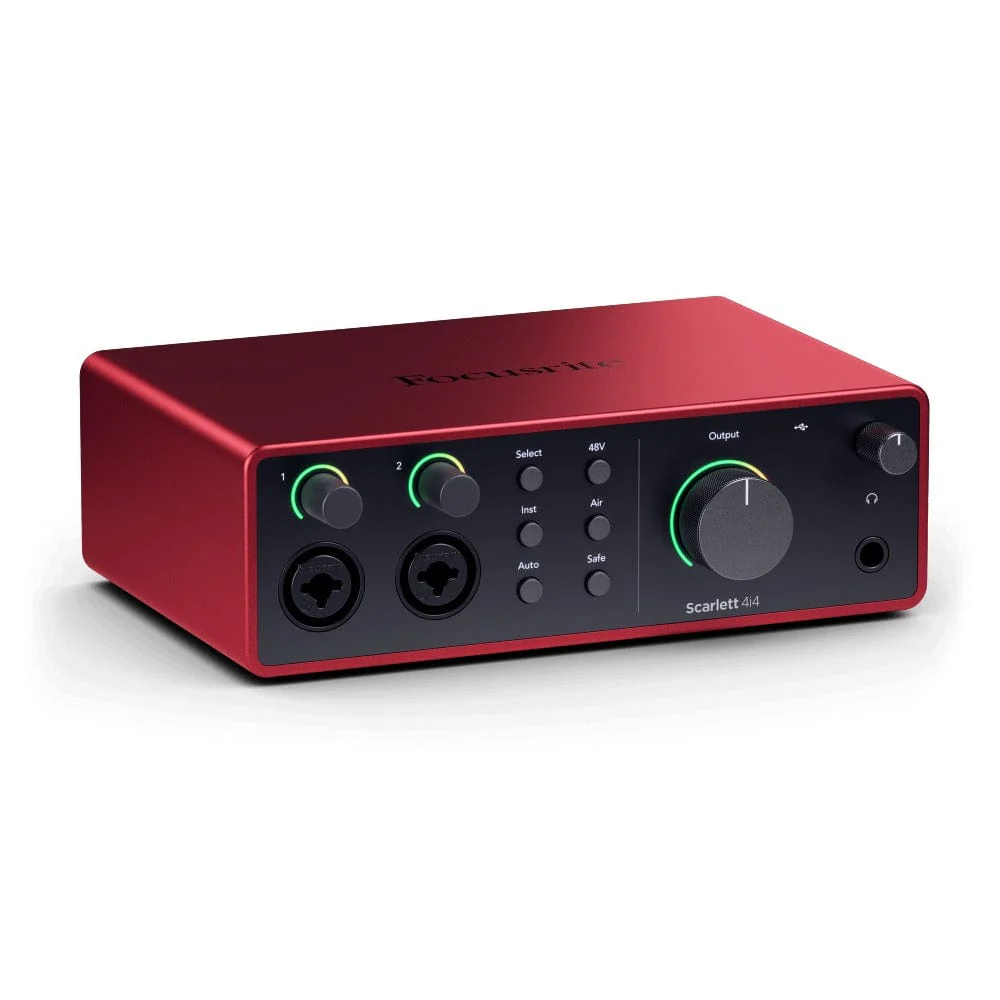

Focusrite Scarlett 4i4 4th Gen Audio Interface

Focusrite Scarlett 4i4 4th Gen Audio Interface

The original music maker's 4-in, 4-out interface

Scarlett 4i4 is the complete compact studio hub for all your instruments. Perfect for multi-instrumentalists and collaborators, 4i4 is loaded with I/O for everything. Two of our most detailed ultra-low-noise mic preamps. Hi-Z, line and MIDI connections for your keys, guitars, synths, grooveboxes and controllers. With 4i4 your headphones, monitors, and line outs each get their own mix, so you can match the studio setup to the session.

Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. Auto Gain and Clip Safe make sure you'll never need to worry about your levels. And the Hitmaker Expansion software bundle includes all the tools you need to record, produce and release your tracks.

Two of our most detailed, ultra-low-noise preamps.
Plug into 4i4’s 4th-Generation remote-controlled preamps – Scarlett’s clearest and most detailed ever, with a huge 69dB gain range to get the best from every mic.

Auto Gain and Clip Safe.
Let 4i4 handle your levels.
Auto Gain sets your levels and Clip Safe keeps them in the sweet spot, automatically tweaking the gain if you’re in danger of clipping. You'll never lose a take again.

All the software you need to make a hit record.
Once you’ve got started with Ableton Live Lite or three months of Pro Tools Artist recording software (both included), the Hitmaker Expansion bundle has everything you need to bring big studio sound to your songs, with an unbeatable range of record-making studio tools from the biggest names in the business.

Get big console sound with two re-engineered Air modes.
Presence mode boosts your signal’s high-end, bringing the sound to the front of the mix. Create intimate vocal recordings, capture every detail of acoustic guitars, and hear your drum overheads shimmer.

Harmonic Drive mode boosts mid-range harmonics in your sound, making its unique character shine through the mix. Try it on guitars, vocals, or anything else that needs a little more punch.

All the software you need to make a hit record.
Once you've got started with Ableton Live Lite, three months of Pro Tools Artist, or six months of FL Studio Producer Edition recording software (all included), the Hitmaker Expansion bundle has everything you need to bring big studio sound to your songs, with an unbeatable range of record-making studio tools from the biggest names in the business.

Mix your way with 4i4’s independent outputs.
With 4i4, headphones, monitors, and line outs each get their own mix, so you can create the perfect studio setup for your speakers, the artist's headphones, and your outboard gear.

Huge 120dB dynamic range for incredible recordings.
Scarlett delivers incredible audio quality, with converters direct from our flagship RedNet interfaces — as found in high-end studios around the world.

The best playback you’ve ever heard.
A custom-designed headphone amp design sets the stage for the best playback you've ever heard from a Scarlett interface, driving high-impedance headphones louder and clearer than ever before.

Easy Start
Need help getting set up? Just tell our Easy Start tool what you want to do and we’ll guide you through all the software and setup you need, with recording tips and other helpful content along the way.

Three-year warranty
Millions of musicians rely on Scarlett every day, and we make some of the more dependable interfaces in the business. However, should the unexpected happen, every Focusrite interface comes with three-year warranty – just in case.

Specifications:
Overview

• Number of Microphone Preamps: 2
• Phantom Power: Yes
• Instrument Inputs: 2
• Line Inputs: 4
• Air Mode: Yes
• Auto Gain: Yes
• Clip Safe: Yes
• Line Outputs: 4
• Headphone Outputs: 1
• Loopback: Yes
• MIDI: Yes
• Connectivity: USB Type-C
• Protocol: USB 2.0
• Form Factor: Desktop
• Simultaneous I/O: 6 x 6 (including Loopback inputs)
• A/D Resolution: 24-bit/192 kHz
• Bus Powered: Yes (1.5A)
• Supported sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs

• Frequency Response: 20-20kHz ± 0.06dB
• Dynamic Range: 116dB (A-Weighted)
• THD+N: -100dB @ 8dB gain
• Noise EIN: -127dBu (A-Weighted)
• Maximum Input Level: 16dBu
• Gain Range: 69dB
• Impedance: 3kΩ

Variable Line inputs

• Frequency Response: 20-20kHz ± 0.05dB
• Dynamic Range: 115.5dB (A-Weighted)
• THD+N: -100dB @ 8dB gain
• Maximum Input Level: 22dBu
• Gain Range: 69dB
• Impedance: 60kΩ

Fixed Line inputs

• Frequency Response: 20-20kHz ± 0.02dB
• Dynamic Range: 115.5dB (A-Weighted)
• THD+N: -105dB
• Maximum Input Level: 22dBu
• Impedance: 60kΩ

Instrument inputs

• Frequency Response: 20-20kHz ± 0.15dB
• Dynamic Range: 113dB (A-Weighted)
• THD+N: -80dB @ minimum gain
• Maximum Input Level: 12dBu
• Gain Range: 62dB
• Impedance: 1MΩ

Line outputs (Balanced)

• Frequency Response: 20-20kHz ± 0.02dB
• Dynamic Range: 120dB
• THD+N: -112dB
• Maximum Output Level: 16dBu
• Impedance: 100Ω

Headphone outputs

Frequency Response: 20-20kHz ± 0.1dB @ 33Ω / 300Ω

• Dynamic Range : 112dB @ 33Ω / 115dB @ 300Ω
• THD+N: -99dB @ 33Ω / -108dB @ 300Ω
• Maximum Output Level: 5dBu into 33Ω / 11dBu into 300Ω
• Maximum Output Power: 57mW into 33Ω / 27mW into 300Ω
• Impedance: 11Ω

Analogue to Digital Converter

• THD+N: -110dB
• Dynamic Range: 120dB

Digital to Analogue Converter

• THD+N: -115dB
• Dynamic Range: 130dB (A-Weighted)

Power

• USB: 1.5A
• External (Optional): 7.5W

What’s In The Box

• Scarlett 4i4 4th Gen.
• USB C-C Cable
• USB C-A Adaptor
• USB-C 5V 3A Power supply
