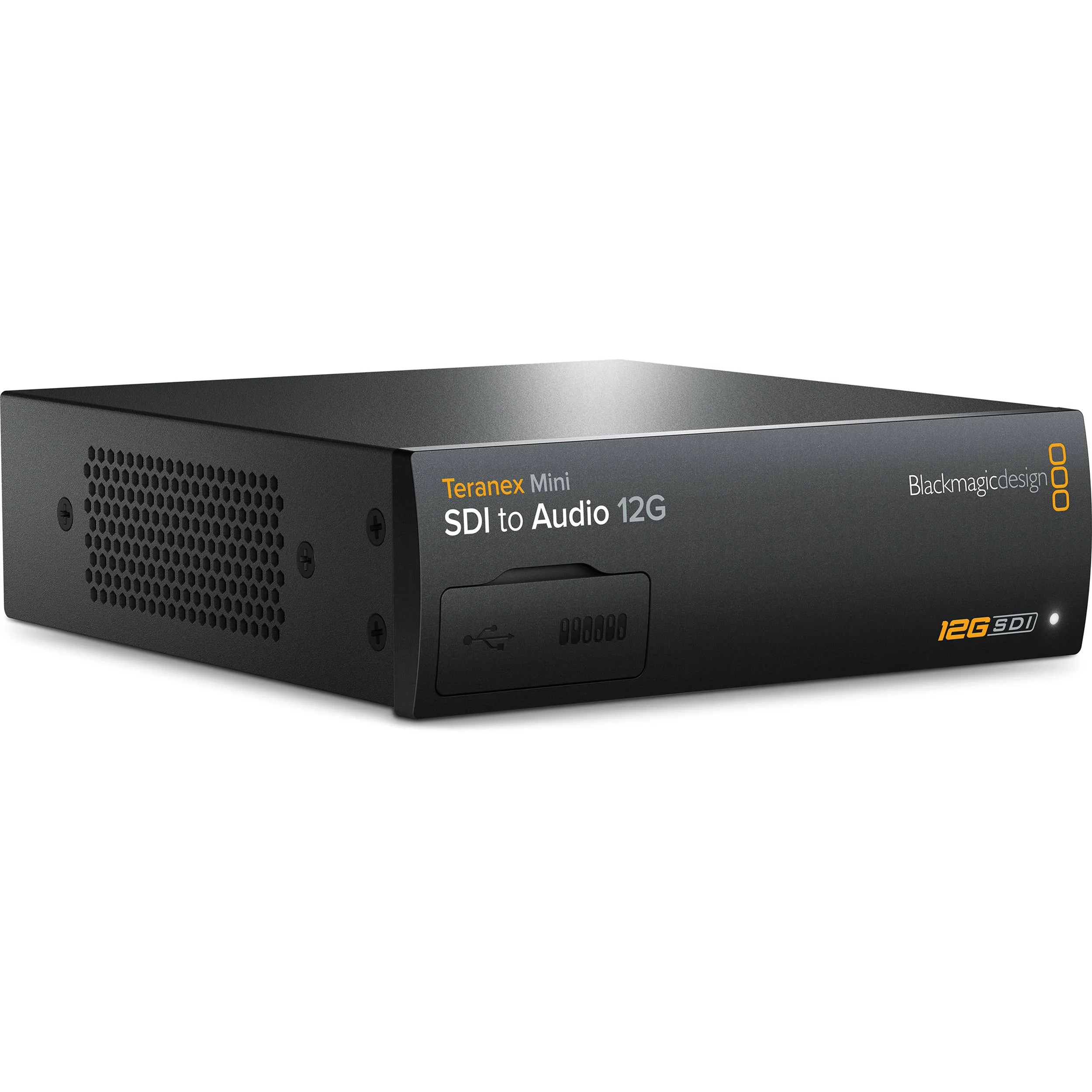

Blackmagic Teranex Mini SDI to Audio 12G

SDI Video Input

1x 12G-SDI SD/HD/2K/4K auto switching

SDI Video Output

1x 12G-SDI output

Analog Audio Output

2 channels professional balanced analog audio via XLR connectors

2 channel unbalanced analog line level via RCA connectors

Right XLR can be configured for timecode output

AES/EBU Audio Output

4 channels professional 110 ohm balanced digital audio via XLR connectors

Right XLR can be configured for timecode output

Optical Audio Output

S/PDIF signal with TOSLINK connector

Multi Rate Support

Automatic switching between SD/HD/2K and 4K

Updates and Configuration

USB or Ethernet

Re-Clocking

Yes

SD Format Support

525/29.97 NTSC, 625/25 PAL

HD Format Support

1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60

2K Format Support

2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25

4K Format Support

3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60

SDI Compliance

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036

SDI Video Rates

SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit

SDI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K

SDI Color Space

REC 601, REC 709

Software Control

Mac OS X and Windows software upgrade via USB and Ethernet

Internal Software Upgrade

Via included updater application

Basic Settings Control

Mini Switches, USB, and Ethernet via free software utility

Power Supply

1x built-in international AC power supply with IEC C14 inlet

IEC power cable required (not included)

90 - 240 VAC input

Power Over Ethernet

Can be powered via 48 VDC using PoE (Power-over-Ethernet)

Power Consumption

15 W

Operational Voltage Range

90 - 240 VAC

Operating Temperature

32 to 104°F (0 to 40°C)

Storage Temperature

-4 to 140°F (-20 to 60°C)

Relative Humidity

0 to 90% non-condensing

Dimensions

W x H x D: 5.5 x 1.8 x 6.7" (14 x 4.6 x 17 cm) (with SDI port included)

Weight

1.3 lb (0.6 kg)
