Features

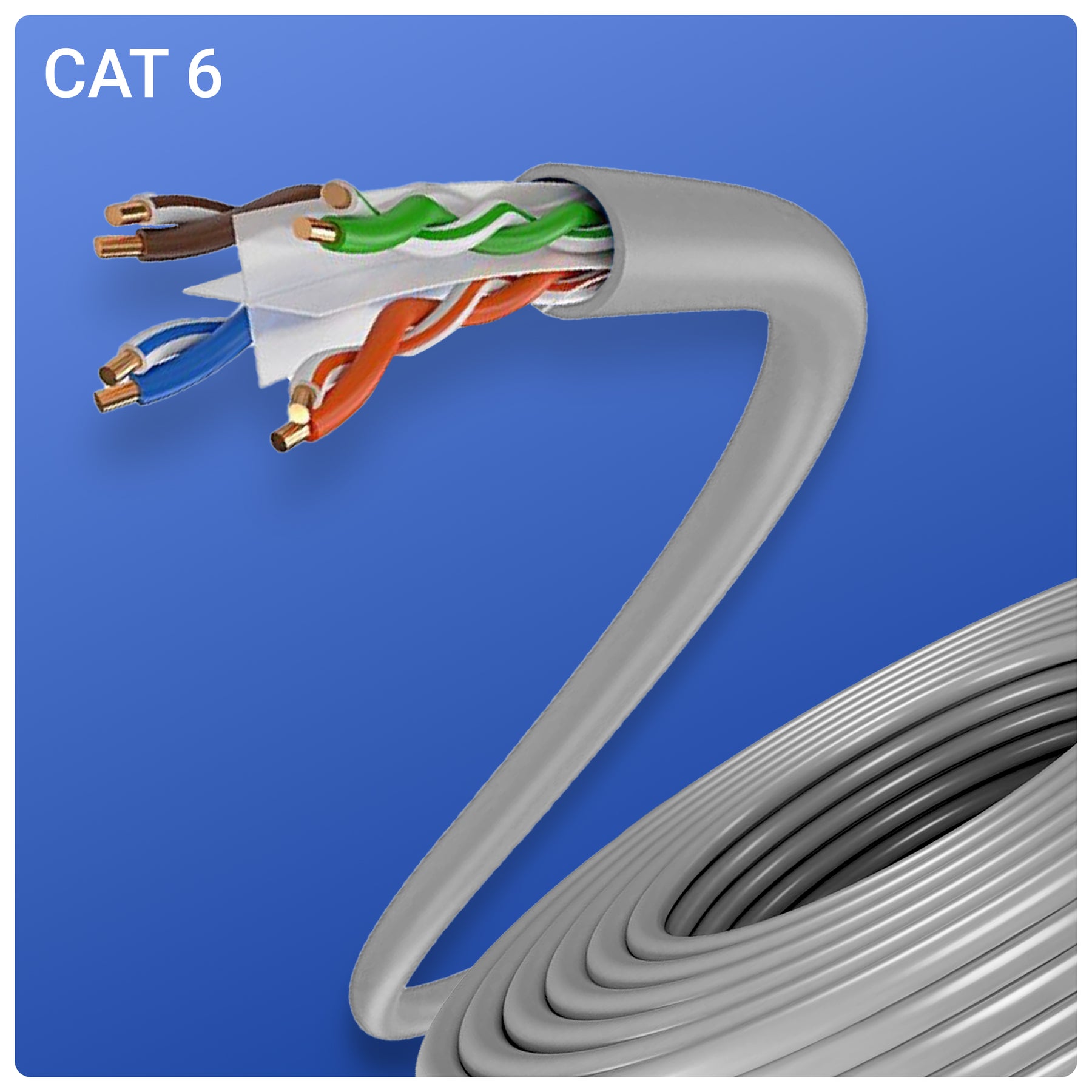

| Β | CAT 6 |

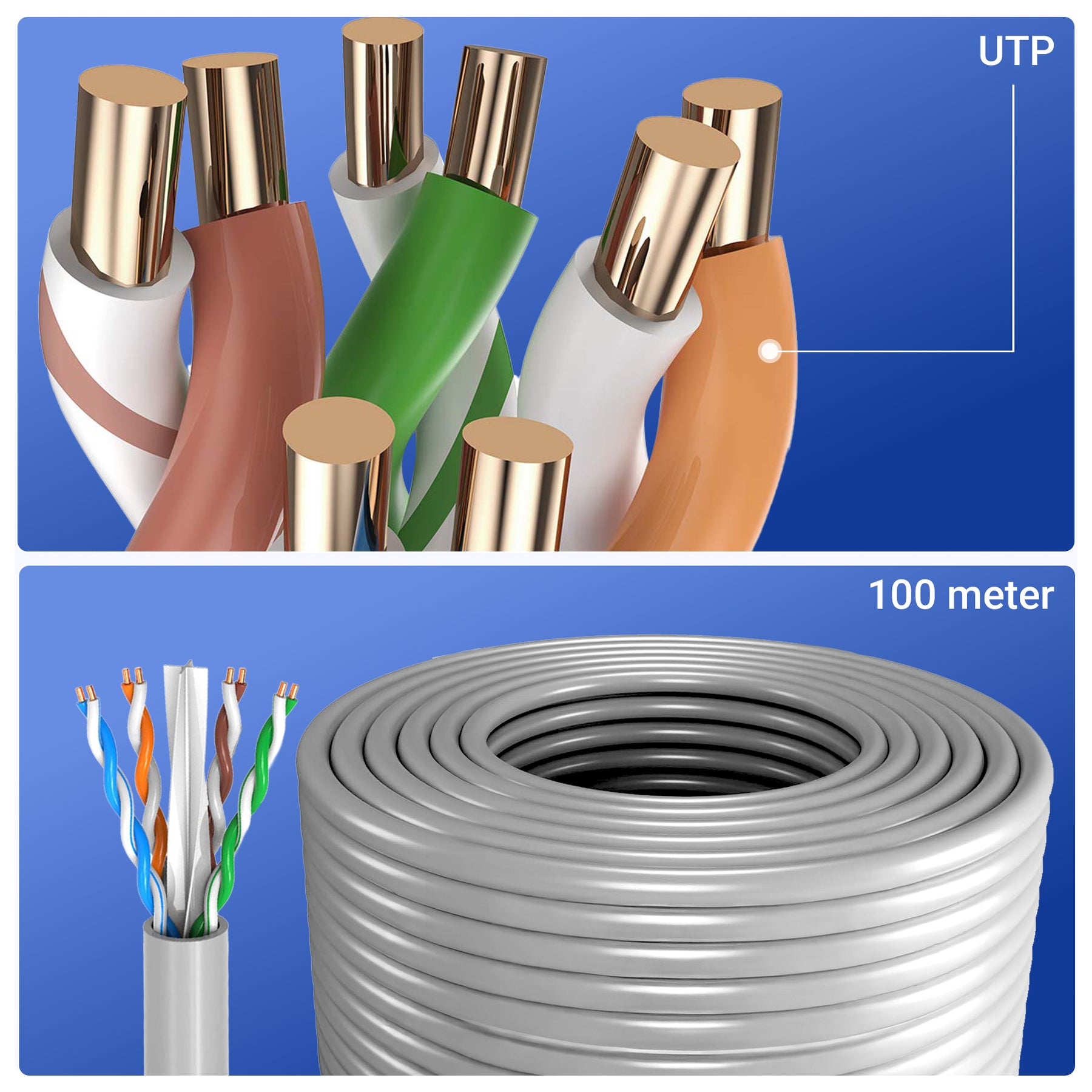

| UTP | |
| 100 meter | |

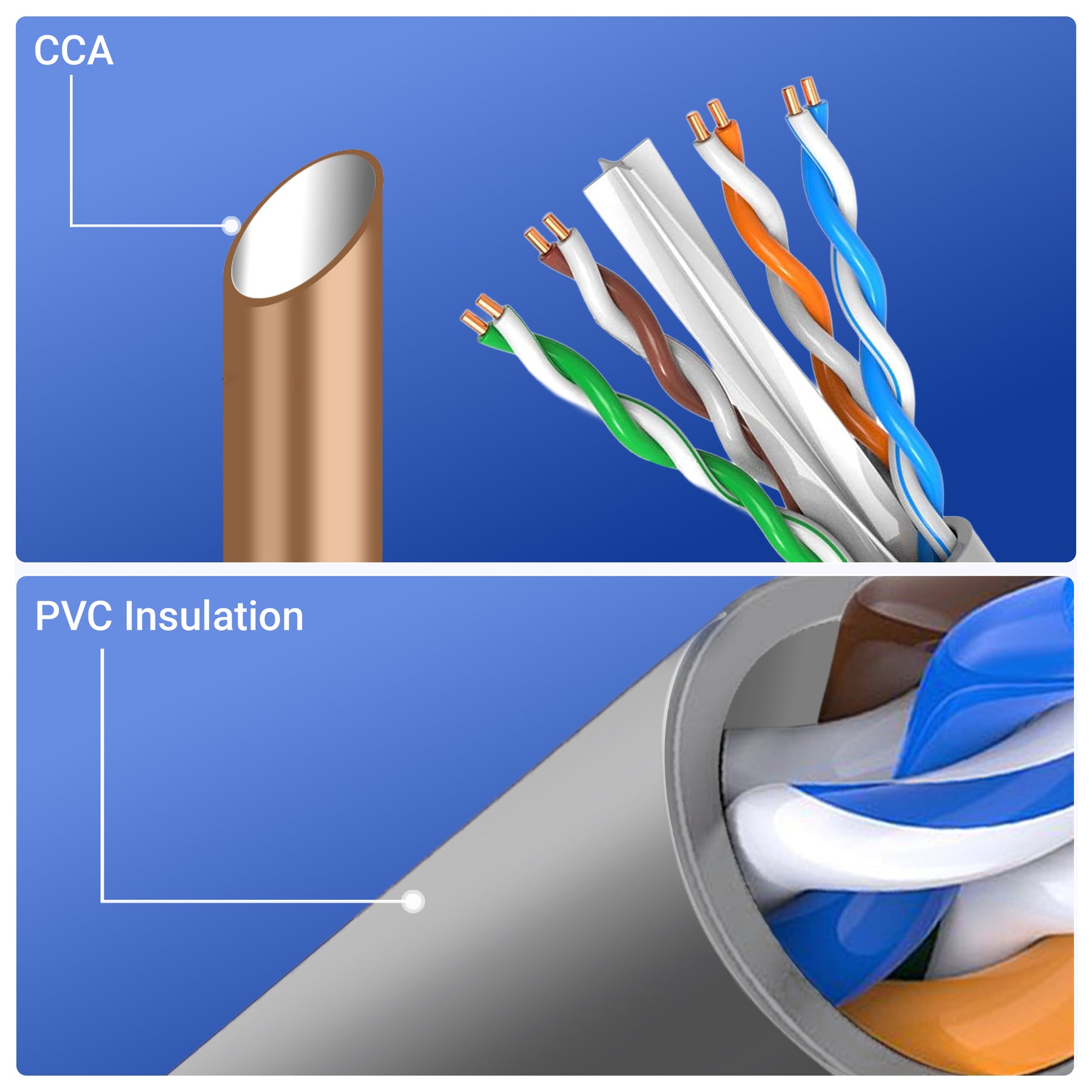

| CCA | |
| PVC Insulation |
Specifications
| Model Name |
ZEB-C4PCAT6CCA-100M1-PRIME | |
| No. of wires |
4 pairs | |
| Cable length |
100 meter | |
| Conductor material |
24 AWG CCA | |
| Construction diameter |
0.50mm | |
| Insulation material |
High Density Polyethylene | |
| Insulation thickness |
0.2mm | |
| Insulation diameter |
0.90mm | |
| Jacket material |
PVC | |
| Jacket thickness |
0.45 mm | |
| Jacket diameter |
5.6mm | |
| Jacket color |
Gray | |
| Separator |
PE Central cross separator | |
| Conductor resistance |
<9.38Ξ©/km at 20Β°C | |
| Weight |
2.50 Kg | |
| Country of Origin |
India | |
| Mechanical Properties | ||
| Operation Temperature |
-10Β°C to +70Β°C | |
| Storage Temperature |
0Β°C to +50Β°C | |
| Bending Radius |
<25.4 mm at -20Β°C to Β±1Β°C | |
| Pulling Force | 11.5 Kgs | |
|
Package contents |
||
| Cable |
100 Meter x 1U |
