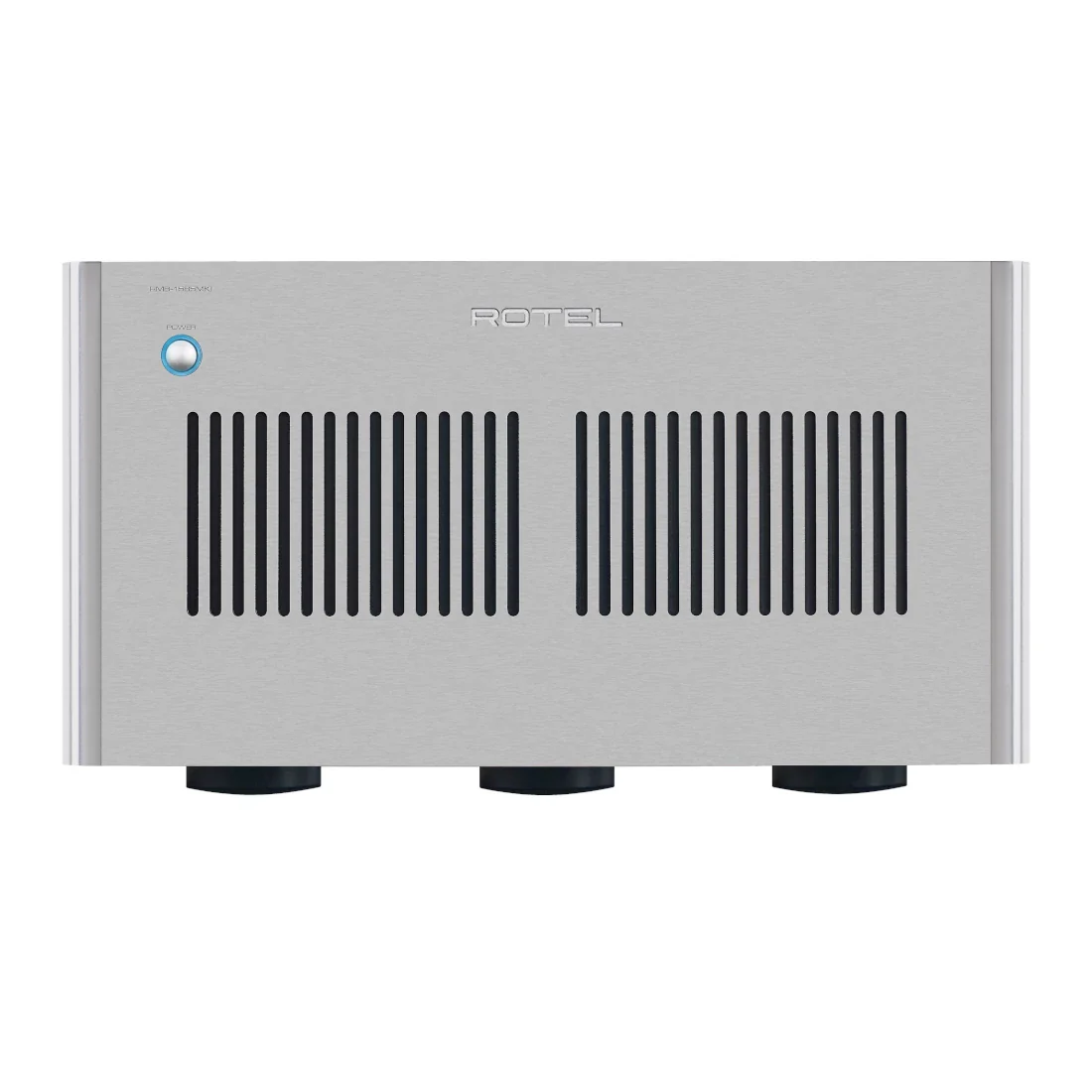

Rotel RMB-1585 MKII 5 channel Power Amplifier
Rotel’s smashing new RMB-1585 MKII 5-channel amplifier continues the heritage of packing a punch with high-powered, perfectionist amplifiers for multi-channel systems. Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages achieving ultra-low distortion, high gain amplification and signal isolation rendering multi-channel audio with ultimate precision and stunning clarity. The RMB-1585 MKII is available in both elegant black and stylish silver colors. It is precision-built for Home Theaters and custom installation. Convenient auto-switching XLR Balanced and RCA inputs ensure compatibility with any AV Processor or Home Theater receiver preamp output, and a 12 V trigger input and output provides simplified power control.
Warranty
2-year manufacturer's warranty
Rotel RMB-1585 MKII Key Features
- 5 x 340 Watts of robust power, 4 Ohms
- Class AB amplifier Design
- Massive power supply using Dual Toroidal Transformers
- High quality slit foil capacitors
- Optional rack ears available
Benefits of Rotel RMB-1585 MKII 5 channel Power Amplifier
Rich, Deep Bass energy with absolute control of Low Frequencies

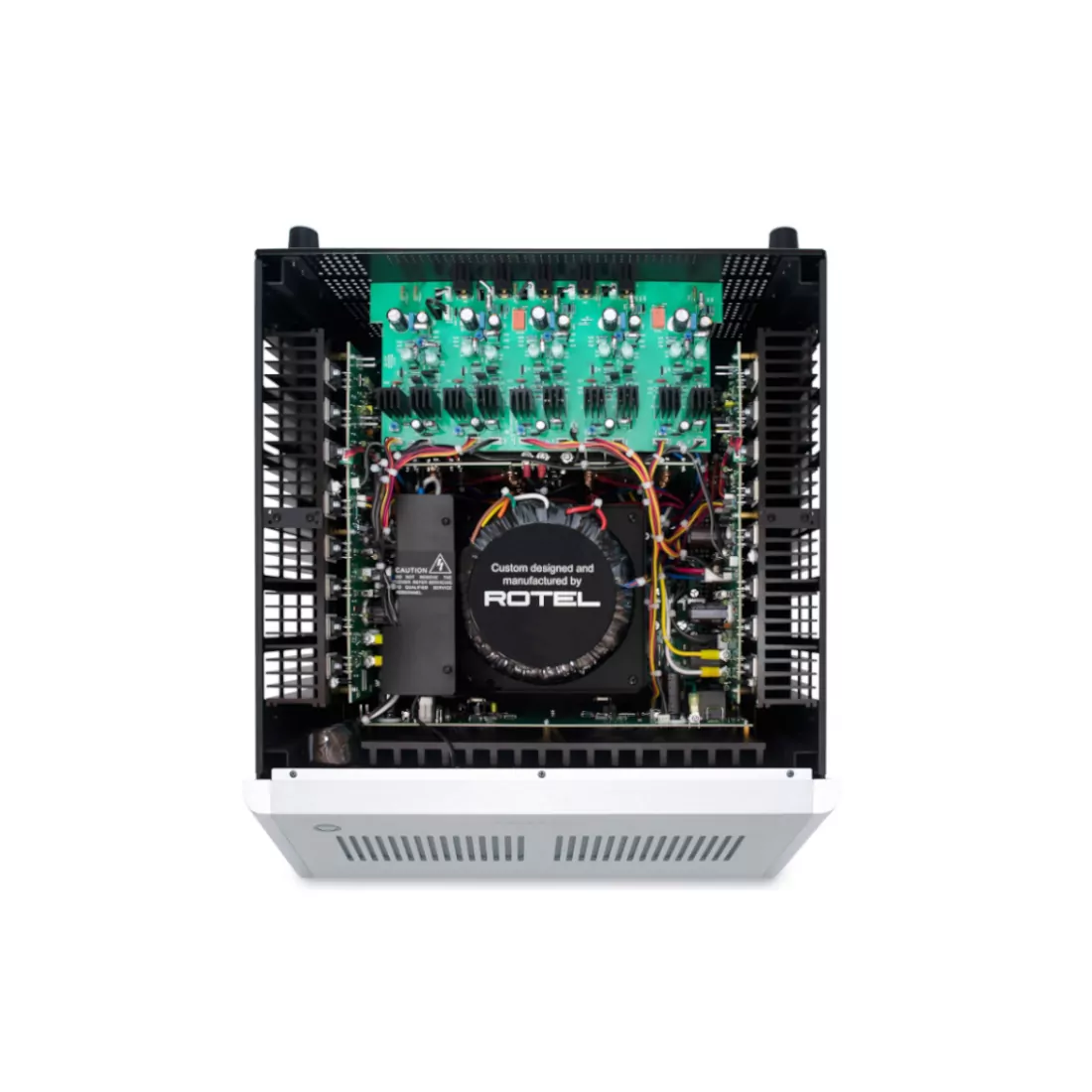

The Class AB RMB-1585 MKII is built around two massive in-house manufactured high-current toroidal transformers designed to supply stable current to an array of 8 high-efficiency energy storage capacitors. This power supply architecture delivers rich, deep bass energy with absolute control of low frequencies even when driving the most demanding loudspeakers. To optimize cooling, the RMB-1585 MKII is equipped
with 4 thermostat-controlled, variable-speed ultra- low-noise fans.
Unique Configuration

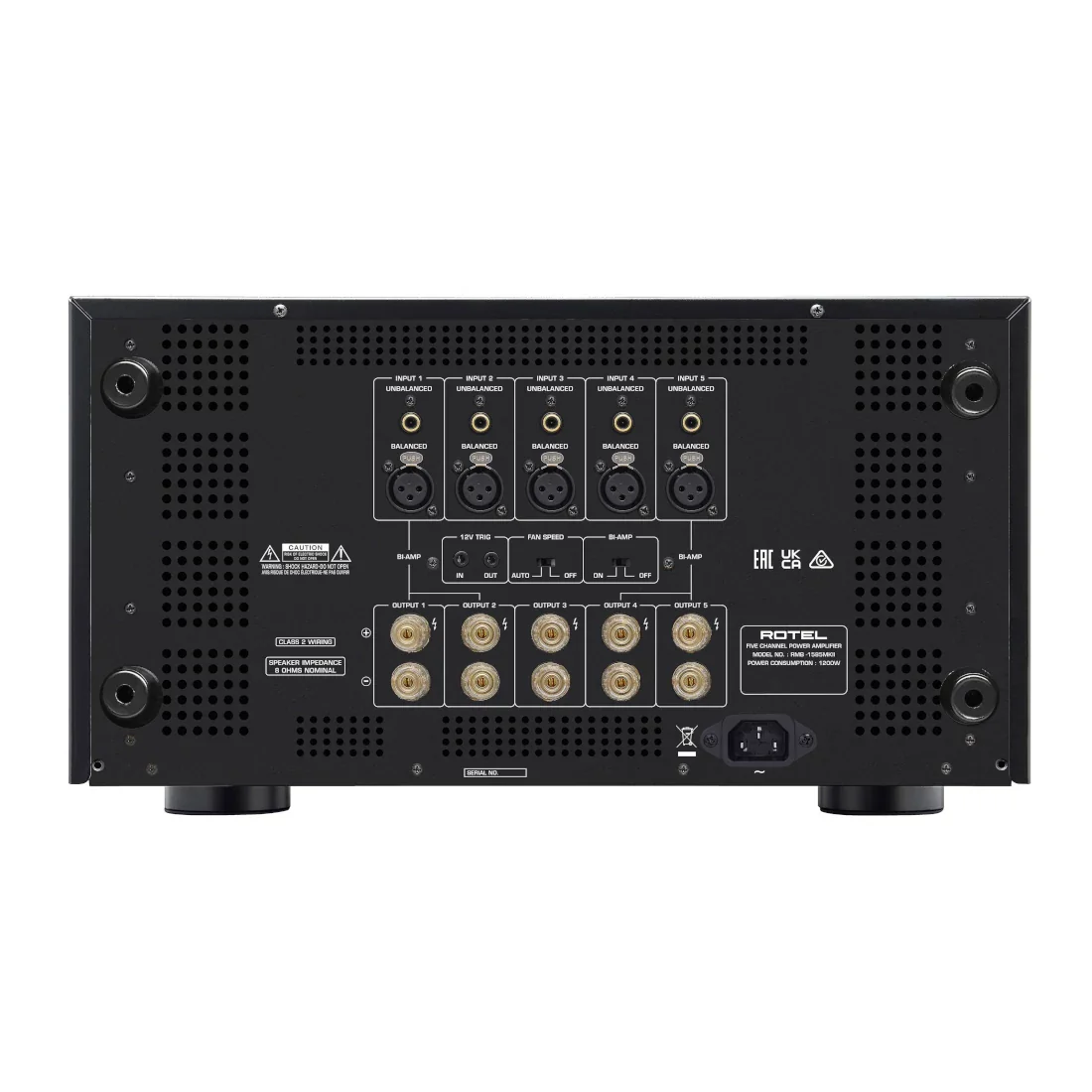

The RMB-1585 MKII features a rear panel switch to select normal 5-channel mode, or Bi-Amp mode. In Bi-Amp mode, Channels 1+2 and Channels 4+5 are wired to receive the same input signal, allowing for simple bi-amplification. This unique configuration allows the use of a separate amplifier channel for the Left and Right channel High Frequency (HF) and Low Frequency (LF) drivers, resulting in improved dynamics, and enhanced resolution from compatible loudspeakers.
Where to buy?
Buy Rotel RMB-1585 MKII 5 channel Power Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai & all across India. Enjoy expert, prompt & courteous customer service from the Ooberpad team. We will help you choose better & give you all the support you need to take the right buying decision in India.
Technical Specifications of Rotel RMB-1585 MKII 5 channel Power Amplifier
| Brand & Model # | Rotel RMB-1585 MKII |
| Power Output |
(5ch driven, 8 Ohms) - 210 Watts / channel
(5ch driven, 4 Ohms) - 340 Watts / channel (2ch driven, 4 Ohms) - 440 Watts / channel |
|
Total Harmonic Distortion (THD)
|
<0.03%
|
| Intermodulation Distortion (60 Hz : 7k Hz, 4:1) | < 0.03% |
| Frequency Response (+0.1 dB, –0.3 dB) |
10Hz - 100kHz
|
|
Damping Factor (1k Hz, 8 Ohms)
|
223
|
| Gain |
26.5dB
|
| Intermodulation Distortion (60Hz:7kHz, 4:1) | <0.03% |
|
Input Impedance/ Sensitivity
|
Unbalanced 12k Ohms / 1.89 Volt
Balanced 50k Ohms / 4.7 Volt |
| Gain |
26.9 dB
|
|
Signal to Noise Ratio (A Weighting)
|
120 dB
|
| Crosstalk/ Separation | > 55 dB |
| Power Requirements |
USA 120 Volts, 60 Hz
Europe 230 Volts, 50 Hz |
|
Power Consumption
|
1200 Watts
|
| BTU (4 Ohms, 1/8 power) |
3317 BTU/h
|
| Dimensions (W x H x D) |
431 x 237 x 456 mm
17 x 9 1/3 x 18 ins. |
|
Front Panel Height
|
5U / 221 mm / 8 3/4 ins.
|
|
Weight (net)
|
37.4 kg / 82 lbs.
|
| Finish | Black and Silver |
