• {122° Ultra Wide-Angle Lens Equipped} Optical wide-angle lens with multi-layer lens, provides you about 122° wide viewing angle and reduces dead ends of surveillance areas.
• {5.0MP Definition Full HD} The 5.0 Mega Pixel (2592 x 1944) High-Definition security camera ensures the more safety of people and homes for 24/7 hours. Everything within 80 feet can be seen even at night. It is equipped with an IR-LED system, automatically activates the infrared mode in low lighting conditions.

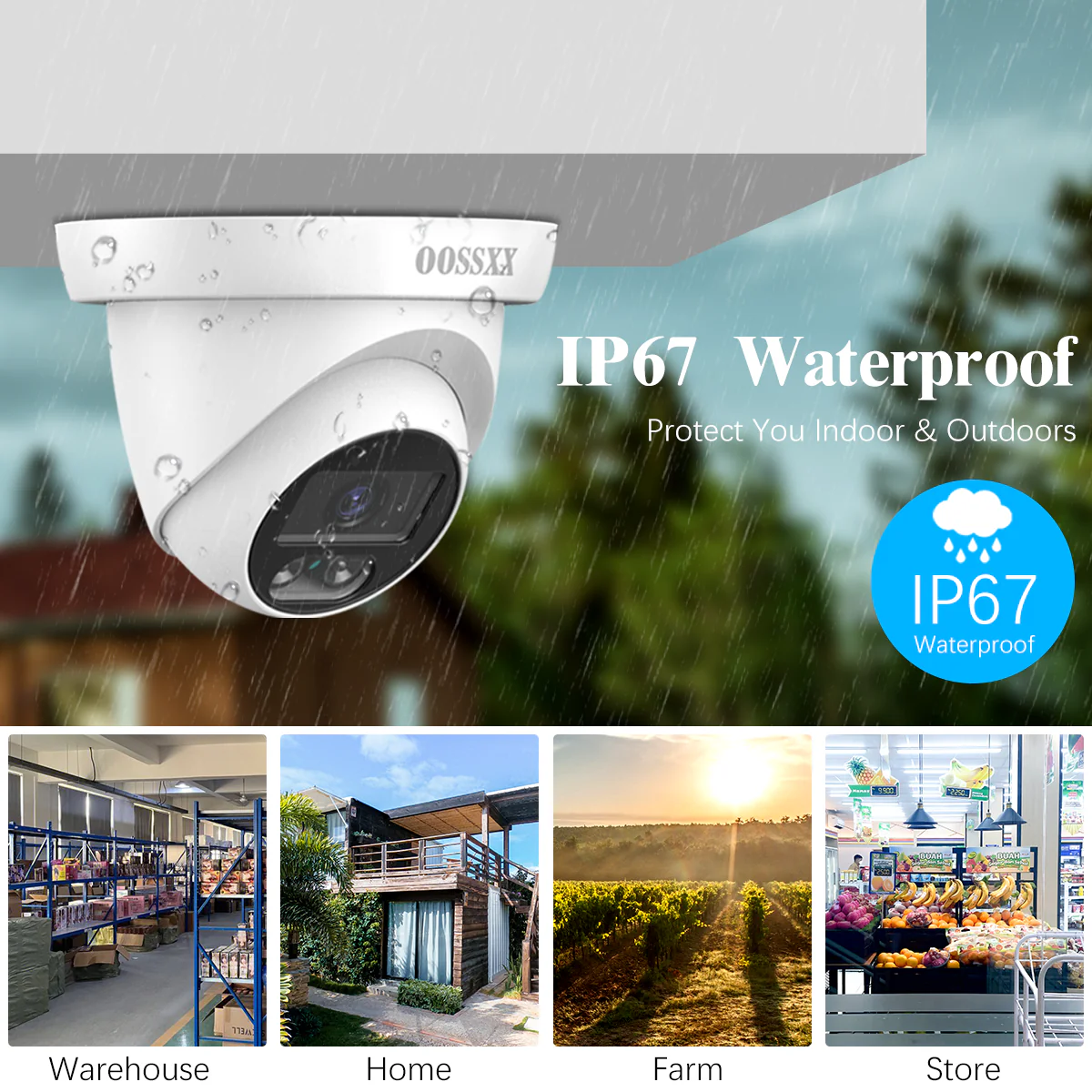

• {IP67 Waterproof Weather Resistance} Designed to withstand harsh weather conditions, the durable security camera system boasts IP67-rated waterproofing, allowing for reliable indoor and outdoor use regardless of the weather. With a top-quality ABS housing, this outside camera is built to endure extreme weather conditions from -40°C/-40°F to 60°C/140°F, ensuring their longevity and reliable performance.

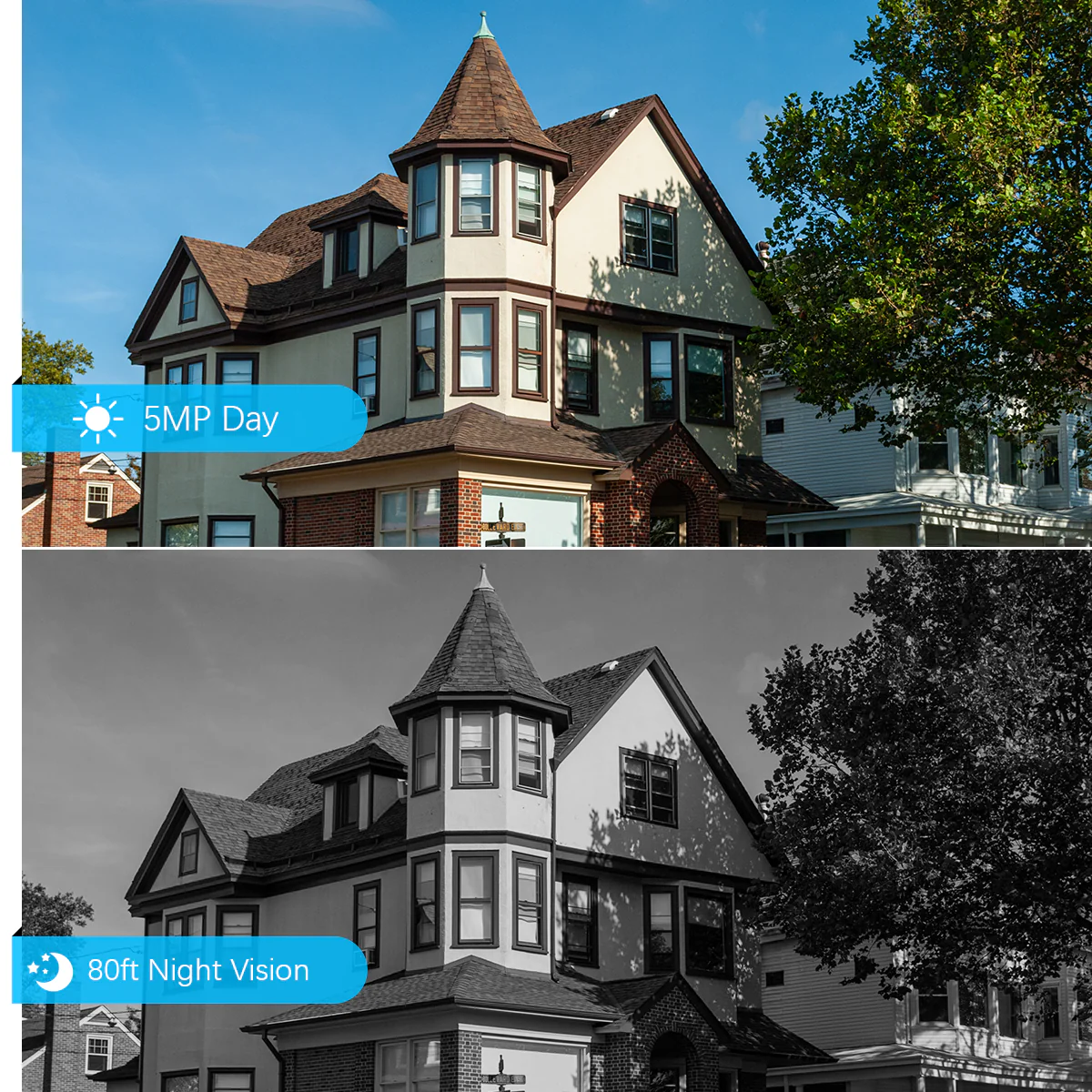

• {Super Night Vision} Embrace a new era of clarity with the OOSSXX outdoor cameras. Equipped with a high-resolution 5MP sensor and an IR cut filter, this security camera deliver unmatched visuals day and night. Enjoy a 80ft night vision range and an expansive 130° viewing angle, ensuring comprehensive coverage around the clock.
• {Free App No Month Fee} Download the "Honestview" app for this outdoor security camera from your device's app store to enjoy remote video access. Playback significant footage easily by searching through different days, hours, or minutes. with internet connectivity on this home camera system, you can view live videos from anywhere on your smartphone, tablet, or PC, ensuring you stay always connected.


Product Description

Remote Connectivity

• Stay connected and in control with remote access to your surveillance feed. Whether you're at home or away, you can easily view your camera's live feed, ensuring you're always aware of your surroundings.



DVR Specifications:

Network Video/Audio Recorder: 8/16-Channel (Support SATA 2.5'' or 3.5'' )
USB Port: 2 x USB 2.0
Synchronous Playback: 4 Channels at the Same Time
Video Resolution: 5.0Megapixel (2592×1944)
Remote Access: iPhone/Android Phone App, Windows/Mac PC, IE
Remote Control: Remote & APP
APP Client: Honestview
Support Audio Recording: Yes
Power Supply: Input AC110～230V
Video Compression Format: H.265+

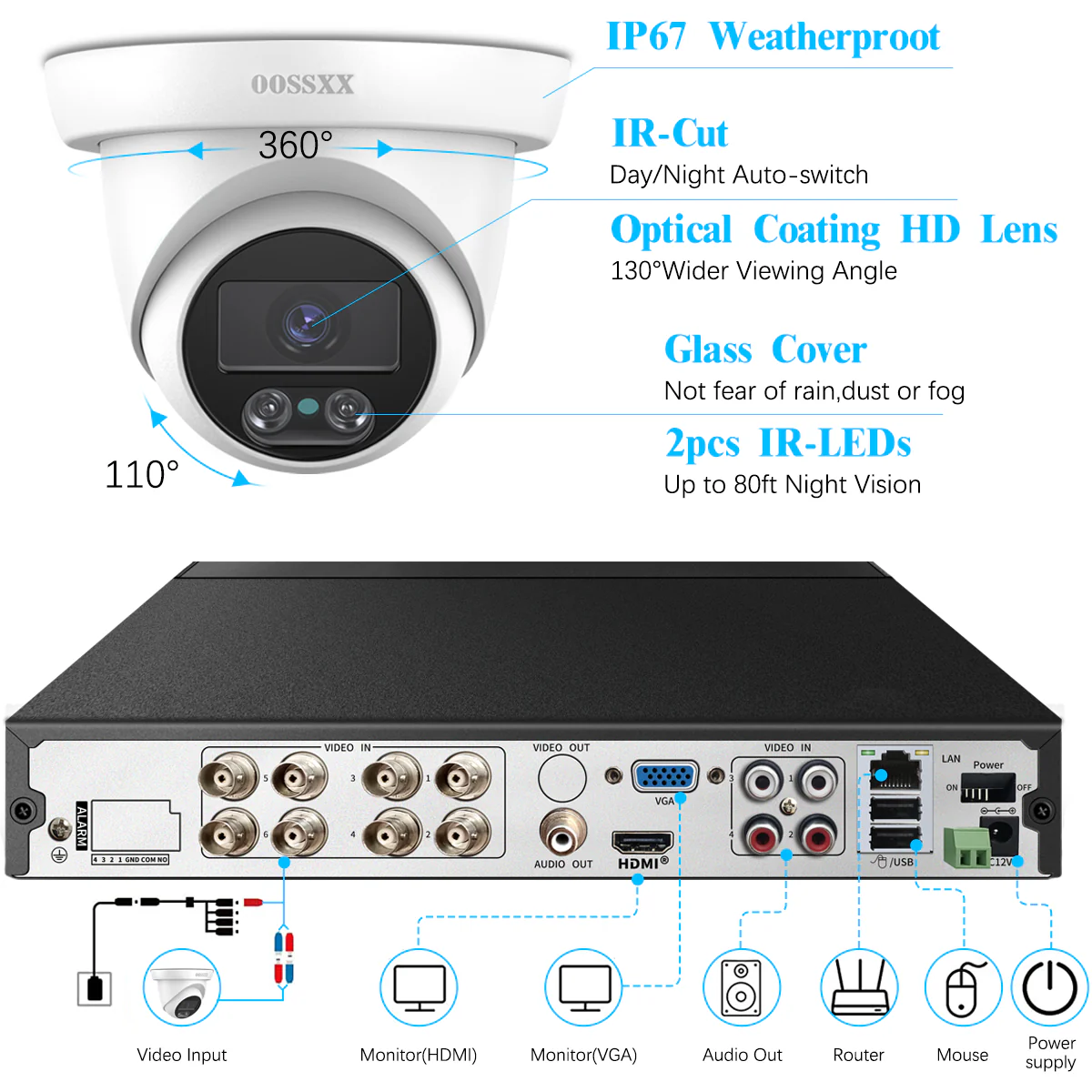

Camera Specifications：

Lens: Optical Coating Lens
Viewing Angle: 130°
Shell Material: ABS
Frame Rate: up to 15fps
Image Sensor: 1/2.8" CMOS Sensor
Video Resolution: 5.0Megapixel (2592×1944)
Signal Protocol: HD-AHD Analog
Weatherproof: Yes. IP67
Night Vision: 845nm 2 Array Infrared LED Super Night Vision
Zoom: Digital Zoom 5X Max

Elevated Weather Endurance

---

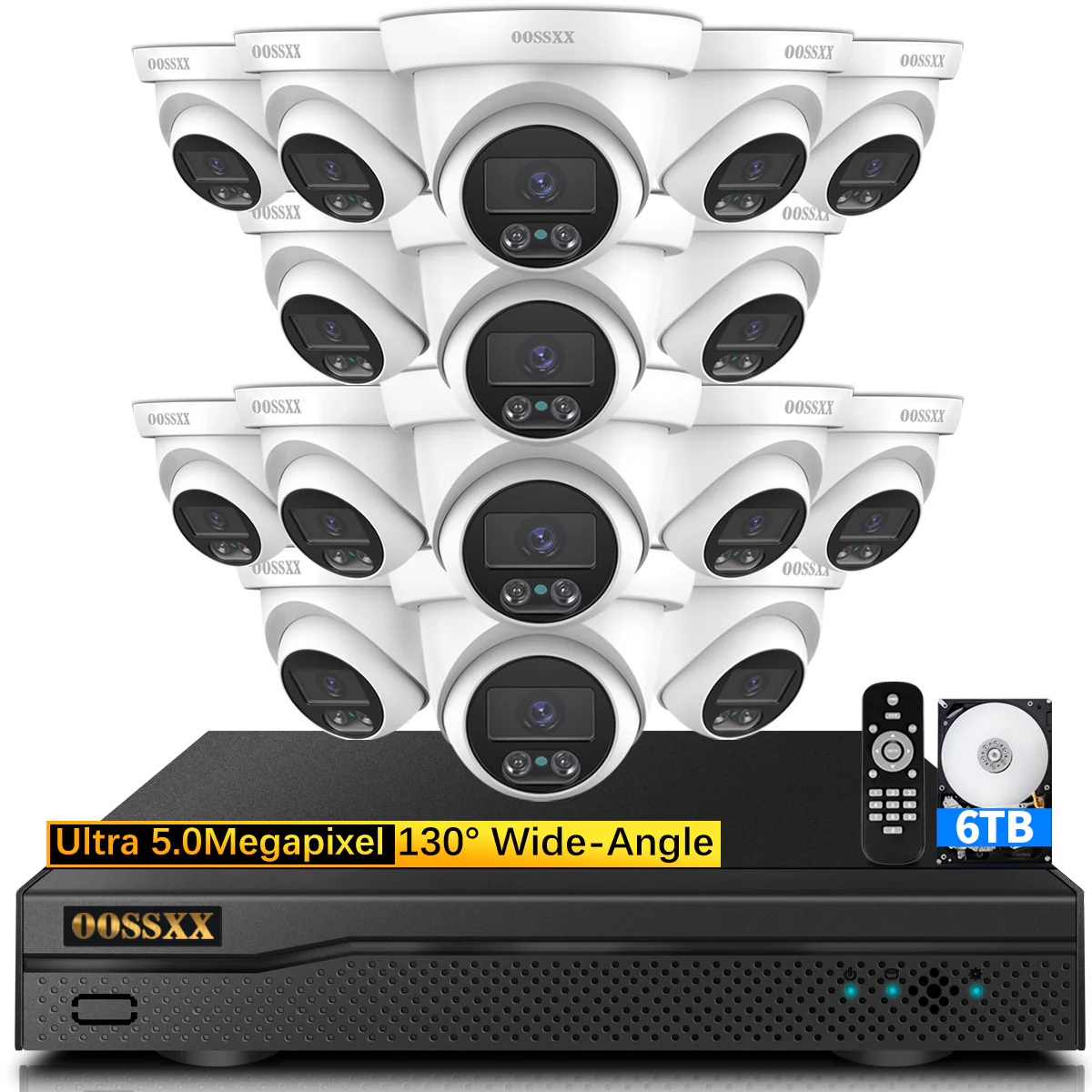

What's in the box

HD-Analog Camera X 16

HD-Analog 16 Recorder X 1

DVR Power Supply DC 12V2A X 1

2-in-1 Cable for Cameras 18.2 Meters (60ft) X 16

Network Cable 3 Feet X 1

Camera Power Supply DC12V2A X 4

Camera Screw Pack X 16

1-to-4 Cameras Power Separation Cable X 4

Hard Drive(Pre-Install,If You Purchase Kit with Hard Drive) X 1

HDMI Cable X 1

USB Mouse X 1

Manual X 1

Sticker X 4

Remote X 1
