Key Features:

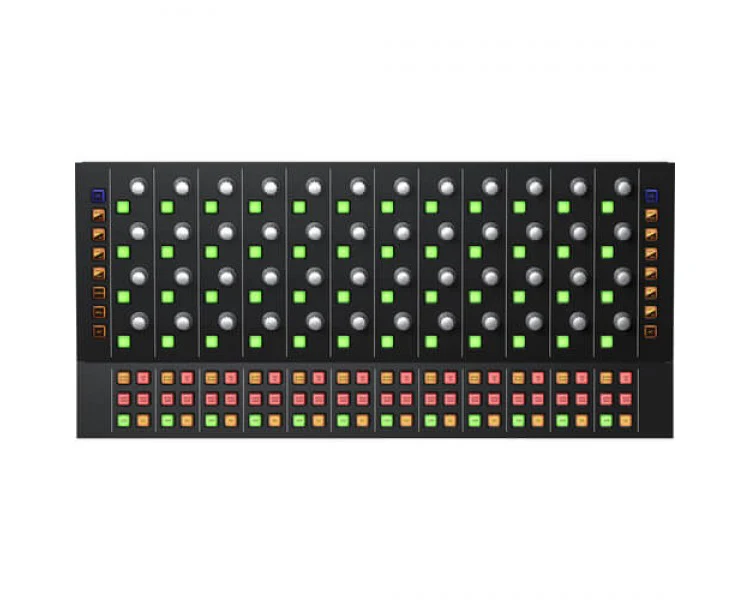

Expand hands-on control of your DaVinci Resolve 17 system with theΒ Blackmagic Design Fairlight Console Channel Control, a modular control surface designed to work in tandem with a Fairlight Console Channel Fader (available separately) to provide 12 groups of touch-sensitive knobs and illuminated buttons that can be used to manipulate individual channels, all parameters of a single track, or parameters of the master buses.
The in-line channel mode configures the controls into 12 traditional channels, an ideal way to operate live recording sessions. Single channel mode is optimal for intense channel-by-channel mixing as it utilizes all 12 groups of controls to access up to 192 parameters for a selected track. Switch to the master channel mode when mixing and mastering soundtracks; the 12 groups of controls are assigned to the master buses and organized in order of processing.
Hands-On Workflow
In-Line Channel Control Mode
Single Channel Control Mode
Master Channel Control Mode
Easy Connectivity
Convenient Software Upgrades
Internal Power Supply
|
OS Compatibility |
macOS 10.15 or Later Windows 10 (64-Bit) |
|
Knobs |
48 x Touch-Sensitive Control Knobs (4 per Channel) |
|
Ports |
1 x RJ45 Ethernet (10/100/1000 Base-T) 1 x USB Type-C (Software Configuration and Software Updates) |
|
Power Supply |
Internal: 100 to 240 VAC at 50/60 Hz, IEC C14 Mains Input |
|
Power Usage |
20 W Maximum |
|
Operating Temperature |
32 to 104Β°F / 0 to 40Β°C |
|
Storage Temperature |
-4 to 140Β°F / -20 to 60Β°C |
|
Relative Humidity |
0 to 90% Noncondensing |
|
Dimensions (W x D x H) |
19.3 x 9 x 2.6" / 49 x 22.9 x 6.7 cm |
|
Weight |
11.5 lb / 5.2 kg |
In the Box:
