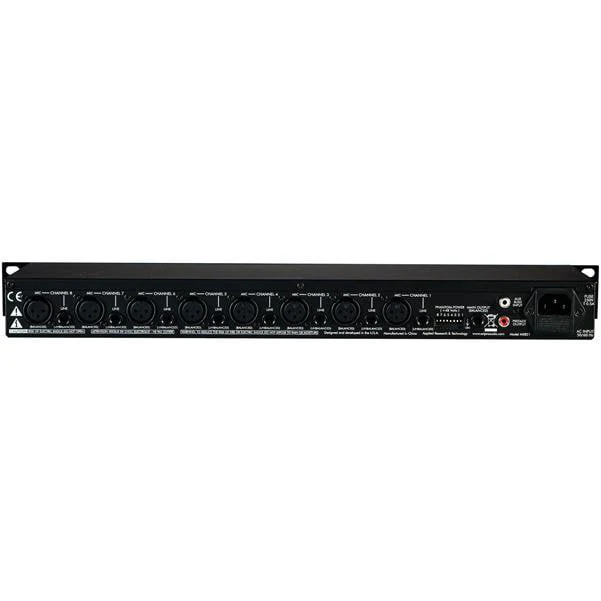

ART MX821 8 Channel Mic-Line Mixer with Tone

ART MX821 8 Channel Mic-Line Mixer with Tone Overview:

The ART MX821 is a versatile rack mount mixer combining eight independent input channels into a single mono line level mixed output.

Essential features include: XLR mic and 1/4-inch line inputs, individual level and tone controls, switch-selectable +48 Volt phantom power on each channel. Main output is balanced low impedance. An additional pre-fade output and auxiliary buss input jacks allow patching multiple MX821''s together when more channels are needed.

Built in power supply and single high 19-inch rack mount format allows for easy installation and reliable long term operation.

Features:

• Eight Independent Input Channels
• Level and Tone Controls on each Channel
• Balanced XLR and 1/4-inch Unbalanced Line Inputs on each Channel
• 48 Volt Phantom Power on XLR inputs with DIP Switch for each Channel
• Balanced TRS 1/4-inch Main Output Jack with Master Level Control
• RCA-type Pre-Fade Output (Not Affected by Master Level Control)
• RCA-type Aux Buss Input Jack for Channel Expansion
• Solid Single High Rack Mount Chassis with Built In Power Supply

Specifications:

• Input Connections: XLR-F balanced (8), 1/4-inch unbalanced (8), RCA (1)
• Output Connections: 1/4-inch balanced TRS (1), RCA (1)
• Input Impedance: 2K Ohms Mic, 20K Ohms Line, 10K Ohms Aux. Bus In
• Output Impedance: 200 Ohms balanced Main Out, 100 Ohms Pre-Fade Out
• Maximum Input Level: -6dBu Mic, +18dBu Line
• Maximum Output Level: +27dBu balanced, +21dBu unbalanced
• Phantom Power: +48 Volts DC (regulated/low noise)
• Maximum Gain: 65dB/39dB mic/line
• Signal to Noise Ratio: >90dB typical
• THD: <0.01% typical
• Equivalent Input Noise -108dBu typical
• CMRR: >52dB typical
• Phase Shift: <10 degrees, 20Hz - 20kHz
• Power Requirements: 120VAC / 50-60Hz, or 230VAC / 50 Hz, 15VA
• Dimensions: (HxWxD in) 1.75 x 19 x 6
• Dimensions: (HxWxD mm) 44.5 x 483 x 152
• Weight: 6.3 lbs. (2.9kg)
