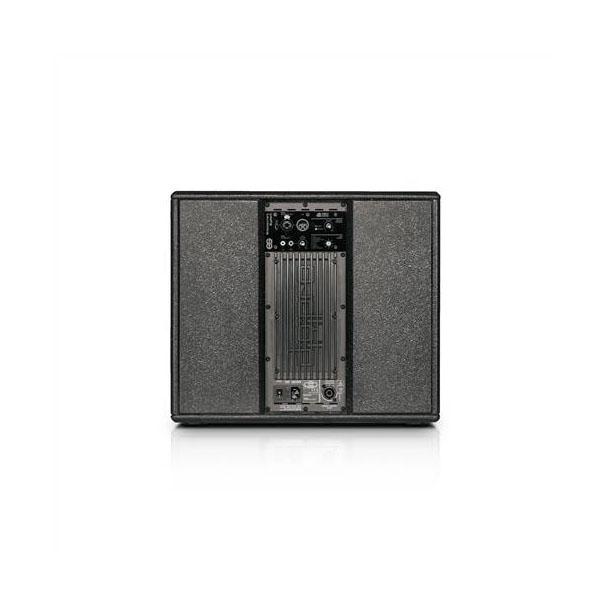

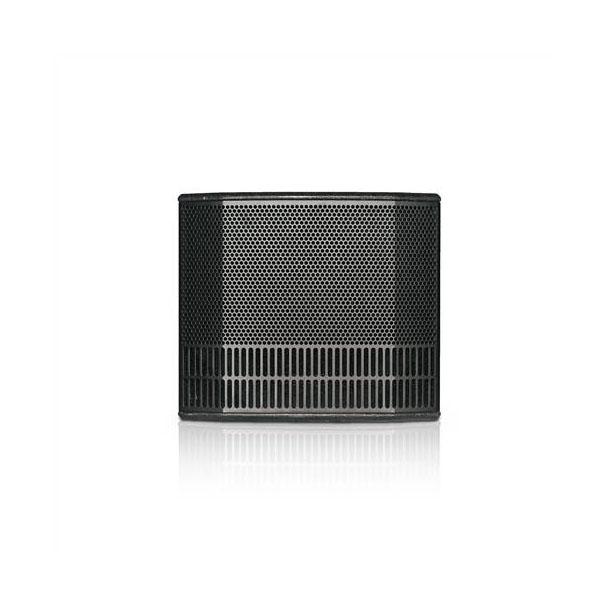

DB Technologies ES 802 Column PA System

Overview:

ES802 is a portable biamped sound system composed by two passive tops and one 12” subwoofer. The sub hosts a 1200 W peak power amp module with auto-range PSU. A powerful DSP manages the coverage and all the other functions of the system, making the ES802 a real gem in terms of sound performance and versatility.

Specifications:

Acoustical data
Frequency Response [-10dB]37-15.000 Hz
Max SPL : 124 dB
MF - HF : 8x 3"
Type MF - HF : Neodymium
LF : 12"
Directivity : 95x65°

Amplifier
Amp Technology : Digipro G3
Amp Class : Class-D
Power Amp Peak : 1200 W

Processor
Controller : DSP 24 Bit/48 kHz
System Presets : Factory presets
Limiter : Dual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF : 206 Hz

Input
Mic/Instrument Channel : 1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input
Link Output : 1x XLR balanced output

Mechanics
Housing (Subwoofer) : 15mm Black Painted Plywood
Housing (Tops) : Polypropylene PP
Handles : 2x lateral side (Subwoofer)
Width (Top) : 95 mm (3.74 in)
Height (Top) : 360 mm (13.98 in)
Depth (Top) : 137 mm (5.39 in)
Width (Subwoofer) : 465 mm (18.3 in)
Height (Subwoofer) : 400 mm (15.7 in)
Depth (Subwoofer) : 430 mm (16.9 in)
Weight (Top) : 1.9Kg – 4.19lbs
Weight (Subwoofer) : 16.4Kg – 36.16lbs

Features:

• Bi-Amped Mono Column PA System
• 2 Passive Tops (8x3" HF) + 1 Active Sub (12")
• 1200W Peak Power
• 124 dB Max SPL
• Extended & Coherent Coverage
• Easy & Fast Pug&Play Set up
• 8 Preset EQ
