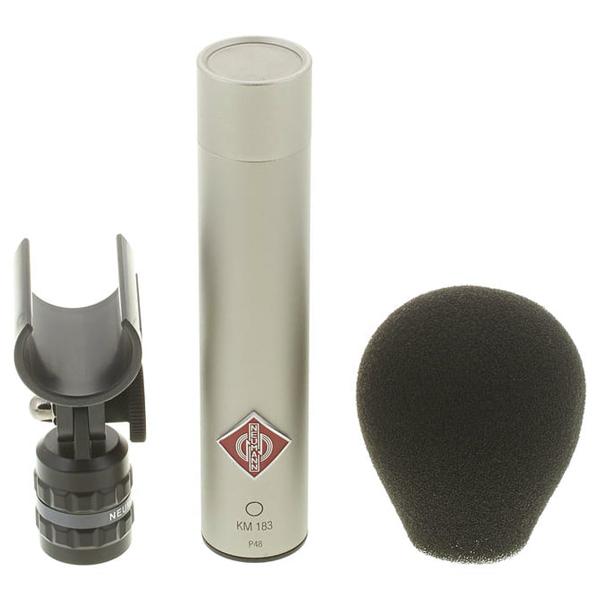

Neumann KM183 Small Diaphragm Omnidirectional Condenser Microphone - Nickel

Neumann KM183 Small Diaphragm Omnidirectional Condenser Microphone - Nickel Overview:

The KM 183 is a pressure transducer with a boost of approximately 7 dB at 10 kHz in the free field. In the diffuse sound field it has a flat frequency response.

Electrical features
The "Series 180" microphones have the same transformerless circuitry as is used in the KM 100 system.

The output of the "Series 180", as in all Neumann microphones, is balanced and phantom (48V) powered.

Economy
The "Series 180" is a good choice for all users who look for a high-quality miniature microphone, but do not need the complex, modular KM 100 system, which continues to be part of the Neumann product range.

The mechanical construction was simplified, for example, capsule and output stage cannot be separated from each other. For this reason the "Series 180" is an economical alternative without giving up the electroacoustic features the users expect from Neumann microphones.

Features:

• Miniature microphone for all typical studio applications
• Successor of the worldwide successful KM 83
• Transformerless circuitry

Specifications:

• Acoustical operating principle: Pressure
• Directional pattern: omnidirectional
• Frequency range: 20 Hz ... 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 12 mV/Pa
• Rated impedance: 50 ohms
• Rated load impedance: 1 kohms
• Equivalent noise level, CCIR1): 24 dB
• Equivalent noise level, A-weighted1): 13 dB-A
• Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 70 dB
• Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 81 dB
• Maximum SPL for THD 0.5%2): 140 dB
• Maximum output voltage: 10 dBu
• Supply voltage (P48, IEC 61938): 48 V ± 4 V
• Current consumption (P48, IEC 61938): 3.2 mA
• Matching connectors: XLR 3F
• Weight: approx. 80 g
• Diameter: 22 mm
• Length: 107 mm

Made in Germany
