Features
| Galvanic isolation design to withstand all kinds of load | |
| Fully coating PCBAs to withstand harsh environment | |
| Unique ventilation design for effective heat dissipation | |
| Wide input voltage and frequency range to withstand robust environment | |
| High short-circuit and overload capabilities | |
| Built-in Maintenance bypass switch | |
| Country of Origin : China |
Specifications

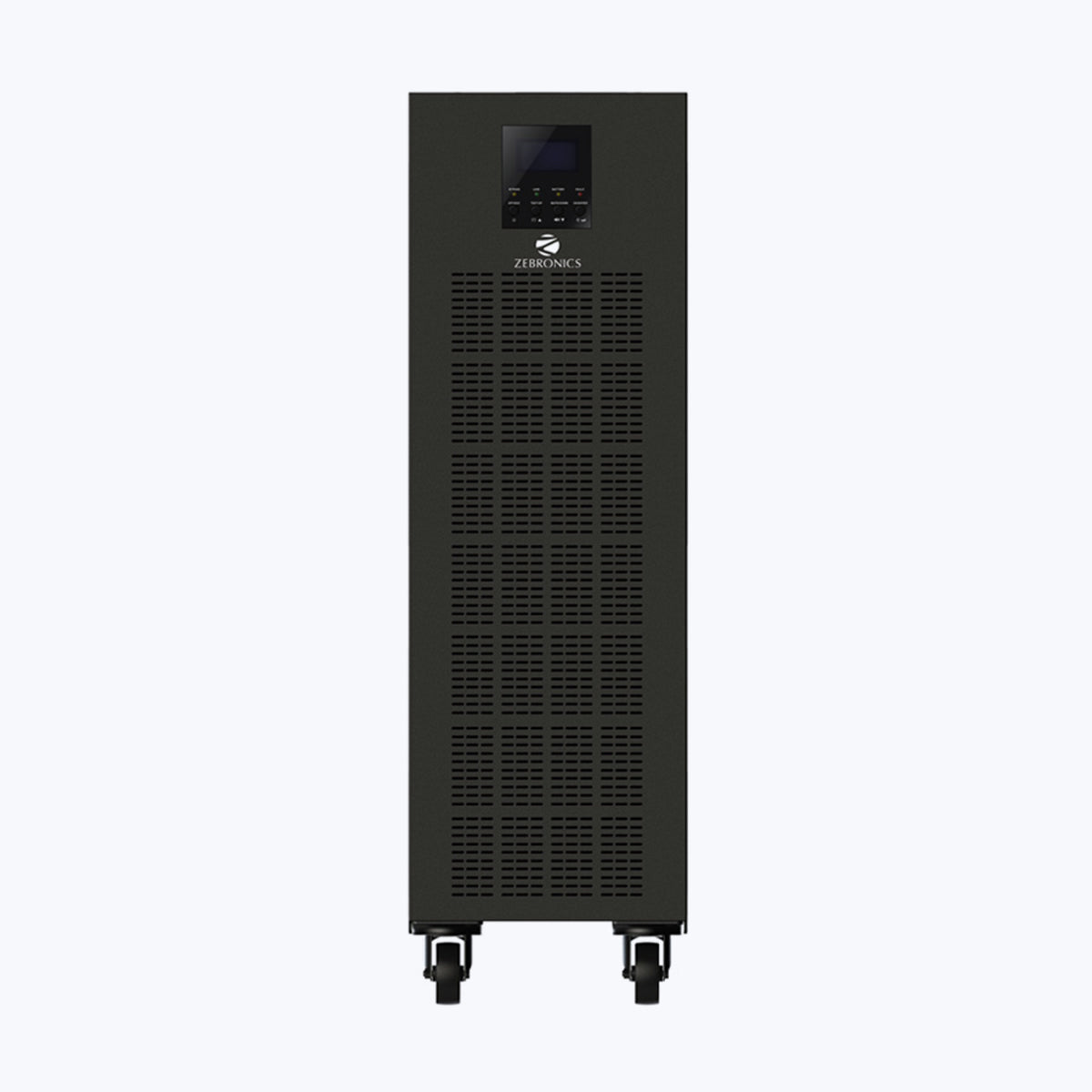

| MODEL | ZEB-OU10KETX16 | |
| PHASE | Single phase with ground | |
| CAPACITY | 10KVA / 8KW | |
| INPUT | ||
| Nominal Voltage | 208VAC/220VAC/230VAC | |
| Voltage Range | 165VAC ~ 285VAC @ 16 pcs of batteries ; 185VAC ~ 285VAC @ 18 pcs of batteries | |
| Frequency | 40 Hz ~ 55 Hz @ 50Hz system ; 56 Hz ~ 64 Hz @ 60Hz system | |
| OUTPUT | ||
| Output Voltage | 208VAC/220VAC/230VAC | |
| Voltage Regulation | ± 1% | |
| Frequency Range (Synchronized Range) | 45Hz ~ 55 Hz or 56 Hz ~ 64 Hz | |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz | |
| Current Crest Ratio | 3:1 | |
| Harmonic Distortion | ≦ 3 % THD (Linear Load) ; ≦ 5 % THD (Non-linear Load) | |
| Transfer Time \ |
AC to DC : Zero \ Inverter to Bypass : Zero |
|
| Waveform (Batt. Mode) | Pure Sinewave | |
| EFFICIENCY | ||
| AC Mode | 88.30% | |
| Battery Mode | 92% | |
| BATTERY | ||
| Long-run Model | ||
| Battery Type | Depending on the applications | |
| Battery Numbers** | 16 pcs, 18 pcs | |
| Charging Current (max.) | Default 8A, 2A/4A/8A (adjustable) | |
| Charging Voltage | 218.4 V ± 1%, 245.7 V ± 1% | |
| INDICATORS | ||
| LCD | Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators | |
| ALARM | ||
| Battery Mode | Sounding every 4 seconds | |
| Low Battery | Sounding every second | |
| Overload | Sounding twice every second | |
| Fault | Continously sounding | |
| PHYSICAL | ||
| Long-run Model | ||
| Dimensions, D x W x H (mm) | 562 x 250 x 830 | |
| Net Weight (Kgs) | 86 | |
| ENVIRONMENT | ||
| Operating Temperature | 447 | |
| Operating Humidity | < 95 % and non-condensing | |
| Noise Level | Less than 60dBA @ 1 Meter | |
| MANAGEMENT | ||
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC | |
| Dry Contact | Five signals: AC failure, low battery, UPS alarm, bypass and UPS fault | |
| Optional SNMP | Power management from SNMP manager and web browser | |
