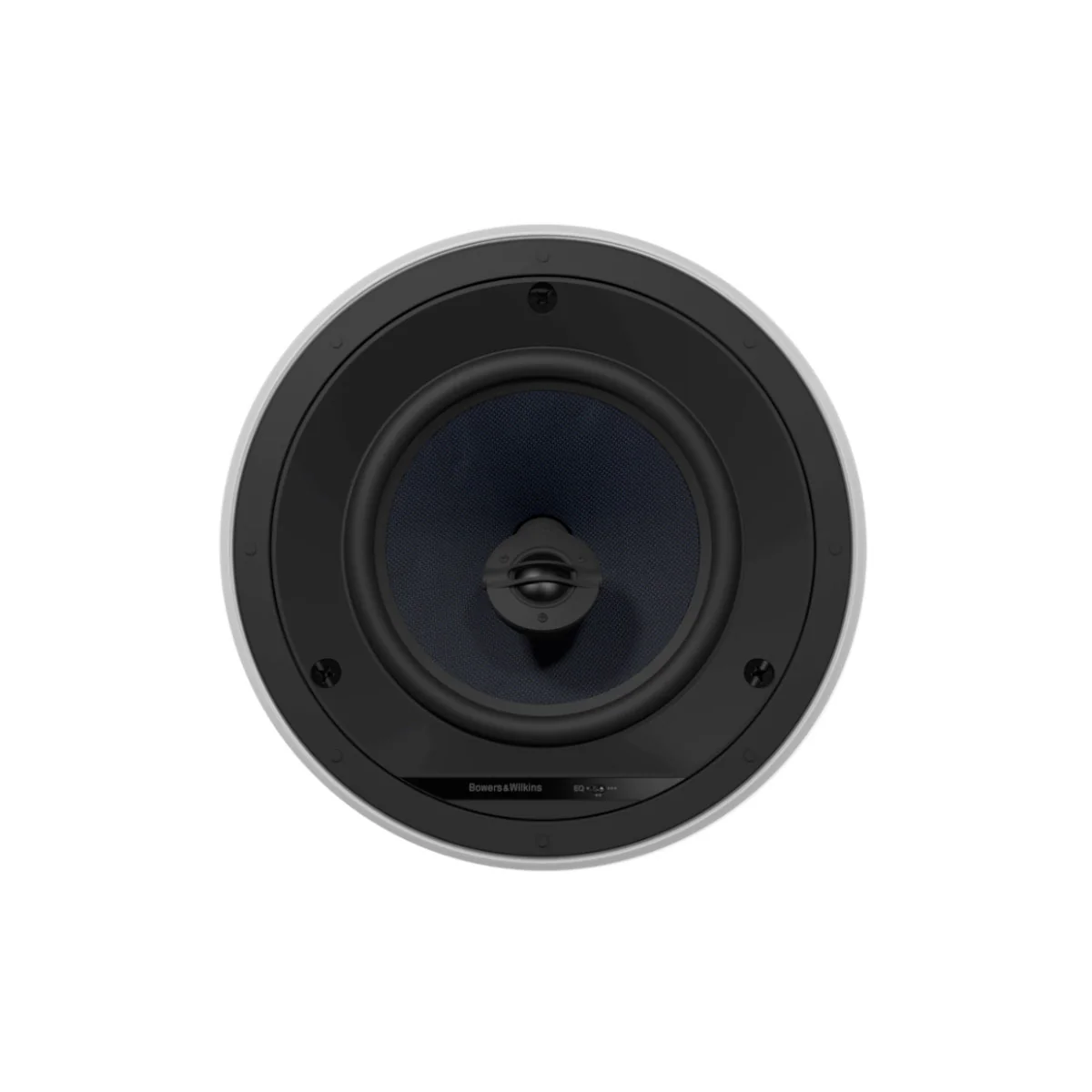

Bowers & Wilkins (B&W) CCM683 In-Ceiling Speaker

Positioned as one of the most capable 8-inch architectural speakers in the Performance Series, the Bowers & Wilkins CCM683 In-Ceiling Speaker is a high-output in-ceiling speaker in India designed for serious home theatre installations, immersive Dolby Atmos systems, and premium multi-room audio setups. It combines a 200mm Aramid Fibre bass/midrange driver with a 25mm aluminum dome tweeter mounted in a rigid die-cast chassis, delivering deep controlled bass, detailed midrange clarity, and precise high-frequency dispersion even in large or acoustically demanding rooms. The pivoting tweeter and three-position EQ adjustment allow fine-tuning for off-axis listening, ensuring consistent tonal balance across wider seating areas. Ideal for luxury residences and custom cinema projects in Mumbai, Delhi, and Bangalore, it is widely used as a surround, rear, or height channel speaker in advanced Dolby Atmos layouts. For users searching for the best 8-inch in-ceiling speaker in India, a premium B&W architectural speaker for home theatre, or a flush-mount ceiling speaker for high-performance cinema systems, the CCM683 offers a powerful blend of scale, clarity, and installation flexibility.

Warranty

1-year manufacturer's warranty

Key Features:

• 8" blue aramid fiber cone woofer
• 1" aluminium dome tweeter
• Low distortion, high resolution drive unit technologies
• Adjustable EQ and tweeter directivity to optimize sound



Benefits of Bowers & Wilkins CCM683 In-Ceiling Speaker:



A Cut Above the Rest with its Overhead Sound

The CCM683 is a true high-performance ceiling-mount speaker. The speaker is feature-packed with a 200mm (8in) woven blue Aramid Fibre cone bass/ midrange driver and an aluminium tweeter in a neat circular die-cast chassis. The tweeter’s housing pivots for adjustable off-axis treble response and the die-cast chassis packs a punch with extra rigidity that results in a cleaner, faster bass. The speaker also has a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is discreetly placed behind the grille but still provides a truly clear and dynamic sound.

Technical Specifications of B&W CCM683 In-Ceiling Speaker:



Brand & Model #	B&W CCM683
Description	2-way in-ceiling system
Drive Units	1x ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter 1x ø200mm (8in) blue Aramid Fibre cone bass/midrange
Frequency Range (-6dB)	35Hz – 50kHz
Recommended Amp Power	25 – 130w
Sensitivity SPL (2.83V, 1m)	88dB
Impedance Nominal (min)	8Ω (4.5Ω)
Frame diameter	290mm (11.4in)
Cut-out diameter	250mm (9.8in)
Depth behind surface	133mm (5.2in)
Protrusion	4mm (0.2in)
