Features

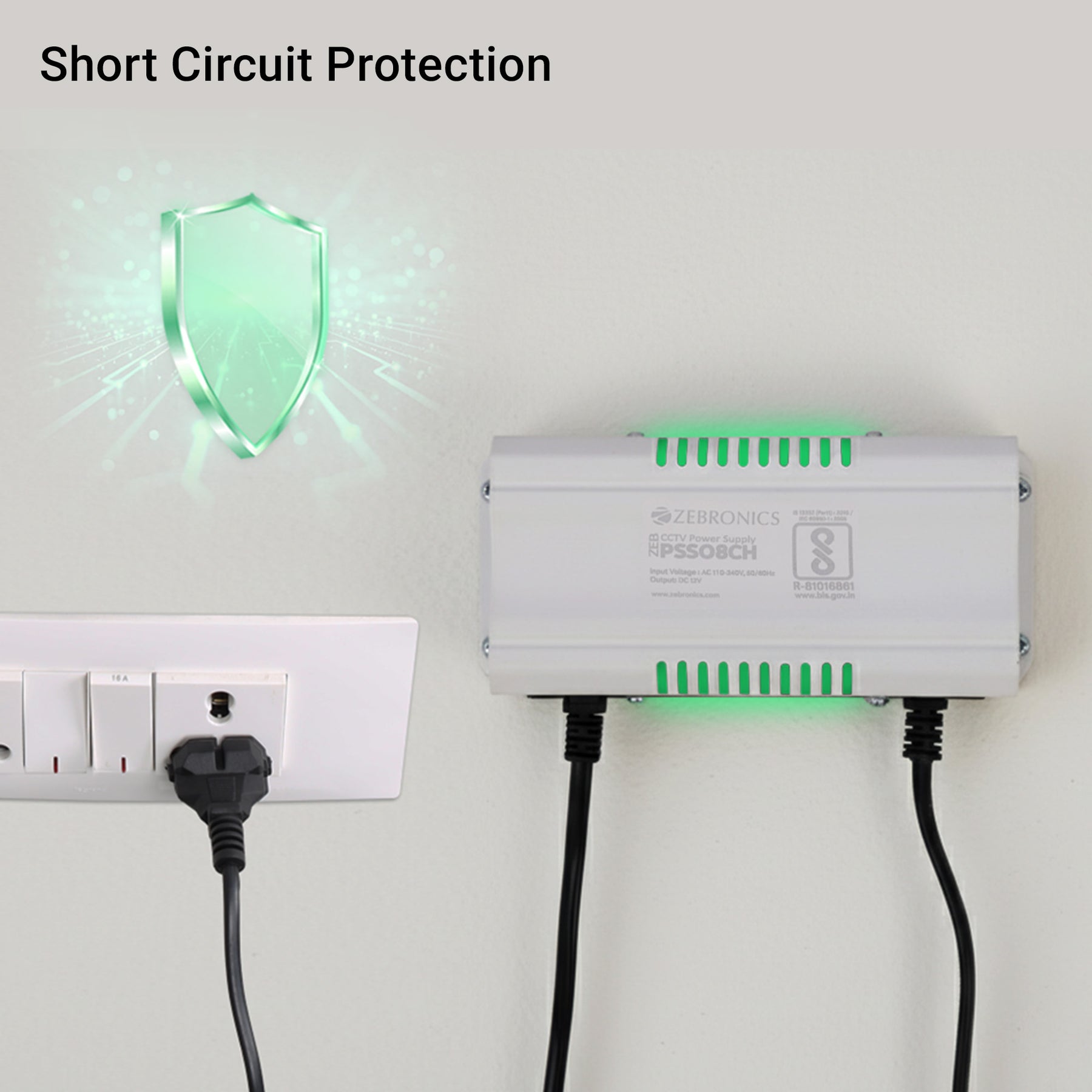

| Short Circuit Protection | |

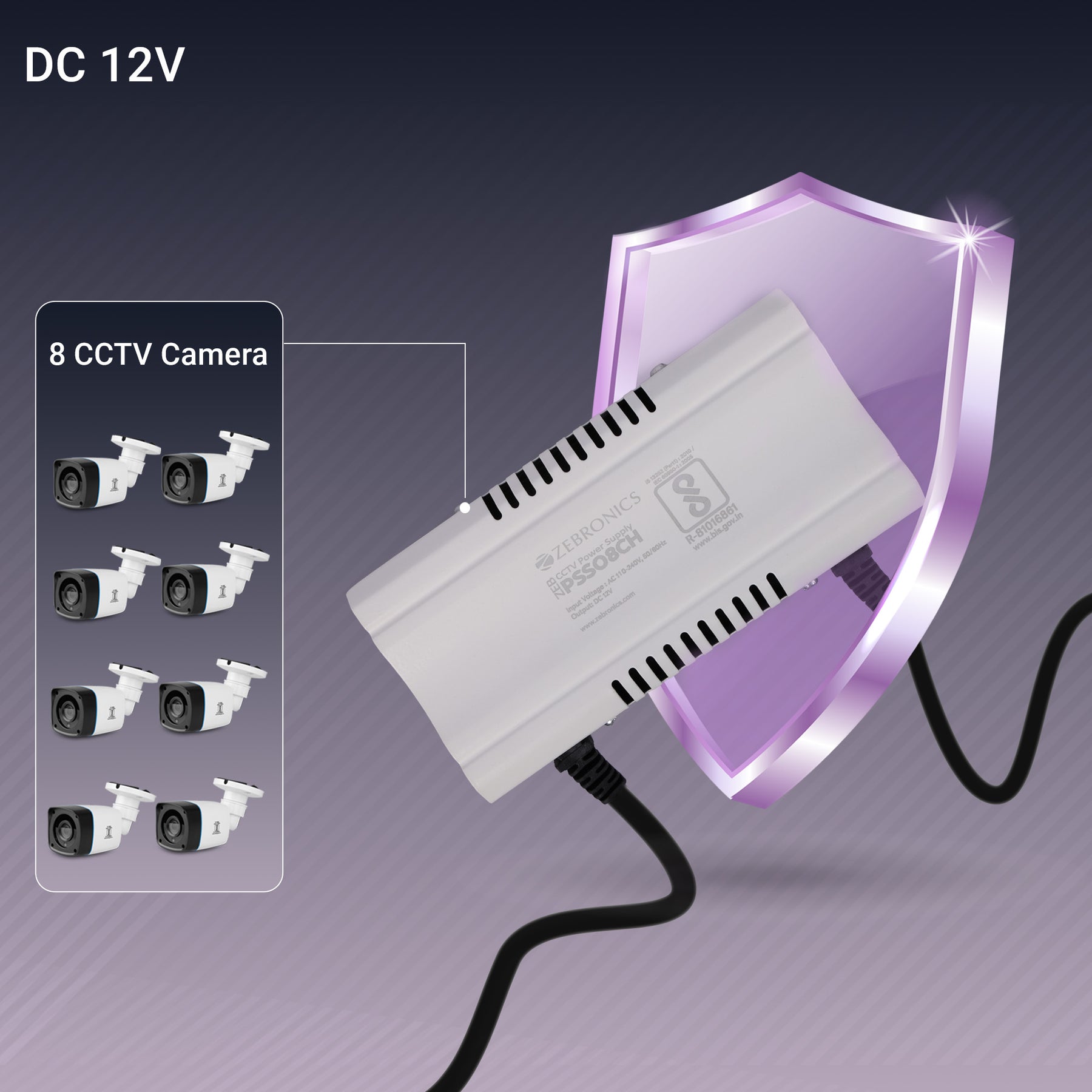

| DC 12V | |

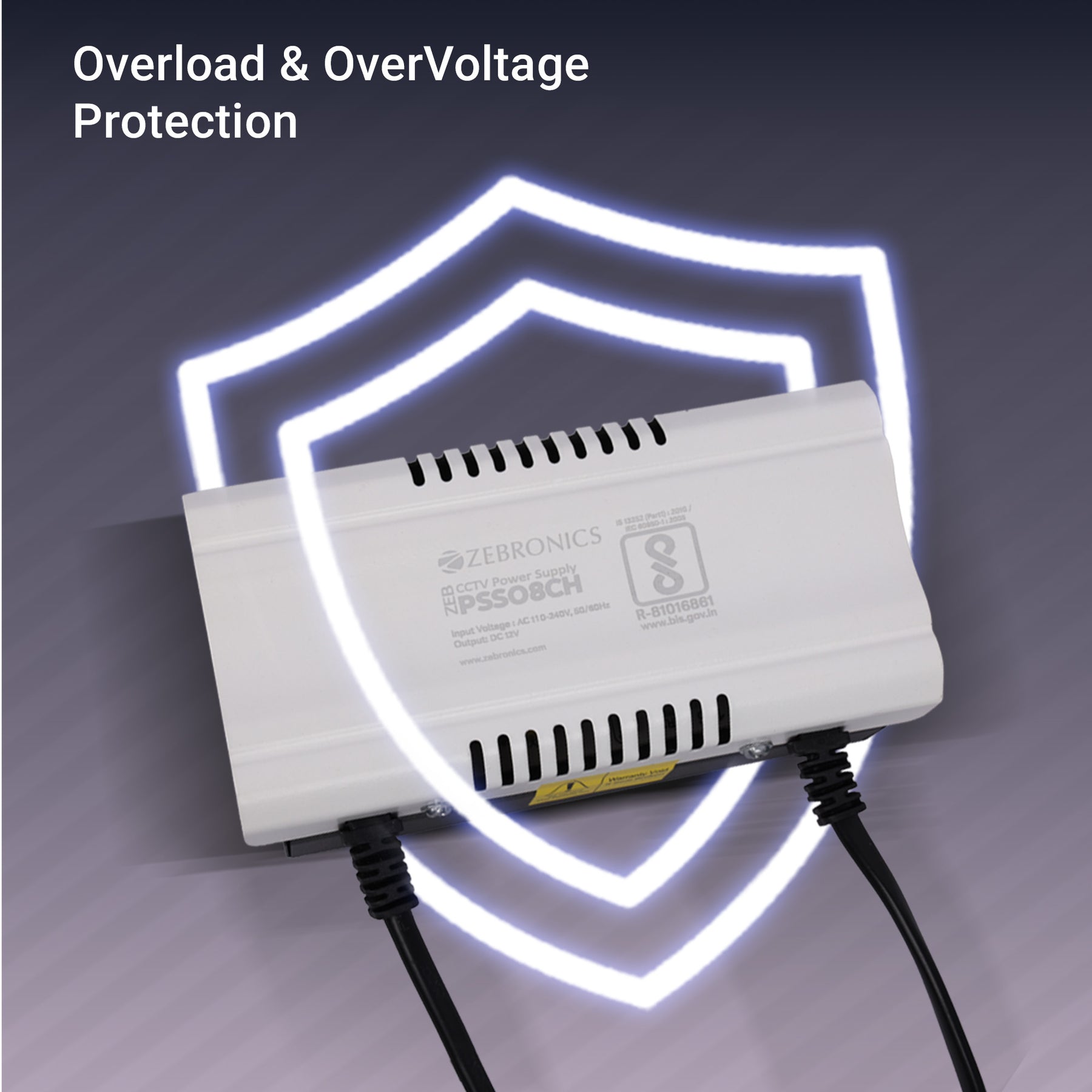

| Overload Protection | |
| OverVoltage Protection | |

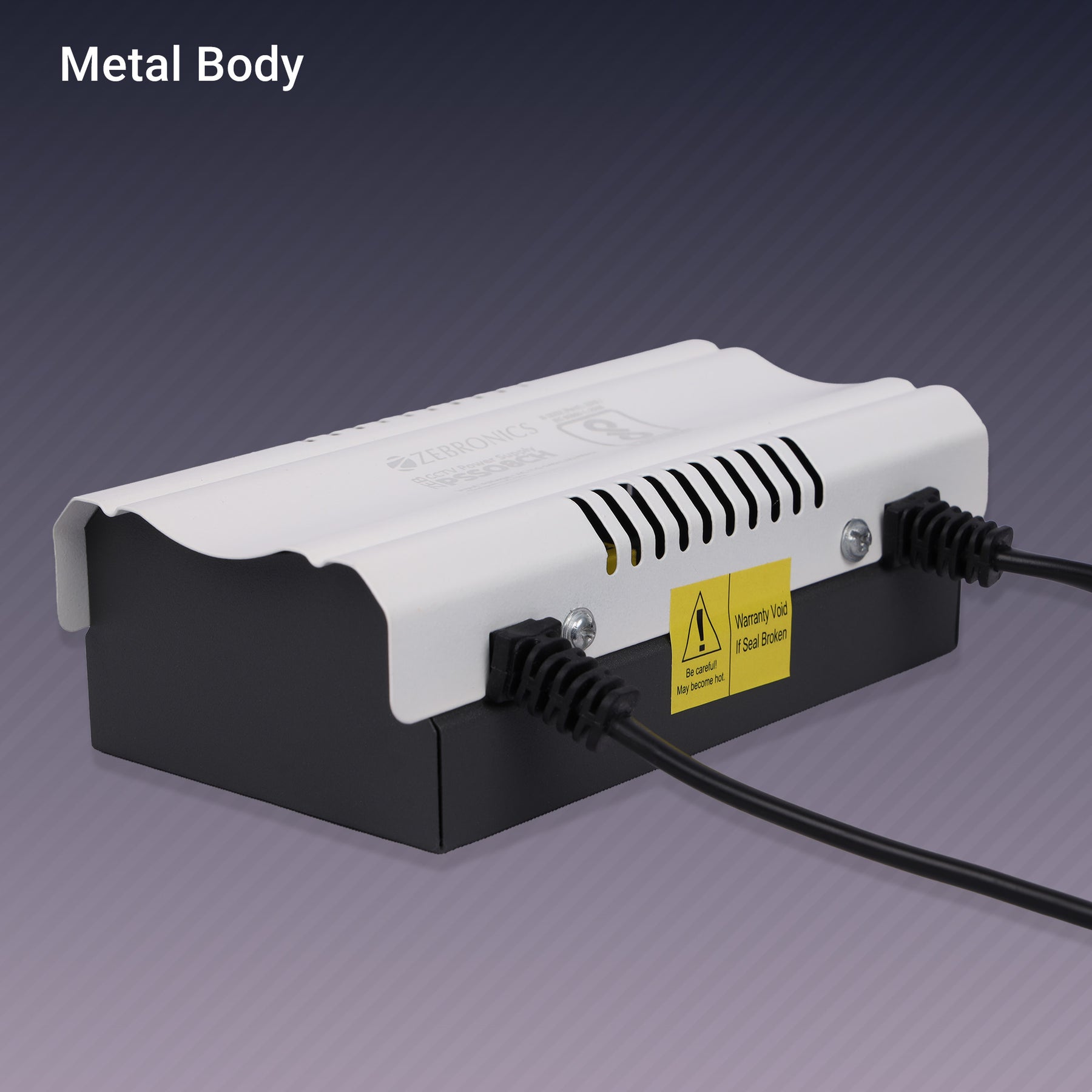

| Metal Body |
Specifications
| Input Voltage range | AC 110V~240V | |
| |
Input Frequency | 50/60 HZ |
| Input Current | 0.5A |
|
| Output Voltage | 12.3V - 12.8V |
|
| Ripple | <150mv | |
| Hold up Time | 10 ms | |
| Turn-on Delay time | 30 ms |
|
| Rise & Fall time | 30 ms |
|
| Over Load Protection | Yes |
|
| Over Voltage Protection | Yes | |
| Short circuit Protection | Yes | |
| Over Temperature Protection | Yes | |
| Operation Temperature | 0°C to 45°C |
|
| Storage Temperature | 0°C to 55°C |
|
| Operation Humidity | 10% -- 90% non condensing |
|
| Storage Humidity | 10% -- 90% non condensing |
|
| Input terminals of the power supply unit | 2 Pin Indian power cord - non detachable | |
| Output terminals of the power supply unit |
1 Terminals output |
|
| LED Indicators | 1 |
|
| Enclosure Materials | Metal Body | |
| Weight with power cord | 275g |
|
| Product Dimensions (W x D x H) | 14.2 x 7.1 x 4.26 cm | |
| Package Dimensions (W x D x H) | 11.5 x 5 x 16.5 cm | |
| Country of Origin | India | |
| Package Contents | ||
| Power Supply |
1 U |
