Line Switching

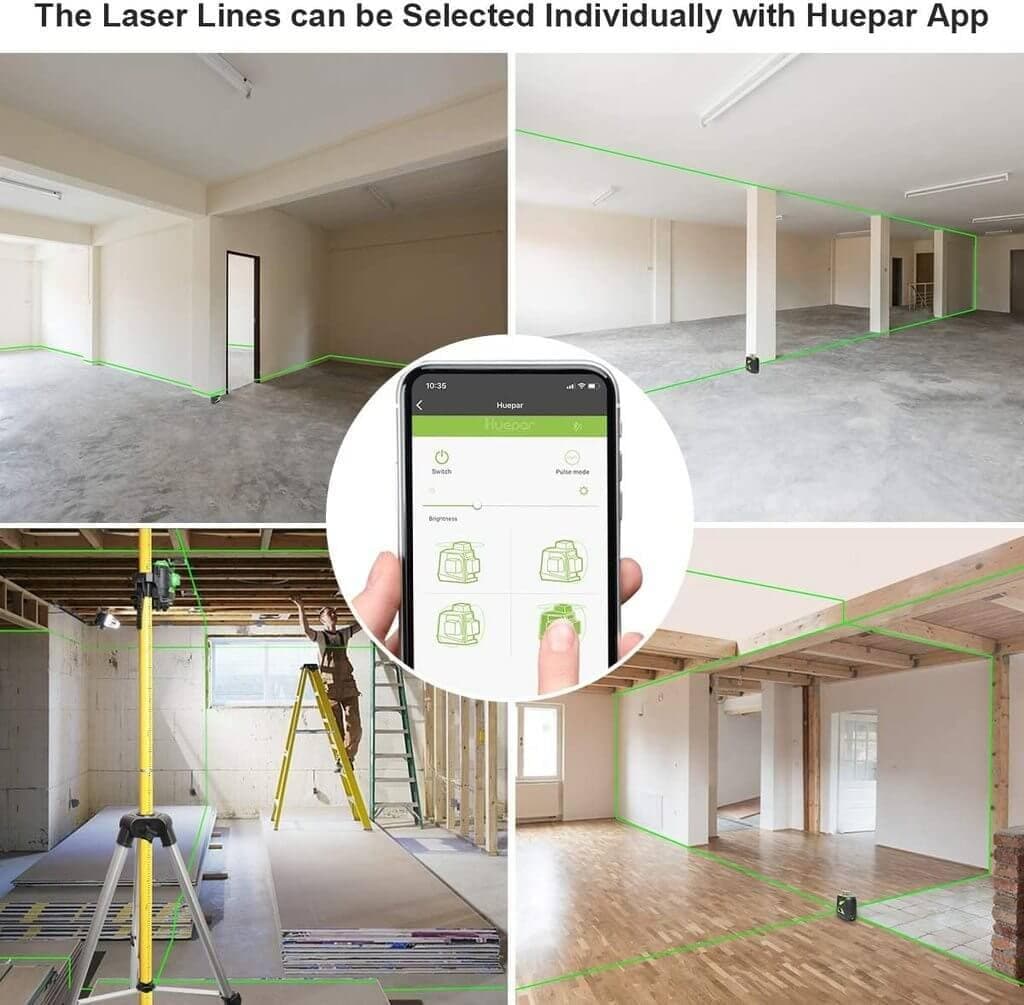

• Short press "LASER" button to switch the laser lines.
• The laser lines can be selected separately according to job requirements.
• The laser line(s) can be temporarily turned OFF by phone when you need to leave for a while.

Visibility Adjustment

• The visibility of the laser beam can be adjusted by connecting with the Huepar APP.
• Slide the brightness bar to the brightness you need.
• The visibility adjustment function is not applicable after the pulse mode turned on.

 Pulse Mode can be Switched ON/OFF with Huepar APP

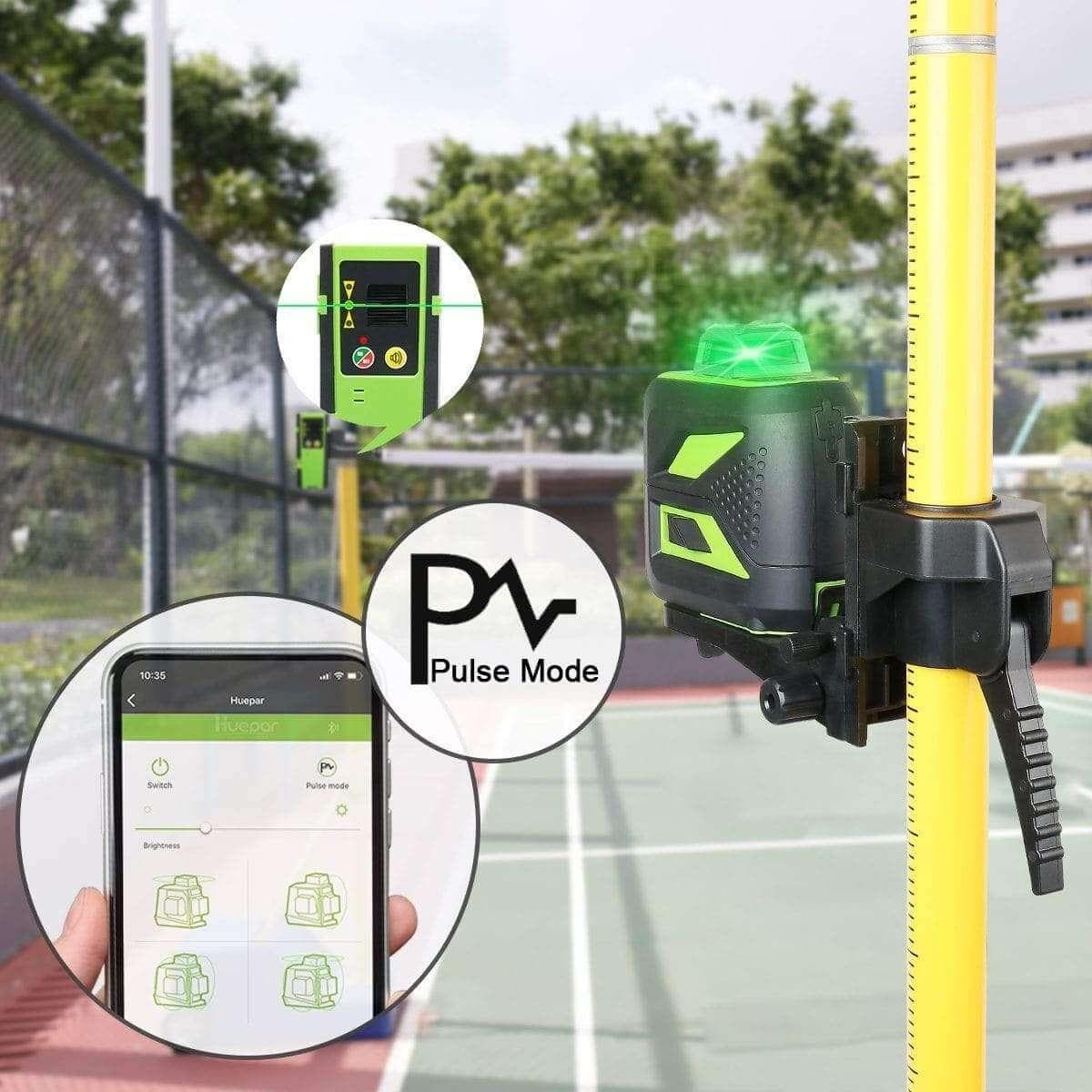

Pulse Mode

• Short press "PULSE" button to switch ON/OFF the pulse mode. When connecting with Huepar APP, the pulse mode can be switched ON/OFF via APP.

• Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.

• It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.

Smart Pendulum

• Self-leveling Mode: When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously to indicate out-of-level condition up to ±4°.

• Connecting with Huepar APP, a level icon will be displayed to remind user when it is beyond the self-leveling range.

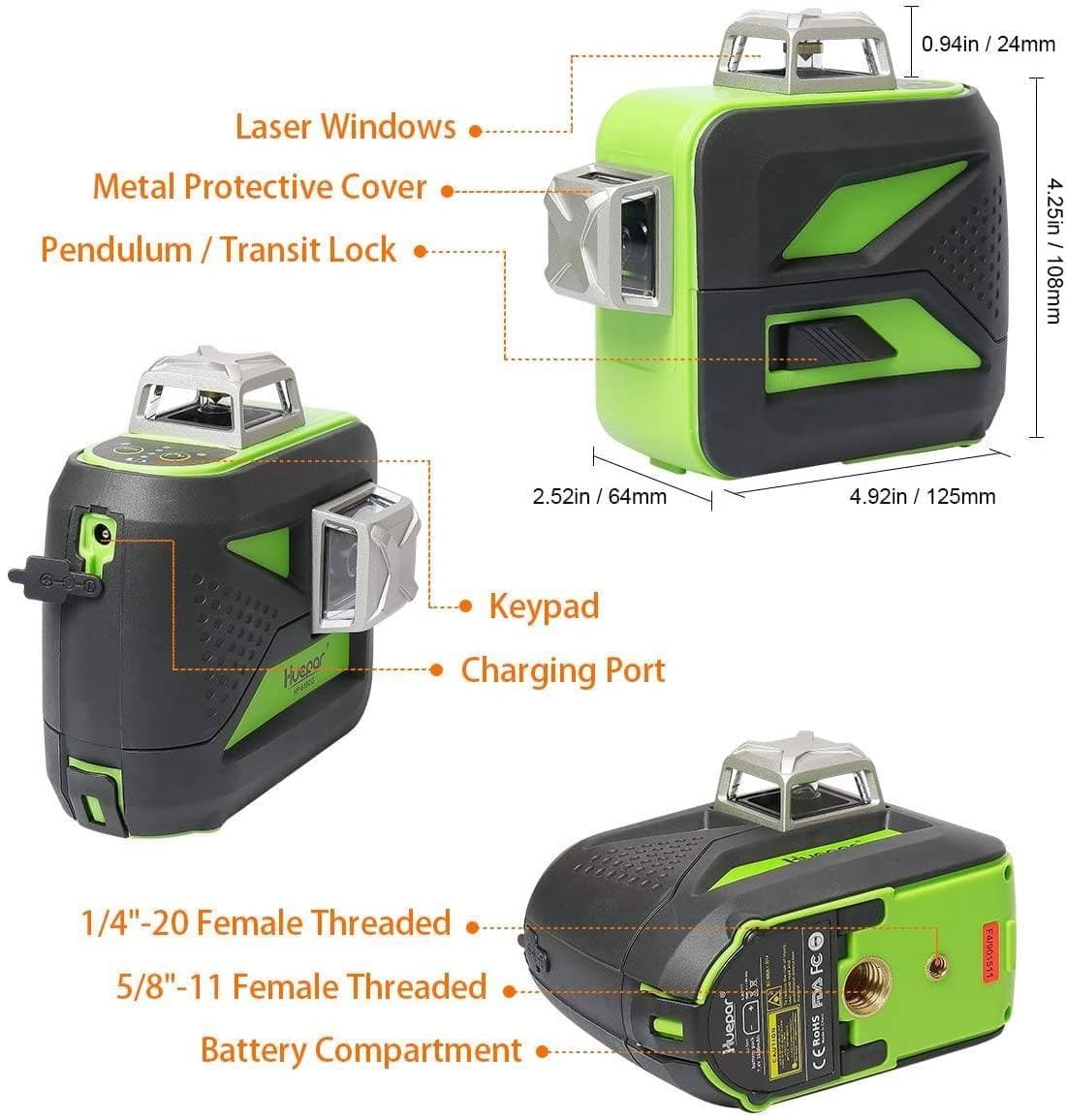

• Manual Mode: When the pendulum lock is in locked position, manual mode locks laser lines for use at any angle. The laser beam will blink every 3-5 seconds to remind it's not self-leveling now.

• When connecting with Huepar APP, a lock icon will be displayed to remind user it is in manual mode now.

• Note: Due to the design of the pendulum locking device, the laser tool can not be controlled to be turned on/off by Bluetooth,

Triple Power Supply

• This laser tool utilizes the included large capacity lithium battery which is compatible with Samsung SB-L110 battery.

• This laser tool comes with an holder for installing AA battery for using the tool.

• Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.

• Charging protection help prevent the tool from overcharge.

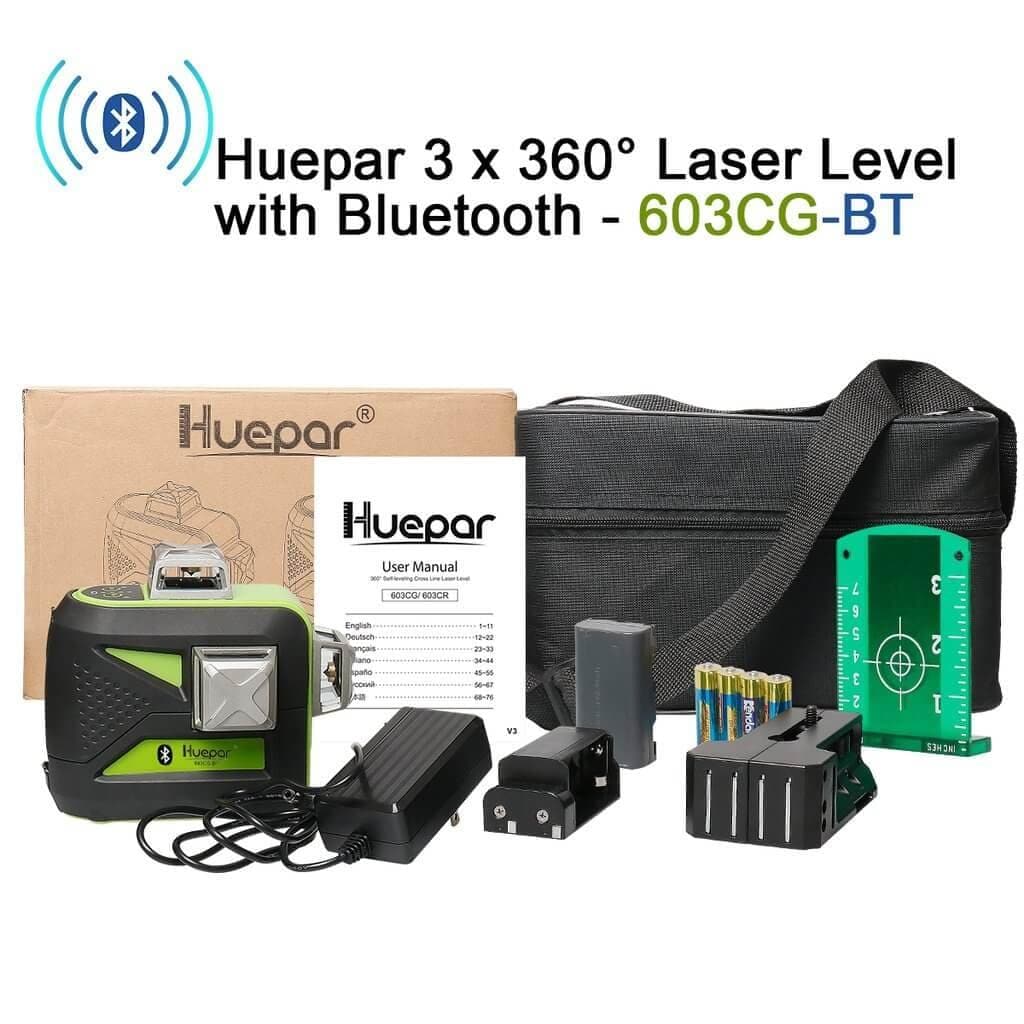

Package Contents:

• 1 x Huepar 603CG-BT 3D Cross Line Laser Level
• 1 x Rechargeable Lithium Battery
• 1 x Lithium Battery Charger
• 1 x Power Adapter
• 4 x AA (LR6) Batteries & 1 x AA Battery Holder
• 1 x Magnetic Pivoting Base
• 1 x Laser Target Plate
• 1 x Lase Level User Manual
• 1 x Huepar Bluetooth User Manual
• 1 x Portable Bag
