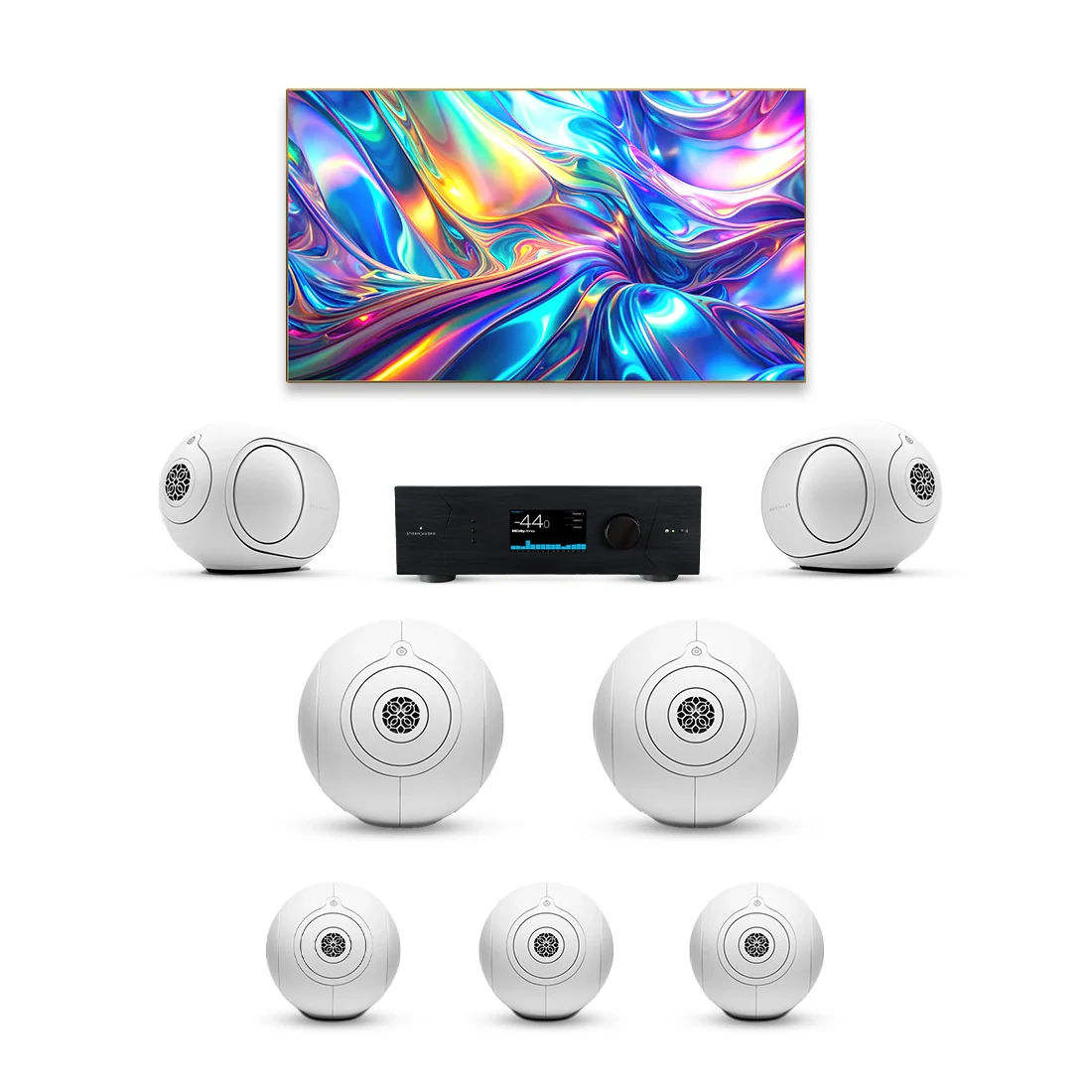

Xtreme Media Spectra Series with Devialet Phantom Theater 9 & StormAudio - ISP Evo

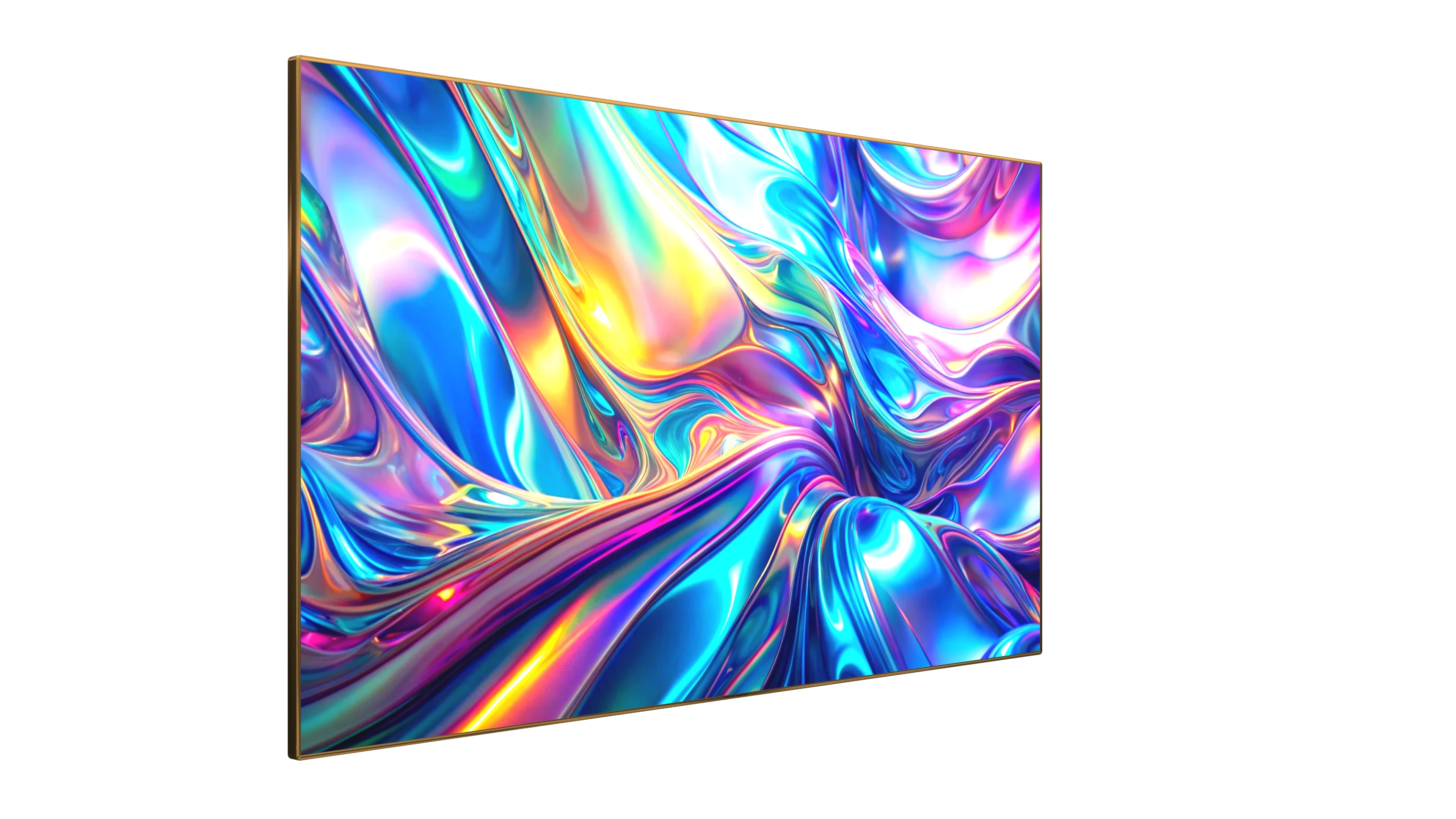

A home is where every detail seamlessly blends with the overall aesthetic, including the screen where you enjoy movies and entertainment. Xtreme Media's newly launched Spectra home LED display series transforms your viewing experience, bringing your favourite content to life on an impressive scale. Add an edge to your movie nights, celebrations and relaxation with this beautifully engineered home LED display with superior clarity and vibrant colours - making every moment as immersive as the experience itself.
The Devialet Phantom Theater 9 brings Dolby Atmos to your home, combining impactful bass with precise mid-high frequencies for an expansive, immersive soundstage. Advanced sub-channel communication enhances bass clarity, while an AV decoder seamlessly distributes multi-audio channels via ethernet for optimal system performance. The result is a cinematic audio experience with unparalleled immersion and dynamic sound.

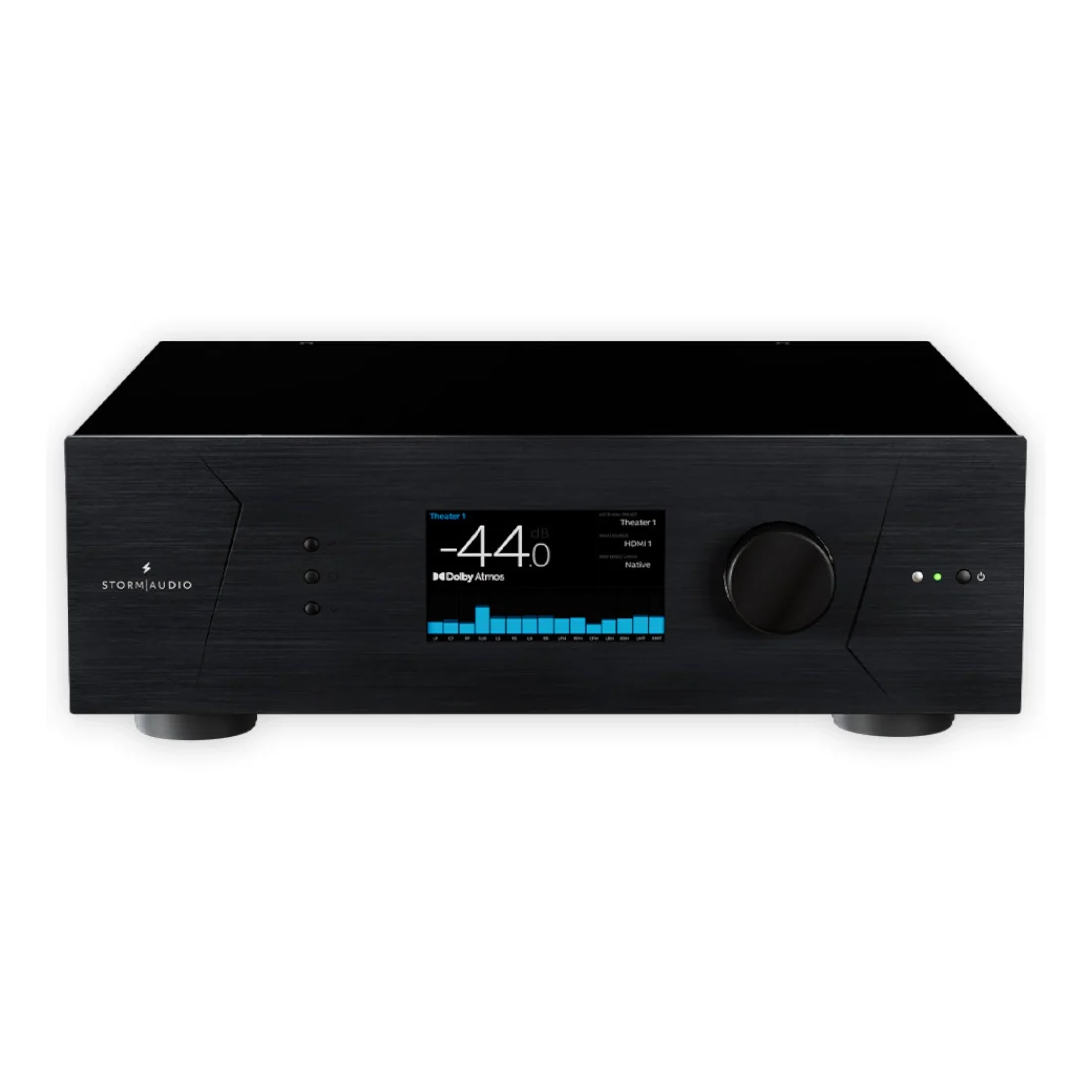

The ISP Evo, StormAudio's next-generation immersive sound processor, offers a fully digital solution for modern audio needs. Ideal for resimercial projects, studios and luxury marine applications, it builds on the award-winning ISP Elite MK3 platform, delivering exceptional performance in the compact form of the ISP Core 16. It’s a high-performance processor designed for integrators and audio enthusiasts seeking cutting-edge features and immersive sound.
Warranty
3-year manufacturer's warranty for Spectra Series
5-year manufacturer's warranty for Devialet Phantom & StormAudio
Xtreme Media Spectra Series with Devialet Phantom Theater 9 & StormAudio - ISP Evo Key Features
Deep Black Technology
Spectra's deep black technology guarantees vivid and realistic images from every angle, offering excellent contrast and anti-reflection performance.
Multi-Layer Calibration
Experience flawless visuals with our home LED displays that come with multi-layer calibration. This advanced technology provides a precise colour uniformity 97%.
True Color
With the ability to emit trillions of colors, Spectra redefines the boundaries of visual brilliance.
Customizable Bezel Options

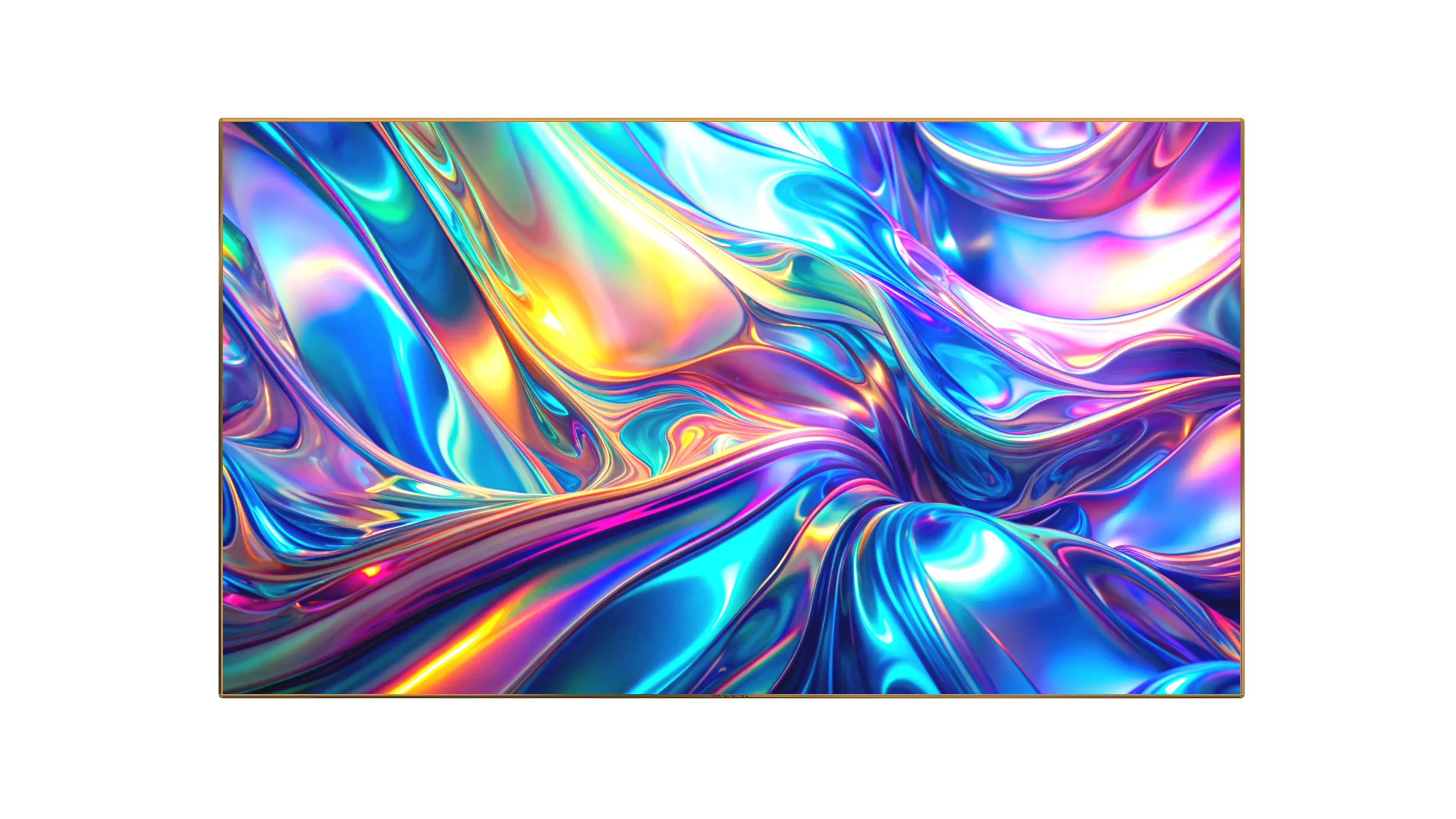

Enhance your Home LED display's visual appeal through customizable bezel options that provide a rich and sophisticated look. Add an elegant touch to your living space, seamlessly blending with your interior design. Available in three sizes - 108", 135", 163".
Implosive Sound
Realism pushed to the limit. Equipped with powerful sub-channel communication capabilities, Phantom Theater 9 accentuates low frequencies while delivering laser-sharp detail in mid-high frequencies. This home cinema, Dolby Atmos-enabled, expands even further, providing massive sensations and an unparalleled immersive listening experience. And an advanced AV decoder streams multi-audio channels to all connected Phantom Speakers via ethernet.

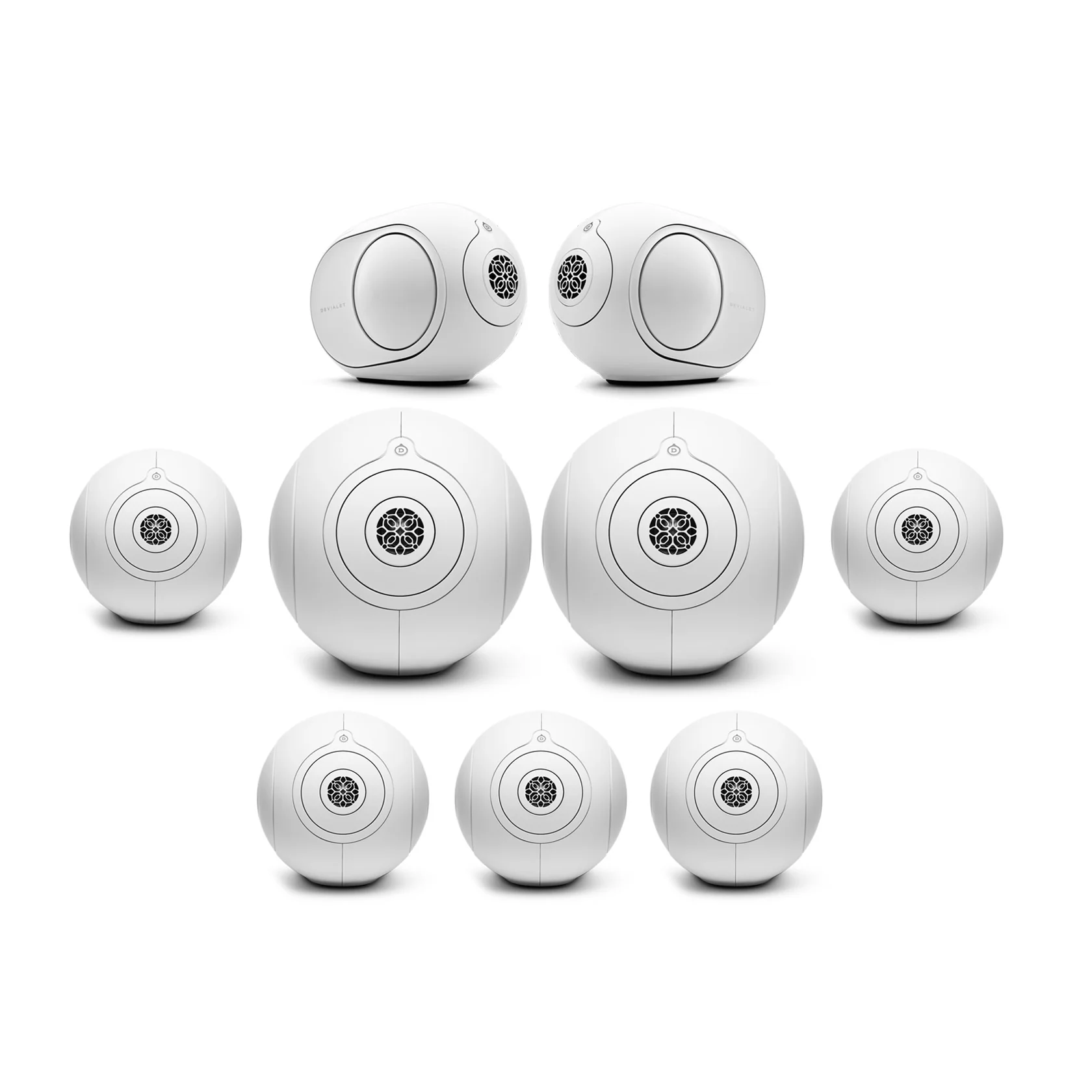

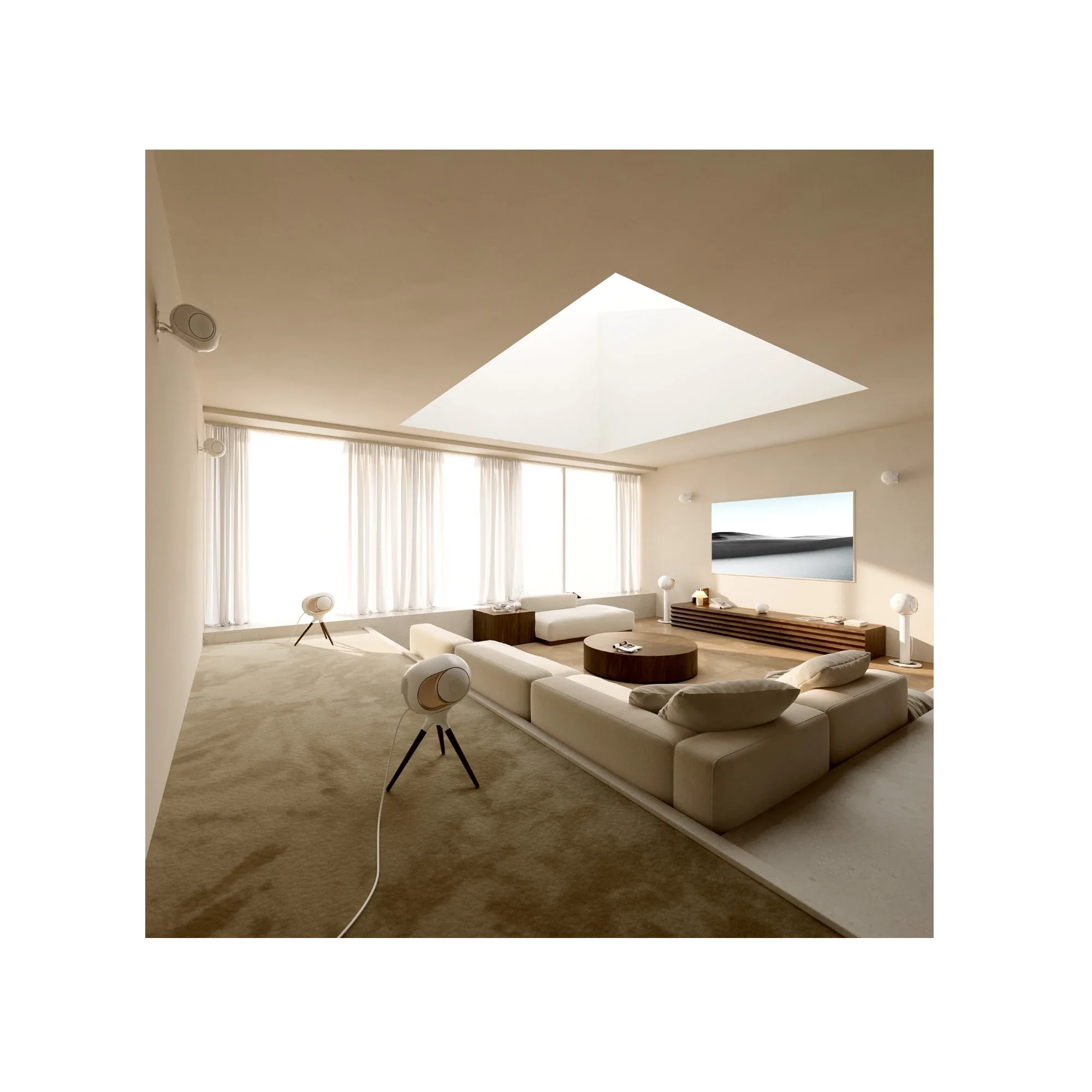

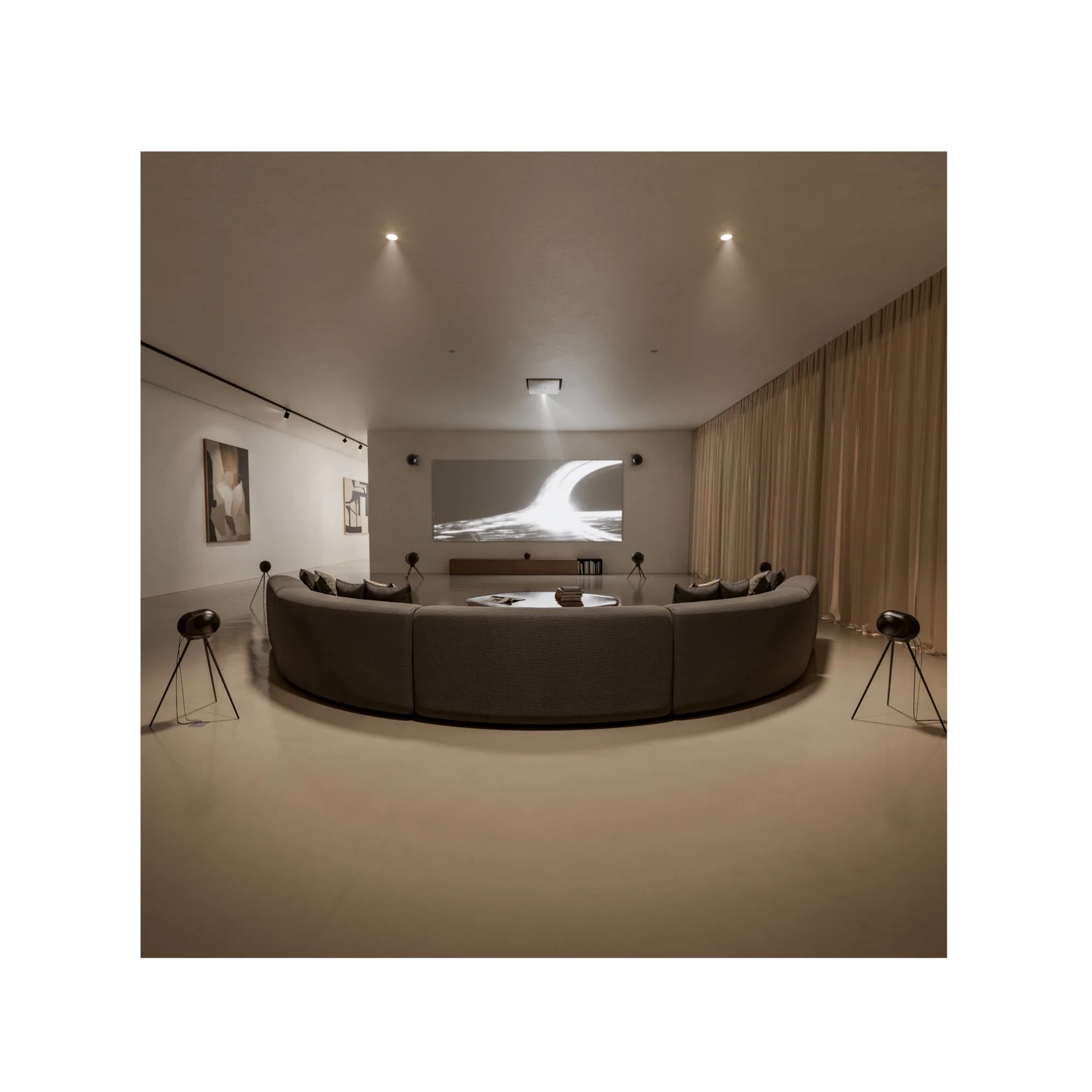

Mighty but flexible, Devialet Phantom Theater adapts to any room size, and takes things a step further by allowing you to mix and match seven Phantom I and Phantom II speakers to tailor your set-up to your needs.
Watch your Ears
Devialet Phantom Theater breathes versatility
Boasting three configuration options featuring various combinations of Devialet Phantom I and Phantom II, Devialet Phantom Theater lets you maximize the acoustic potential of your space. Enjoy a full entertainment experience, from Stereo audio to multichannel audio listening, immersive gaming, and home cinema.Best sound performance
With up to 24ch decoding and upmixing of the most sought-after immersive surround formats, such as Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced, there is also up to 32ch of post-processing including the latest Dirac Live Active Room Treatment module and the state-of-the-art StormAudio Expert Bass Management with its multiple bass zones and selective bass routing. The ISP Evo will provide the best sound performance in any theatre without the installer needing to be an expert in room acoustics.
Modularity and flexibility
Based on StormAudio’s proprietary modular platform, the ISP Evo has maintained the reputation for modularity and flexibility with multiple hardware and software options available for any type of digital installation. Whether you need AES/EBU interfaces with 20 or 32 channels of digital outputs, 16 channels of digital DCI compatible inputs or you need audio over IP AES67/Dante networked interface for up to 32-channel inputs and outputs, you will always find the right version to satisfy your needs.
Roon Ready integration
All of this comes with Roon Ready integration and the acclaimed user-friendly, web-based interface that allows for a full configuration in only a few steps. With a full host of control options, including an IR remote, smartphone and tablet applications, as well as all the required control system drivers, the ISP Evo delivers the most seamless integration to any advanced theatre, mixing studio or yacht installation.
Where to Buy?
Buy Xtreme Media Spectra Series with Devialet Phantom Theater 9 & StormAudio - ISP Evo online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.
Technical Specifications of Xtreme Media Spectra Series
| Model | XM Spectra - 0.9 | XM Spectra - 1.25 | XM Spectra - 1.56 |
| Pixel pitch (mm) | 0.9 mm | 1.25 mm | 1.56 mm |

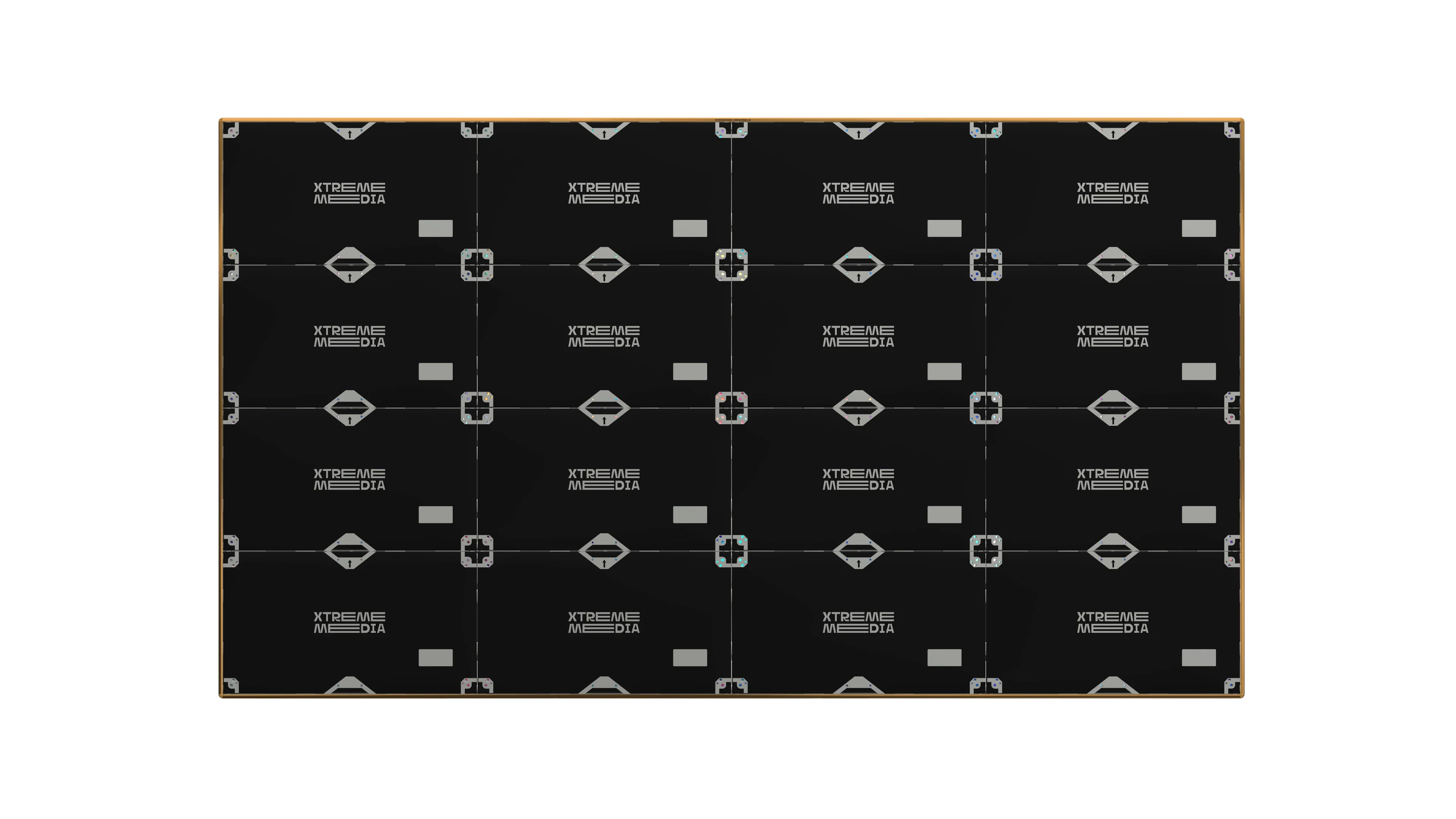

| Cabinet dimension (W x H) mm | 600 x 337.5 | 600 x 337.5 | 600 x 337.5 |
| Weight (kg/m2) | 21 | 21 | 21 |
| Service Access | Front | Front | Front |
| Maximum brightness (nits) | 600-1200 | 600-1200 | 600-1200 |
| Viewing angle | 160 x 160 | 160 x 160 | 160 x 160 |
| Contrast Ratio | 40000 : 1 | 40000 : 1 | 40000 : 1 |
| Max power (Watts/m2) | 340 | 300 | 275 |
| Refresh rate (Hz) | ≥ 3840 | ≥ 3840 | ≥ 3840 |
| Ingress protection | IP60 front/IP50 back | IP60 front/IP50 back | IP60 front/IP50 back |
| Cabinet type | Die Cast Al | Die Cast Al | Die Cast Al |
| Data Processing | 13-19 Bit | 13-19 Bit | 13-19 Bit |
Technical Specifications of Devialet Phantom Theater 9
| Brand & Model # | Devialet Phantom Theater 9 |
| Technology |
Audio Over IP (AoIP) (Dante or AES67) high-end AV processor, certified by Devialet Professional Teams.
Full compatibility with Dolby Audio, including Dolby Atmos, and DTS, including DTS:X. Upmix for music with Auro 3D multi-speaker streaming. |
| Ethernet |
Ethernet Wired configuration only to provide a reliable and seamless audio experience with no latency, nor glitch.
|
Technical Specifications of StormAudio - ISP Evo Sound Processor
| Brand & Model # | StormAudio - ISP EVO |
| Main Features | Auro-3D / Dolby Atmos / DTS:X Pro / IMAX Enhanced ✓ / ✓ / ✓ / ✓ StormXT channel expander ✓ Dirac Live license included ✓ Dirac Live Active Room Treatment supporting speakers - Unlimited StormMonitoring - remote monitoring |
| Multichannel / Surround Processing | Output channels - 20 (up to 32 optional) Surround Processing Decoding / upmixing channels - 20 (up to 24 optional) Input sampling rate supported - up to 192 kHz Post processing sampling rate - 48 kHz Dirac Live runtime with high resolution mixed-phase filters ✓ Bass management : Standard & Expert ✓ Flexible bass routing (up to 6 zones, Expert mode) ✓ Multi-subwoofer channels - Unlimited Multi-way crossover (6 to 48 dB/oct, Linkwitz-Riley, Butterworth) - up to 4 per channel Parametric EQ per channel - up to 20 filters |

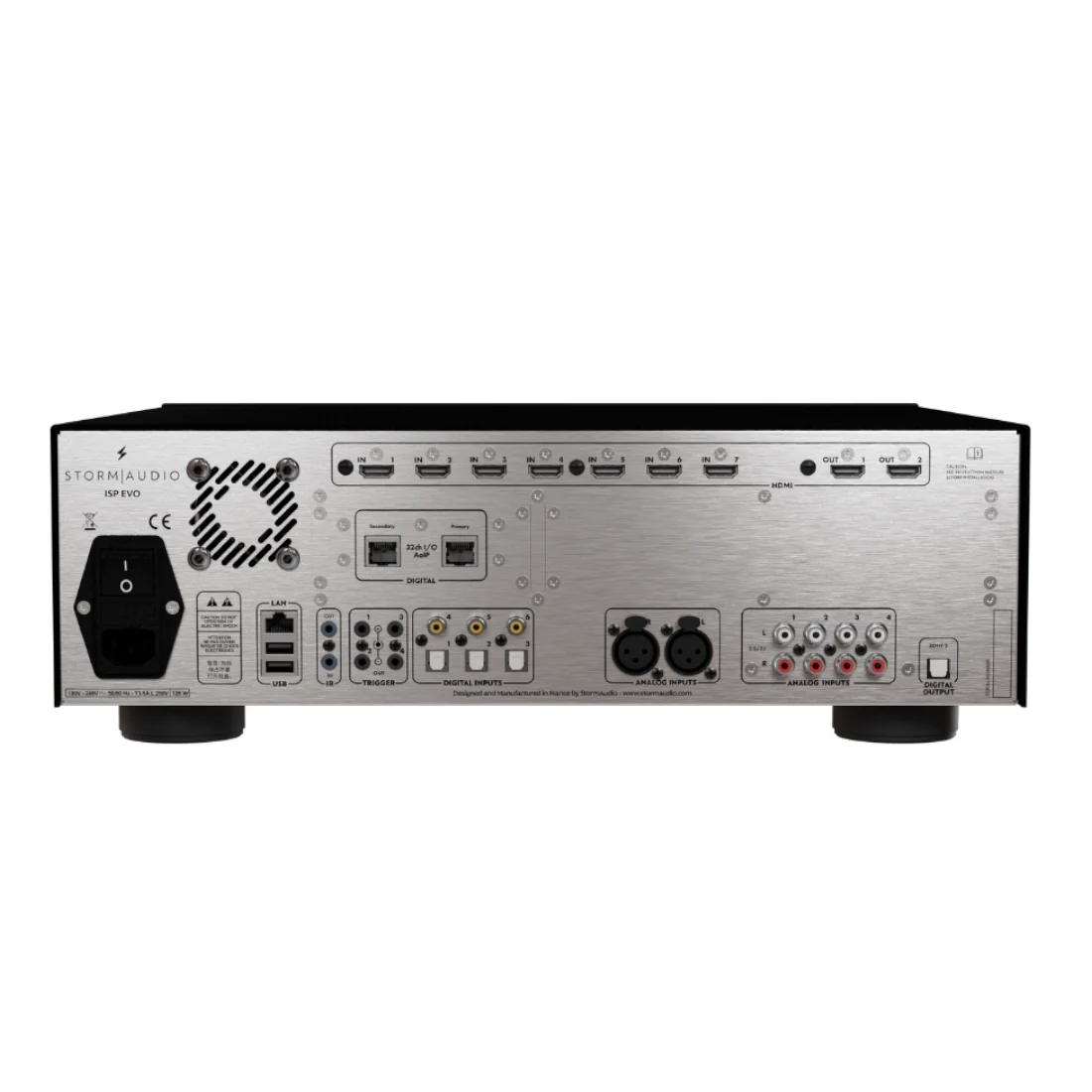

| HDMI | HDMI inputs / outputs - 7/2 Standard - HDMI2.1a / HDCP2.3 Matrix capability for multi-room ✓ 4K UHD, rec BT709 and rec BT2020 ✓ High Dynamic Range : HDR10 / HLG / Dolby Vision ✓ / ✓ / ✓ Color space and subsampling - RGB, YCbCr, 4:4:4, 4:2:2, 4:2:0 Deep color (12 bpc) ✓ Max. resolution support (18 Gbps) - 4K 60fps 4:4:4 8bpc 3D / OSD ✓ / ✓ ARC / eARC ✓ / ✓ |
| Audio Inputs | Streaming: Roon ready end point ✓ Digital input: coaxial / optical - 3 / 3 Digital input: AES/EBU, 16ch (DCI compatible) - Optional Analog stereo inputs, balanced : XLR - 1 Analog stereo inputs, unbalanced: RCA - 4 |
| Audio Outputs | Stereo downmix Zone2 outputs Digital - Optical Digital output: AES/EBU, up to 32ch - Optional |
| Audio Inputs/Outputs | Digital AES67 / Dante compatible (Audio over IP): up to 32ch out / up to 32ch in - Optional (not compatible with AES/EBU version) |
| Set-up Management | Audio zone configuration ✓ Individual theater and zone source selection (Main & Zone2) ✓ Theater and zones listening presets - Unlimited Dirac Live profiles - 10 per Theater / Zone Backup and restore of set-up ✓ Firmware update via USB / network ✓ / ✓ |
| Control Inputs / Outputs | USB type A (upgrade and monitoring) - 2 Ethernet / Wi-Fi ✓ / - Output trigger control - 4 (out) IR remote ports, in / out (input loop through) - 1 / 1 IR remote control sensor in front panel ✓ |
| Control / Custom Installation | Front panel display ✓ (TFT 5") Advanced control via front panel ✓ Web-based product configurator ✓ TCP/IP API based control ✓ StormRemote control application (iOS / Android) ✓ Crestron, Control4, Savant, RTI, ELAN home automation drivers ✓ Logitech Harmony IR database integration ✓ IR remote control handset ✓ |
| Power Supply | Voltage range 100V to 240V Type SMPS Range selection Universal |
| Casing | Home / rack (removable ears) ✓ / ✓ Net weight (kg / lbs) - 8 kg / 18 lbs Size - 3RU Dimensions - no ears, no feet (cm) Ears : +4 cm (2 x 2 cm) - Feet : + 2 cm - 40,22 x 44,2 x 13,27 Dimensions - with box (cm) 55 x 55 x 28 |
