Features
|
BT v5.3 | TV (eARC) | Optical IN | USB | AUX |
|
|
Dolby Atmos |
|
| DTS X | |
| 1100W RMS Output | |

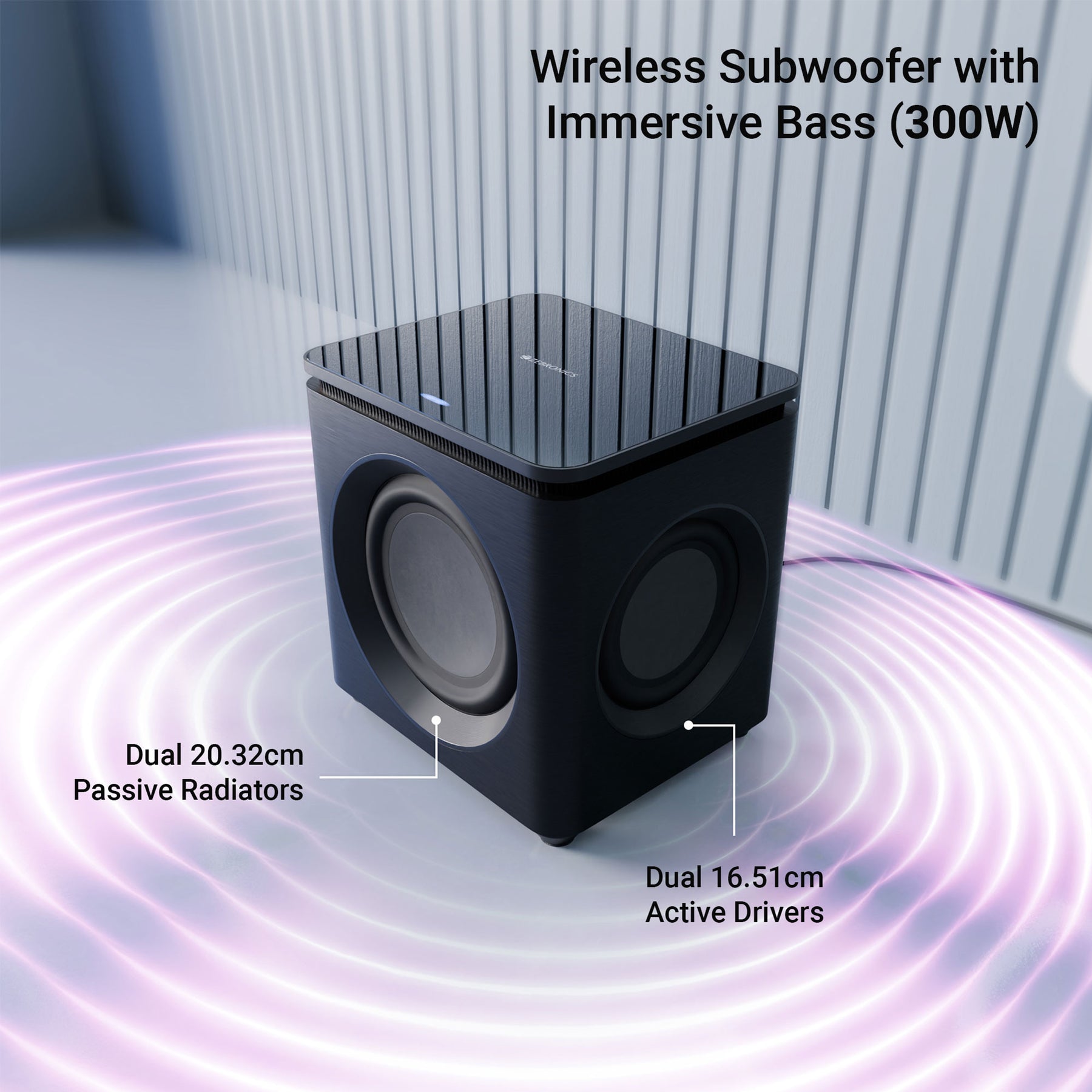

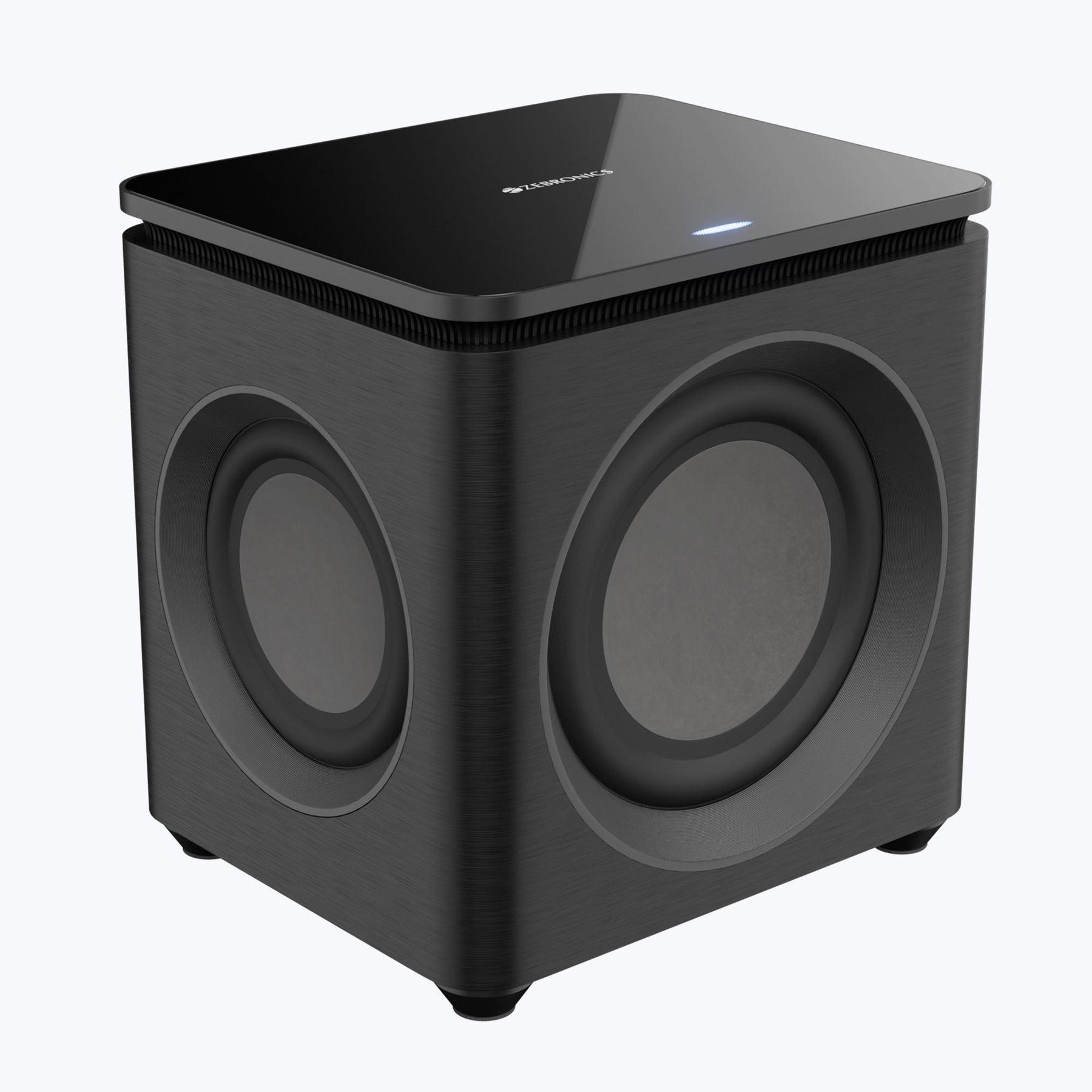

| Wireless Subwoofer with Dual Drivers | |
|
Dual Bass Passive Radiators |
|

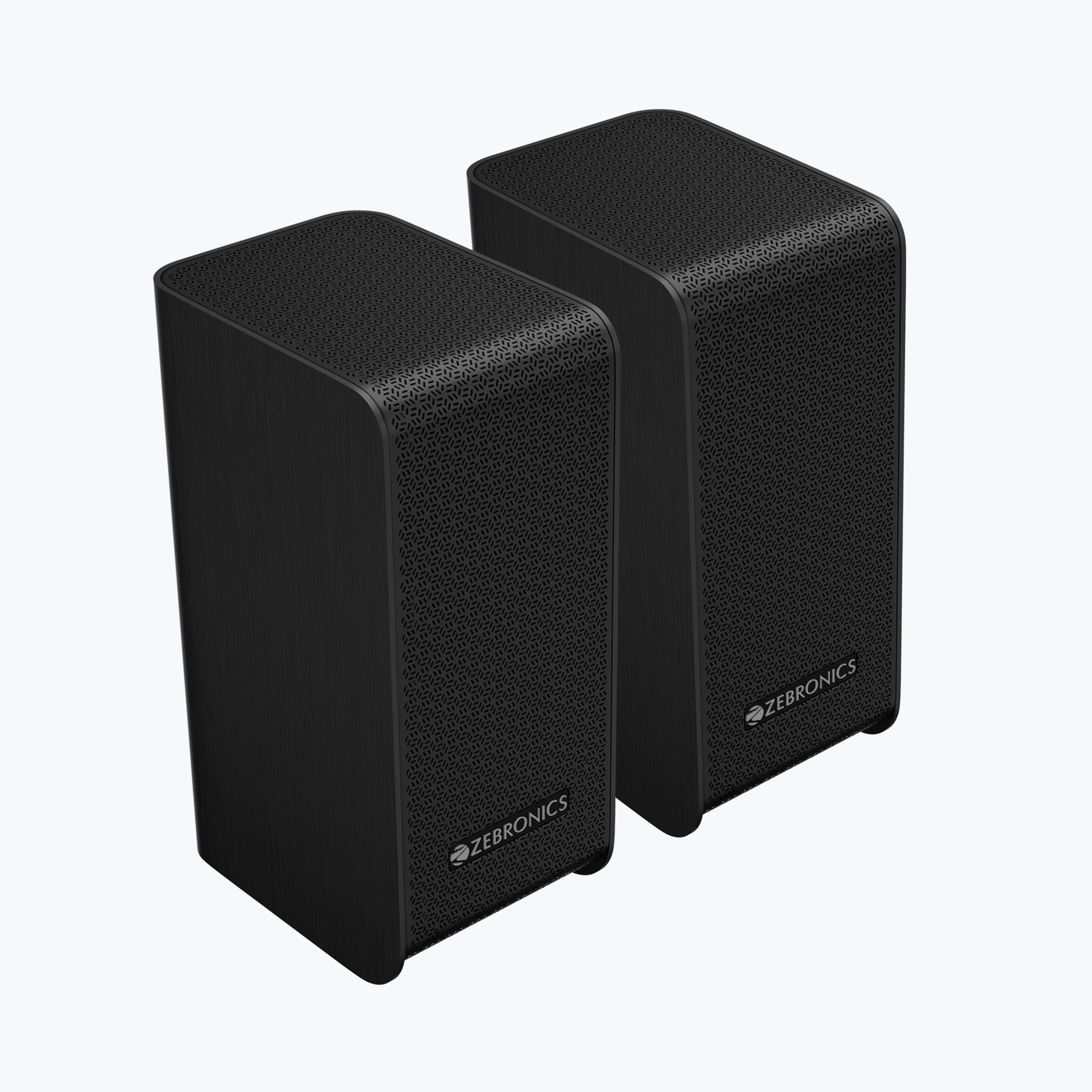

| Dual Wireless Rear Satellites | |
|

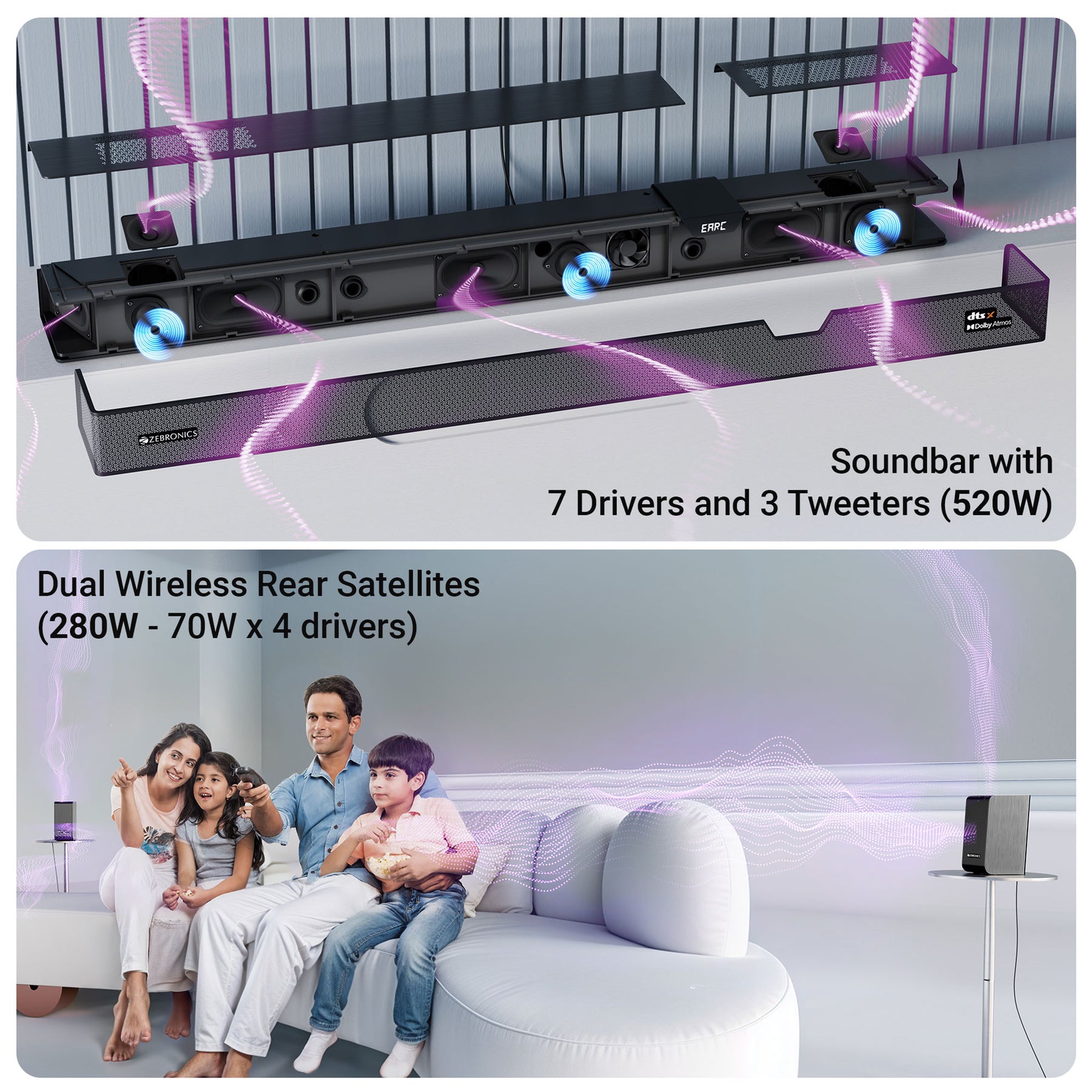

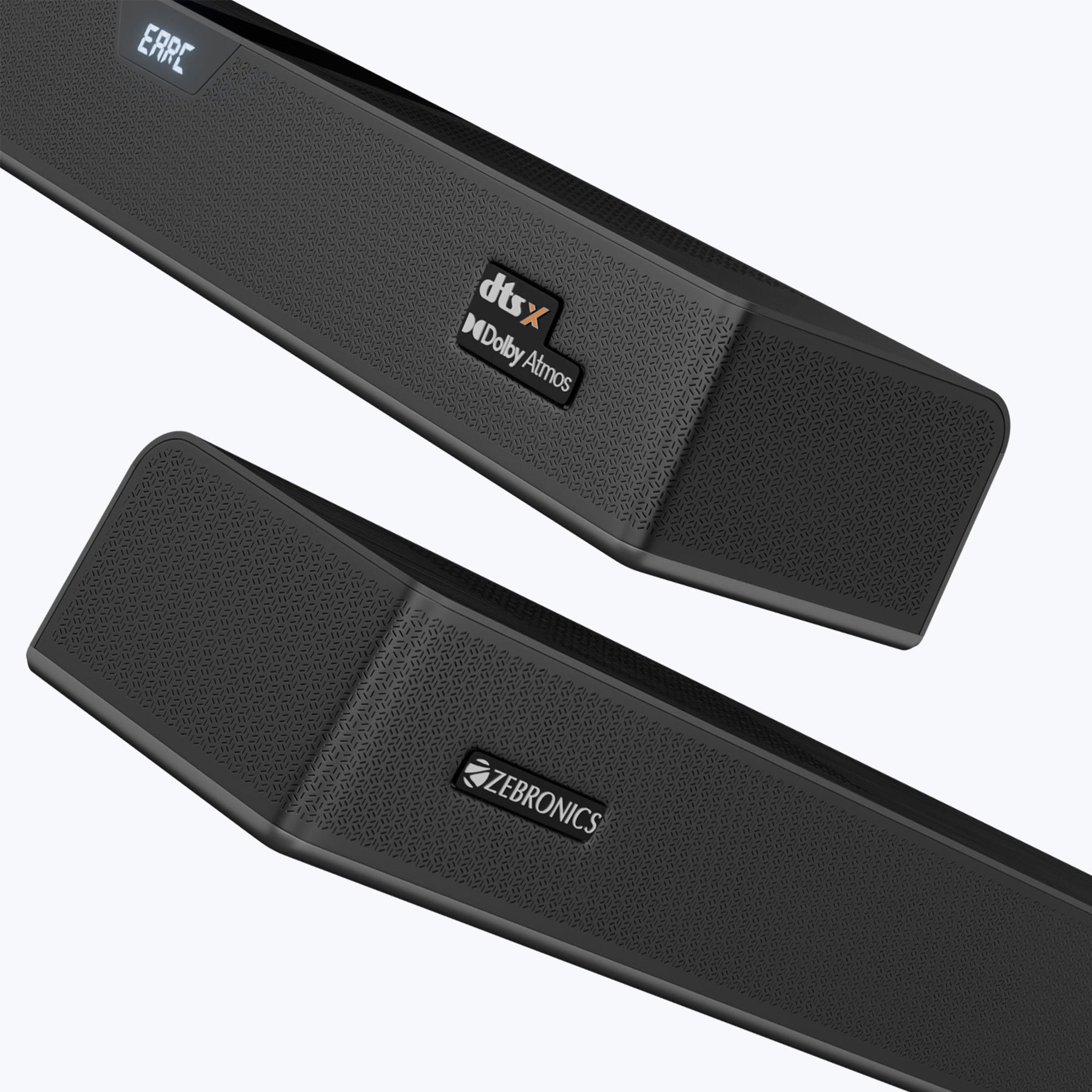

Soundbar with 10 Drivers |
|
|
Satellite with Top Firing Speaker |
|
| Immersive Bass | |

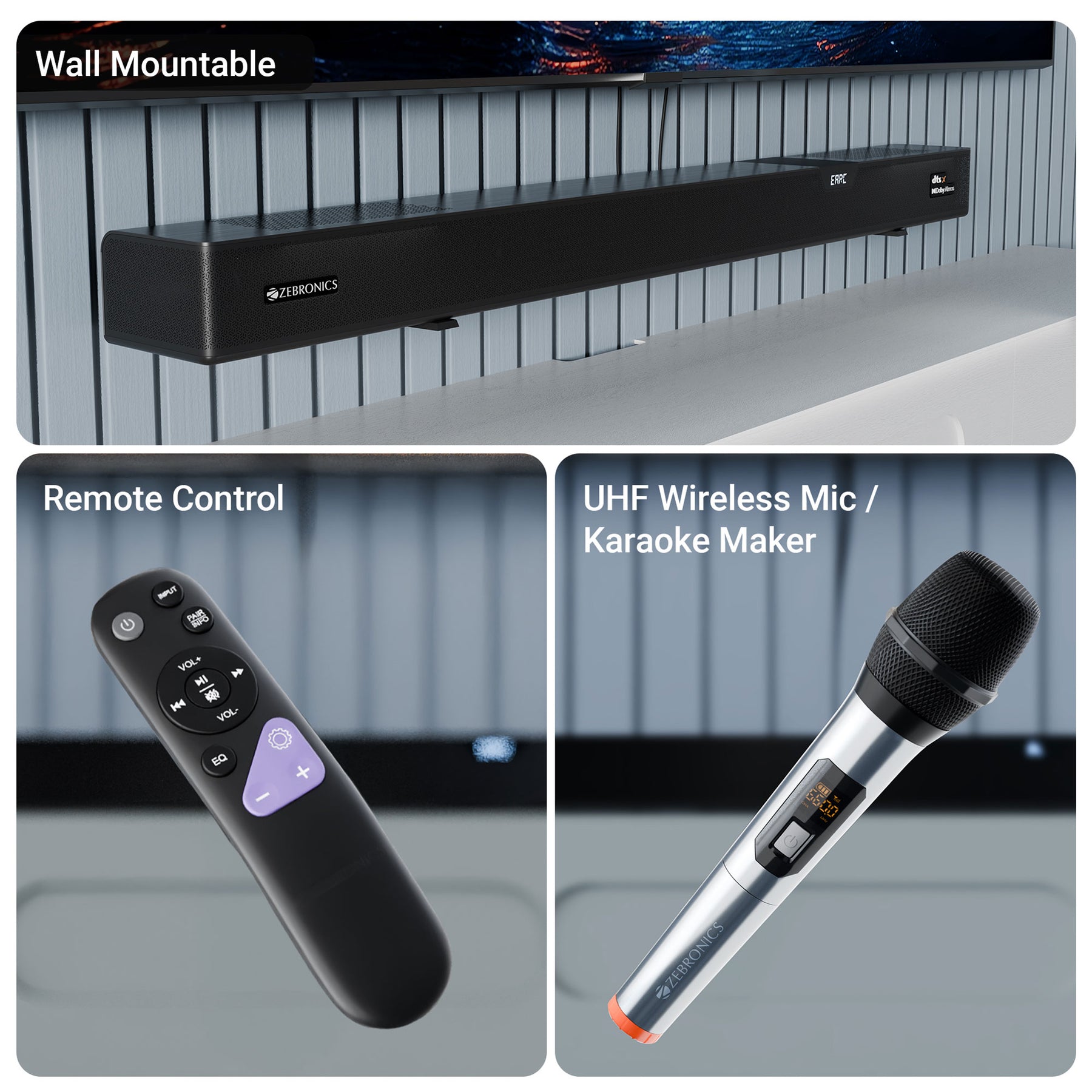

| Wall Mountable |
|
| LED Display |
|

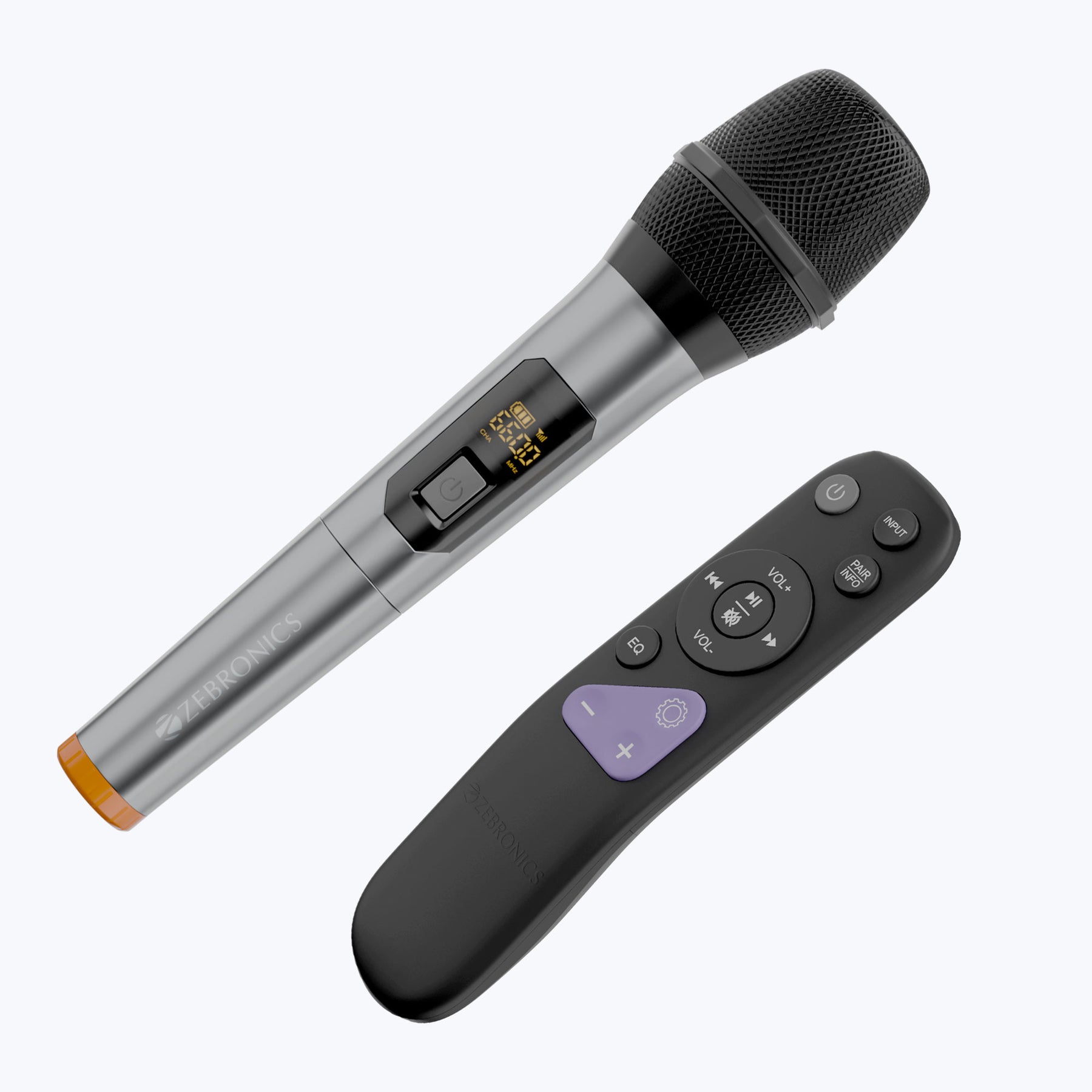

| Wireless UHF Microphone |
|
| ZEB AcoustiMax Multi Dimensional Audio |
|

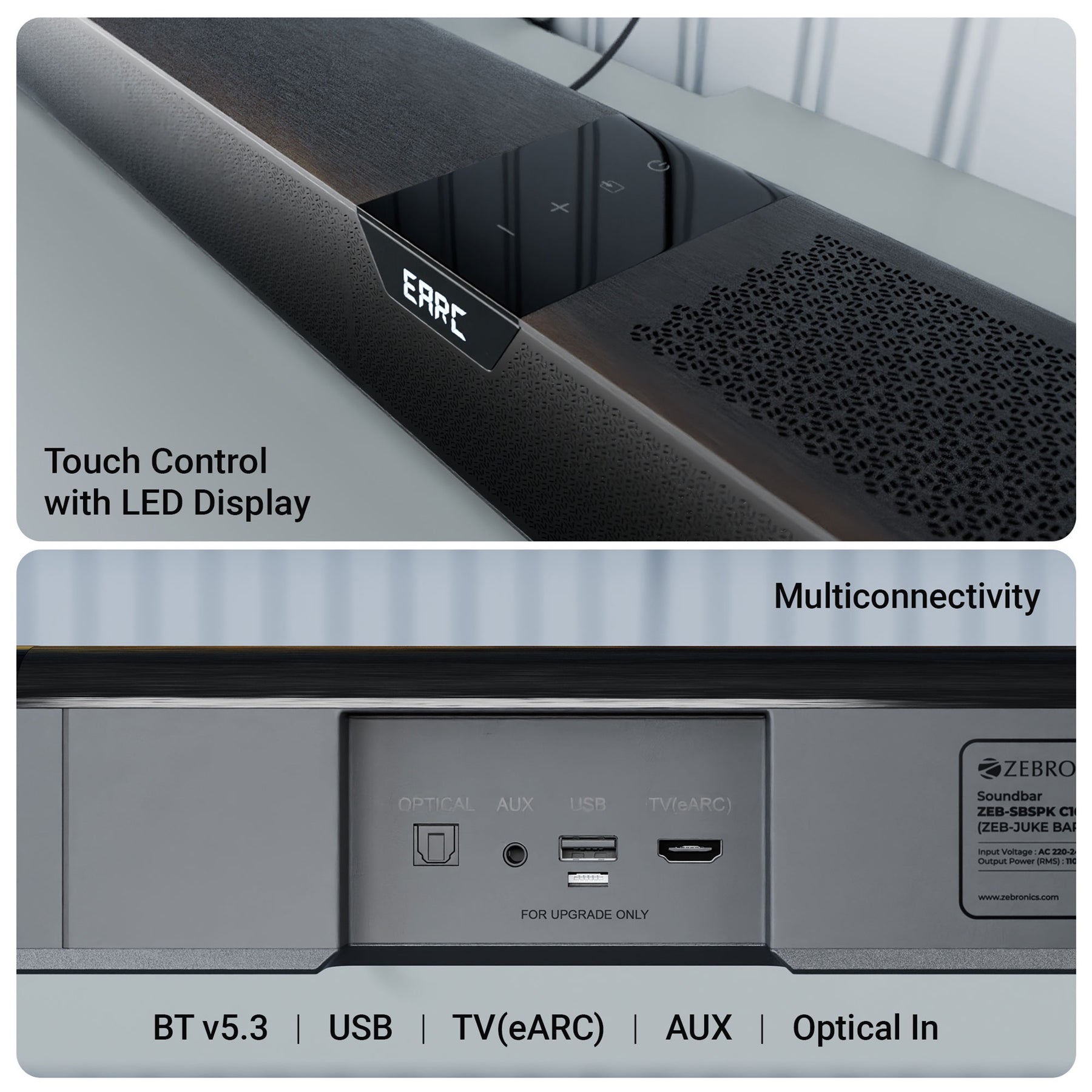

| Touch Control |
Specifications
| Model |
ZEB-SBSPK C16 |
|
| Output Power (RMS) | ||
| Subwoofer | 300W | |
| Soundbar |
520W | |
| Satellites |
(70W x 4 ) | |
| Total |
1100W | |
| Driver Size | ||
| Subwoofer |
[16.51cm Active x 2] + [20.32cm Passive x 2] | |
| Sound bar |
[9.5cm x 5.4cm] x 3 + [7.5cm x 5.2cm] x 2 + [5.08 cm] x 2 + [2.54cm] x 3 | |
| Satellites |
[5.5cm x 8.5cm] x 2 + [5.08cm] x 2 |
|
| Impedance | ||
| Subwoofer |
3Ω x2 | |
| Soundbar |
6Ω x 7 + 8Ω Tweeter x 3 |
|
| Satellites |
6Ω x 4 |
|
| Frequency response | 20Hz-20kHz |
|
| S/N Ratio |
≥65dB | |
| Separation |
≥45dB | |
| File format support (USB) |
MP3 |
|
| Line input | 3.5mm, Optical IN & TV (eARC) | |
| Max supported memory size (USB) |
32GB | |
| BT name | JUKE BAR 10000 | |
| BT version |
v5.3 |
|
| Product Dimension (W x D x H) |
||
| Subwoofer |
29.5 x 25 x 30 cm |
|
| Sound bar |
100 x 11 x 7.2 cm | |
| Satellites | 8.5 x 10.5 x 19 cm | |
| Package Dimensions (W x D x H) |
109.3 x 36.5 x 41 cm | |
| Net.Weight | ||
| Subwoofer |
7.8 kg | |
| Sound bar |
4.5 kg |
|
| Satellites | 1kg x 2 |
|
| Total |
14.3 kg | |
| Country of Origin | People's republic of china | |
| Package Contents | ||
| Sound Bar |
1 U |
|
| Subwoofer |
1 U |
|
| Satellite |
2 U |
|
| Remote Control |
1 U | |
| Input Cable |
1 U | |
| HD Cable |
1 U |
|
| Wall Mount Bracket With Fasteners |
1 U | |
| QR Code Guide |
1 U | |
| Power Adapter (Satellite) |
2 U | |
| Power Cord | 2 U | |
| Wireless Microphone | 1 U |
* Each satellite speaker is powered independently using its own DC adapter (provided inside the packaging)
