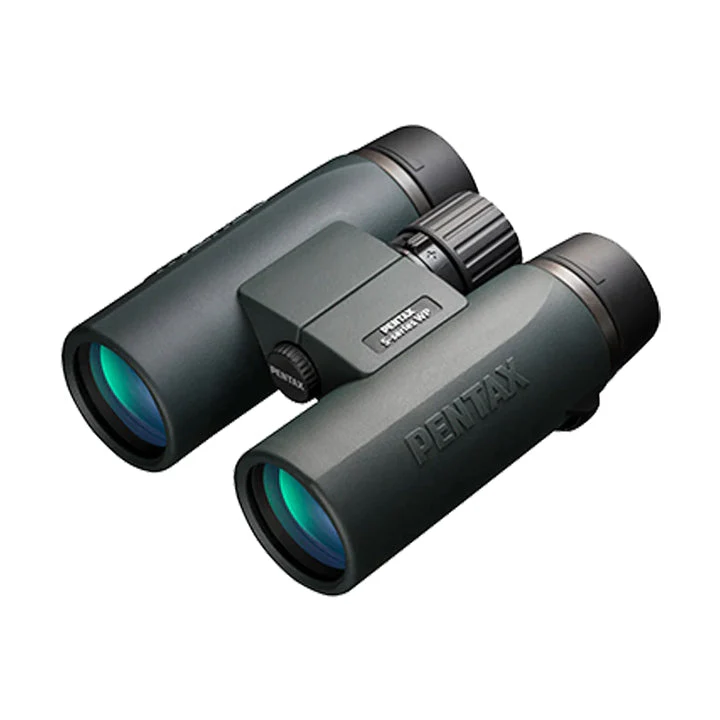

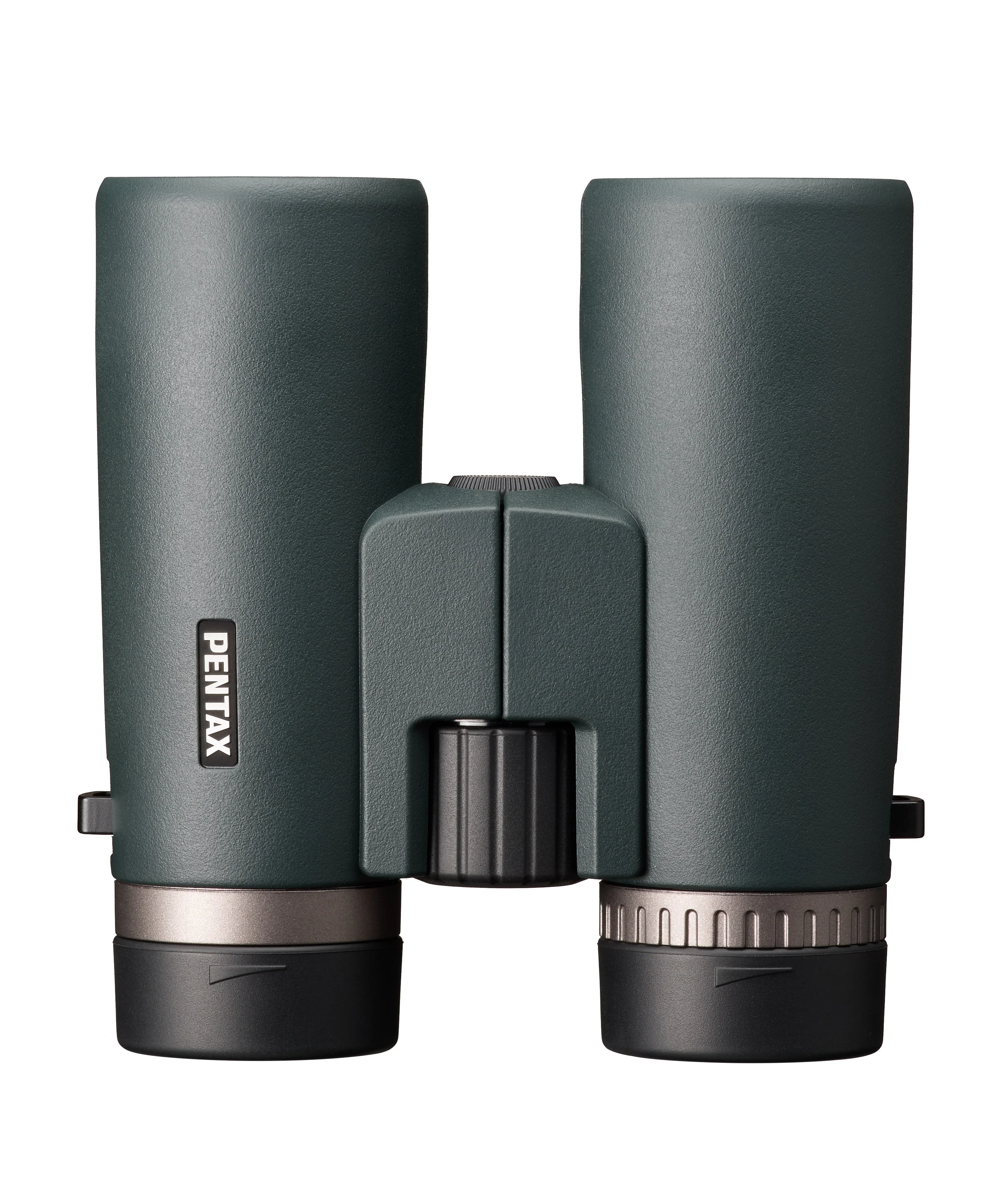

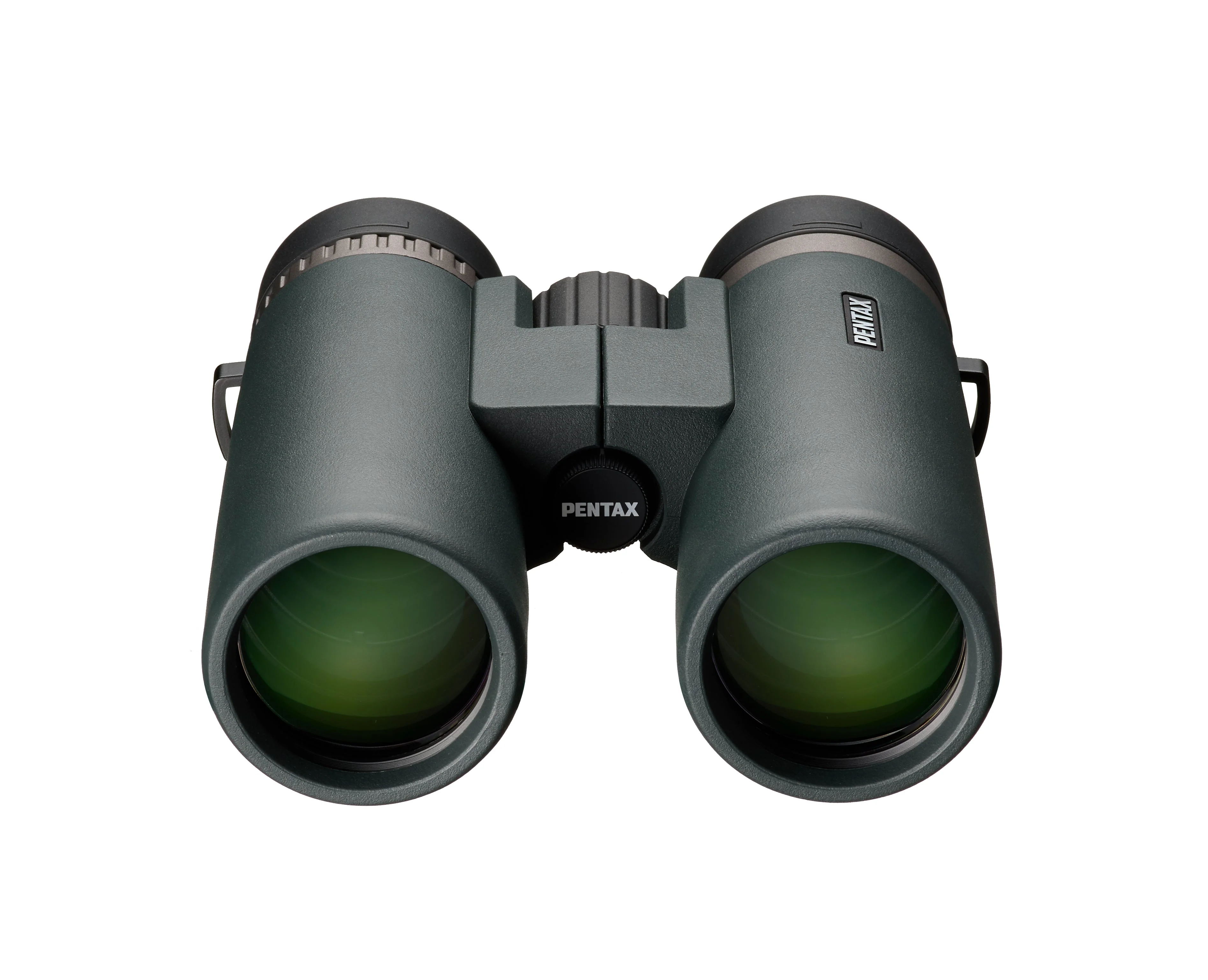

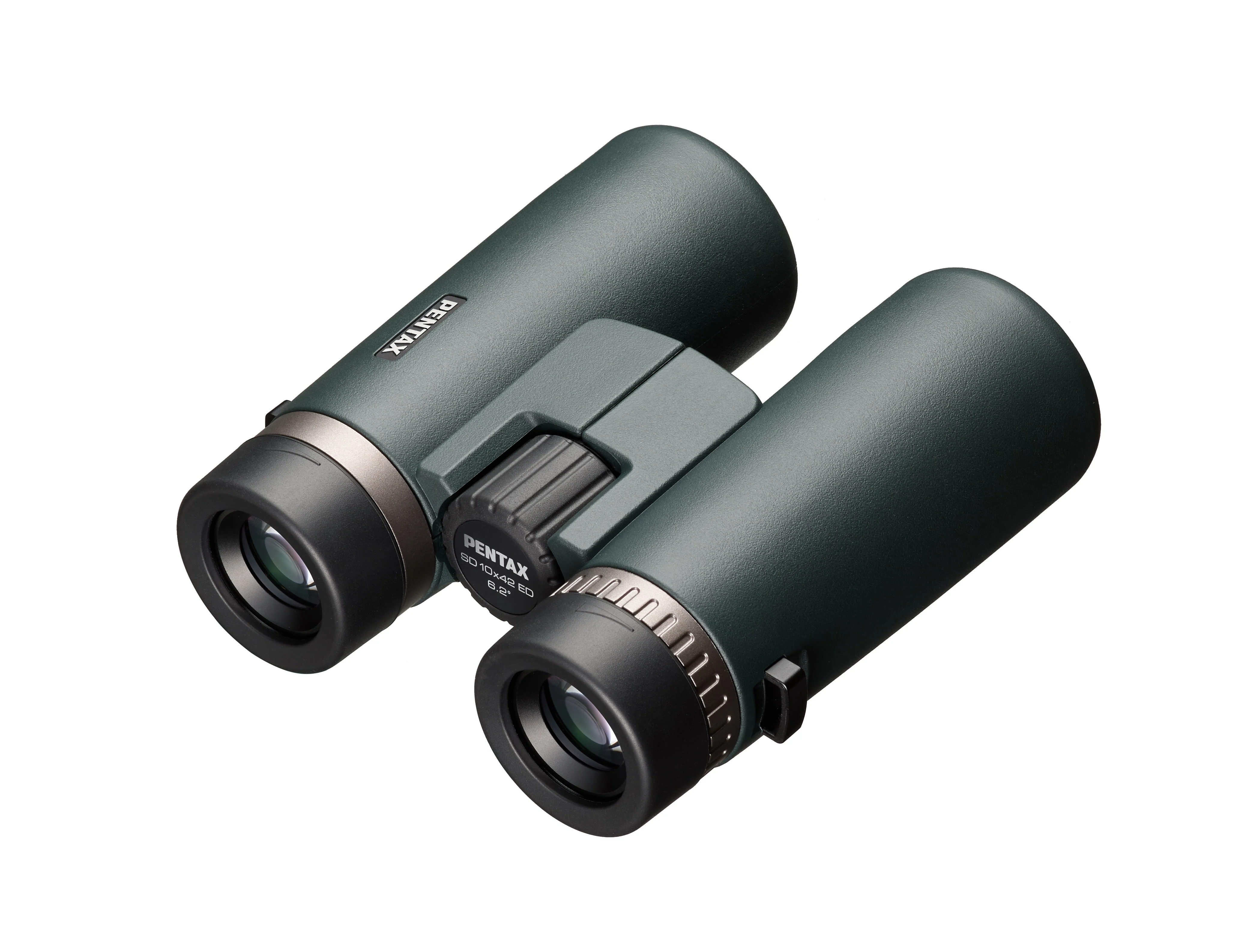

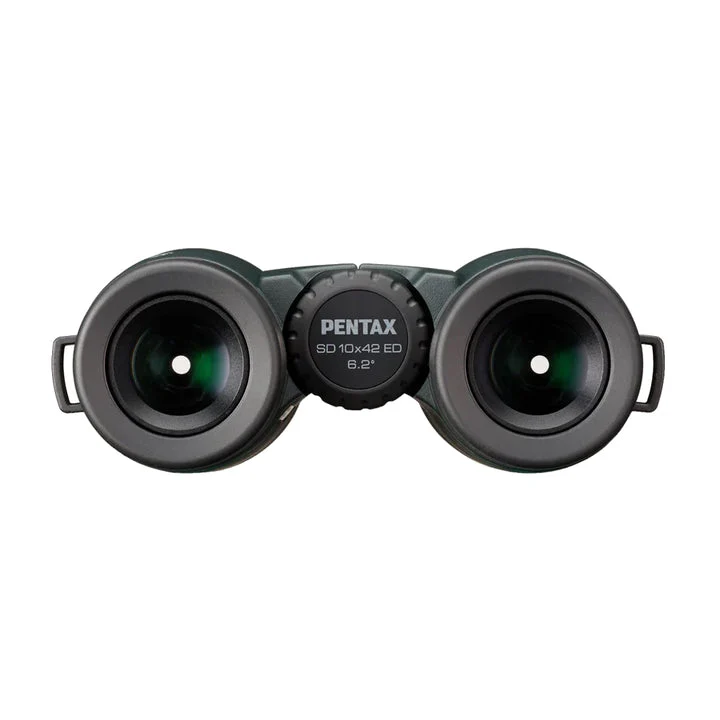

Large objective lens model
Exceptional vision quality meets high-end expectations. Large objective lenses incorporated in the design allow for contrast-rich, bright viewing under all light conditions.
First S-series models to feature ED (Extra-low Dispersion) glass elements, assuring a clear, high-contrast view of the image field and effective compensate of chromatic aberration
Specifications:
|
Magnification |
10x |
|
Effective Aperture of Objective Lens |
|
|
Angle of View |
6.2Β° |
|
Field of View (at 1,000m) |
108m |
|
Exit Pupil |
4.2mm |
|
Eye Relief |
16mm |
|
Relative Brightness |
17.6 |
|
Closest focusing range |
|
|
Height |
140.2mm |
|
Width |
136mm |
|
Thickness |
54mm |
|
Weight |
675g |
