Instrument
Jasco
Electrical
| Filament / Heater Voltage |
Start |
2.5 - 3.0 VDC |
| Operating |
1.5 - 2.0 |
| Filament / Heater Current |
4.5A Max |
| Discharge / Arc Voltage |
Strike |
@25°C >350 VDC |
| Operating |
60 - 90 VDC |
| Discharge / Arc Current |
10 -300mA |

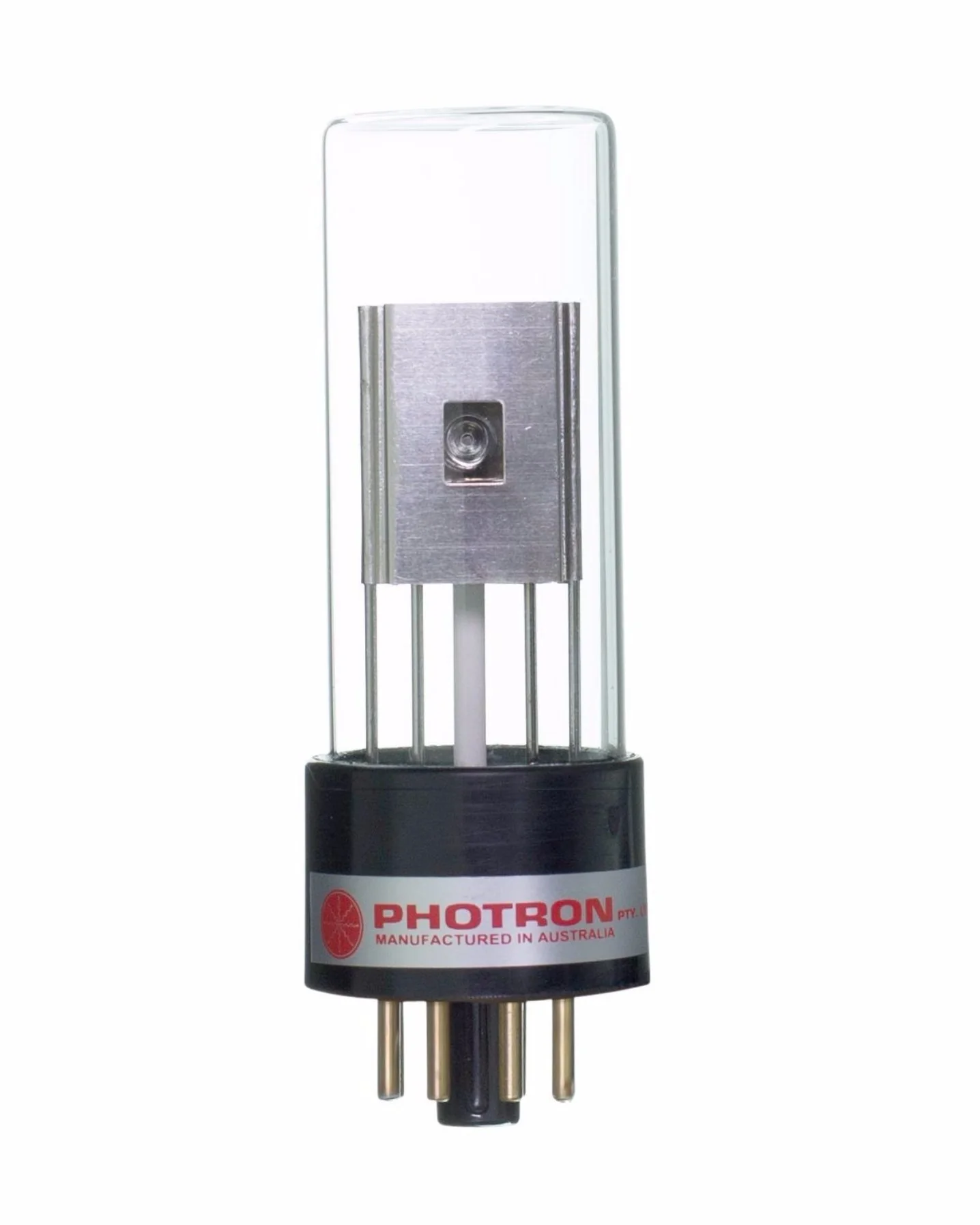

| Terminals |
Octal Connector |
Optical
| Window material |
UV Transmitting Borosilicate |
| Source aperture |
Ø 1mm Diameter |
| Wavelength range |
185nm - 400nm |
| Noise |
<1 x 10-4 Absorption units |
| Drift |
< 3 x 10-3 Absorption units |
Operational Life
When radiant energy reaches 50% of the initial energy at 300mA(dc).
Warranty:
- Do not subject the lamp to mechanical shock.
- Before using the lamp, ensure glass envelope is clean and free from dirt. Envelope may be gently wiped with either alcohol or acetone.
Caution: the circumference of the glass envelope around the light box is very thin and should be handled with extreme care.
- Care must be taken not to touch lamp body with bare hand, as it's temperature reaches over 200°C during operation.
- UV radiation is harmful to eyes. Suitable eye protection must be worn when observing light output.
- Since this lamp operates at high voltages, extreme caution is require to prevent electrical shock.
