Sennheiser EW D1-CL1 NH-NT Wireless Musical Instrument System

Sennheiser EW D1-CL1 NH-NT Wireless Musical Instrument System Overview :

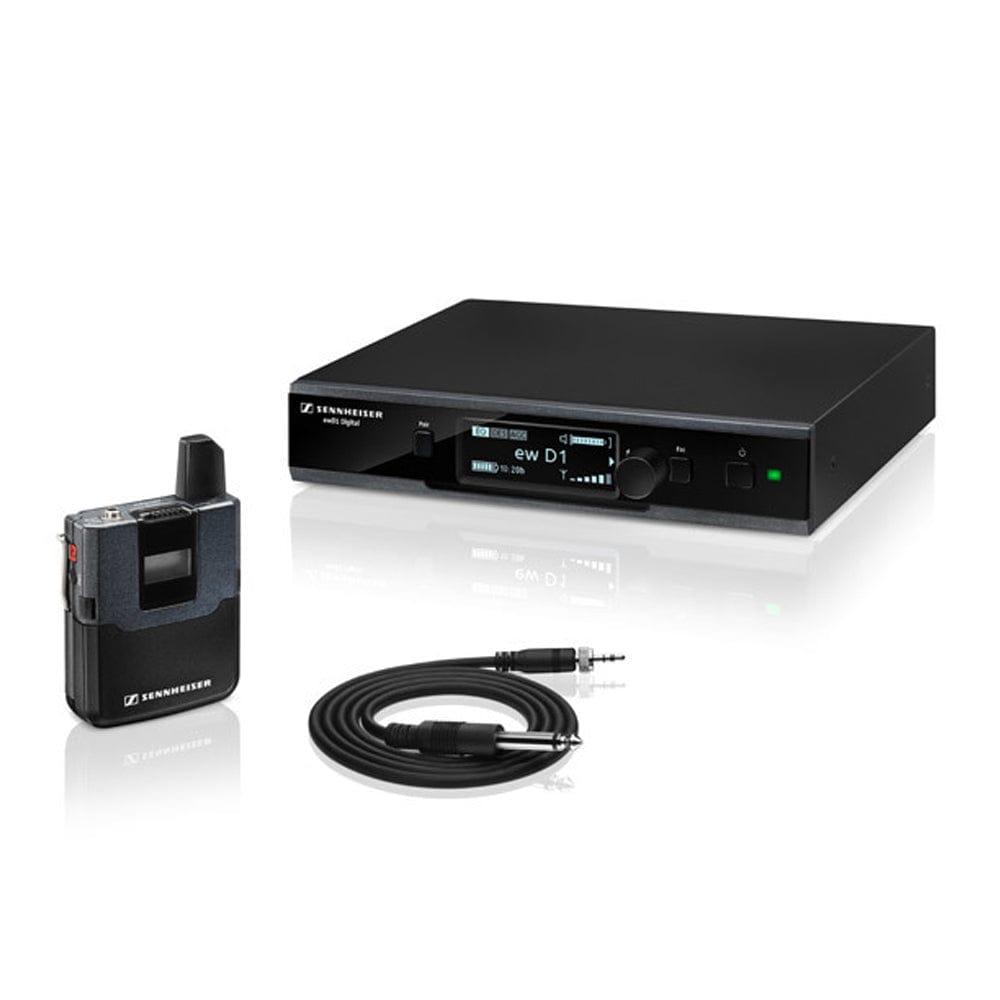

evolution wireless D1 Instrument-Set with CI1 cable for live stage use.

evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

Features :

• Lightweight bodypack transmitter, robust guitar cable included
• Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
• Automatic frequency management
• Prevents interference: Intelligent channel back-up allows co-existence with Wi-Fi & Bluetooth
• Audio effects: equalizer, de-esser, automatic gain control
• iOS app for remote control and monitoring of the system
• Sturdy metal housing

Contents Included :

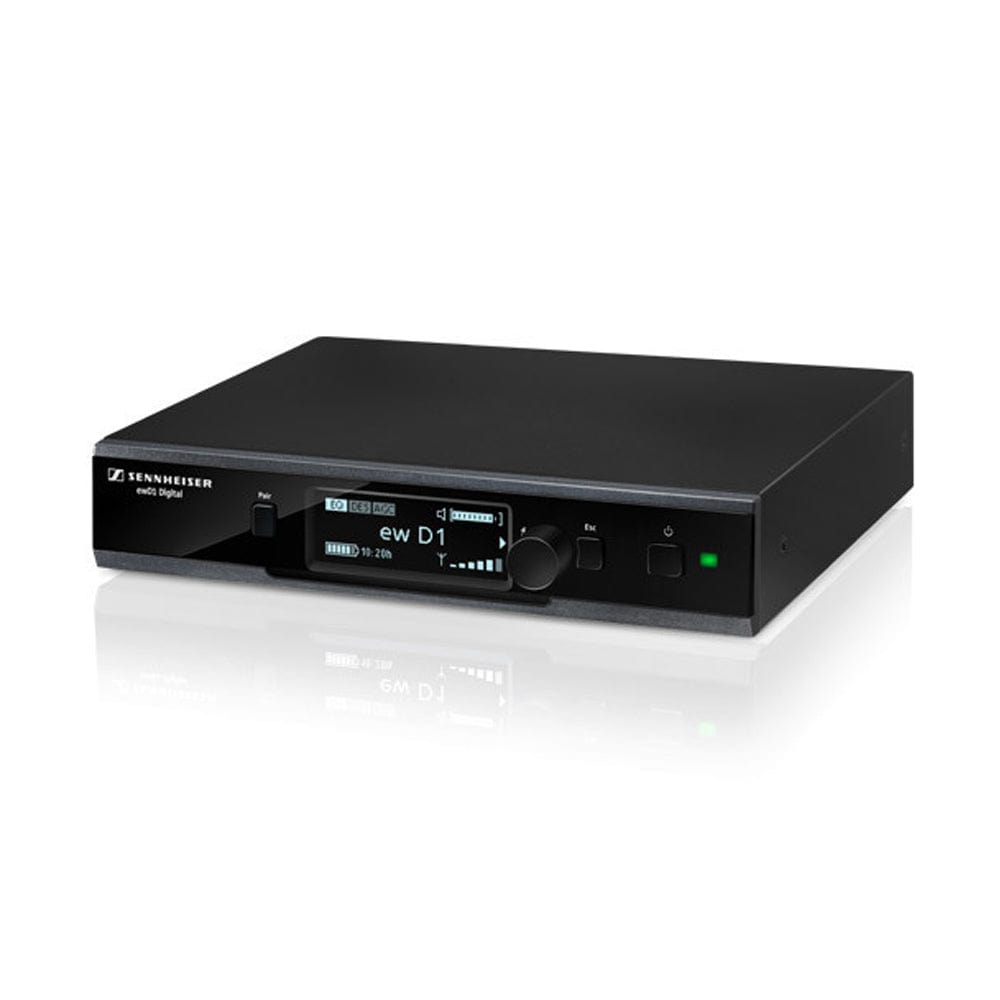

• EM-D1 rackmount receiver

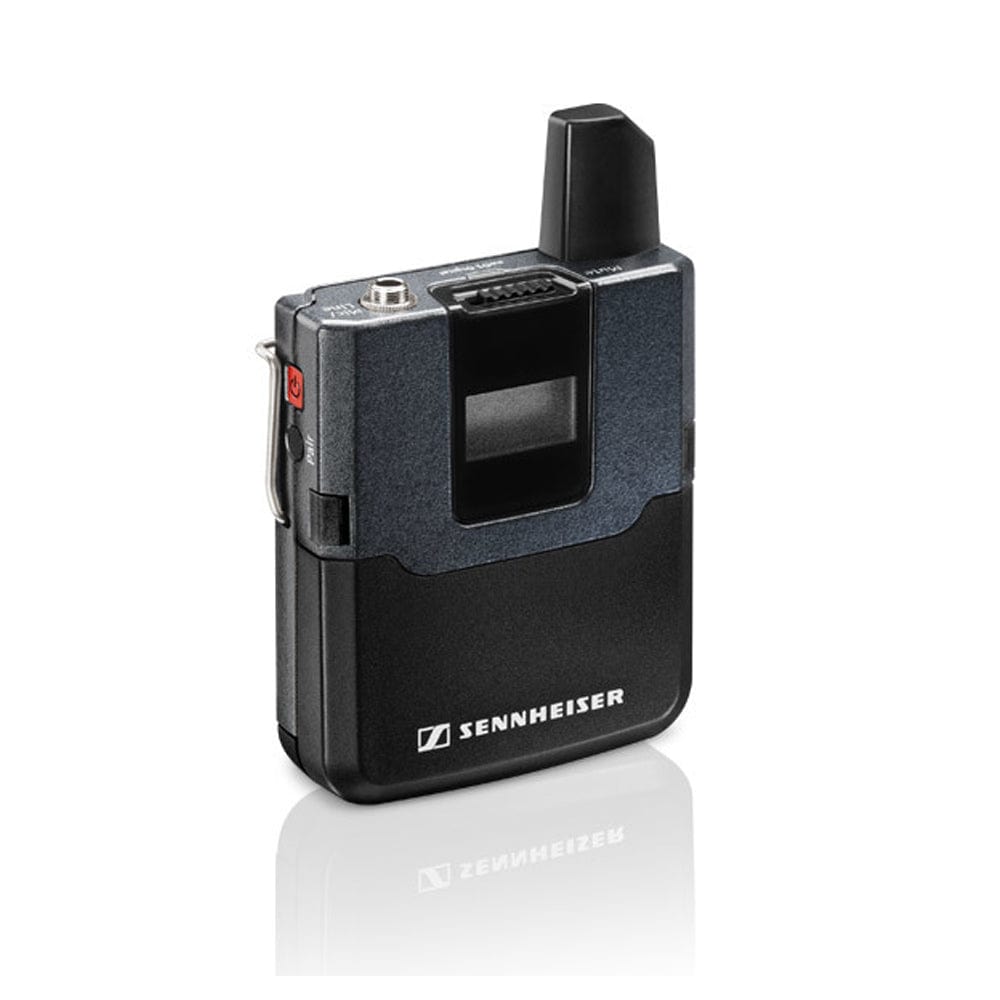

• SK-D1 bodypack transmitter

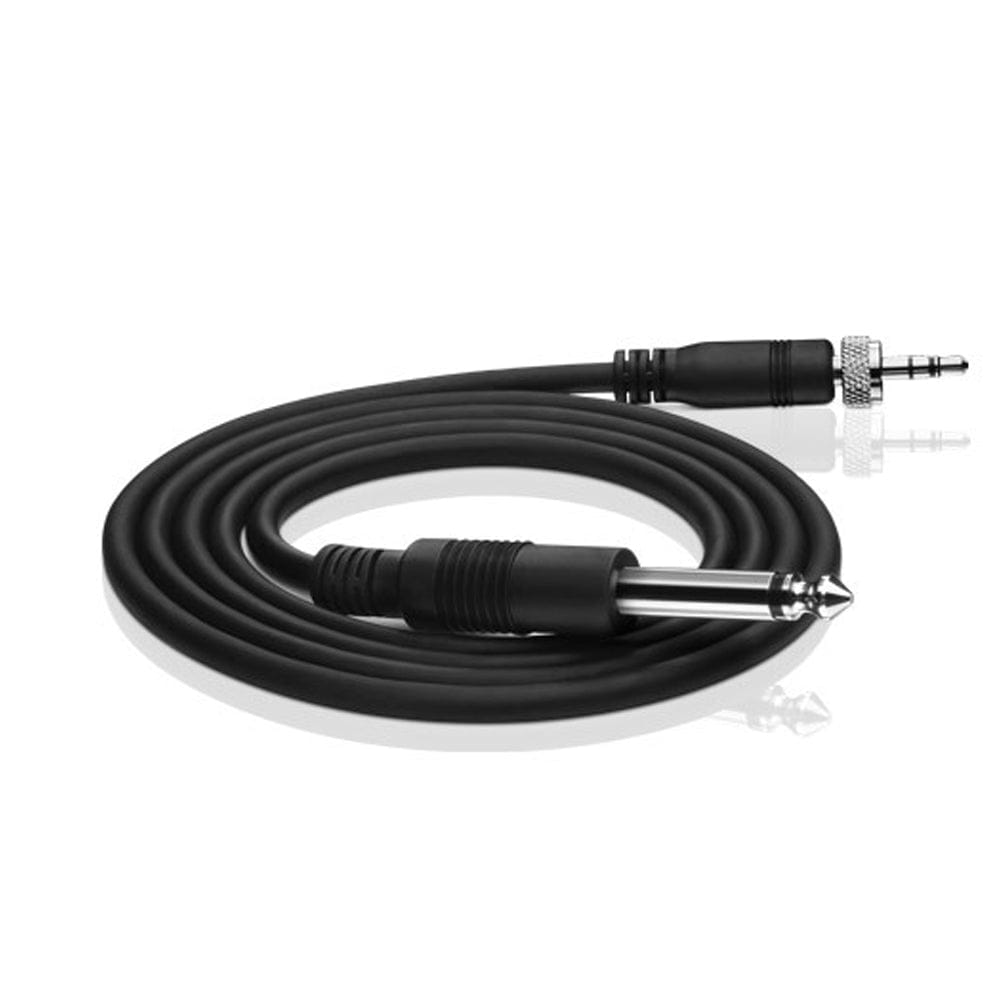

• CI 1 jack cable
• NT-12 power supply

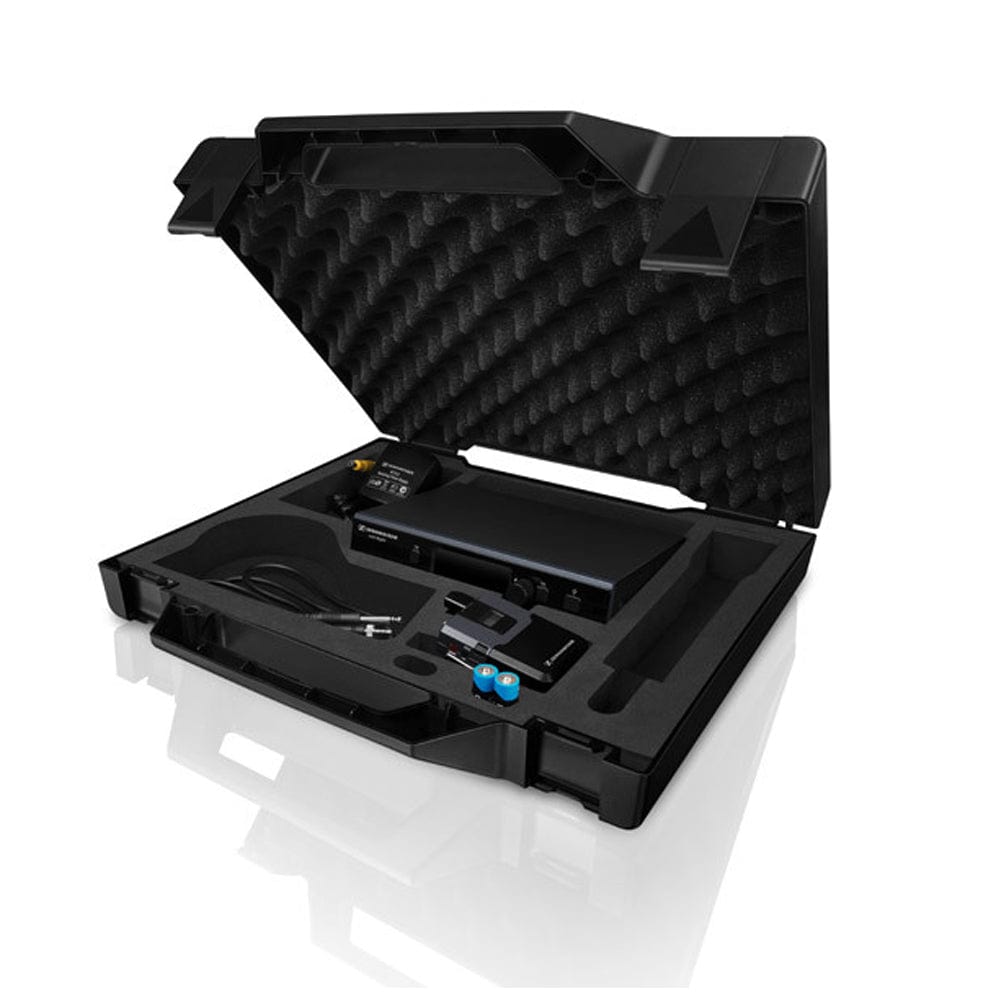

• Transport Case
• User Manual

SK D1

Specifications :

• Microphone Frequency response : 50 to 20,000 Hz
• Max. input level : 2.2 V RMS
• Weight approx : 85 g
• RF output power : adaptive, up to 100 mW (country-specific)
• Battery Specification : 2 x AA size battery (1,5V), Operating time: typ. 6 h
• Input impedance : 1 MΩ
• Connection : 3.5 mm jack socket, lockable
• Line Frequency response : 20 to 20,000 Hz
• Max. input level : 3.3 V RMS
• Input sensitivity : automatic sensitivity adjustment
• Accupack : BA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h

System

• THD, total harmonic distortion typ. < 0,1 %
• Storage temperature – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
• Operating temperature Operation : – 10 °C to +55 °C (The temperature range is influenced by the battery characteristics)
• Signal-to-noise ratio : ≥ 105 dB (A)
• RF frequency range : 2,400 to 2,483.5 MHz
• Modulation : GFSK with back channel
• Codecs : APT-X Live
• Dynamic range : > 128 dB (A)
• Audio sampling : 24 bit/48 kHz
• Transmission method : TDMA, time diversity, frequency diversity, fast switching antenna diversity
• Latency : 3.9 ms
• AF frequency response : 20 to 20.000 Hz

EM D1

• Weight approx : 824 g
• Audio output : Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
• RF output power : back channel 10 mW/100 mW (country-specific)
• Power supply : 12 V DC hollow jack
• Current consumption : 350 mA
• Deviation display : OLED
• Low-cut filter : –3 dB at 120 Hz
• RF sensitivity : <-90 dBm
• Connection : XLR/¼" (6.3 mm) jack
• Equalizer : 7-band graphic equalizer
• Automatic gain control (AGC) : compression/expansion with automatic make-up gain function
• Antenna Connector : 2 x Rev-SMA
• Network socket : RJ45
• Network protocol : Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6

Made in Germany
