Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router
- Zero-Latency Routing Switcher
- 80 x 12G-SDI Inputs/80 x 12G-SDI Outputs
- Supports up to DCI 4K60 Video
- Combines SD, HD, UHD 4K & DCI 4K Video
- 4:2:2 & 4:4:4 Video Sampling Supported
- Push-Button, Knob & Ethernet Control
- 32 Channels of Embedded Audio
- SDI Reclocking
- Includes Videohub Mac/Windows Software
- Multi-rate 12G-SDI connections enable you to route up to 80 different video standards at the same time.
- Supports up to DCI 4K60 video resolutions.
- Provides 4:2:2 8 or 10-bit color routing in any standard.
- Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.
- Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.
- Reduces or eliminates signal loss and jitter when using longer cables.
- A sleek front panel offers multiple control options.
- Buttons include assignable shortcuts and In, Out, Clear, and Take buttons.
- The machined metal spin knob provides precise control using an electronic clutch.
- Can be used with optional hardware panels for easier control when components are spaced out in large facilities.

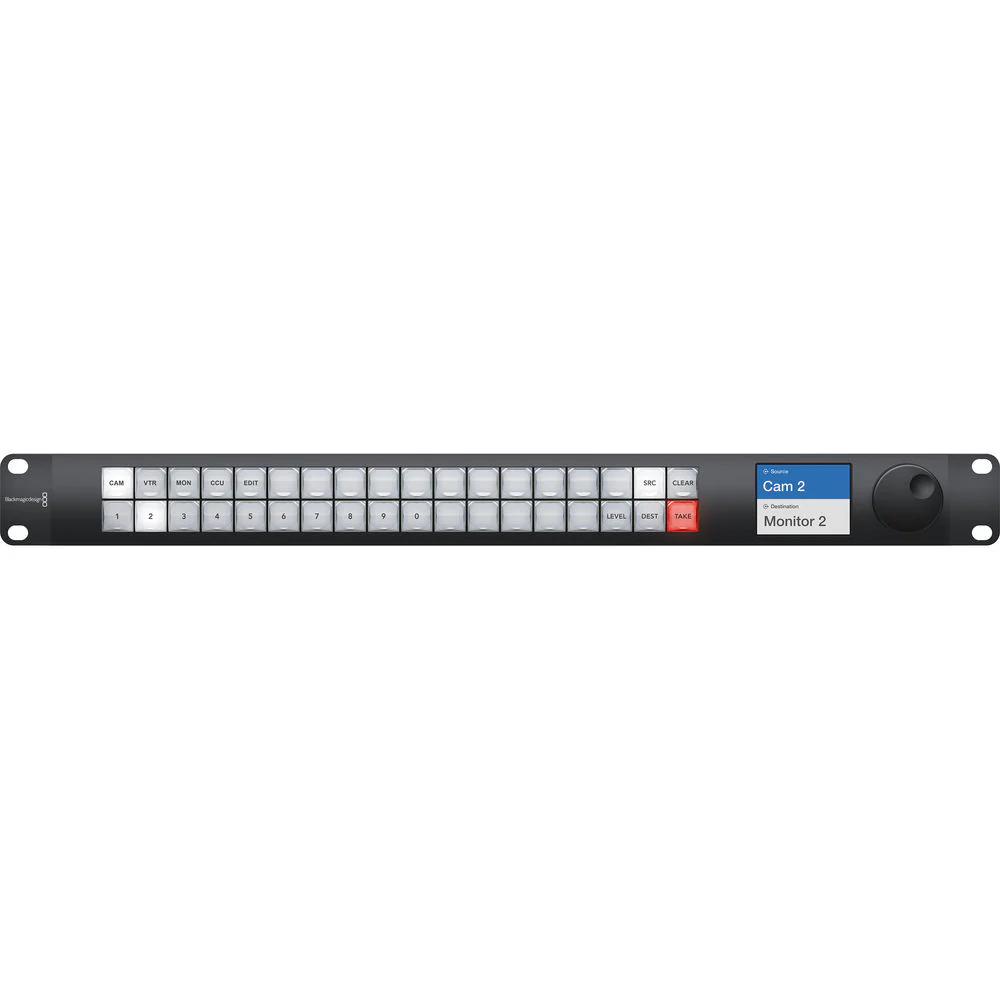

- Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.
- View your live input before routing the signal on the built-in 5" LCD screen.
- Bottom labels enable you to scroll through your sources in alphabetical order.
- Eliminates the need to add an external SDI monitor to your setup.
- English, Chinese, Japanese, Korean
- Spanish, German, French, Russian
- Italian, Portuguese, Turkish, Polish, Ukrainian
Technical Specifications:
|
Switching Type |
Pushbutton, Software |
|
Processing Resolution |
DCI 4K at 60 |
|
Color Processing |
8-Bit 4:2:2 10-Bit 4:2:2 12-Bit 4:4:4 |
|
Audio Processing |
48 kHz / 24-Bit |
|
Video Inputs |
80 x BNC (12G-SDI) |
|
Input Video Format |
SDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
|
Embedded Audio Input |
SDI |
|
Video Outputs |
80 x BNC (12G-SDI) |
|
Output Video Format |
SDI (10/12-Bit 4:4:4 RGB, YUV) DCI 4K up to 30 fps UHD 4K up to 30 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps SDI (10-Bit 4:2:2 RGB, YUV) DCI 4K up to 60 fps UHD 4K up to 60 fps DCI 2K up to 60 fps DCI 2KPsF up to 30 fps 1080p up to 60 fps 1080PsF up to 30 fps 1080i up to 60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps |
|
Embedded Audio Output |
SDI |
|

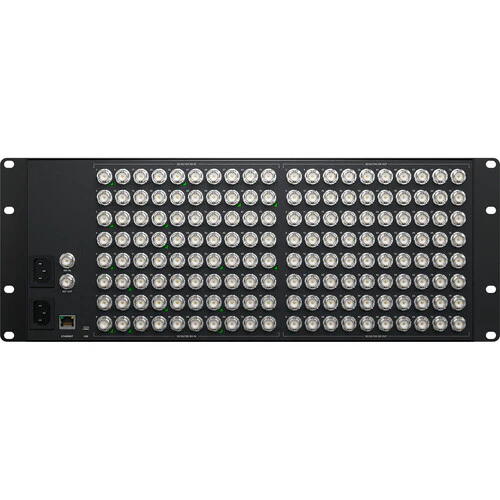

Other I/O |
1 x RJ45 LAN 1 x USB-C 1 x BNC Reference Input 1 x BNC Reference Output |
|
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10 ITU -R BT.601/BT.656 |
|
OS Compatibility |
macOS 12.0 macOS 13.0 or Later Windows 10 (64-Bit Only) Windows 11 *As of September, 2023: Check with manufacturer for the most up-to-date compatibility |
|
Wi-Fi |
None |
|
Bluetooth |
None |
|
Display Size |
5" |
|
Power I/O |
2 x IEC C14 (100 to 240 VAC) Input |
|
Power Consumption |
92 W |
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
|
Operating Humidity |
0 to 90% (Non-Condensing) |
|
Rack Form Factor |
4 RU |
|
Dimensions |
19 x 9.37 x 6.96" / 48.3 x 23.8 x 17.68 cm |
|
Weight |
24 lb / 10.9 kg |
In the Box:
- Blackmagic Design Videohub 80x80 12G Zero-Latency Video Router
- Router Control Software
- Internal Software Updater Application
- Limited 3-Year Manufacturer Warranty
- Limited 1-Year Manufacturer Warranty (Front Panel)
