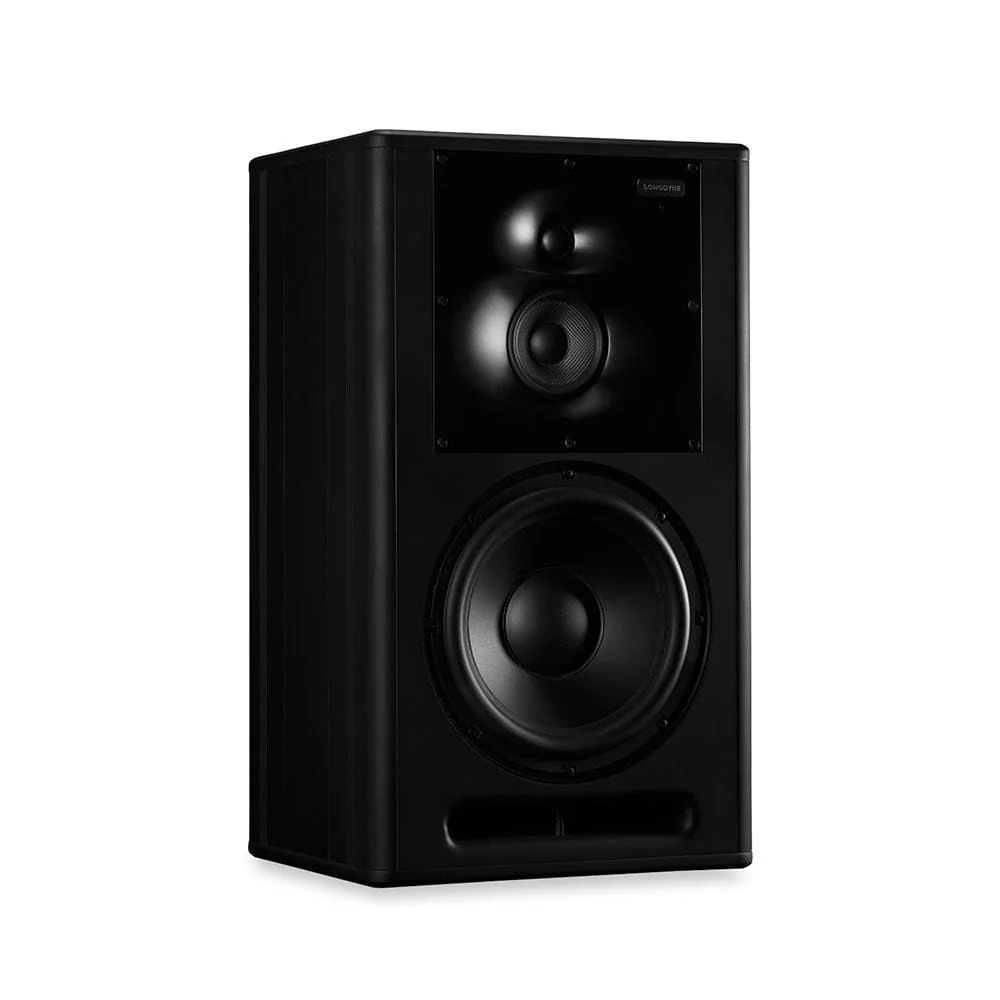

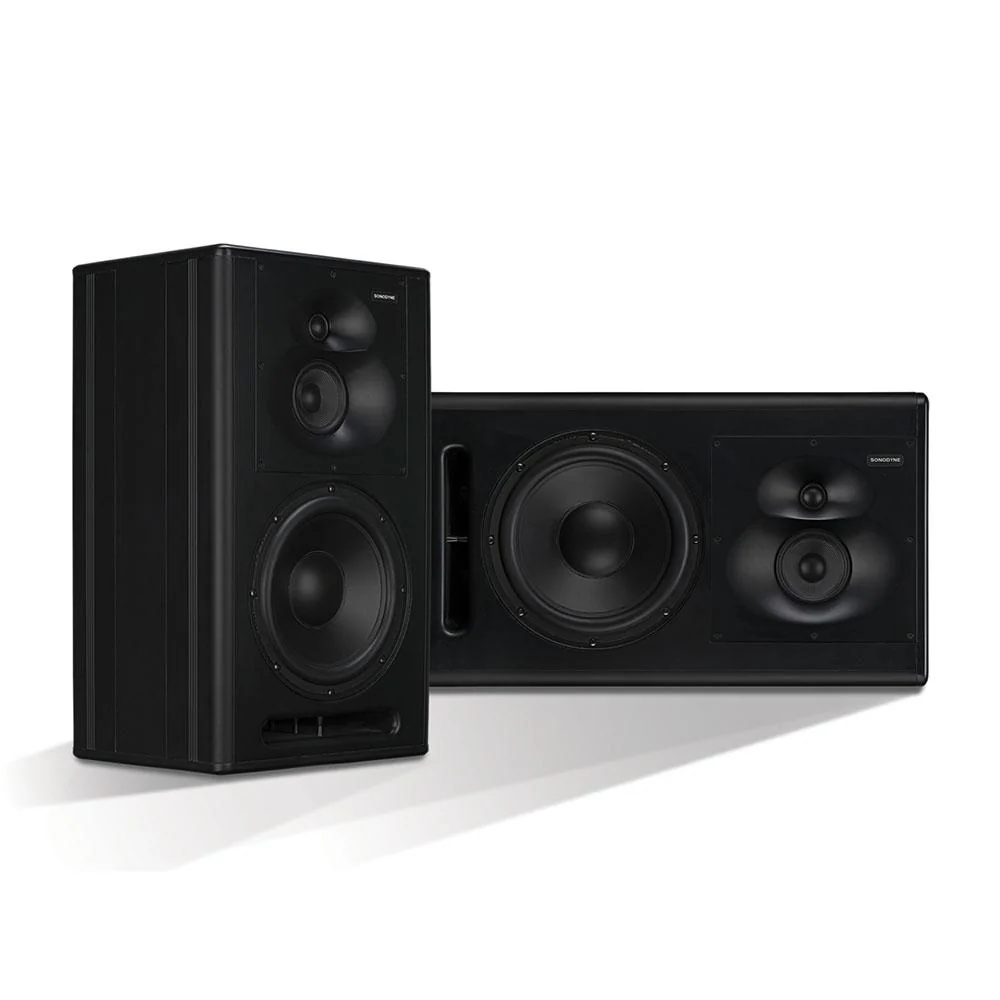

Sonodyne SM 3200 3 way Active Studio Monitor

Sonodyne SM 3200 3 way Active Studio Monitor Overview:

The SM 3200 is a mid field monitor. Capable of playing loud, and clear, and with excellent detail, the SM 3200 is an ideal reference monitor for larger rooms. A tri-amplified speaker, the HF and Mids are nested in a rotatable waveguide, that, assisted by internal DSP balance, results in exceptional on and off axis response. A new 10 " LF transducer ensures that the lowest notes and upper mid transients are produced with detail and clarity. With the SM 3200, your need for a single monitor for recording and post in a large room are adequately met.

HIGHLIGHTS

• 3 way triamplified speaker
• Aluminium - MDF hybrid rigid enclosure
• Kevlar midrange
• Custom waveguide for HF
• 3 EQs
• High in details, dynamics, SPL

SPECIFICATIONS

• DESCRIPTION: 3 way active studio monitor
• ENCLOSURE: Vented, Sides: Extruded aluminium, Top/bottom/front/rear: MDF
• TRANSDUCER COMPLEMENTS: HF Magnetically shielded 26mm silk dome tweeter in rotatable waveguide
• TRANSDUCER COMPLEMENTS: MF Magnetically shielded 4" kevlar cone midrange
• TRANSDUCER COMPLEMENTS: LF Magnetically shielded 10" PP cone woofer
• AMPLIFIER POWER BEFORE CLIPPING LF: 200 W, MF: 75 W, HF: 75 W
• MAX SPL @ 1M: 120 dB
• FREQUENCY RESPONSE: 35 Hz ~ 22 kHz (+/- 2 dB)

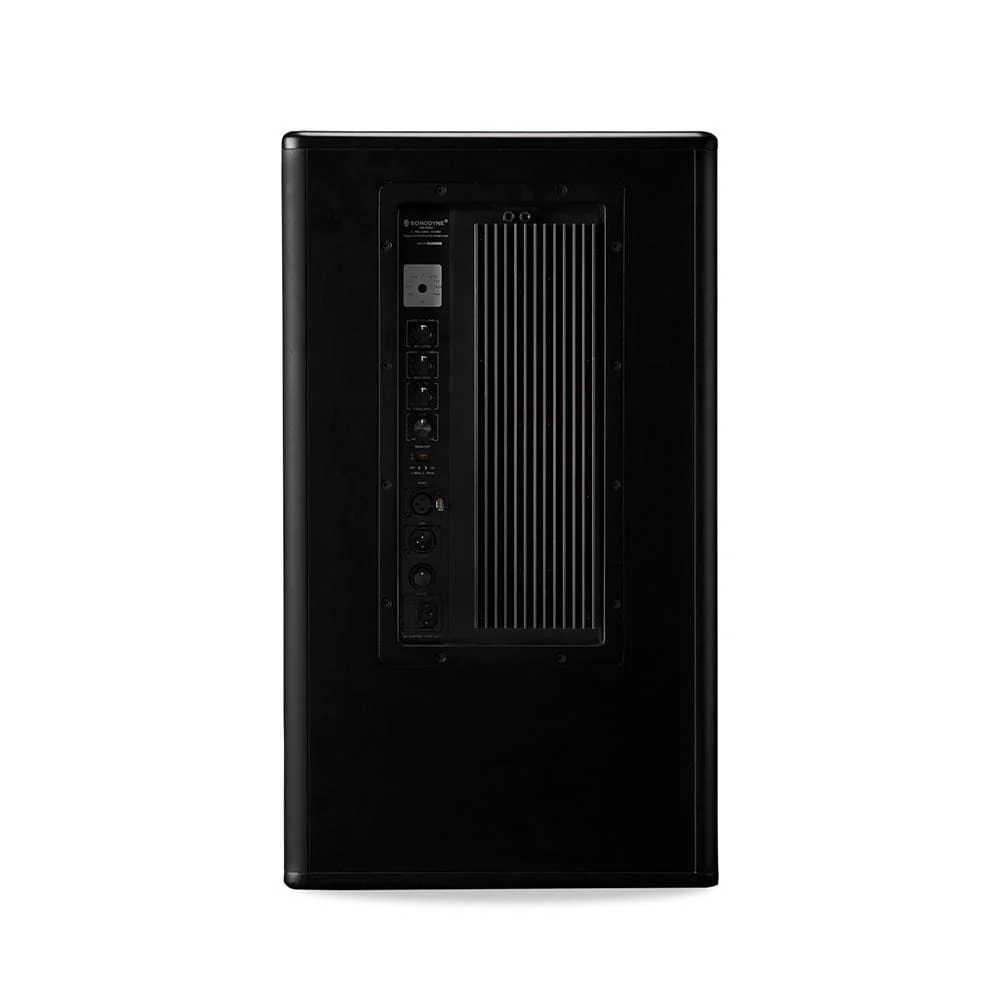

• INPUTS: Fully balanced XLR socket with link
• PROTECTION: Overcurrent, overheat, RFI, switch-on/off transients
• FINISH: Black painted
• COLOURS: Black
• DIMENSIONS (HXWXD): MM 610 x 357 x 300
• POWER REQUIREMENT: Two versions: 230 V AC and 120 V AC, +/- 10%
• NET WEIGHT: 35 kg

Made in India
