Features
| PD 3.0 - C - 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 2.25A | |
| USB 3.0 - A1 - 5V 3A / 9V 2A / 12V 1.5A | |
| USB - A2 / A3 : 5V 2.4A | |
| Over Current & short circuit Protection | |

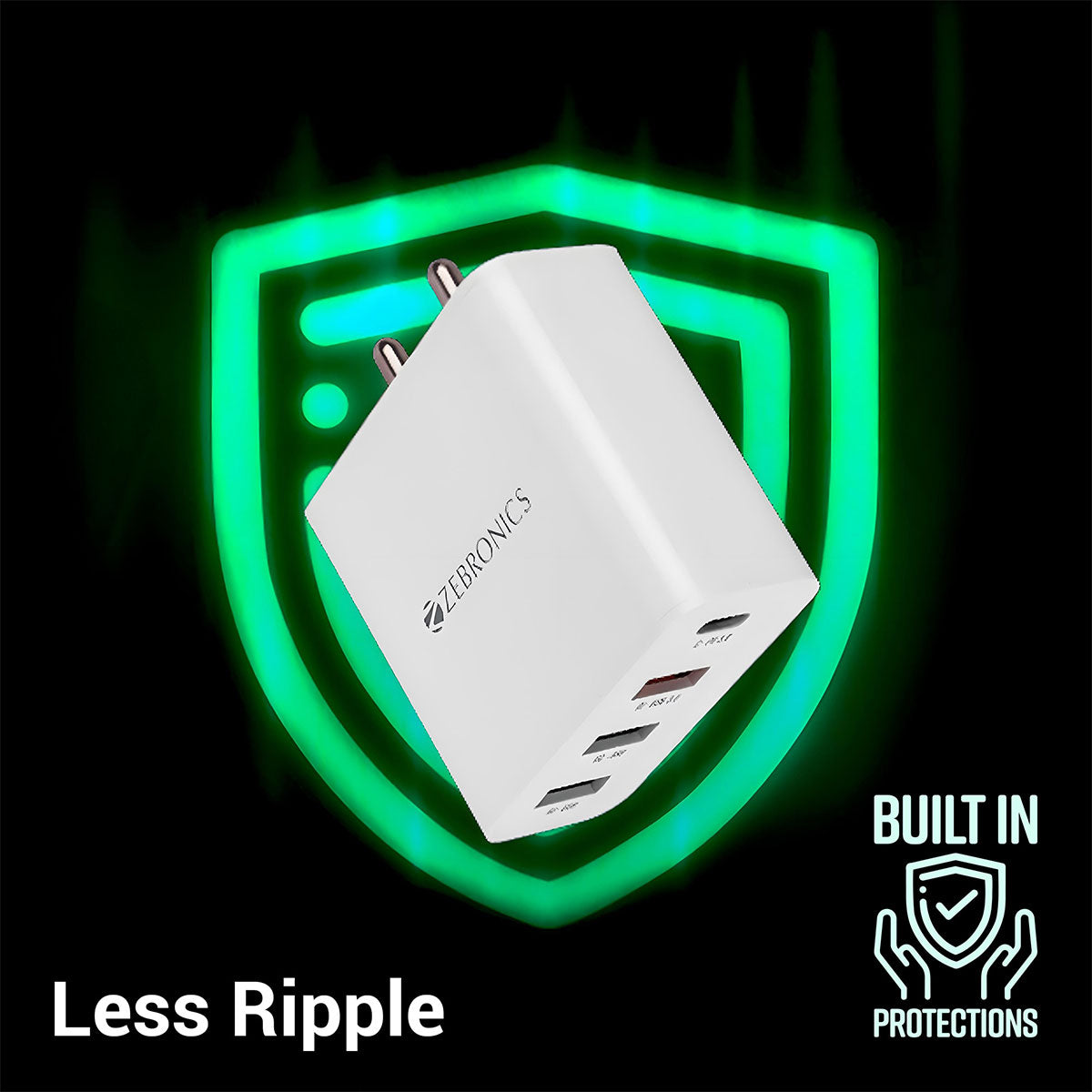

| Less Ripple | |
| High Efficiency | |
| Auto Self Recovery | |
| Wide input range | |
| Compatible With Mobile/Tablet |
Specifications
| Input Voltage |
100-240Vac, 50/60Hz | |
| Max Output |
PD 3.0 - C - 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 2.25A USB 3.0 -A1 - 5V 3A / 9V 2A / 12V 1.5A USB - A2 / A3 : 5V 2.4A |
|

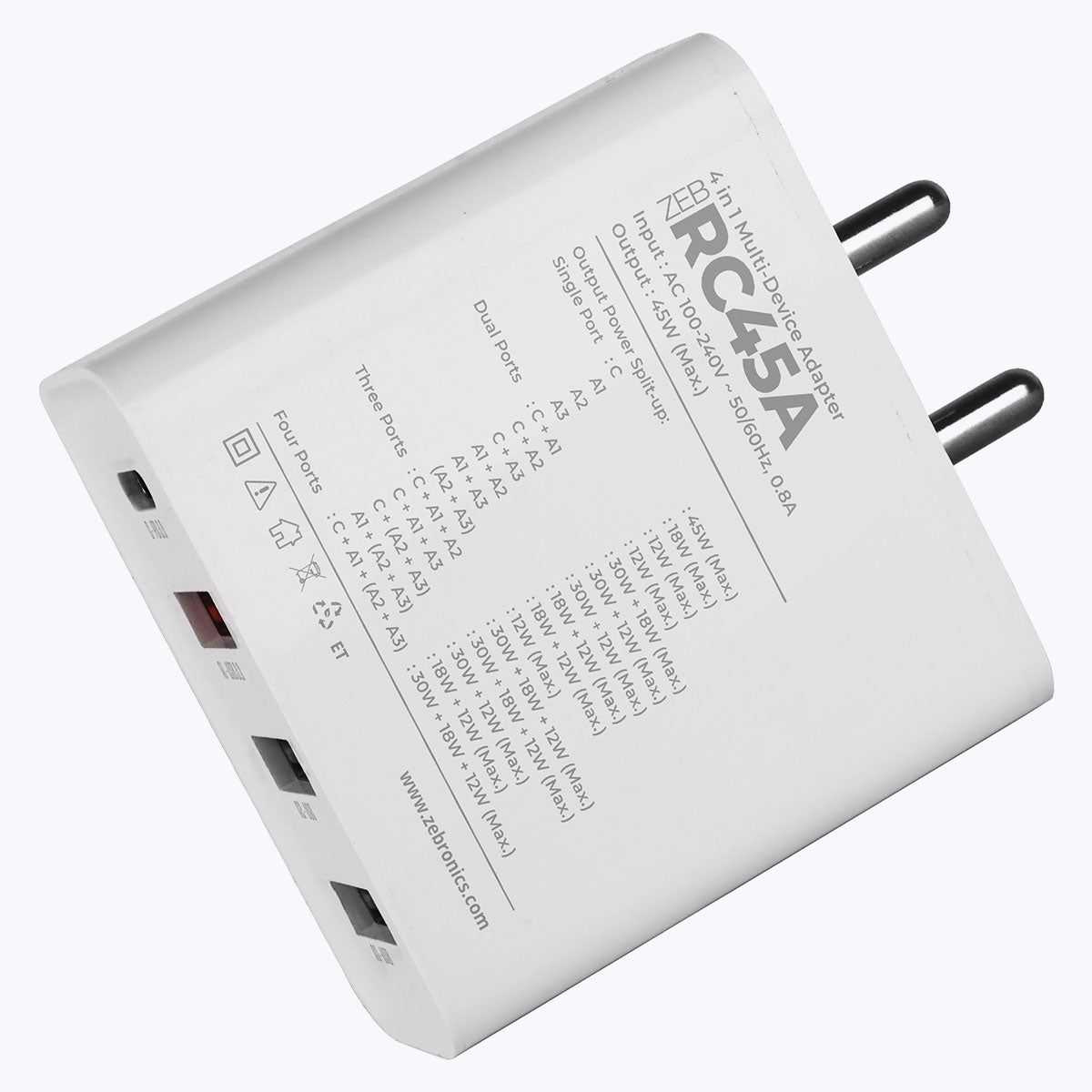

| Power Split-up |
||
| Single Port |
C: |
|
| C |
45W (Max.) | |
| A1 |
18W (Max.) | |
| A2 |
12W (Max.) |
|
| A3 |
12W (Max.) | |
| Dual Ports |
||
| C + A1 |
30W + 18W (Max.) | |
| C + A2 |
30W + 12W (Max.) | |
| C + A3 |
30W + 12W (Max.) | |
| A1 + A2 |
18W + 12W (Max.) | |
| A1 + A3 |
18W + 12W (Max.) | |
| A2 + A3 |
12W (Max.) | |
| Three Ports |
||
| C + A1 + A2 |
30W + 18W + 12W (Max.) | |
| C + A1 + A3 |
30W + 18W + 12W (Max.) | |
| C + (A2 + A3) |
30W + 12W (Max.) | |
| A1 + (A2 + A3) |
8W + 12W (Max.) | |
| Four Ports |
||
| C + A1 + (A2 + A3) | 30W + 18W + 12W (Max.) | |
| No. Of USB Ports |
1 x PD 3.0 / 1 x USB 3.0 / 2 x USB | |
| Net.Weight |
113g | |
| Country of Origin |
People’s Republic of China | |
|
||
| Adapter |
1U |
