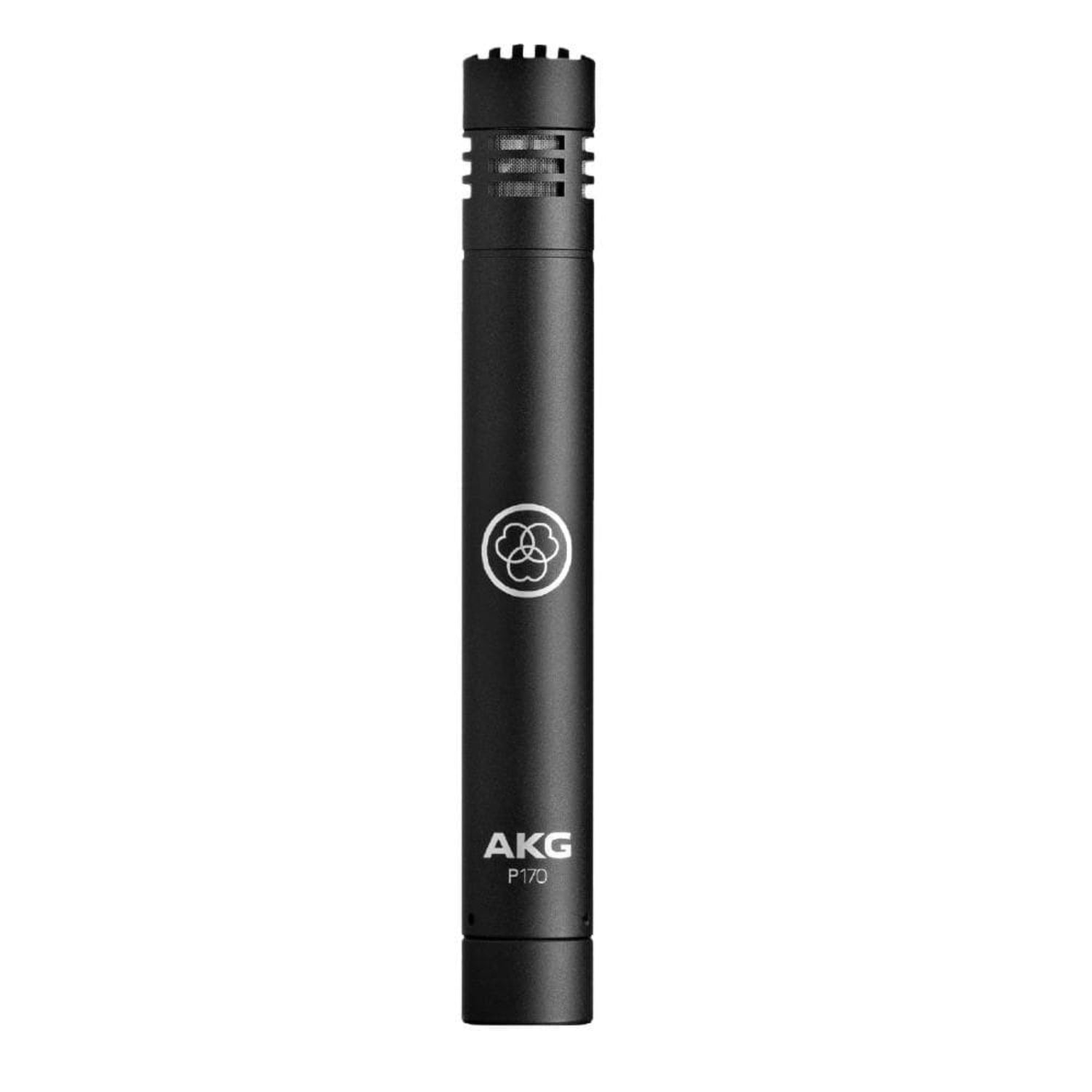

AKG P170 High-Performance Instrument Condenser Microphone

AKG P170 High-Performance Instrument Condenser Microphone Overview:



The P170 is a small-diaphragm condenser microphone for recording of overheads, percussion, acoustic guitars and other strings. Its lightweight 1/2-inch true condenser transducer diaphragm delivers outstanding clarity and transient response. The P170 utilizes the experience of sound engineers from around the world and is considered an affordable alternative to the legendary AKG C451 B.

Specifications:

• Audio frequency band width20 - 20000 Hz
• Equivalent noise level 19 dB-A
• Sensitivity 15 mV/Pa
• Signal to Noise 75 dB-A

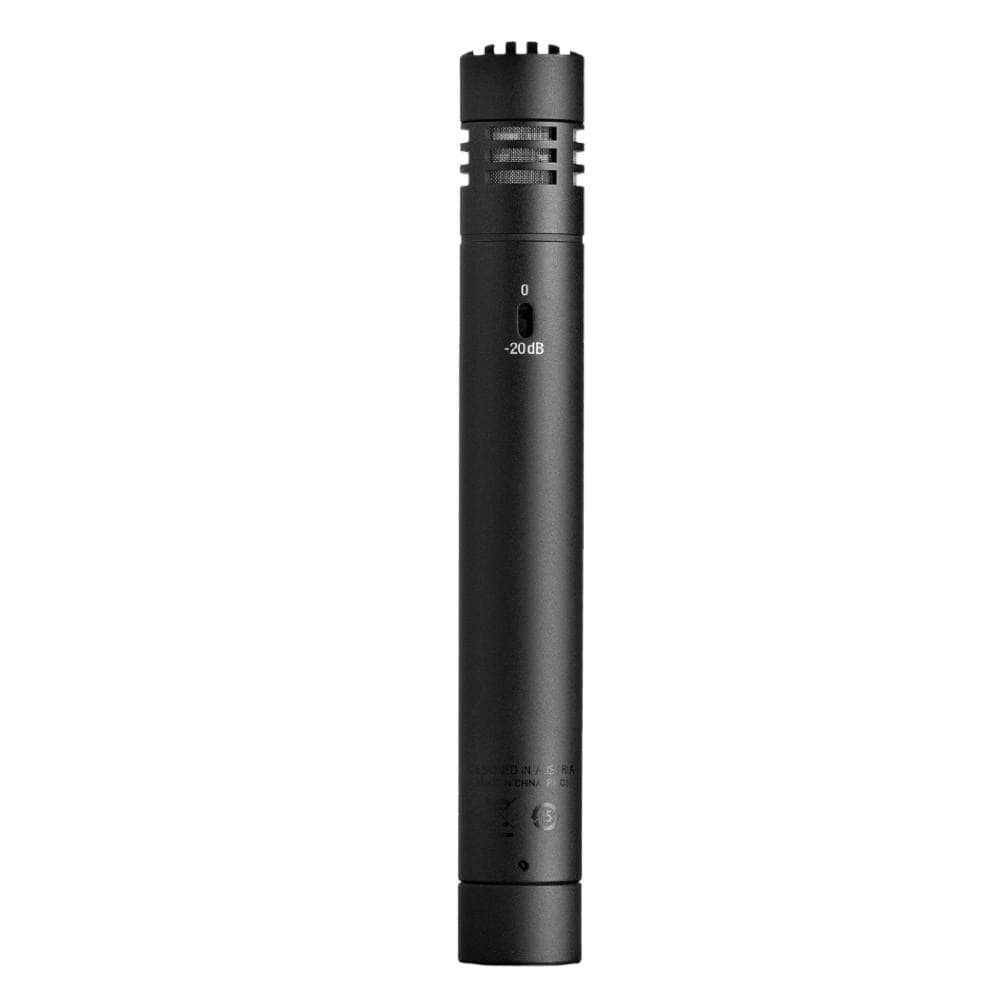

• Preattenuation Pad -20 dB
• Electrical impedance <= 200 Ohms
• Recommended load impedance >=1000 Ohms
• Polar Pattern Cardioid

Dimensions

• Height 160 mm
• Diameter 22 mm
• Net Weight 130 g

Audio Output

• Type Balanced XLR
• Gender Male
• Contacts 3-pin
• Powering Interface
• Voltage 44 to 52 V
• Current <= 3 mA

Application

• Project Studio Yes
• Live Instrument Yes

Instrument

• Drums / Percussion Yes
• Horns / Woodwinds Yes
• Piano / Strings Yes

Made in China

Project Studio Yes Live Instrument Yes Instrument Drums / Percussion Yes Horns / Woodwinds Yes Piano / Strings Yes
