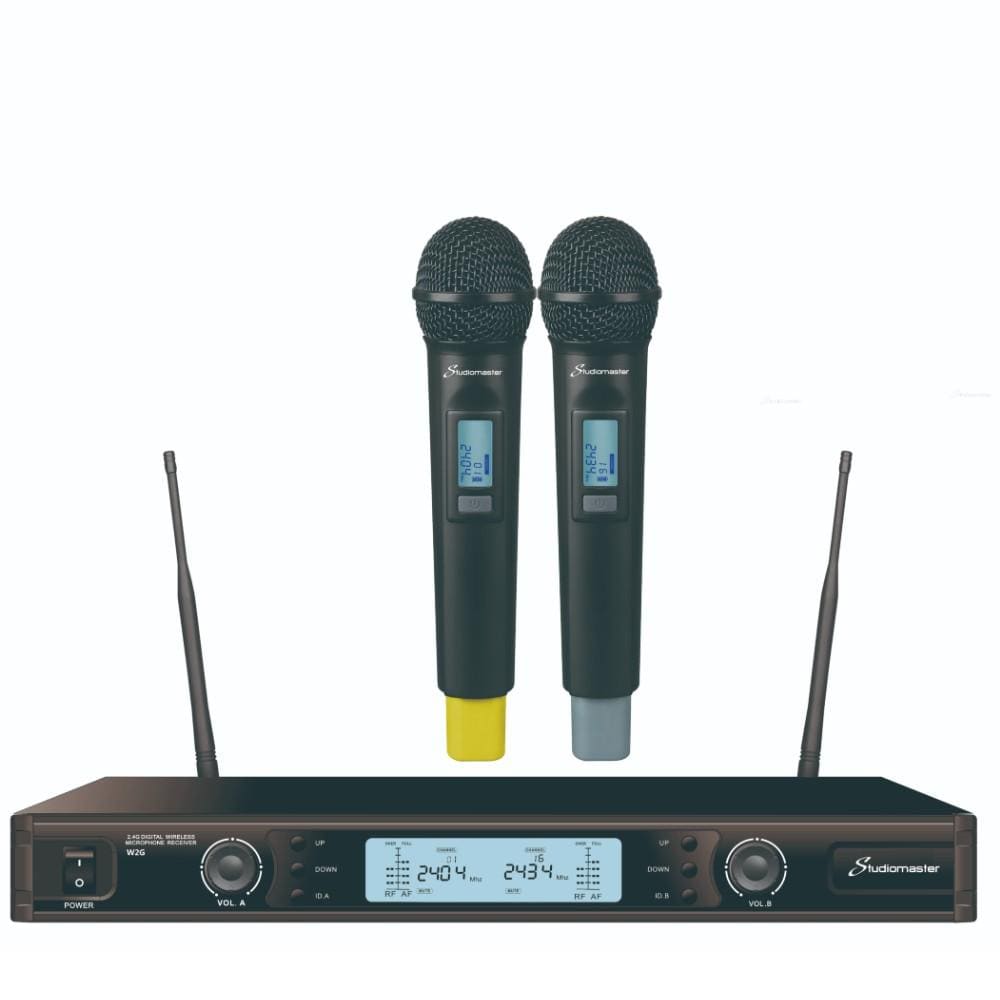

Studiomaster W2 UHF600-999MHz Dual Handheld Wireless Microphone

Studiomaster W2 UHF600-999MHz Dual Handheld Wireless Microphone Overview:

Features:

• Two channel handheld wireless microphones using UHF600-999MHz band
• Advanced digital pilot technology, up tp 200 sets can be used without interfance
• Automatic frequency scan feature searches for available frequencies
• PLL system. Preset 240 non-interfered channels, adjustable 600 free frequencies
• Rechargeable handheld microphones with 80M range.
• Standard 19-inch rack mounting with included rack ears.

Specifications:
Performance

• Carrier Frequency: UHF600-999MHz
• Frequency Stabilization: <+-30ppm
• Dynamic Range: >100dB
• Total Harmonic Distortion: <0.5%
• Frequency Response: 40Hz~15KHz+-3dB
• Audio Output Lavel: Balanced / Unbalanced 400mV

Receiver

• Power Supply: DC15-17V
• Consume Power: 3 WATT
• Signal / Noise Ratio: >95dB
• Image Spurious Rejection: >80dB
• Border Upon Channel Rejection: >80dB
• Receiver Sensitivity: 5dBuV
• De-Emphasis: 50uS

Handheld Microphone

• Transmitter Power: 30mW
• Modulation Type; FM
• Deviation: 40KHz
• Spurious Emission: >60dB
• Battery Voltage: 3V (2x1.5V AA Battery)
• Continuous Using: 5 hours

Made in China
