Loom Solar 10 KW Hybrid Solar System for Offices, Commercial Shops, Factories

A 10 kW solar system is designed to cater to the high power demand from solar to run offices, commercial shops and factories independently without using government electricity. It generates 50 kWh /units a day using solar power, the batteries supply power at night and store up to 10,000 watts of electricity.

• 50 units generation every day
• 1,000 sq feet rooftop space required installation
• return on investment in 5 years with 10000 electricity-saving every month.

Appliances

Applications

Installation Video

Main products

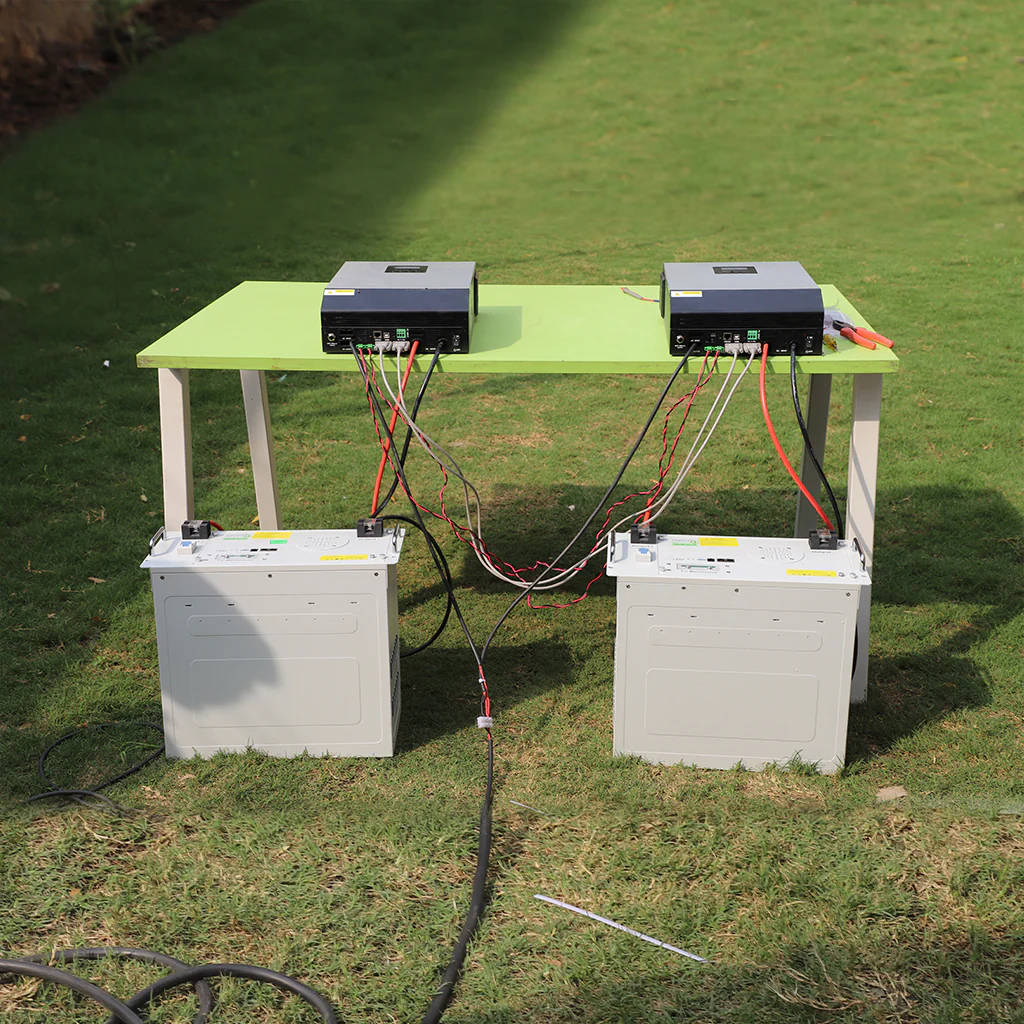

Inverter - Microtek 5 KVA/48v - 2 nos.

Battery -  Lithium 10kWh (100 Ah / 48 Volts) - 2 nos.

Solar Panels - 10 kWp (Shark 440 * 20 Nos.)

Backup time

Load	5000 W	4000 W	3000 W	2000 W	1000 W
Duration	2 hrs 10 mint	3 hrs	4 hrs 30 mint	7 hrs 30 mint	18 hrs 30 mint

Technical Details

inverter model	5kva/48v
inverter capacity	5 KVA
efficiency	Inverter - 97%, Module >16%
module type	mono-perc
battery included	yes
standard installation included	Yes
installation cost	₹15000 per kwp
protections	Overload, deep discharge, short-circuit, Battery low cut-off

Download the engineering diagram to install this solar system.
