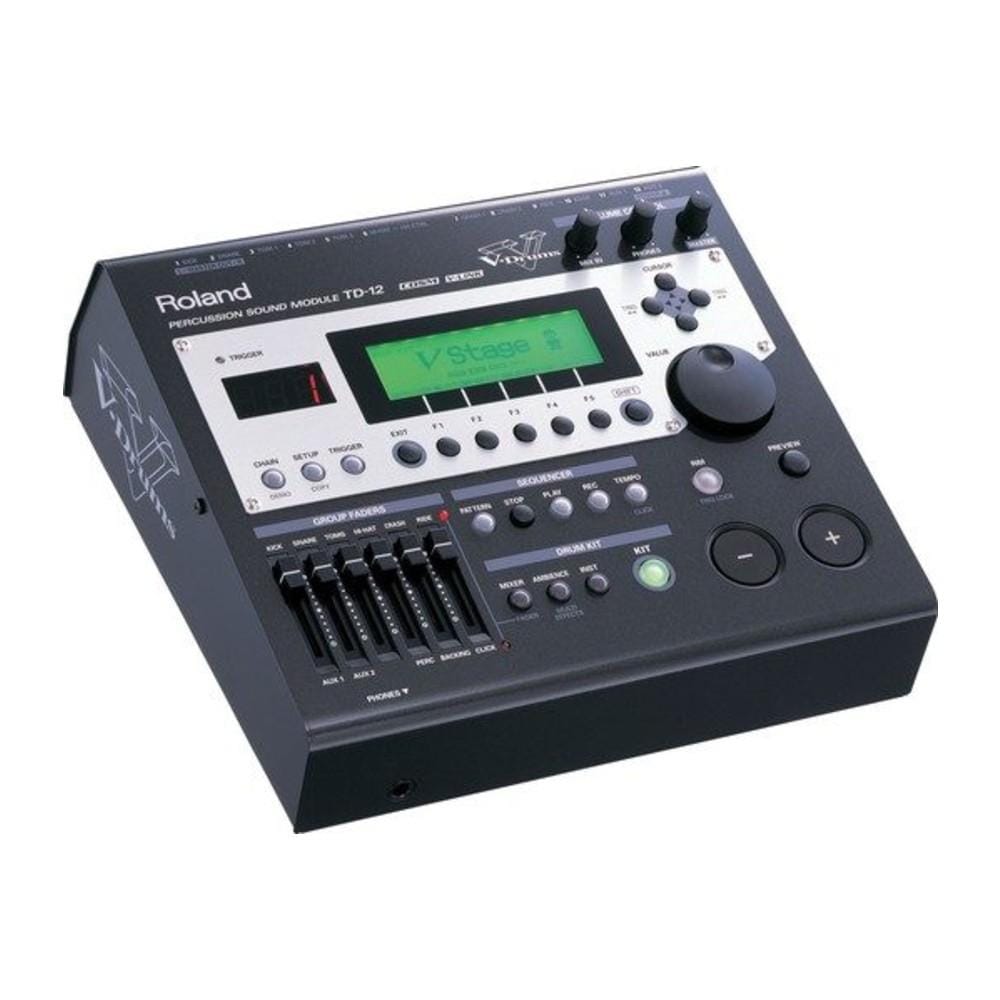

Roland TD-12 Percussion Sound V Drum Electronic Module

Roland TD-12 Percussion Sound V Drum Electronic Module Overview:

With the same pro-quality sound as the TD-20, the new TD-12 drum module provides hundreds of expressive instruments and play-along sequences in a streamlined, affordable package. Many of the sounds in the TD-12, from drums to cymbals, are COSM modeled for the ultimate in expression and realism. The module provides the same large, icon-based LCD as its big brother, and is housed in a road-tough, gun-metal gray chassis with a friendly array of buttons, controls, and mix sliders. A dozen trigger inputs are provided, plus four audio outputs and MIDI I/O.

Specifications:

• Sound Generator: Variable Drum Modeling
• Maximum Polyphony: 64 voices
• Instruments: Drum Instruments: 560 (172,161 variations)
•                      Backing Instruments: 262
• Drum Kits:  50
• Drum Kit: Chains16 chains (32 steps per chain)

• Instrument Parameters:

1. V-EDIT (KICK): Shell Depth, Head Type, Head Tuning, Muffling, Snare Buzz
2. V-EDIT (SNARE): Shell Material, Shell Depth, Head Type, Head Tuning, Muffling, Strainer Adjustment
3. V-EDIT (TOM): Shell Depth, Head Type, Head Tuning, Muffling, Snare Buzz
4. V-EDIT (HI-HAT): Cymbal Size, Fixed Hi-Hat, (CYMBAL): Cymbal Size, Sizzle Type, Sustain
5. EDIT: Pitch, Decay

• Ambience Parameters: Room Type, Room Size, Wall Type, Mic Position, Room Shape

• Mixer Parameters: Volume, Pan, Minimum Volume, Output Assign


Made in China
