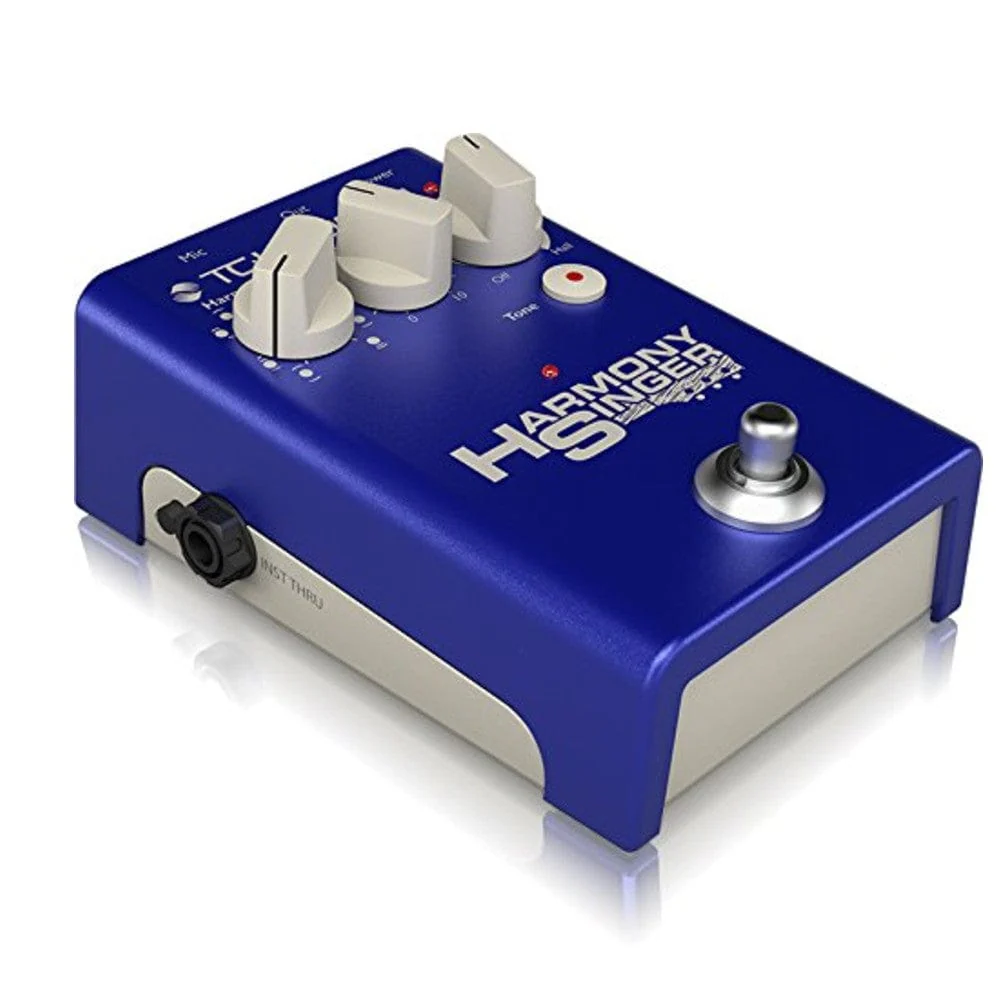

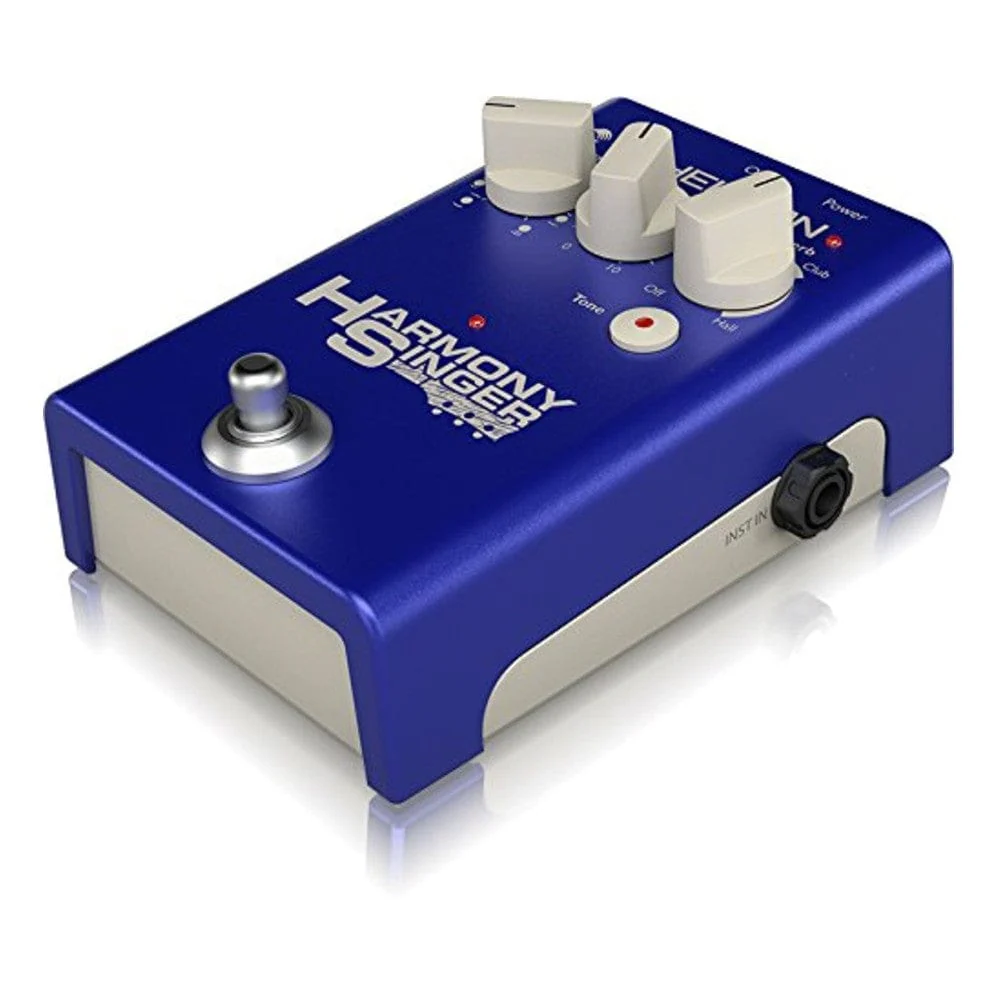

TC Helicon Harmony Singer 2 Vocal Effects Processor

TC Helicon Harmony Singer 2 Vocal Effects Processor Overview:

Your Voice Just Got Bigger

Your Best Performance
Whether you’re playing at the local tavern or at a huge festival, your vocalsalways deserve special attention. HARMONY SINGER 2 gives you the tools to always sound your best with harmony backup vocals, state-of-the-art reverb and Adaptive Tone – all in an ultra-simple stompbox designed to elevate your performance to the next level.

Choose Your Harmonies
HARMONY SINGER 2 provides your choice of 8 harmony styles – all controlled via your guitar. From the classic “third up” harmony voice to combinations of voices above and below your own, there’s a style in HARMONY SINGER 2 to fit almost every song.

Studio-Grade Reverb
Reverb simulates a physical space, allowing your voice to fit into the music perfectly. Whether it’s the ambience of a small room, or the massive reverberation of a concert hall, HARMONY SINGER 2's vocally tuned reverbs always brings out the best in your voice.

Your Personal Sound Tech
HARMONY SINGER 2’s adaptive Tone combines EQ (equalization) with compression, de-esser and gate to automatically control the timbre and shape of your sound, ensuring every note is pristine, clear, and intelligible. When the crowd hears exactly what you’re singing, they can join in – and there’s nothing better than that!

You've got the power
HARMONYSINGER 2 gives you the option of either plug-in power via the 9 V adapter or battery operation for those occasions when house power isn’t readily available.

Easy Does It
You’re a singer first and foremost, so getting knee-deep in technology probably isn’t what your gig calls for. That’s why HARMONY SINGER 2 automatically sets your mic gain to the optimal level, allowing you to concentrate on giving your best performance – night after night.

Punch it in
Punch in your harmonies on the dedicated footswitch. Then, punch them out again – reverb and tone are maintained throughout. Or, set it up so that harmonies are only on when the switch is depressed - perfect for short phrases. Want to talk to the audience? Press & hold to speak without reverb.

VoiceSupport
Gain even more control over your harmonies with VoiceSupport. VoiceSupport gives you new FX presets, new firmware updates, and maintains your personal database of presets. All you need is a Mac or Windows computer with a USB input.

Easy to hook up
If you’ve ever connected a mic to your PA, you’re ready to connect Harmony Singer:
Mic > Harmony Singer and Harmony Singer > PA – that’s it.
Your guitar connects the same way you’d connect your other stomp box effects, only it likes to be first in the chain.

Feature Summary

• Choice of 8 arrangements of Harmony voices: above and below, close and far
• Room, Club and Hall reverb choices
• Separate mix level control of Harmony voices
• Transparent Thru connection to guitar amp
• Battery operation (batteries optional)
• Ground Lift removes hum when needed
• Clean, clear, low noise mic preamp with phantom power
• Reverb and Tone can remain on whether Harmony is on or off so you always sound great
• Mic Control™ allows remote Harmony on/off using the switch on the Sennheiser e 835 FX or TC-Helicon MP-75 mic
• Compact, easy to use
• Rugged all-metal construction
• USB connection to free VoiceSupport application for easy firmware updates, product-specific news and more.
• 9V operation (vs 12V) to accommodate common pedalboard power supplies
• Automatic input gain – no more setting and adjusting input gain

Specifications:
Included Effects

• Harmony
• Reverb
• Tone

Control

• 8 different Harmony voice presets
• Harmony level control
• 3 Reverb types with adjustable level
• Adaptive Tone on/off
• Mic Control on/off
• Mic input gain level
• Footswitch on/off

Design
Size

• Height: 5.4 inches (140 mm)
• Width: 3.5 inches (90 mm)
• Depth: 2.3 inches (60 mm)

Weight
Weight: 0.92 lb. (0.42 kg)

Construction

• Two-part die cast metal
• Rubber adhesive feet

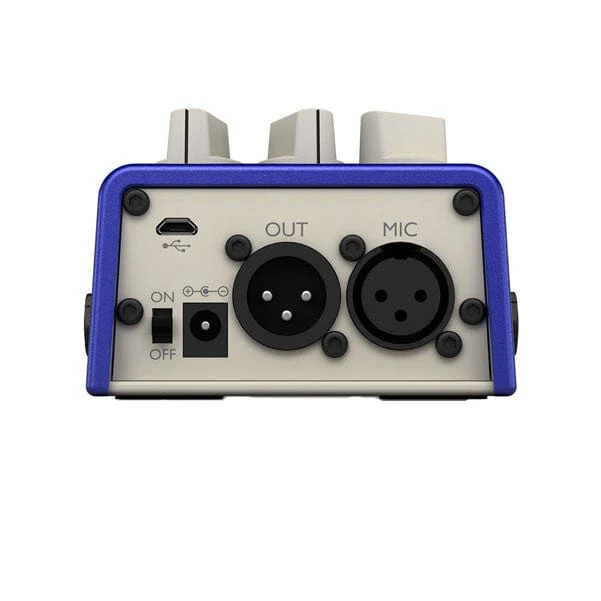

Connections
Mic In to Out

• Input Connector: XLR female, balanced
• Input Impedance: 3k1 Ohm
• Input Clip Sensitivity: -1 dBu
• SNR A-Weighted: >114 dB
• Phantom Power: 24V (always on)
• Output Connector: XLR male, impedance balanced, pin 2 hot
• Output impedance: 200 Ohm
• Output Full Scale Level: +7.5 dBu
• Input to Output Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz

Guitar In to Out

• Guitar Input impedance: 1 MOhm
• Guitar Input Level @ 0 dBFS: -7 dBU to 17 dBu
• Dynamic Range: >117 dB, 20 Hz to 20 kHz

Safety And Regulations
Power

• Power Supply (Not Included): 9V 670mA
• Power Consumption: 6W

Safety

• EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
• Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA

Environment

• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Storage Temperature: -22°F to 167°F (-30°C to 70°C)
• Humidity: Max. 90 % non-condensing

Made in Canada
