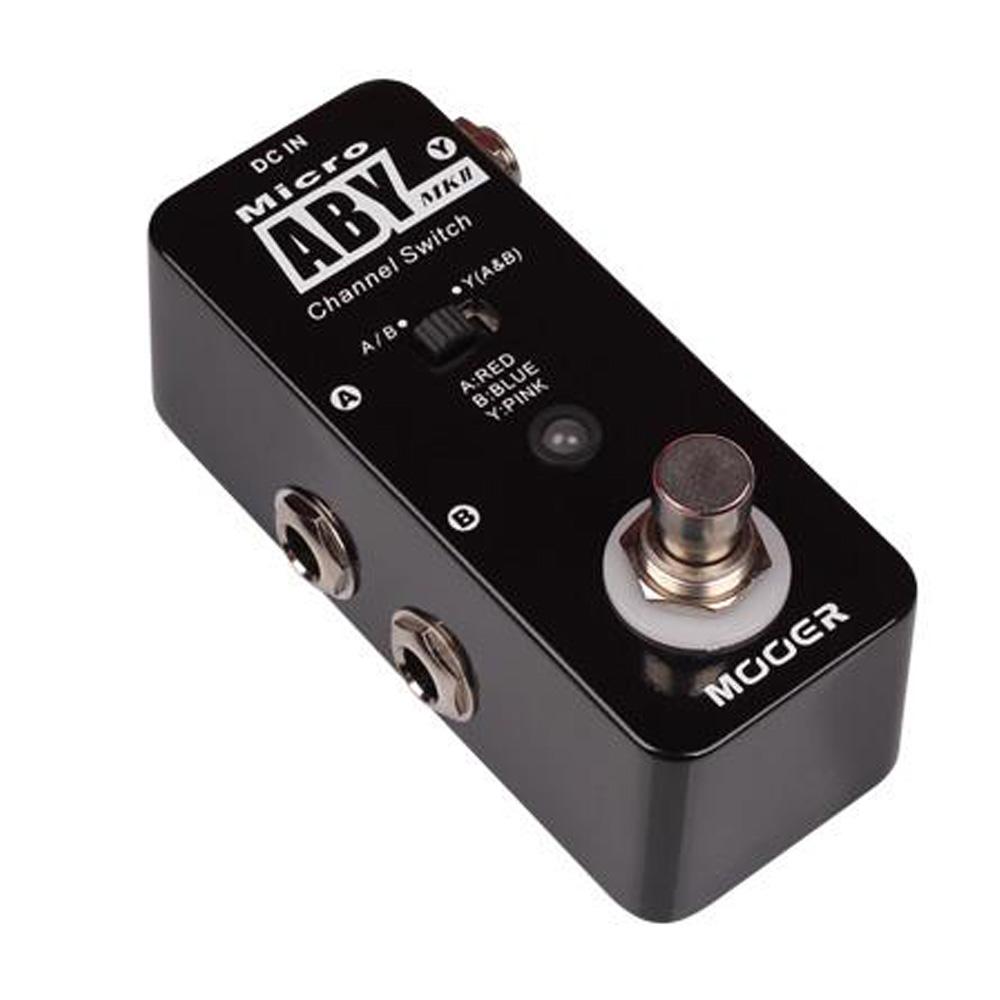

Mooer Micro ABY MKII Channel Switch Effects Pedal

Mooer Micro ABY MKII Channel Switch Effects Pedal Overview :

The comprehensive channel switch pedal, can switch the one way
signal to two different outputs, applicable for the circuit of instrument,
amplifier, speaker (be sure to use speaker cable) and pedalboard
The design of mode-choosing switch, which enables A, B channels
transfer from respectively to simultaneously

Features :

• In both modes, ABY can be used in both positive and negative directions,
• the signal path can flow from A/B to Y, or from Y to A/B
• Can work without power supply (LED will not light up)
• Full metal shell
• Very small and compact design
• True bypass switch
• DC 9V adapter power supply

Specifications :

• A/B/Y Jack: 1/4” monaural jack
• Power Requirements: AC adapter 9V DC (center minus plug), can
• work without power (LED doesn’t work). Recommended to use Mooer
• Micro Power
• Current Draw: 8 mA
• Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
• Weight: 145g
• Accessories: Owner’s Manual

Made in China
