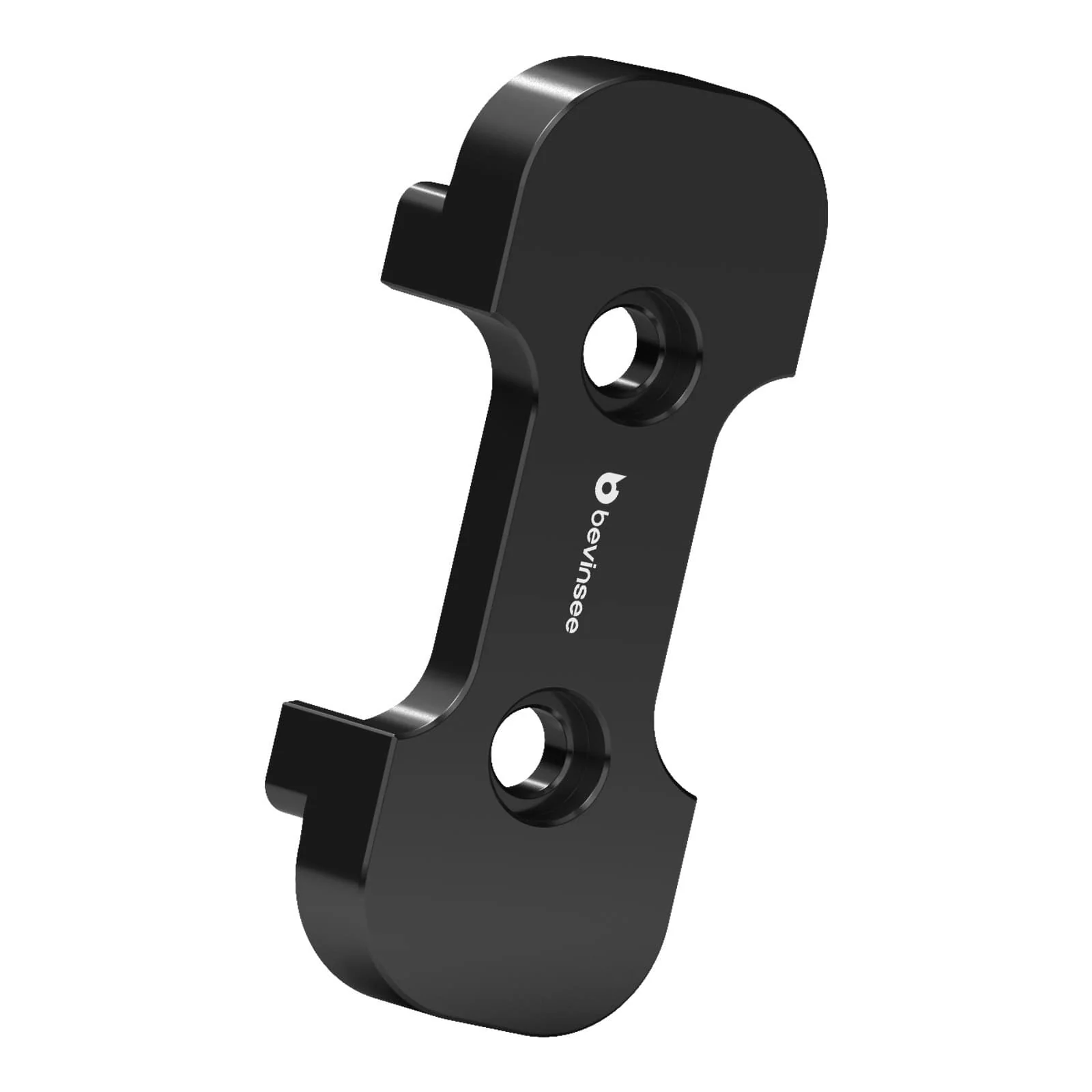

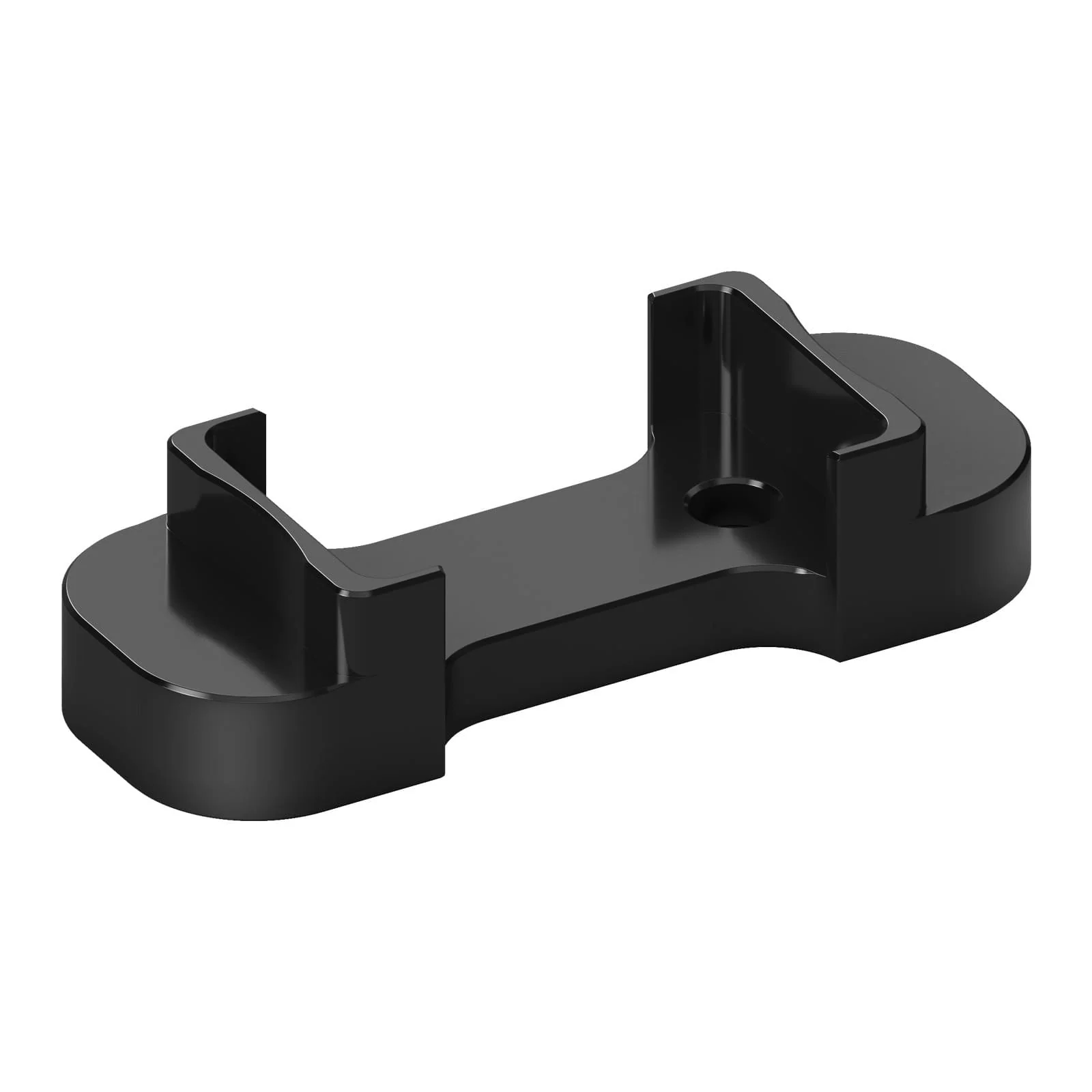

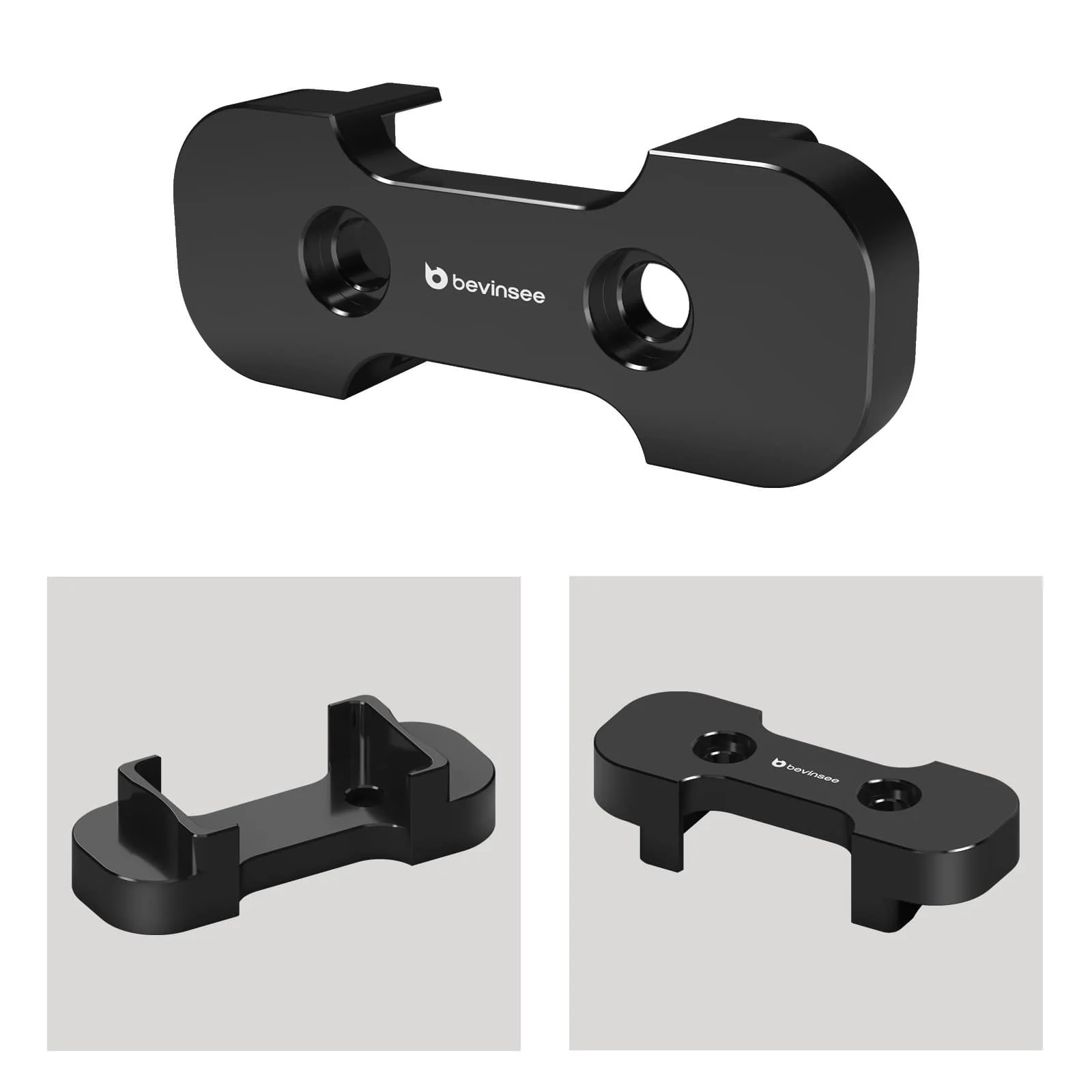

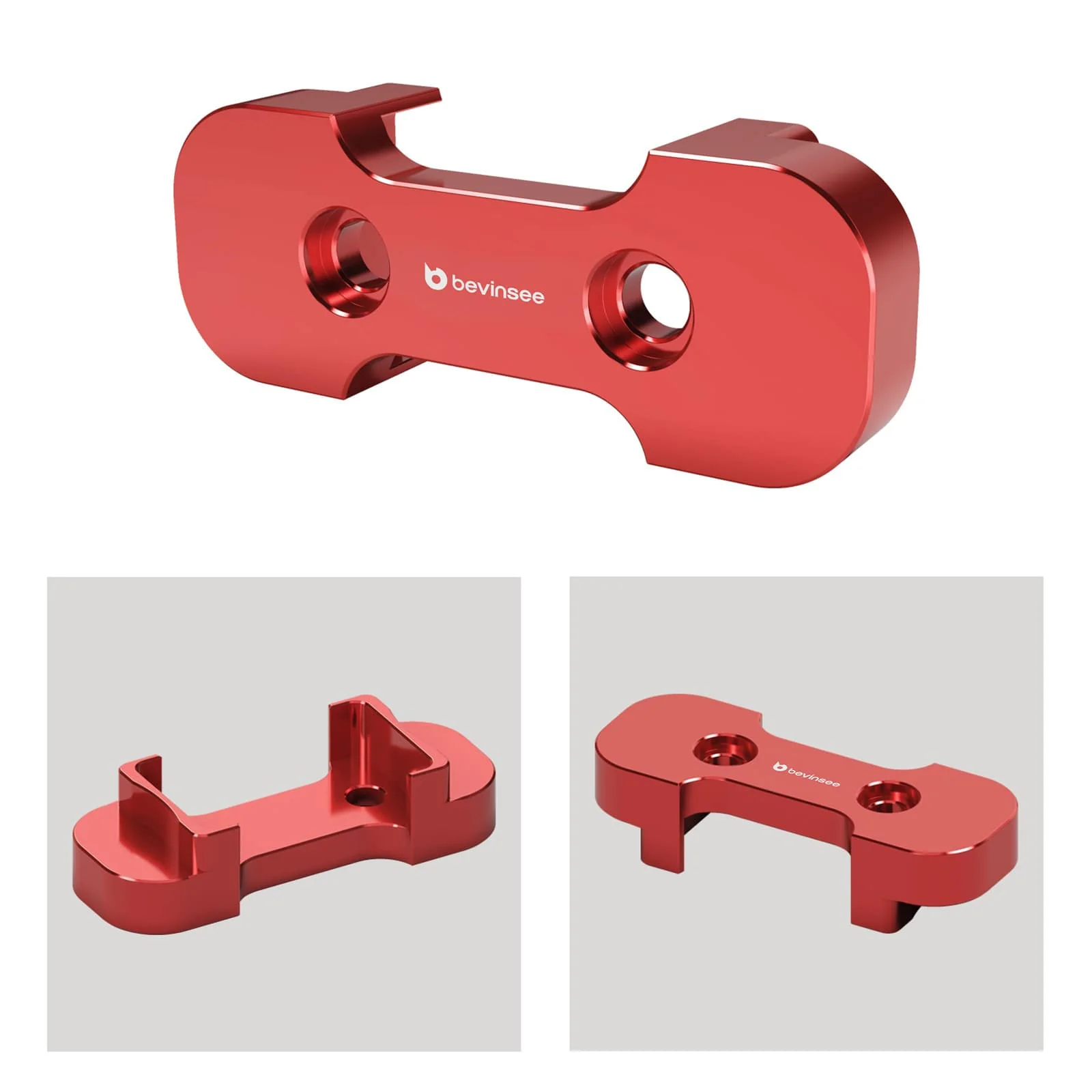

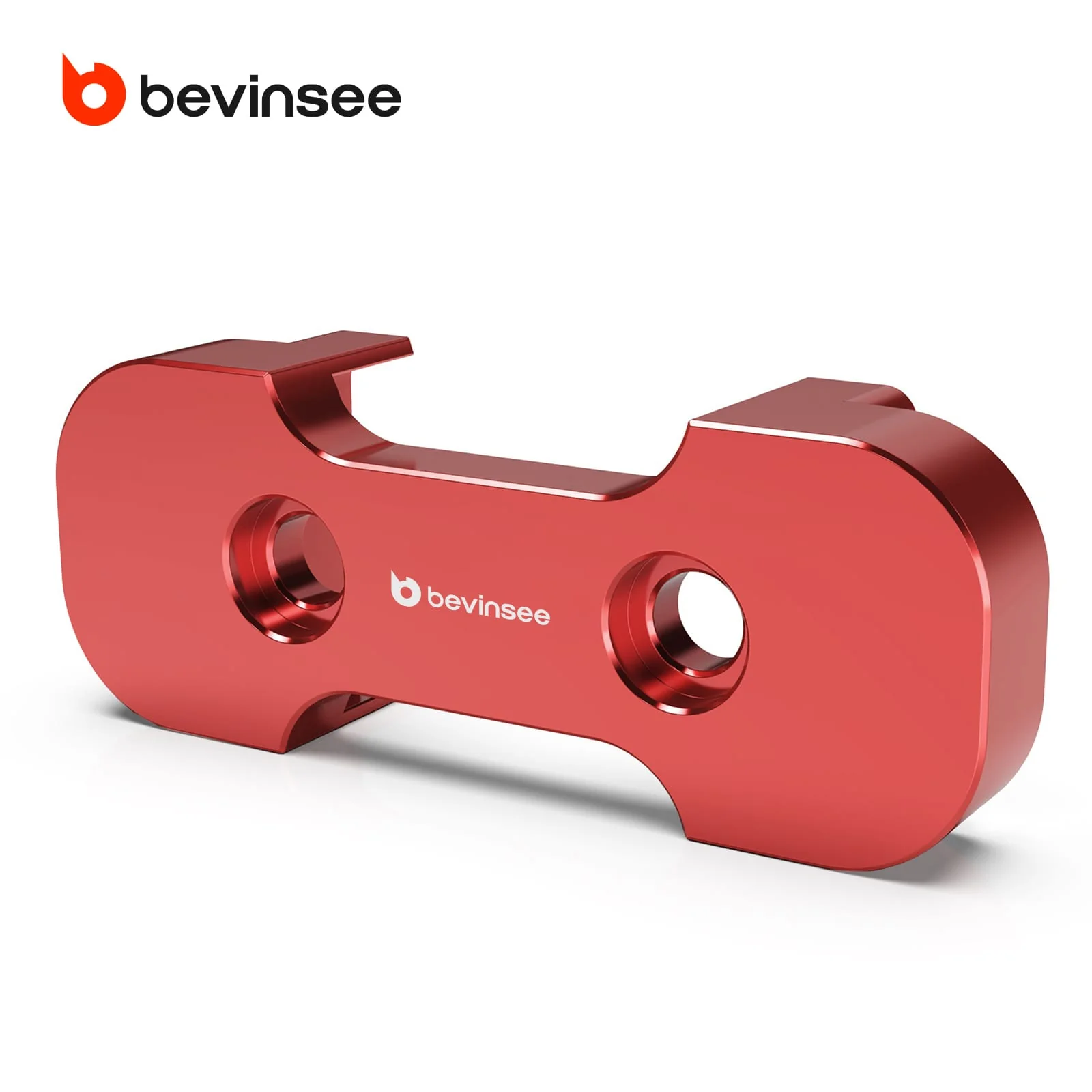

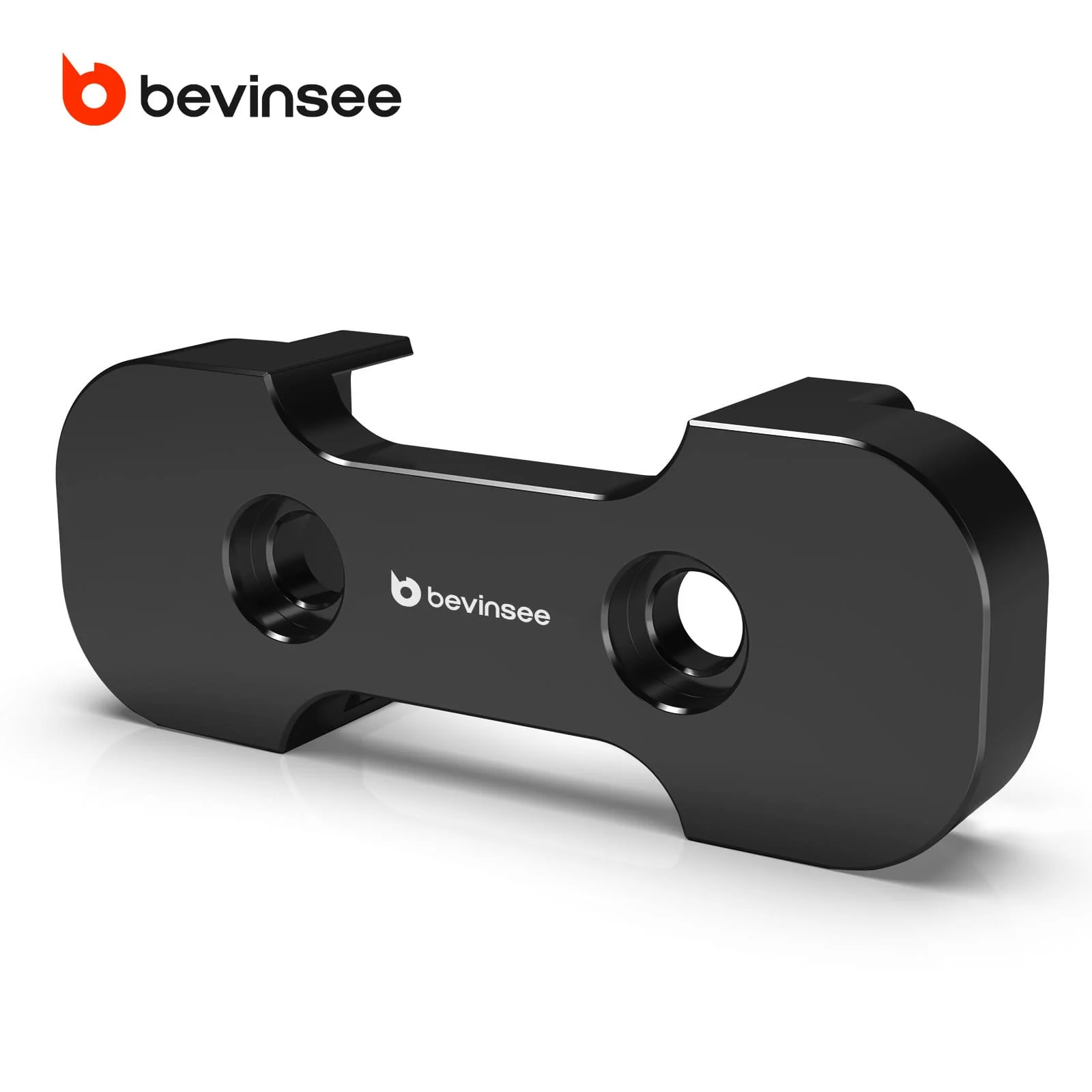

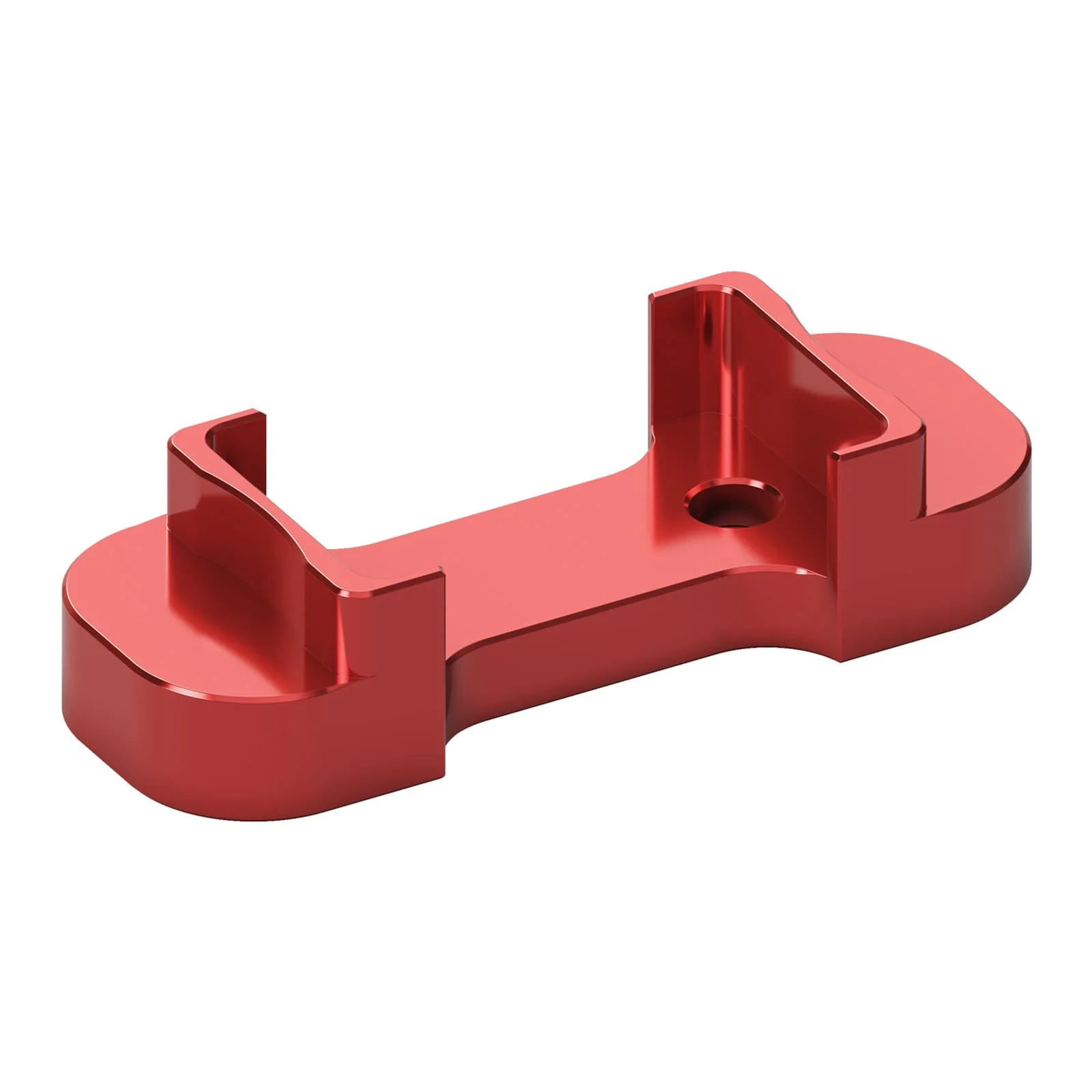

Transmission Mount Insert For B9 Audi A4/S4 A5/S5/RS5 Q5/SQ5 Allroad

The factory (for) Audi transmission mounts have large voids in the rubber damping medium that causes the transmission to move excessively under load. This movement will tilt the driveline, which is not easily detected during accelerating, decelerating and shifting. We offer a new solution to solve this problem.

Features:

--Designed to fill the void of factory transmission mount.
--Dramatically reduces transmission movement during shifting and decelerating.
--Improved shift feel for crisper shifts. Deliver a responsive shifting experience and elevate the performance of your car.
--Will not cause additional NVH transfer inside the cab.
--CNC machined from billet aluminum, super lightweight and keep stable even on bumpy roads.

Specification:

• Manufacturer：bevinsee

• Material:  Aluminum

• Surface Finish: Anodized

• Processing: CNC-machined

• NVH Levels: Low

• Package Included: 1x Transmission Mount Insert

Package Included:
1x Transmission Mount Insert

Note:
We recommend using factory bolts(M8×60mm).
Please confirm that your vehicle is a B9/B9.5 generation. This product is not compatible with B10 models.

Fitment:
Only Fits 7-Speed S-tronic, 8-Speed Tiptronic, & 6-Speed Manual Transmissions.

For Audi A4/S4 (B9/B9.5) 2017 - 2024
For Audi A5/S5 (F5/F5.5) 2018 - 2024
For Audi Q5/SQ5 (FY) 2018 - 2024
For Audi Allroad (B9) 2017 - 2024

Installation Instructions:
Tools required: 10mm Multi-spline driver, extension bar and suitable ratchet.
1. To avoid injury allow the vehicle to cool down fully before starting this installation.
2. Raise the vehicle on a ramp or using a jack and support with suitable axle stands.
3. Using a 10mm Multi-spline driver, extension bar and suitable ratchet undo the 2x bolts on the OE bush，remove the factory transmission mount bracket

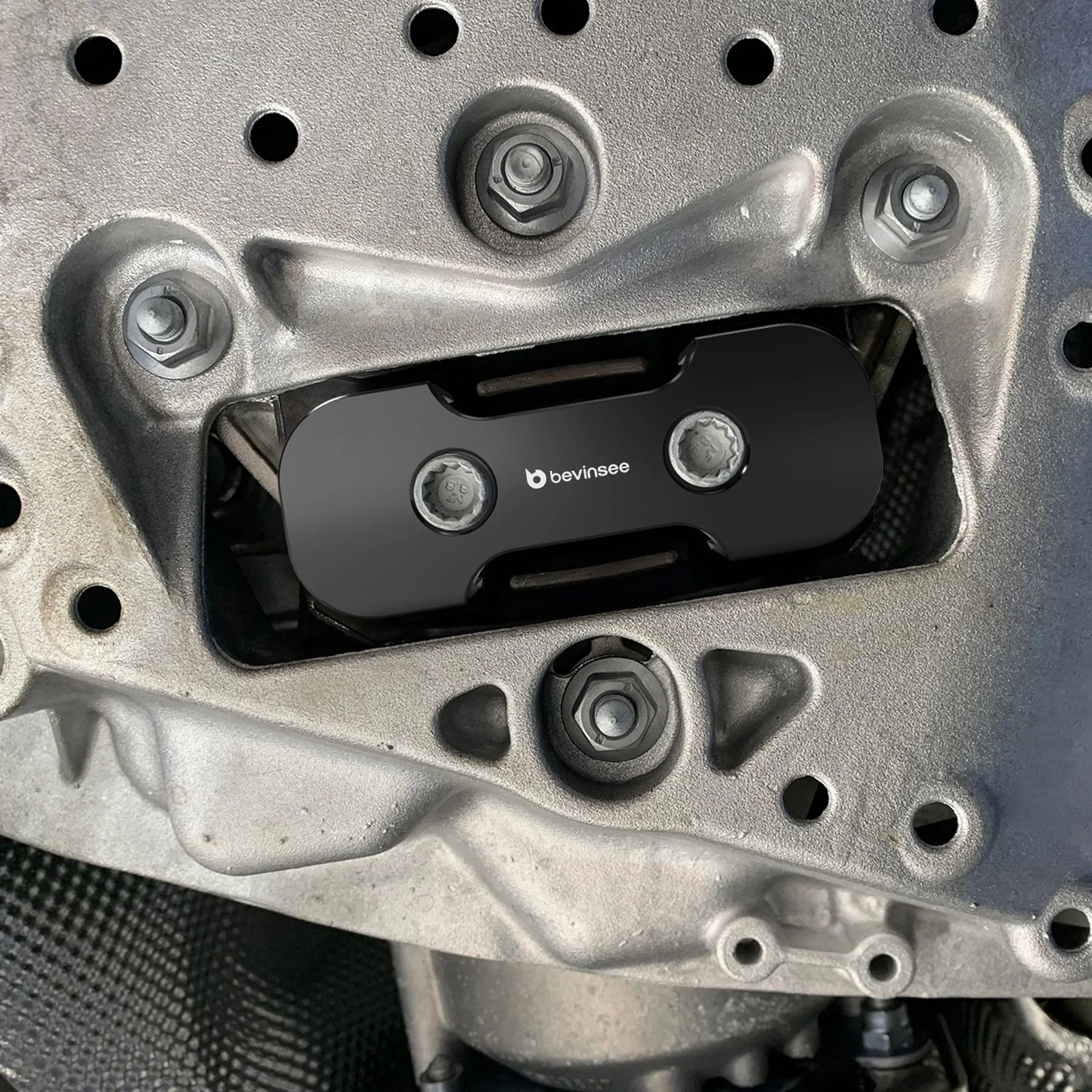

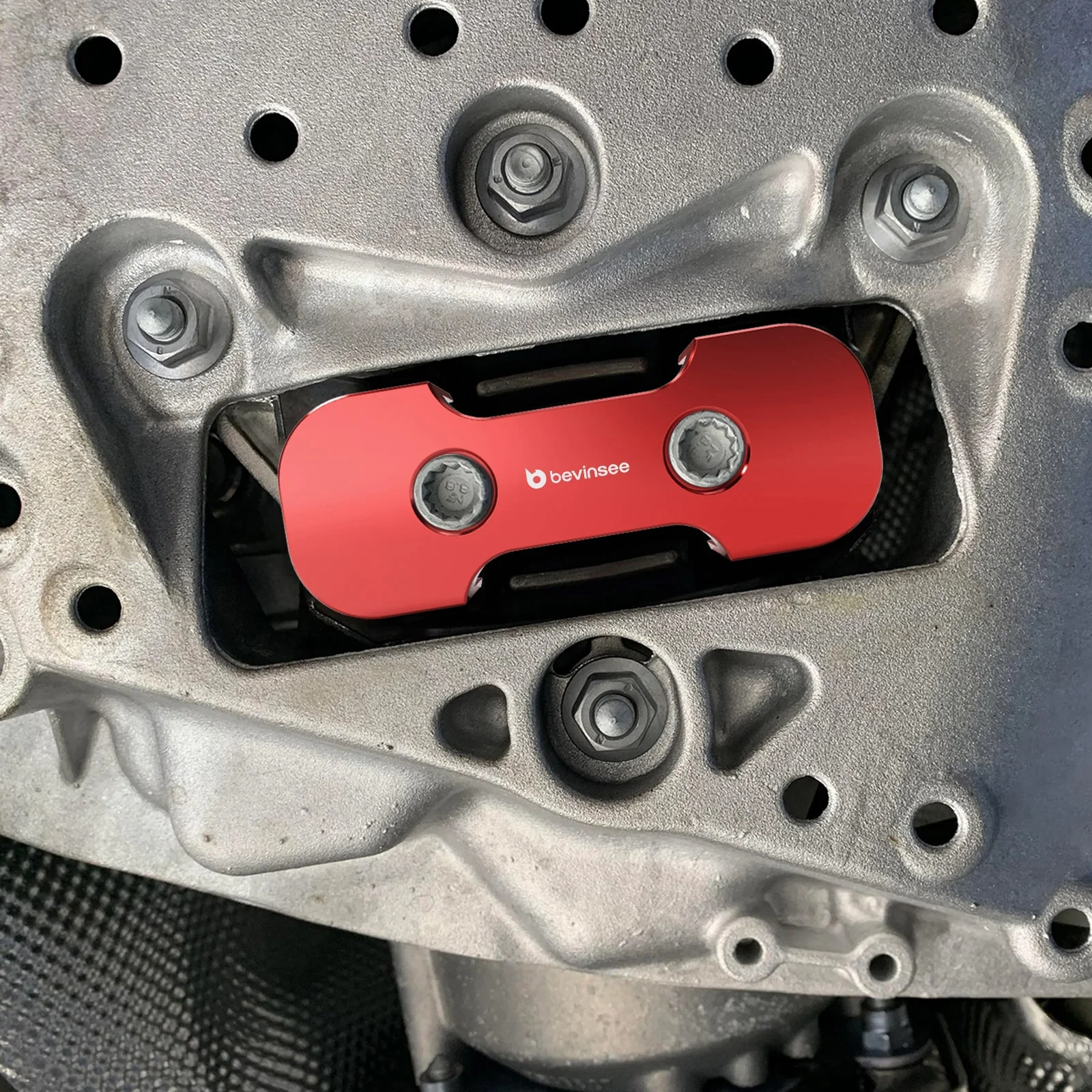

4. Apply Silicone Grease to the legs of the NICECNC Transmission Mount Insert and press into the factory transmission mount assembly
5. Refit 2x OE bolts, Torque the factory M8 bolts to 20 NM +90 Degree with glue
6. Your installation is now complete. Enjoy Your New Performance!
