The MAD DOG Wireharness plug & play is an easy-to-install solution that requires no additional hardware or tools. Simply plug in and you’re ready to go. Enjoy hassle-free installation with no additional wiring or rerouting necessary.
Cannot be used with Delta and Alpha

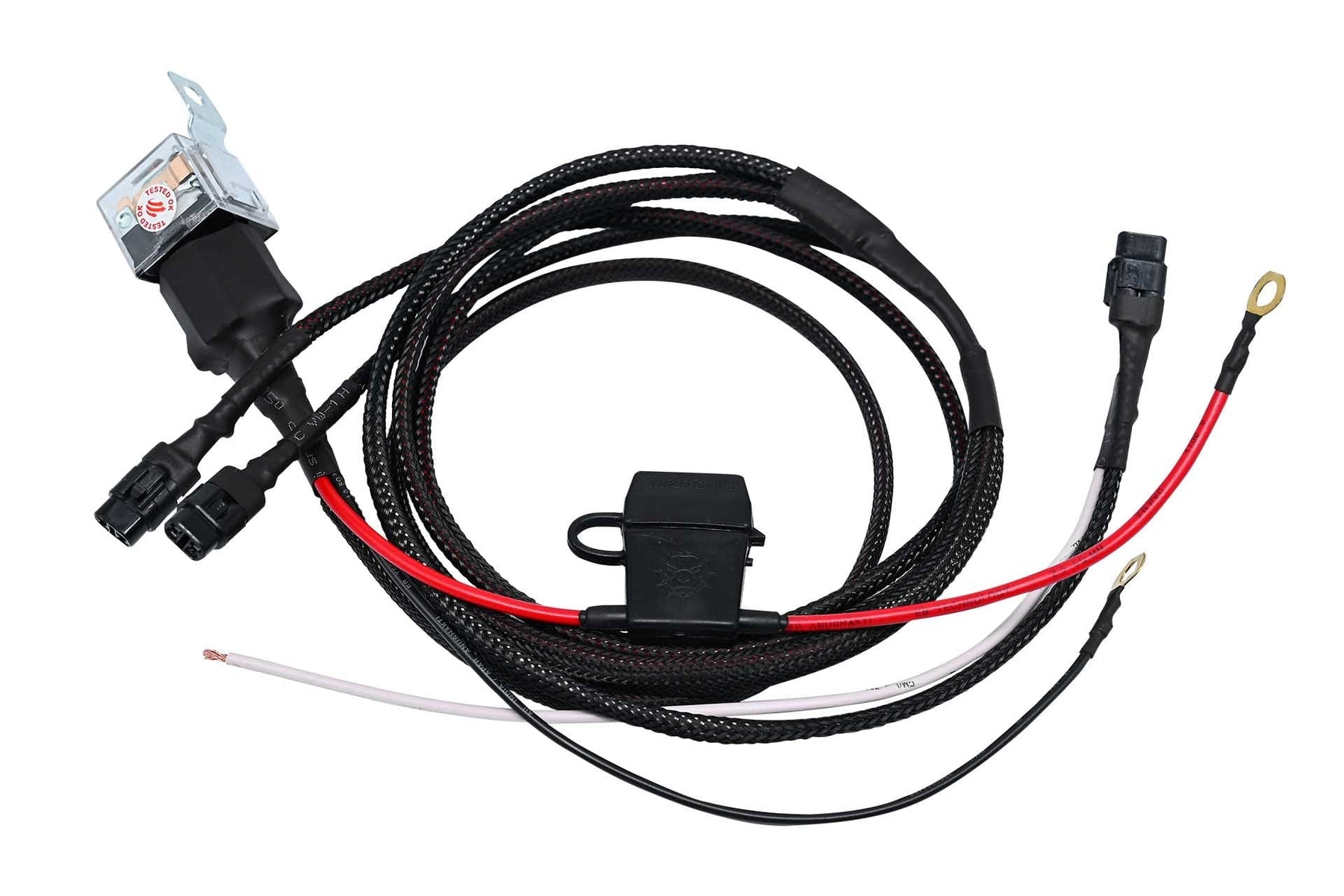

Our Standard Wiring Harness features high-quality water-resistant connectors and other components ,is designed to power ANY Auxiliary Light upto 10Amps / 100Watts .
Braided mess sleeve for rugged production from dust, heat and harsh weather.
A combination of 0.75 , 1 , 2.5 Sqmm Automotive class wiring.
100% pure Copper Wire.
PRODUCT FEATURES
Plug and play
MADDOG Wireharness enables the riders to install the auxiliary light into their bikes without any hassle of wirecut or damaging stock wireharness
Specifications
Wire Thickness : A combination of 0.75 , 1 , 2.5 Sqmm
Wire Capacity : 0 - 10A (Max)
Fuse : 10 A

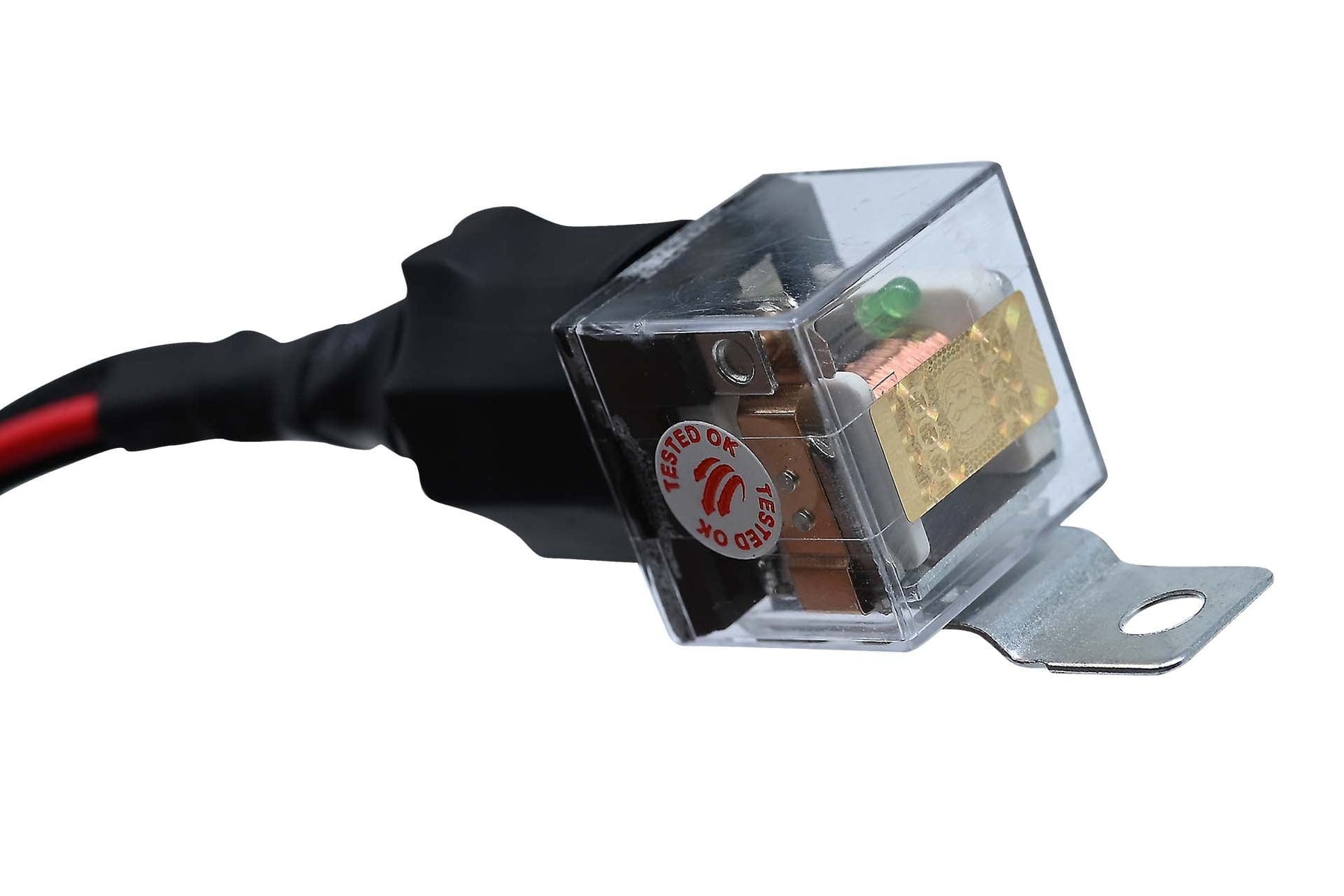

Relay : 40 A
Outer : Braided sleeve
Operating Voltage : DC 9-32V
Operating Temp : -10°C to +50°C
Life-span : Upto 5 Years
Total Length : 1.5 M
IP Rating : IP-67 Certified
Terminals : Copper / Tin copper
