Features
| Line interactive UPS | |

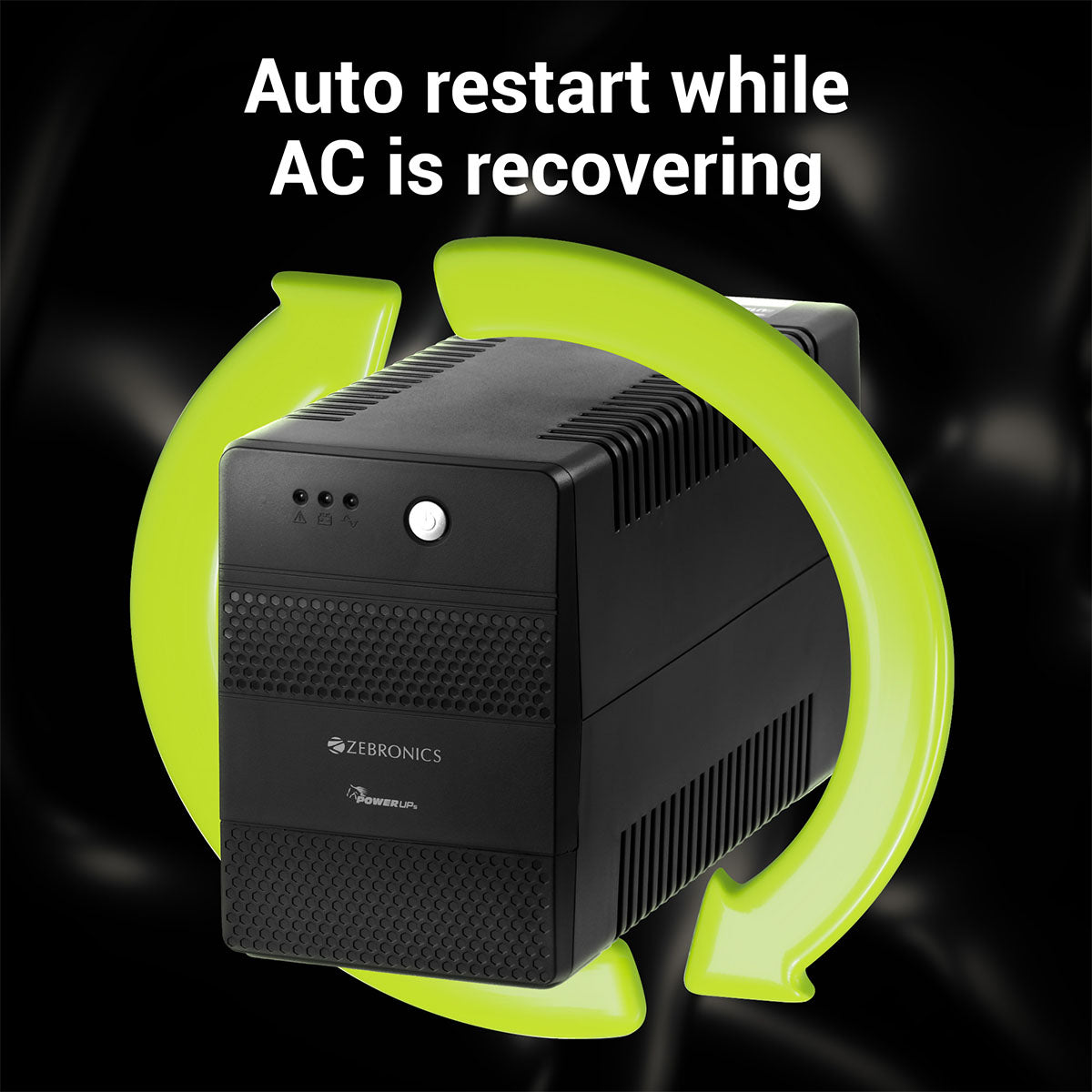

| Auto restart while AC is recovering | |
| Double Boost | |

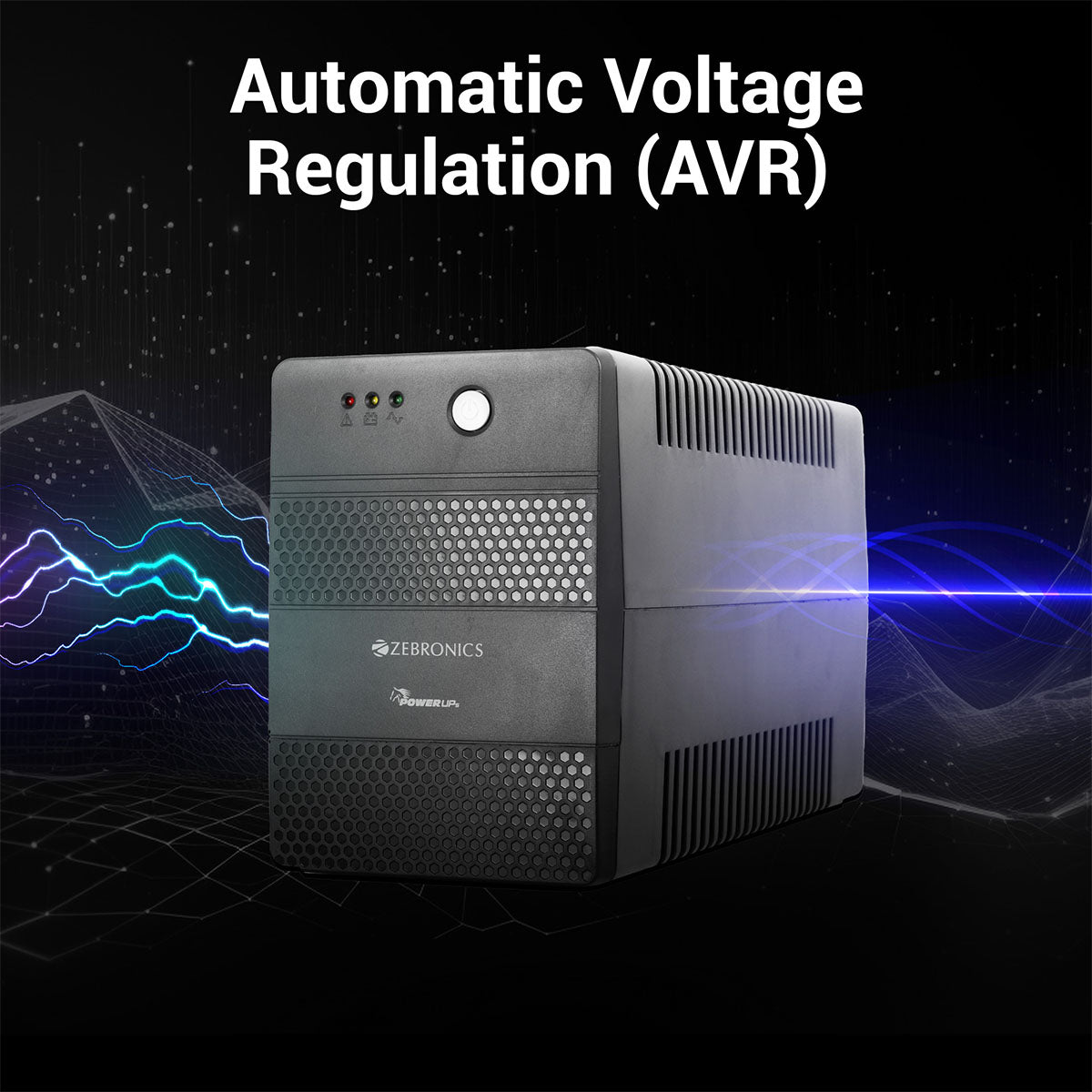

| Automatic Voltage Regulation (AVR) | |

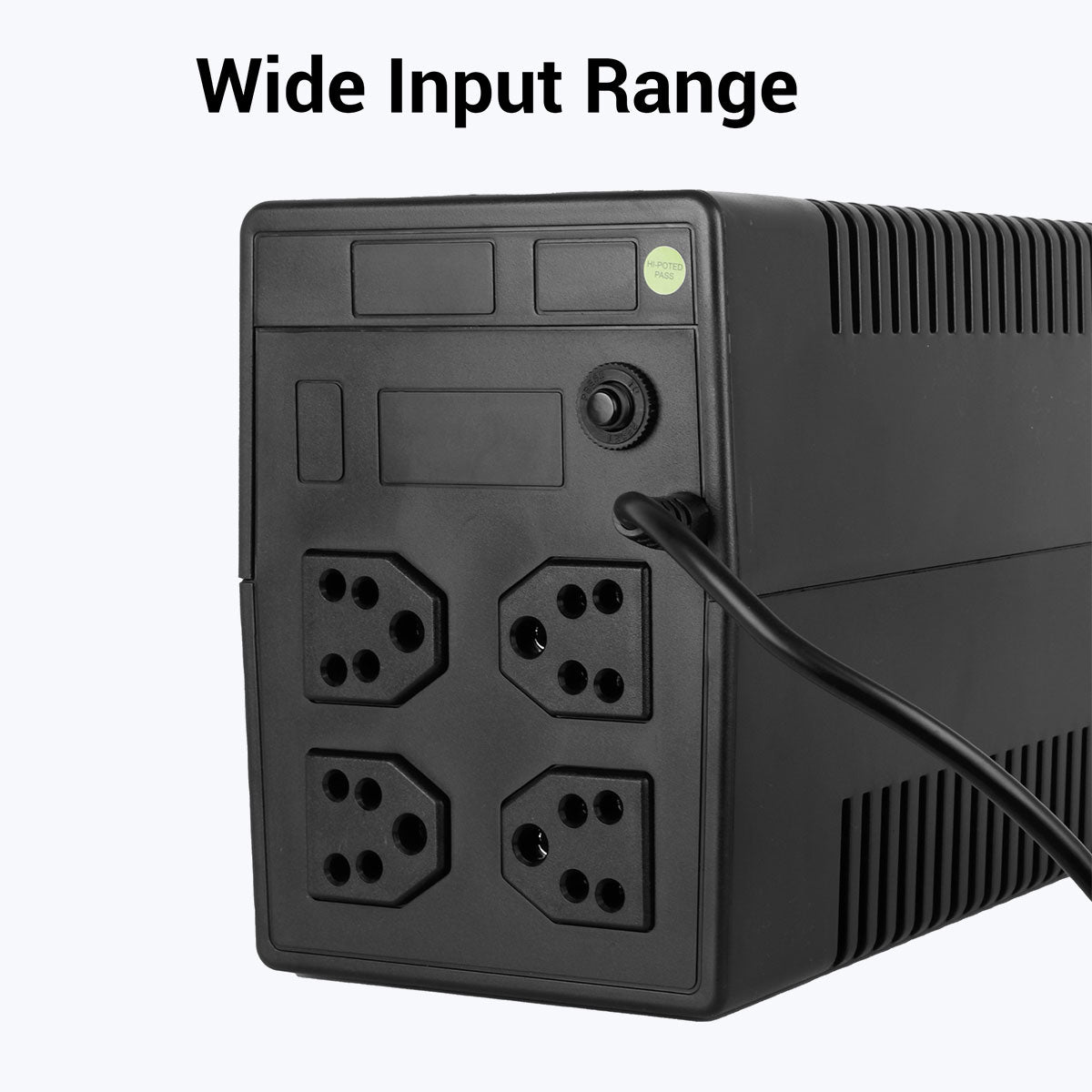

| Wide Input Range | |
| Microcontroller Based | |
| Generator Compatible |
Specifications
| Capacity | ||
| (VA/W) | 1000VA / 600W | |
| Input | ||
| Nominal voltage | 220-240 VAC | |
| Voltage range | 140-300 VAC | |
| Frequency | 50/60 Hz | |
| Plug type | 3 Pin plug | |
| Output | ||
| Voltage range (AC mode) | 230VAC ± 5 % | |
| Voltage range (Batt. mode) | 230 VAC ± 10 % | |
| Frequency range (Batt. mode) | 50 / 60 Hz ±1% | |
| Transfer time | 4 - 8 ms typ. | |
| Wave form | Simulated sine wave | |
| No. of output sockets | 4 |
|

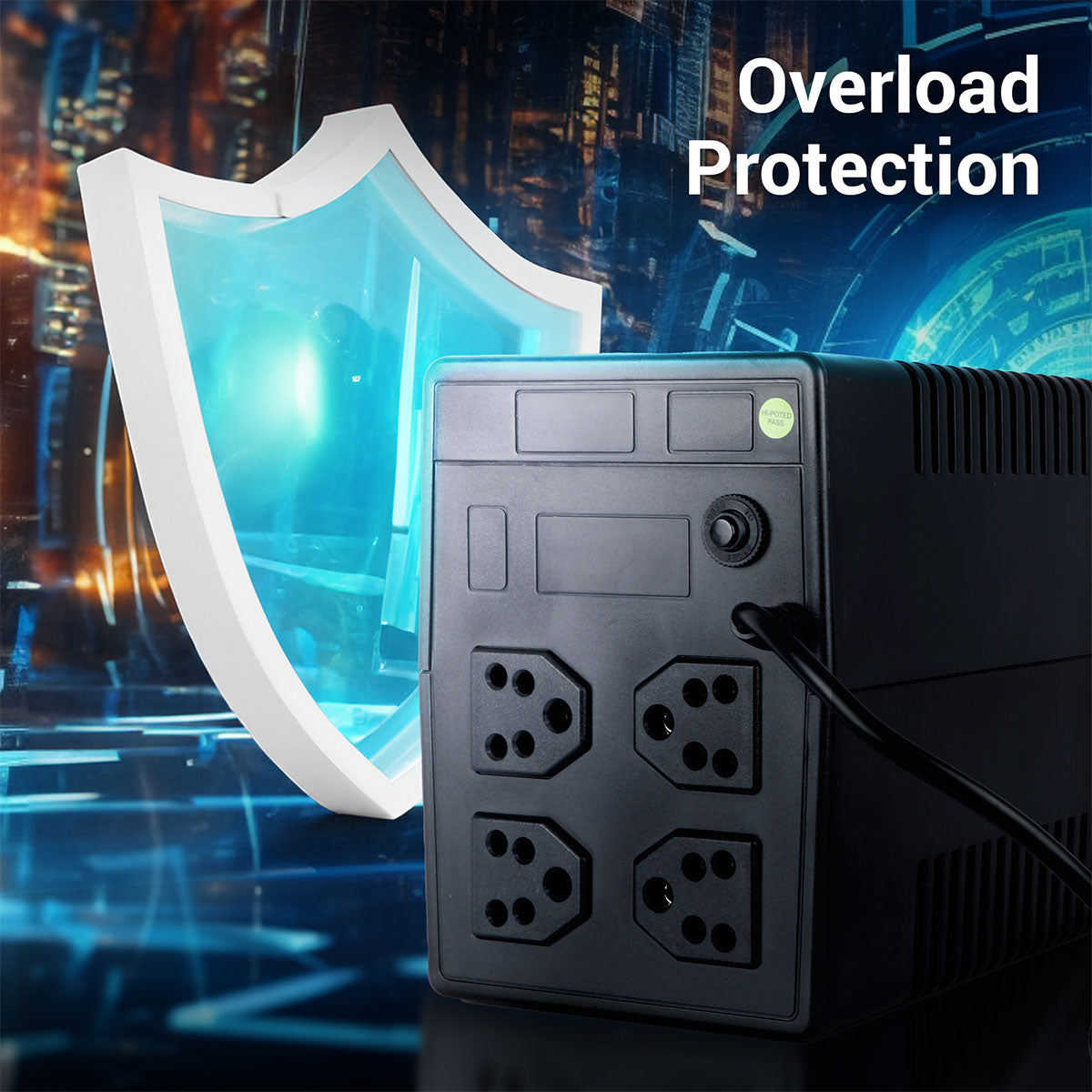

| Protections | Overload, Short circuit, Over discharge & Over charge | |
| Battery | ||
| Battery type | 12V 7Ah x 2 nos | |
| Charging current | 1.2A | |
| Recharge time | 6 - 8H typ. (upto 90% capacity after complete discharge) |
|

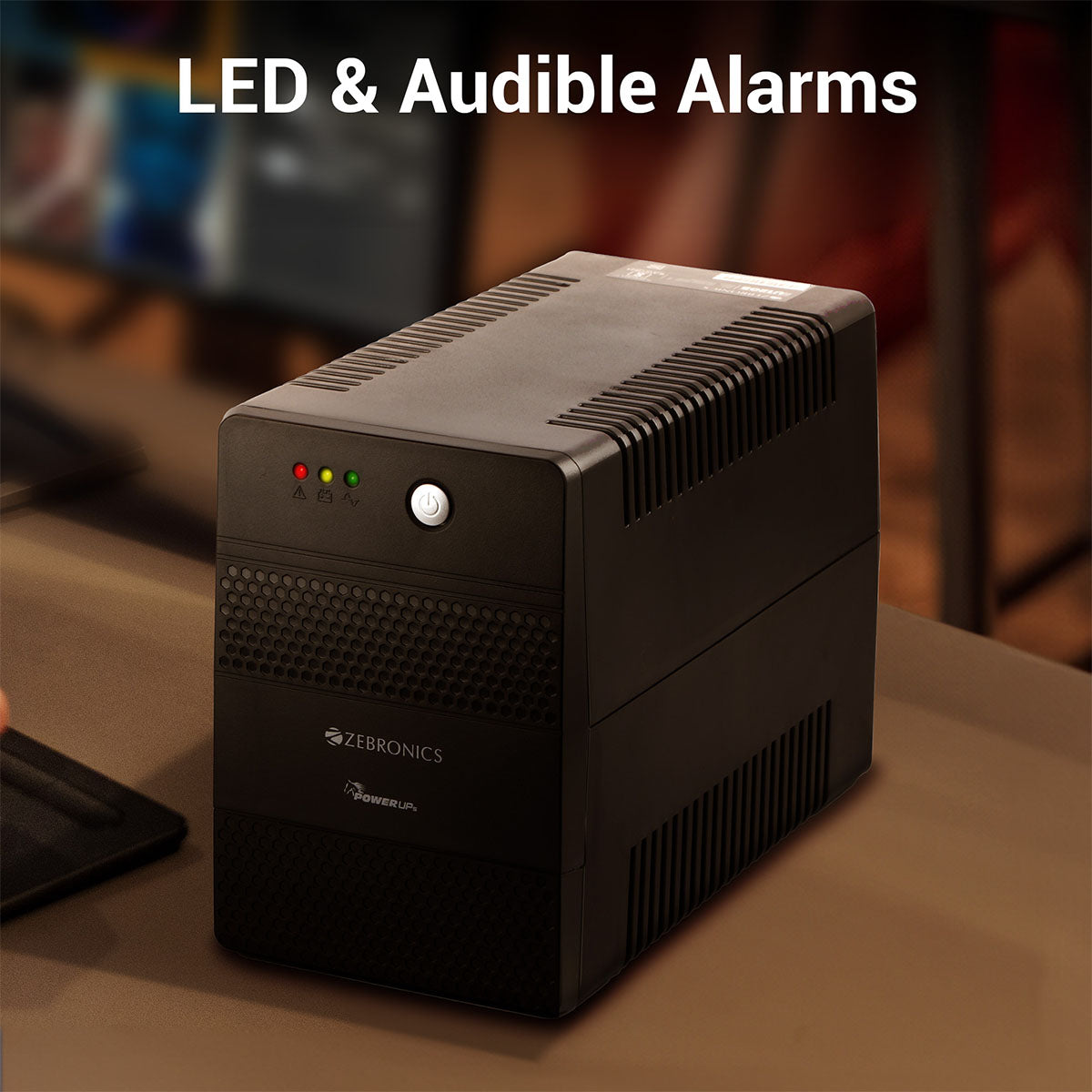

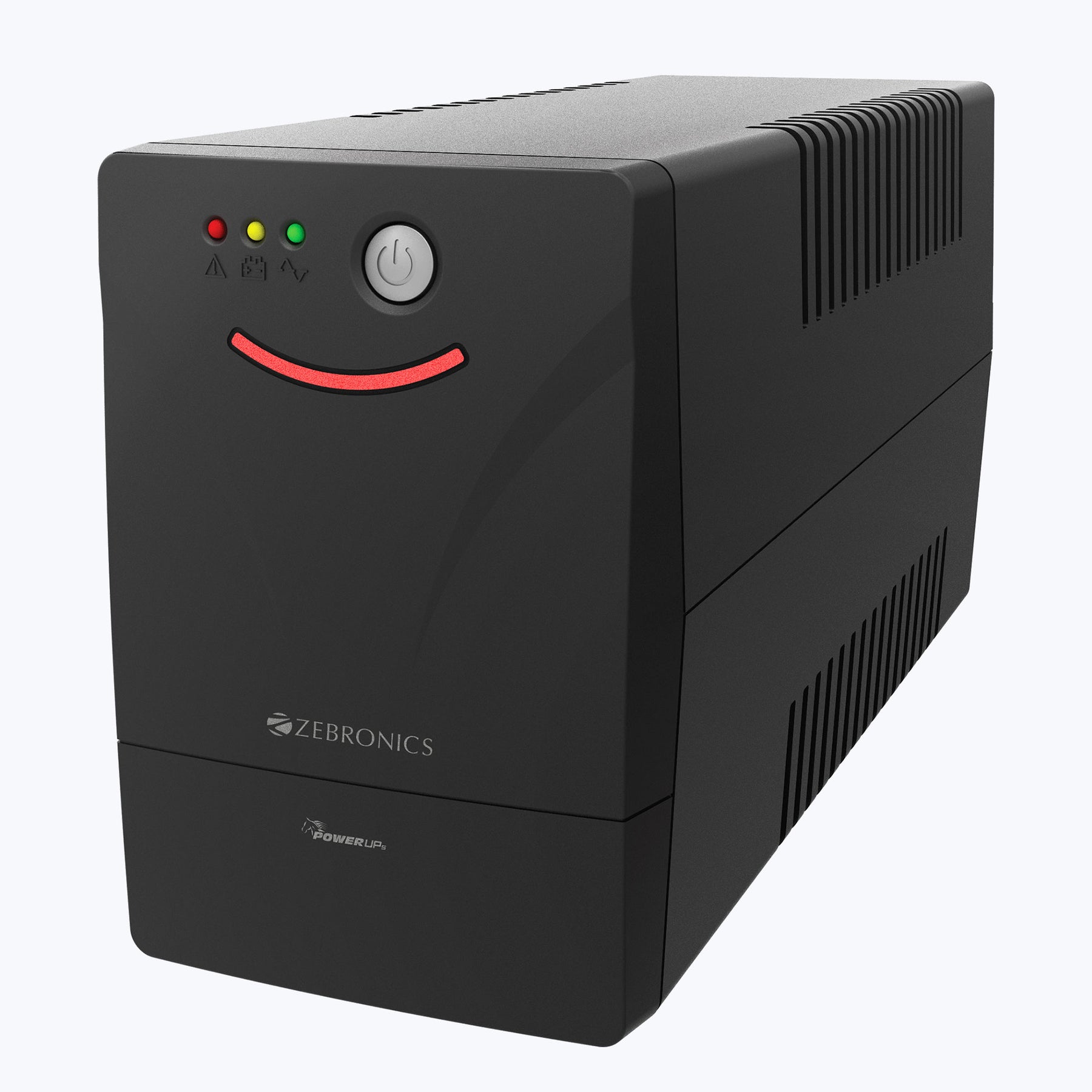

| Indicators | ||
| No. of LEDs | 3 LEDs | |
| AC mode | Green LED glows | |
| Battery mode | Orange LED blinks in an interval of 10 seconds | |
| Fault | Red LED Glows | |
| Alarm | ||
| Battery mode | Beeping every 10 seconds | |
| Low battery | Beeping every 1 second | |
| Overload | Beeping every 0.5 second | |
| Fault | Continuous beeping | |
| Physical Details | ||
| Product dimension (W x D x H) |
13 x 31.4 x 17.5 cm |
|
| Net. weight | 7.19 kg | |
| Package dimension (W x D x H) |
36.8 x 17.3 x 24.8 cm |
|
| Environmental Factors | ||
| Operational temperature | 0-40⁰C | |
| Noise Level | < 45dB | |
| Country of Origin | People’s Republic of China |
|
| Package Contents | ||
| ZEB-U1205 | 1U | |
| QR code guide | 1U | |
