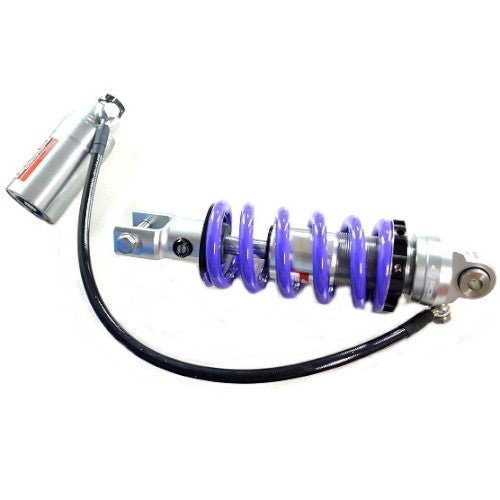

RCB Racing Boy DB-2 Line (G-TI) For YZF-R15/FZ150i

Rear shock damping adjustment【YZF-R15/FZ150i】DB-2【Purple】Monosus
Manufacturer's Part Number : 01M0183P

265 MM

【Size】
■Overall length 265mm
■Piston rod diameter 16mm
■Spring diameter 73mm
■Upper glasses mounting width 31.8mm
■Lower U-shaped part pitch inner diameter 32.8mm
■ For upper and lower screw hole size M10 bolts

■Damping adjustment type [28 stages of elongation side / shrink side]
■ Initial adjustment stepless preload　　
■ With anti-loosening imoneji bolt
■ Initial adjustment wrench included

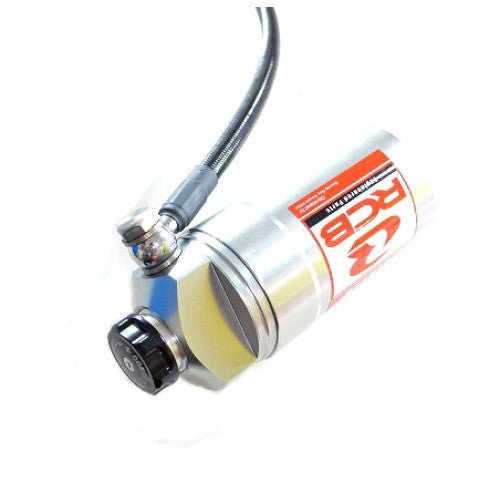

■ Please fix the reservoir tank with ingenuity and installation.
