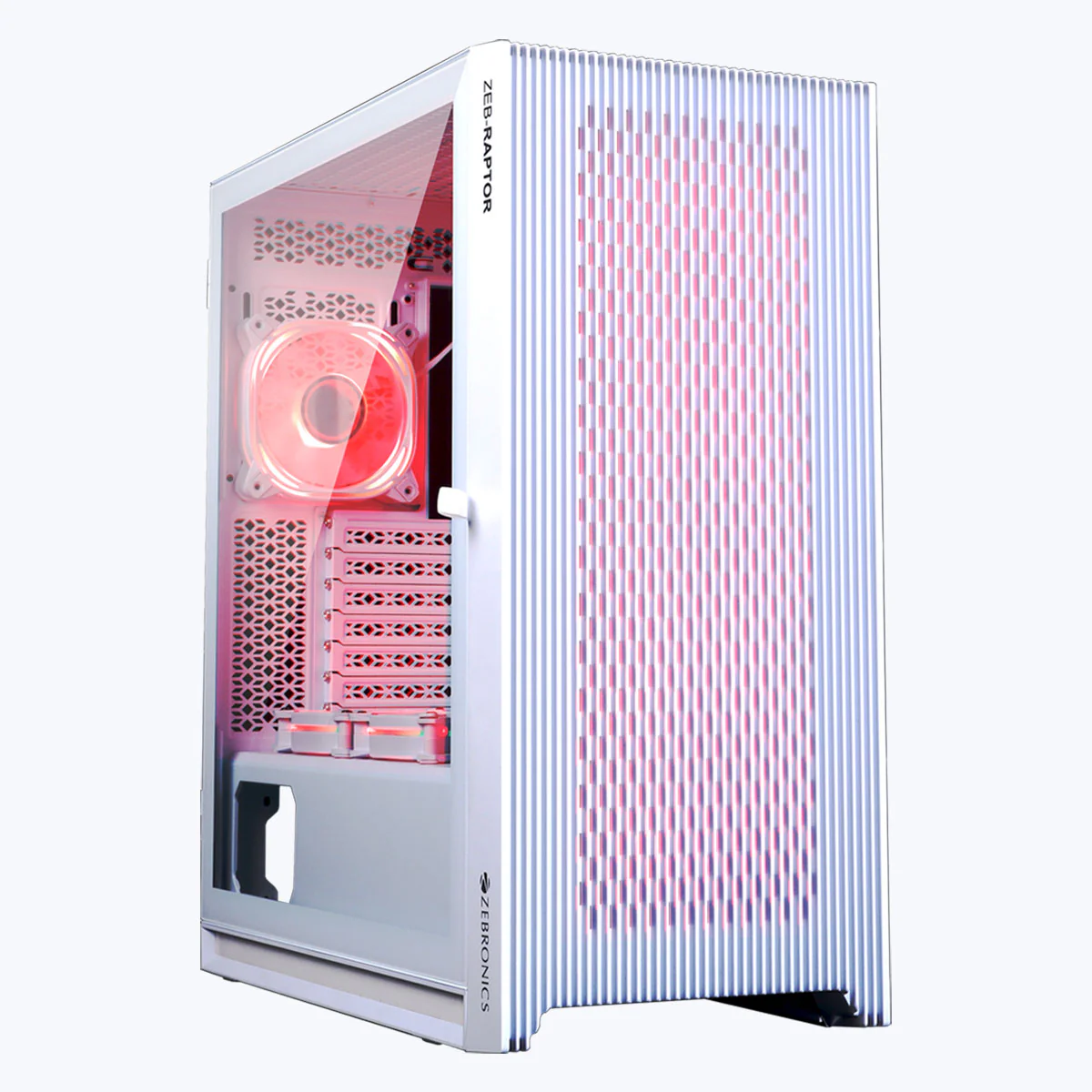

Model No
|

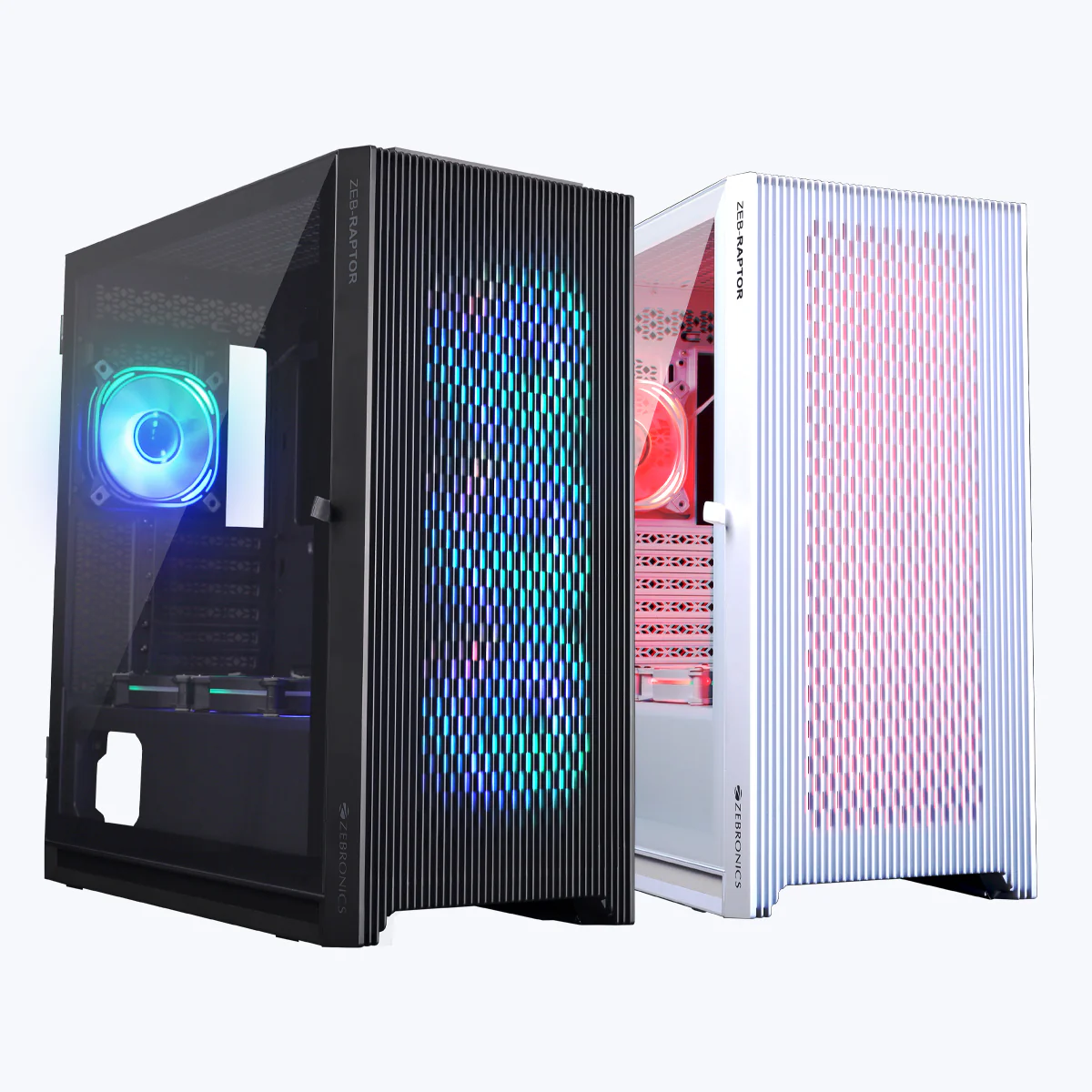

ZEB-RAPTOR |
|
Form Factor |
Mid Tower |
|

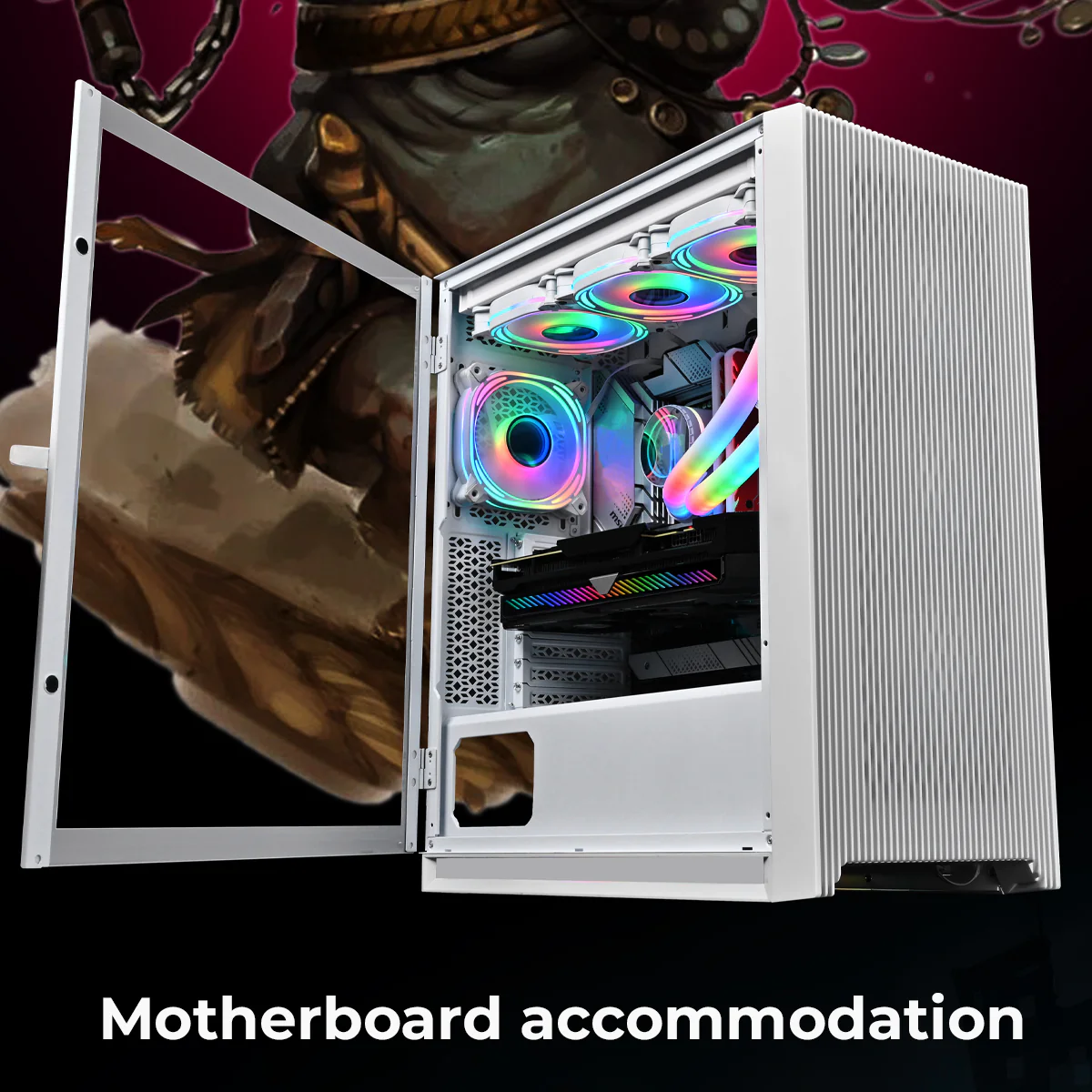

Motherboard |
EATX/ATX/mATX |
|

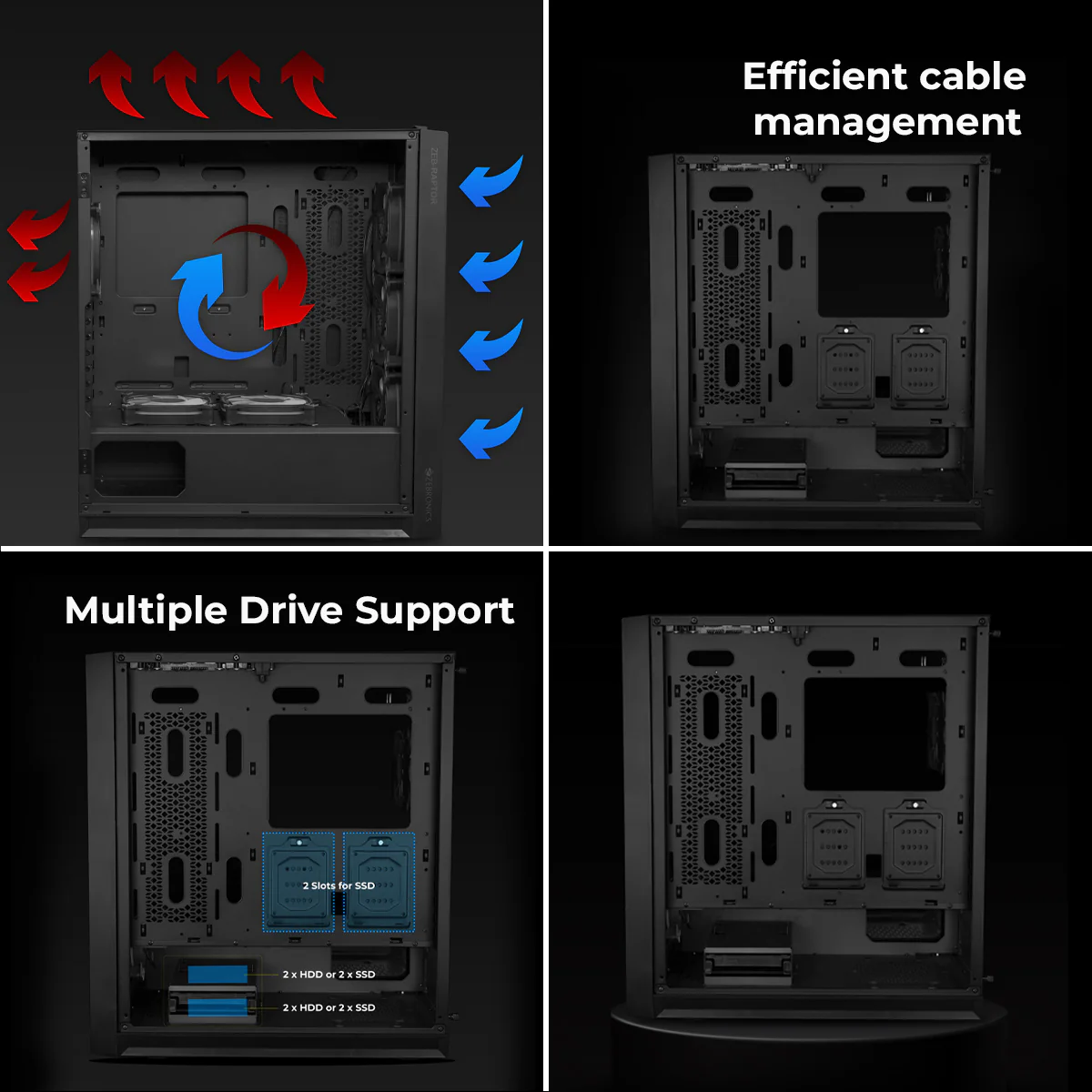

Drive support
|
|
|
HDD (3.5") |
2 (max.) |
|
SSD (2.5") |
4 (max.) |
|
CPU Cooler size |
175mm |
|
VGA Size |
370mm |
|

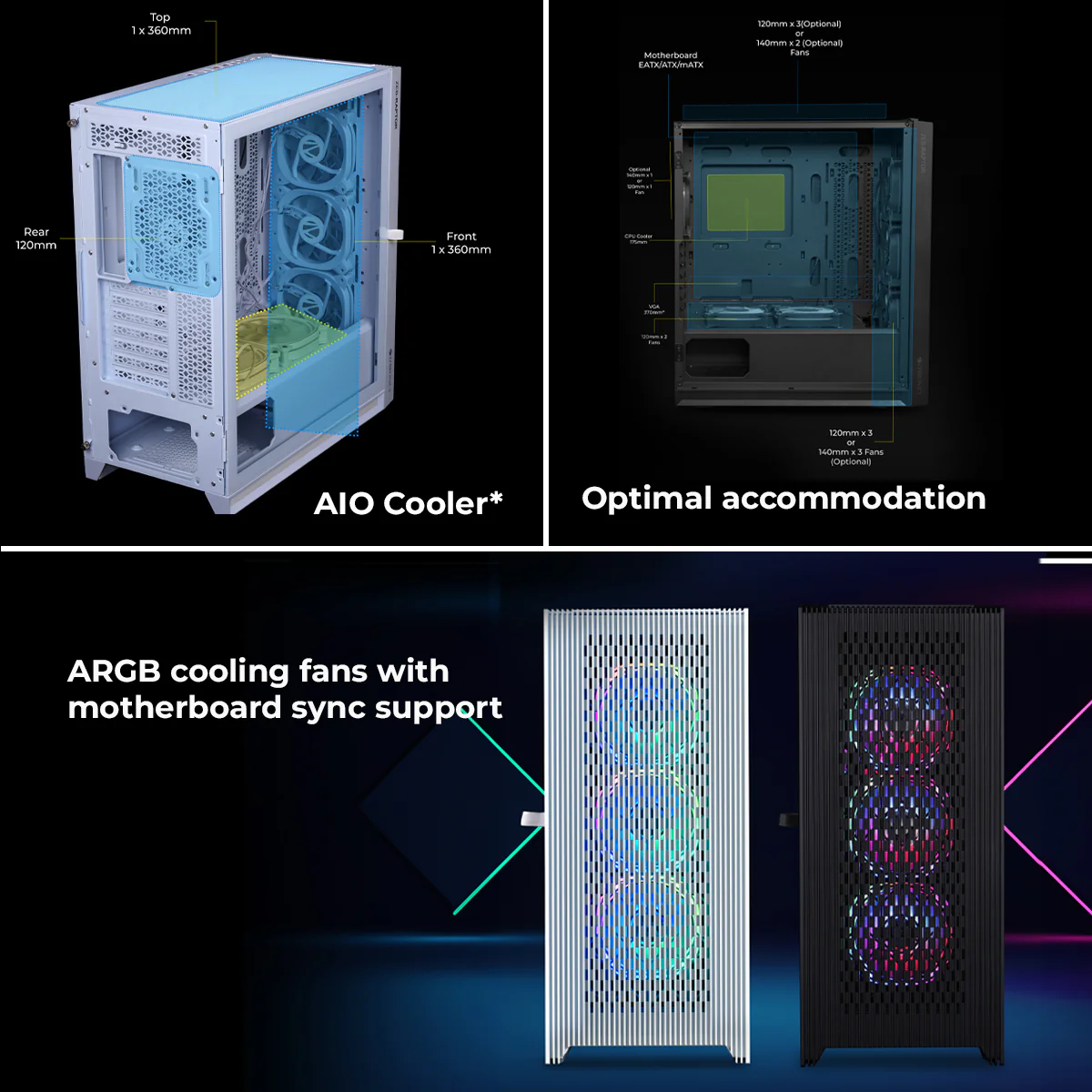

AIO Cooler* |
|
|
Front
|
360mm x 1 |
|
Rear |
120mm x 1 |
|
Top |
360mm x 1 |
|

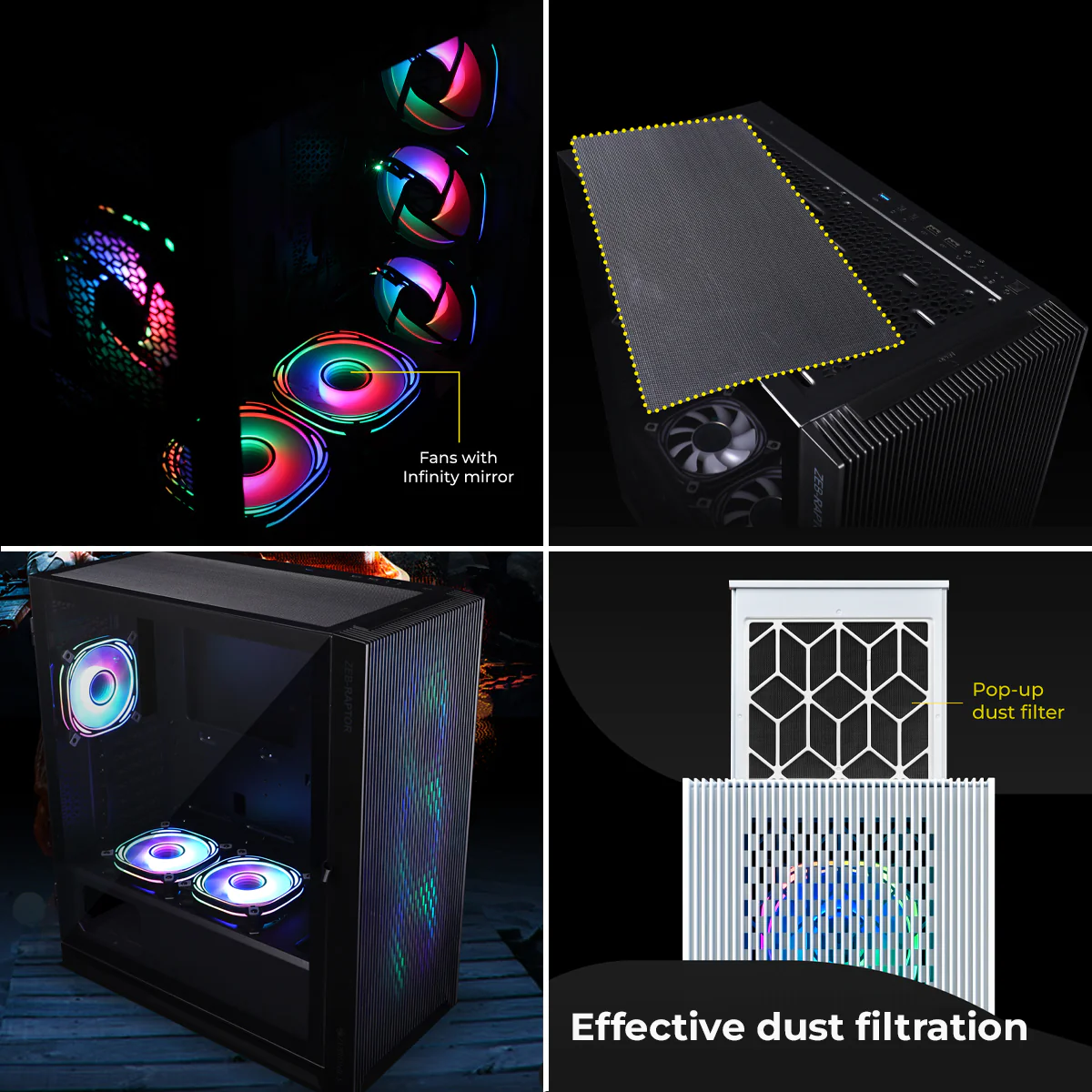

Cooling fans |
Inner glow ARGB LED Fan with ring |
|
Front
|
120mm x 3 or 140mm x 3 (optional)
|
|
Rear
|
120mm x 1 or 140mm x 1 (optional) |
|
Bottom
|
120mm x 2 |
|
Top
|
120mm x 3(optional) or 140mm x 2 (optional) |
|
Expansion slot |
Expansion slot : 7 |
|

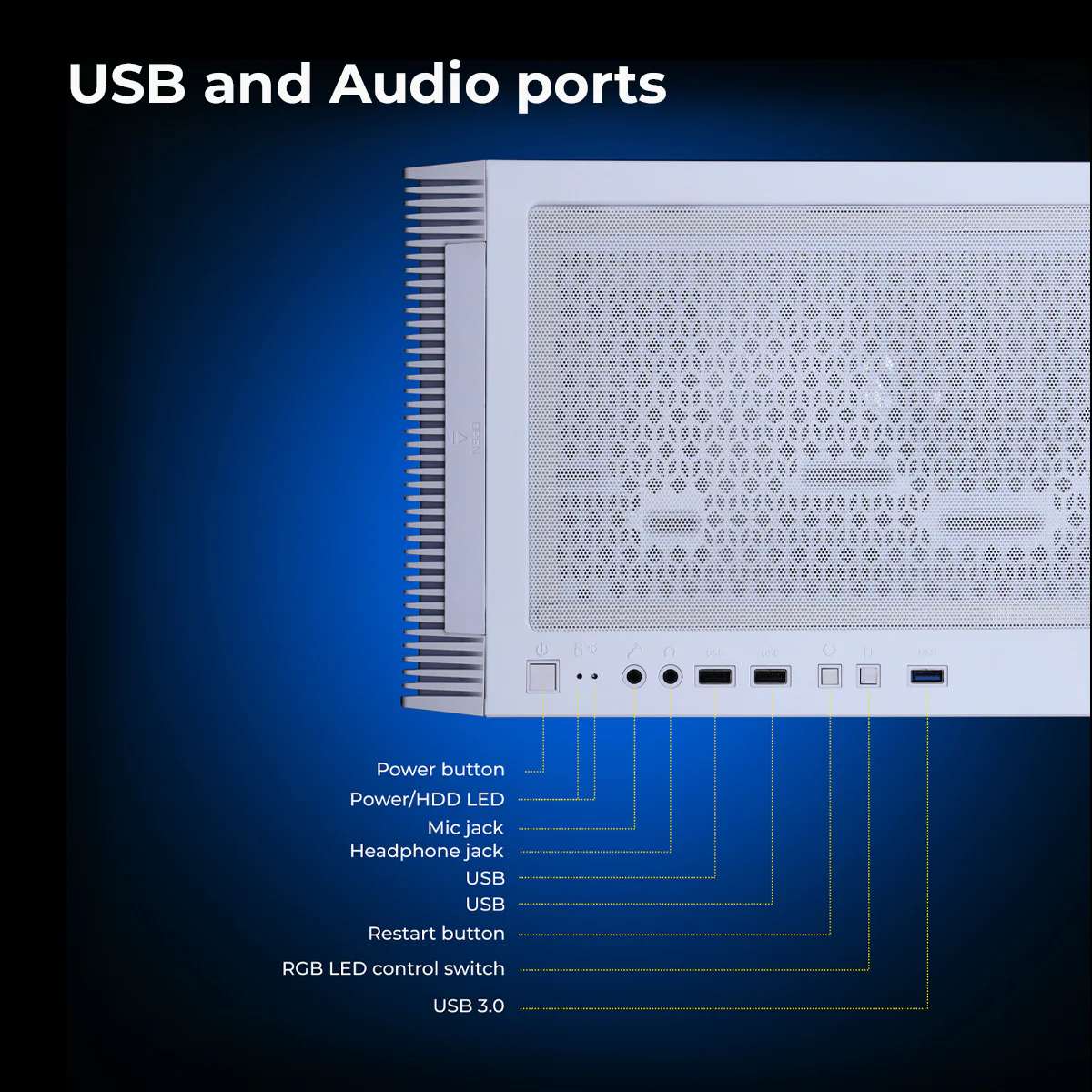

USB |
USB : 1 x USB 3.0, 1 x USB 2.0 |
|
Audio |
Audio : HD Audio |
|

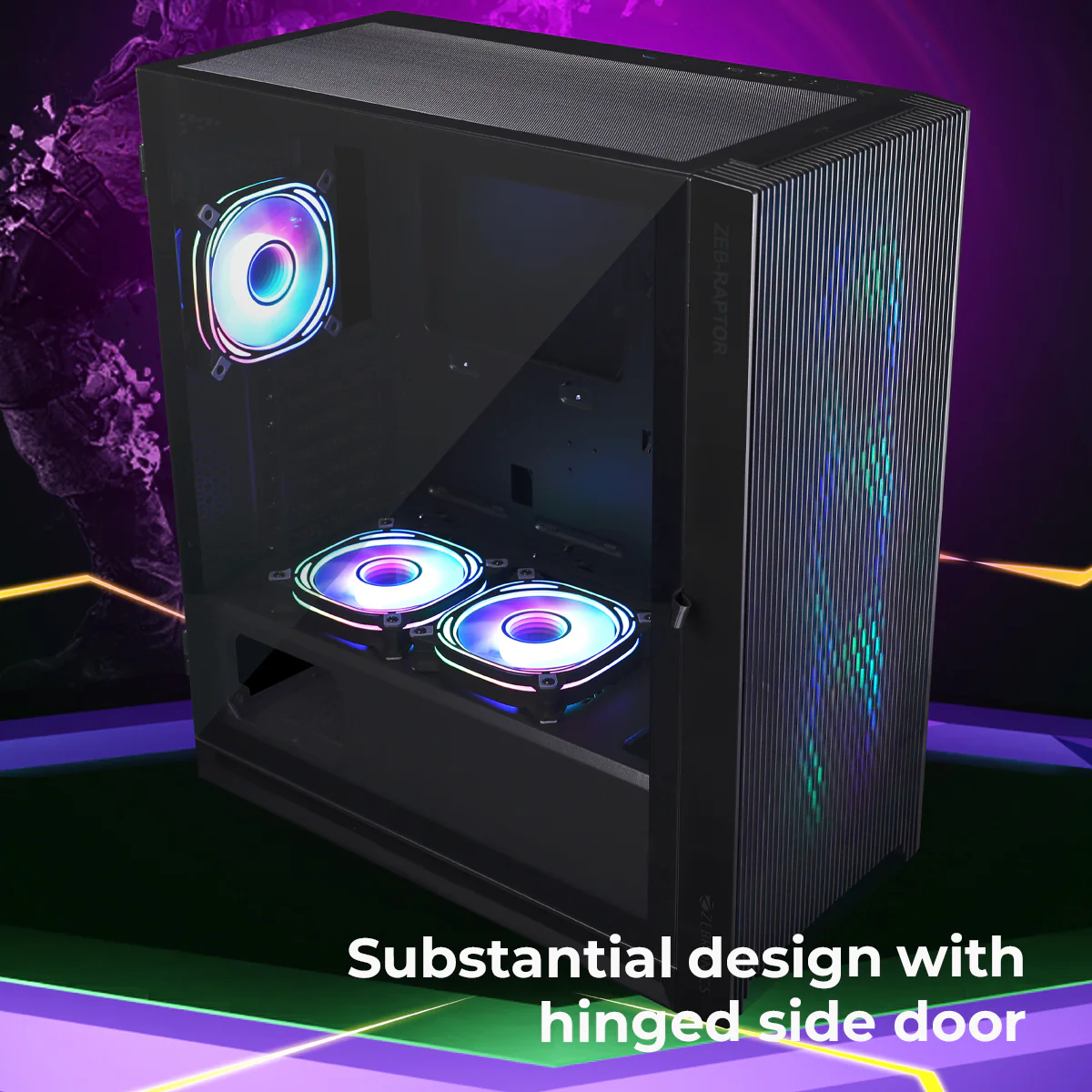

Front & Side panel
|
|
|
PSU |
Side panels : Tempered glass + Metal (Right) |
|
Front panel : Mesh pattern(Plastic) |
Front panel : Mesh pattern(Plastic) |
|
PSU : Bottom mount |
PSU : Bottom mount
|
|
Product dimension (W x D x H)
|
23 x 45.5 x 51 cm
|
|
Package Dimension (W x D x H)
|
33 x 59.5 x 56.5 cm |
|
Net. weight |
7.8kg |
|
Country of Origin |
People’s Republic of China |
|
Package content |
|
|
Chassis
|
1 U
|
