Audient EVO 4 2x2 Ultra Low Latency Audio Interface

₹13,990₹15,99013% off

Out of stock · ★ 4.39 (23)checking live price…

View on Bajaao store ↗

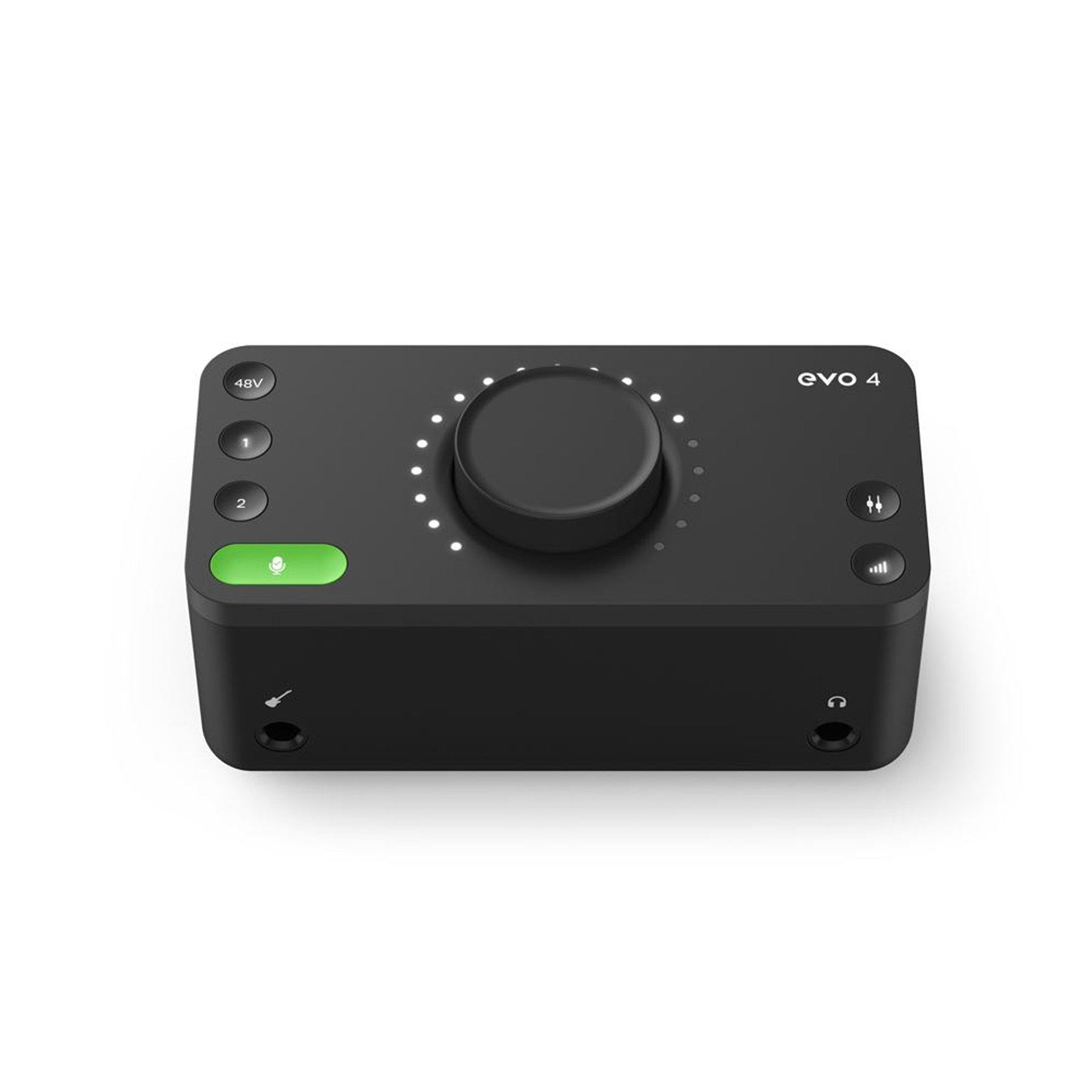

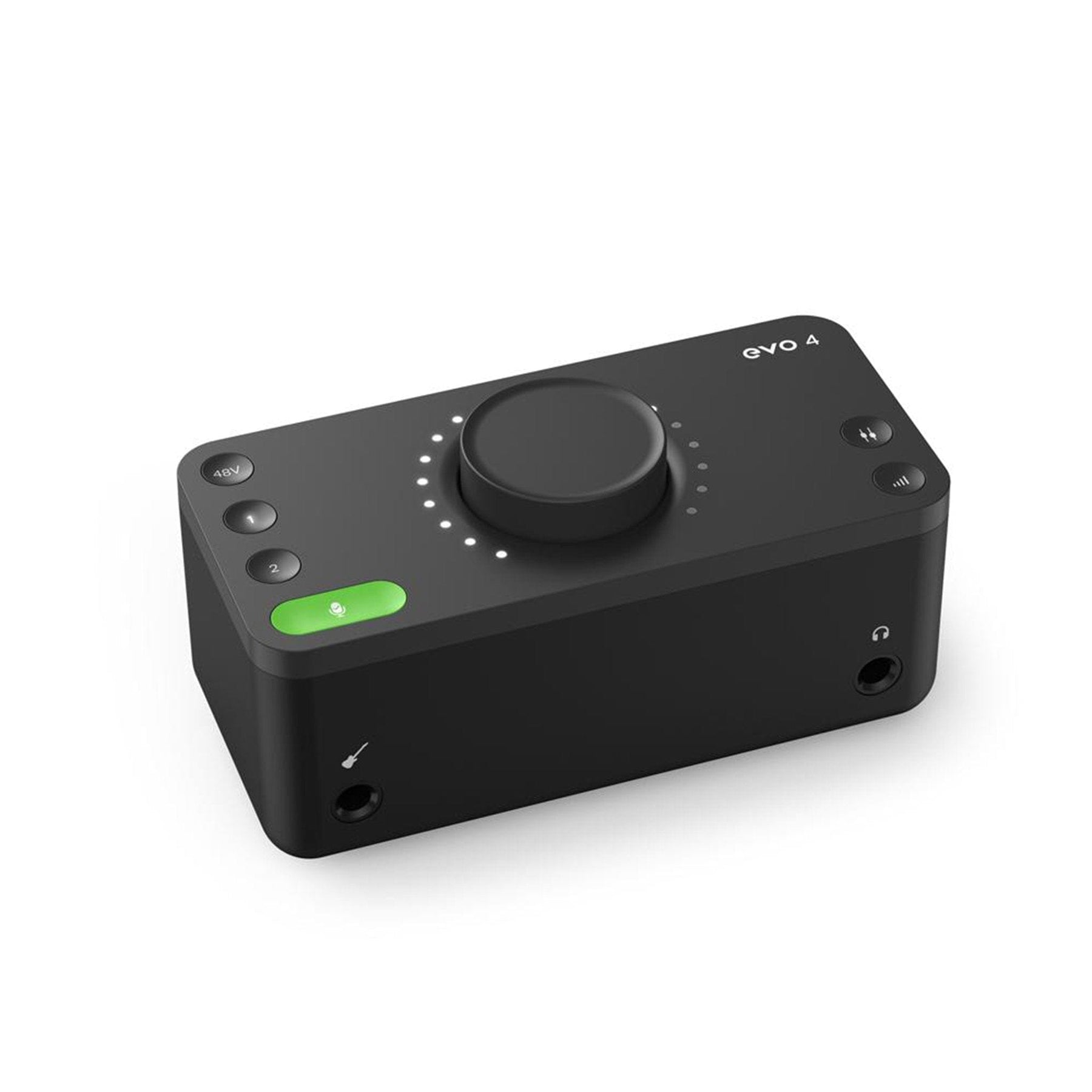

Meet EVO 4

The audio interface evolved.

Unbelievable audio performance.
Astonishingly easy to use.
Deceptively small.

2 x EVO Mic Preamps

An analogue preamp but smarter

Backed by over 25 years of engineering experience, our analogue mic preamp has been designed to deliver the most accurate, clean and true to source version of your audio, no matter what you’re recording. Stunning sound quality, every time.

More than just another preamp

The EVO preamp effortlessly combines the benefits of both the analogue and digital domains. Not only does the EVO preamp have all the sonic advantages of an analogue mic preamp, but combines it with digitally controlled precision, giving you the ability to set your gain with pin-point accuracy, right down to the decibel.

Super clean audio everytime

High performance converters are critical for hearing your audio accurately and boy does EVO 4 deliver, providing a massive 113db of dynamic range alongside ridiculously low noise and distortion figures. And with performance that good, you will be making music like the pros before you know it.

Smartgain

Designed to change the game

Meet Smartgain, the ultimate time saver designed to take the guesswork out of setting your levels. Powered by our lightning quick algorithm, Smartgain uses advanced peak analysis to automatically analyse, adjust and set your gain to the perfect levels – all in less than 20 seconds! Giving you perfect recordings every time.

Your own personal assistant engineer

Recording solo can be difficult, especially when you’re the artist AND the engineer – but with Smartgain simply press the magic button, start performing and EVO 4 will take care of the rest.

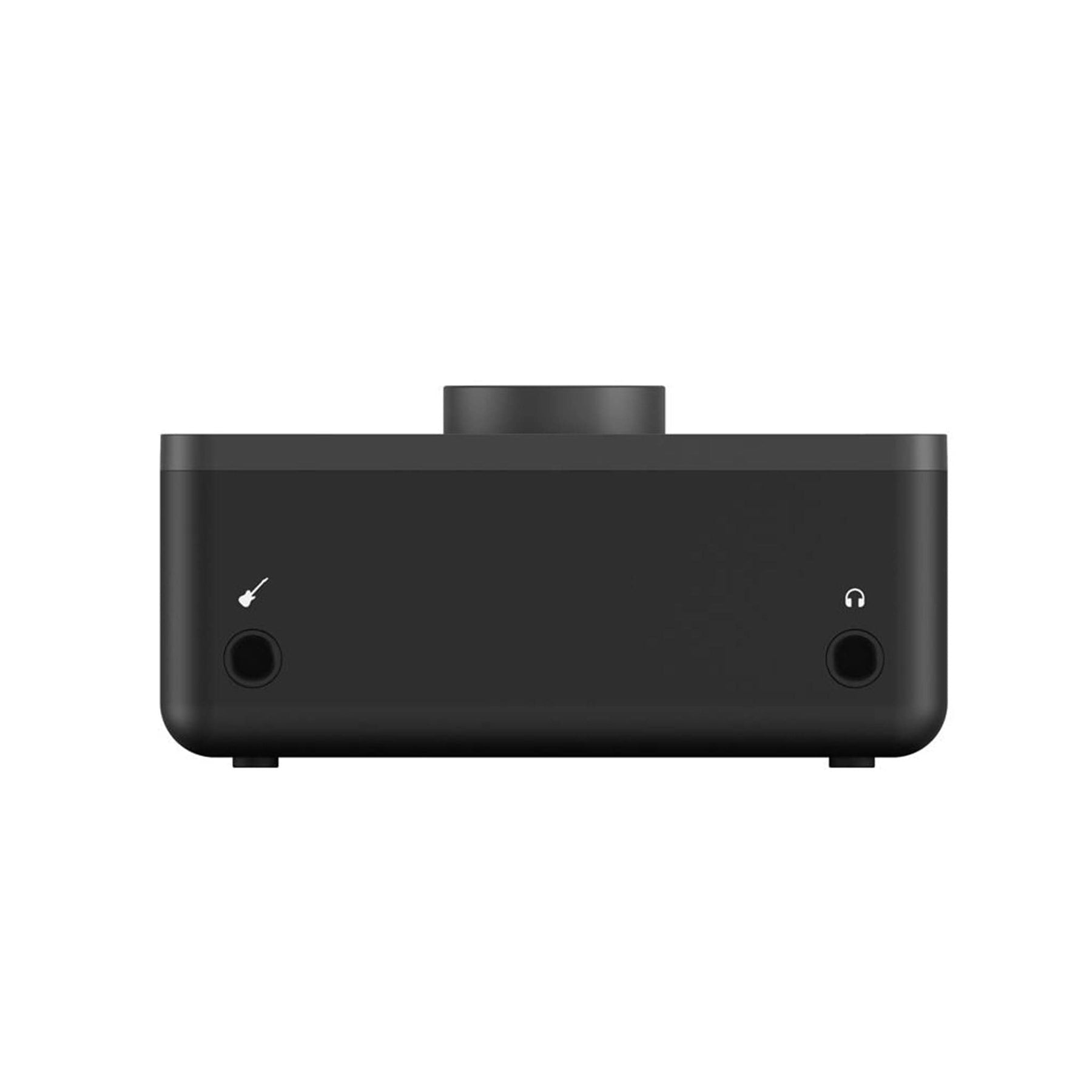

Guitars at the ready

Give your guitars the foundation they need to create monster guitar tones. Our harmonically rich JFET instrument input circuit is designed to replicate the input stage of a classic valve amplifier, providing an ideal sonic foundation before you hit your guitar sims.

Say goodbye to latency

Incredibly low latency specs alongside configurable direct monitoring, make issues with latency a thing of the past, letting your creativity go uninterrupted.

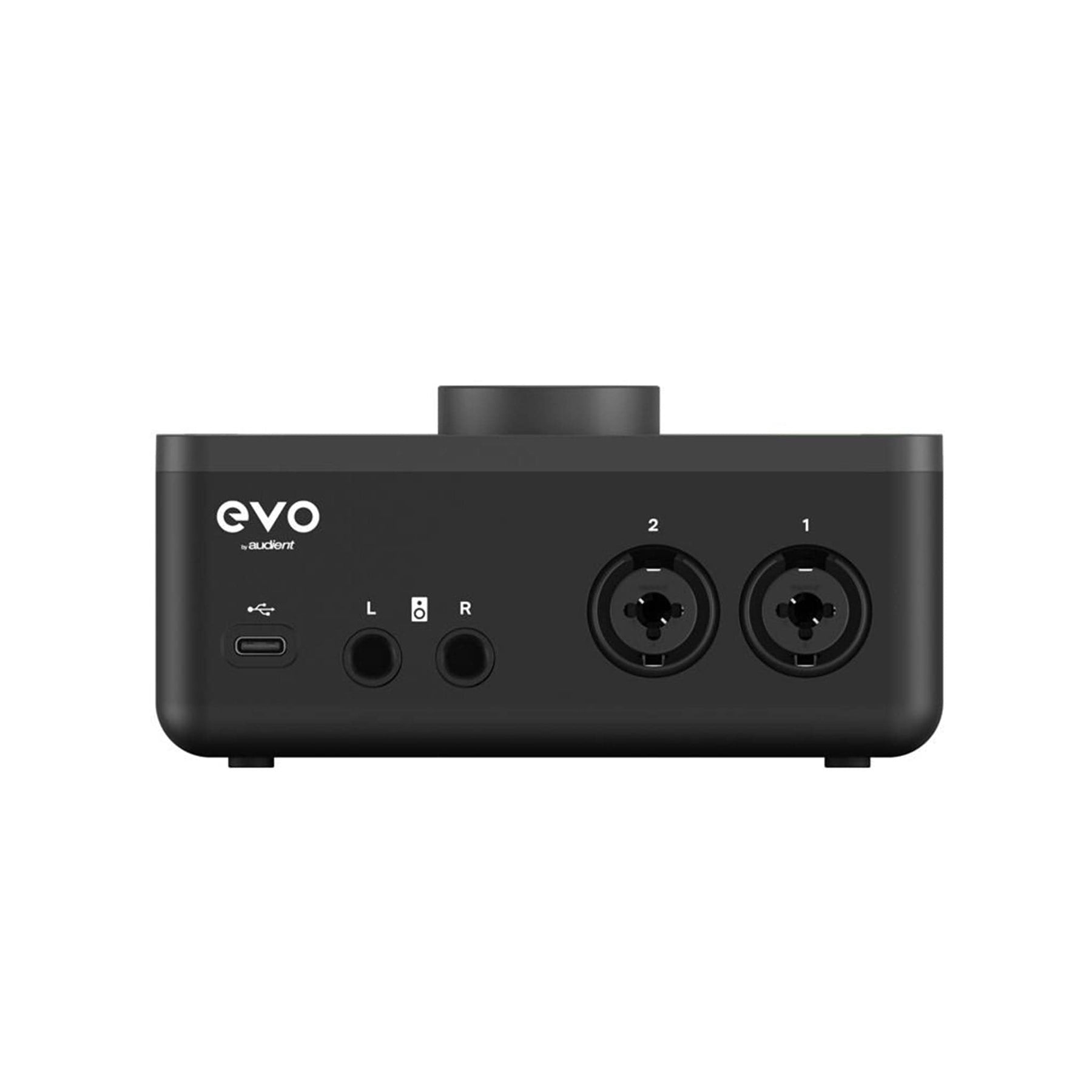

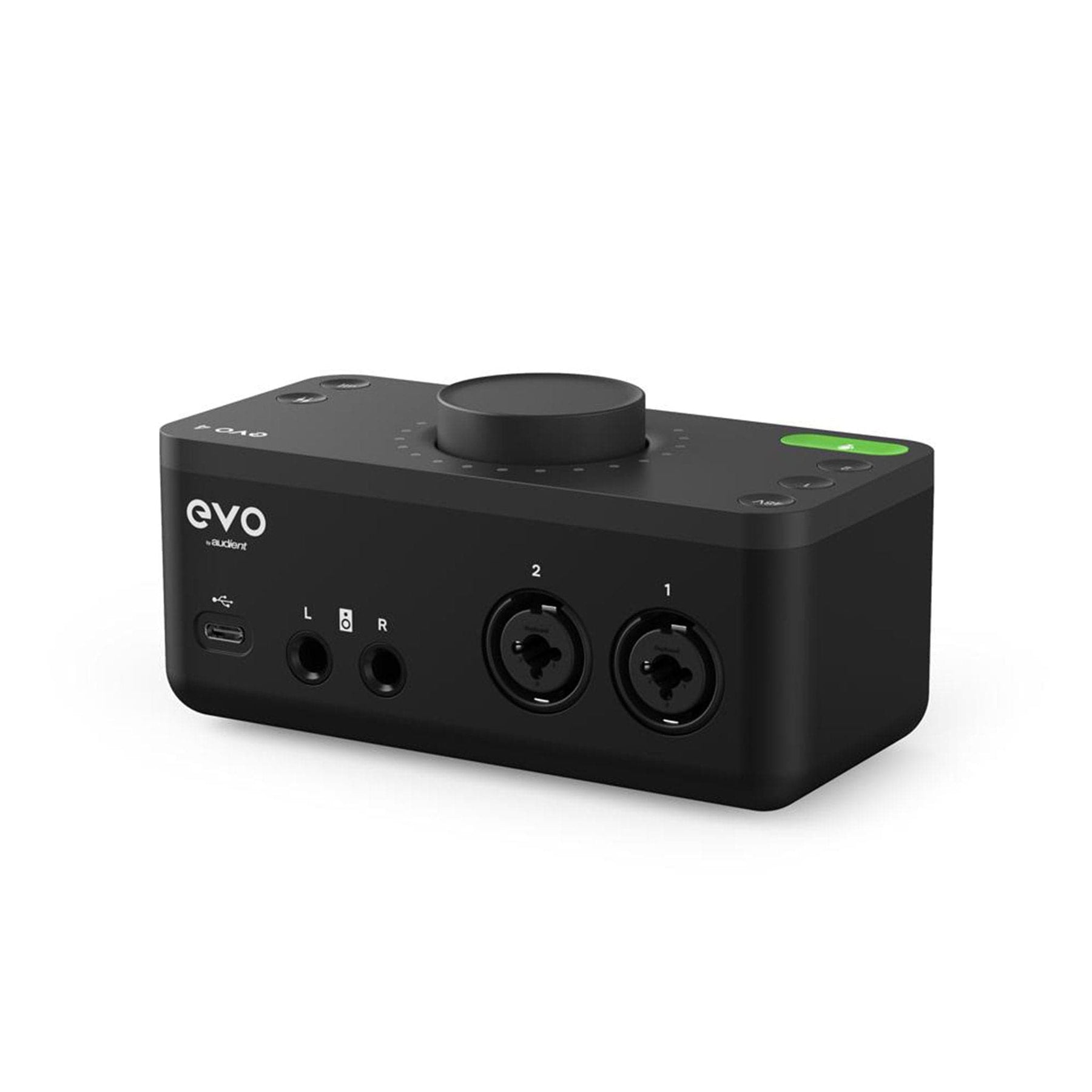

Connected

• Connect both your studio speakers

• Connect your headphones

• Immerse yourself in music

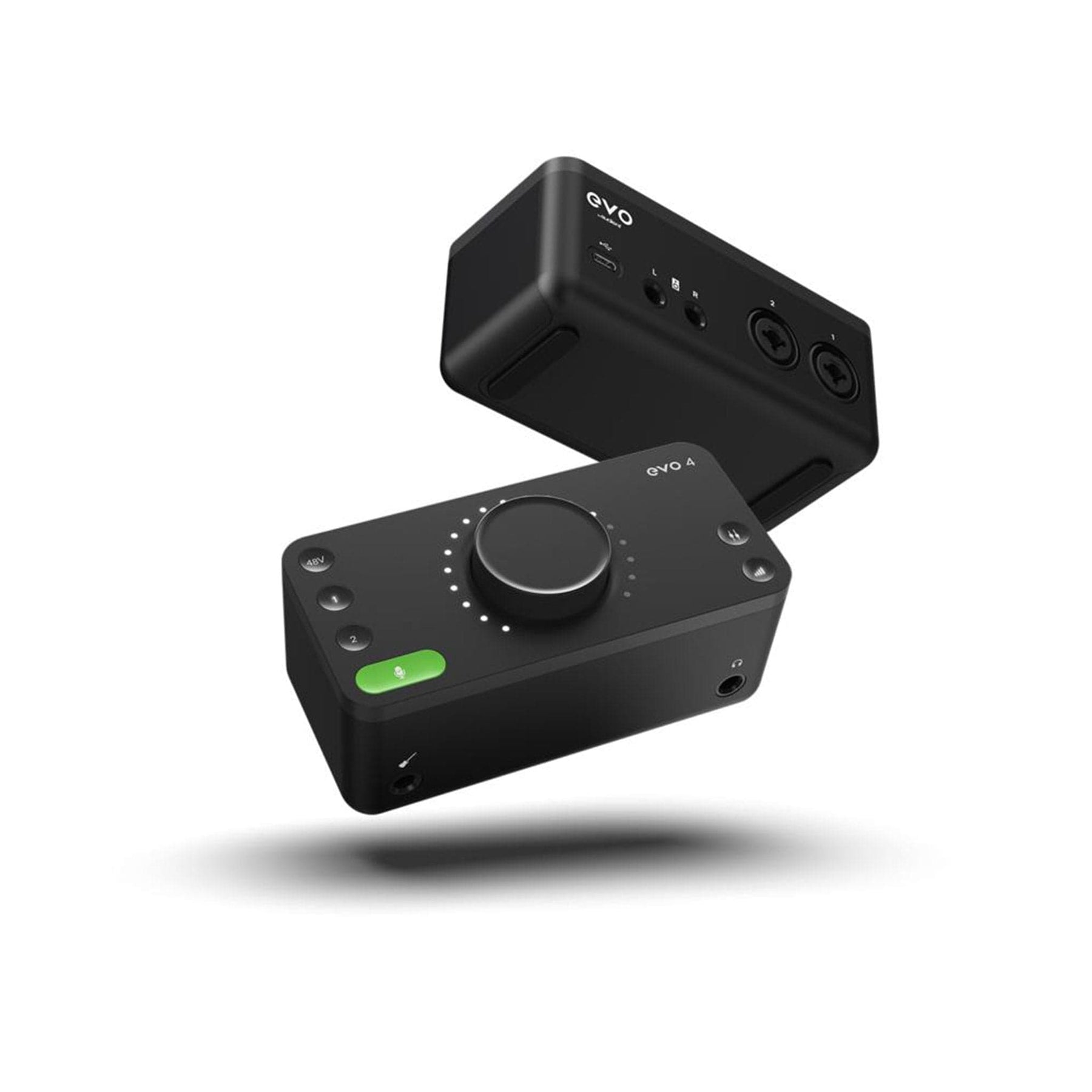

Small but
MIGHTY

Don’t be mistaken, although small in stature, EVO 4 is built to last – making it the perfect companion at home in the studio or on the road. It may well be our most compact design ever, measuring at just 14cm wide.

For content creators

Audio Loop-back

In the world of content, your audio needs to not only sound great but be easy to control. Audio Loop-back makes this possible. Ideal for content creators, podcasters and streamers.

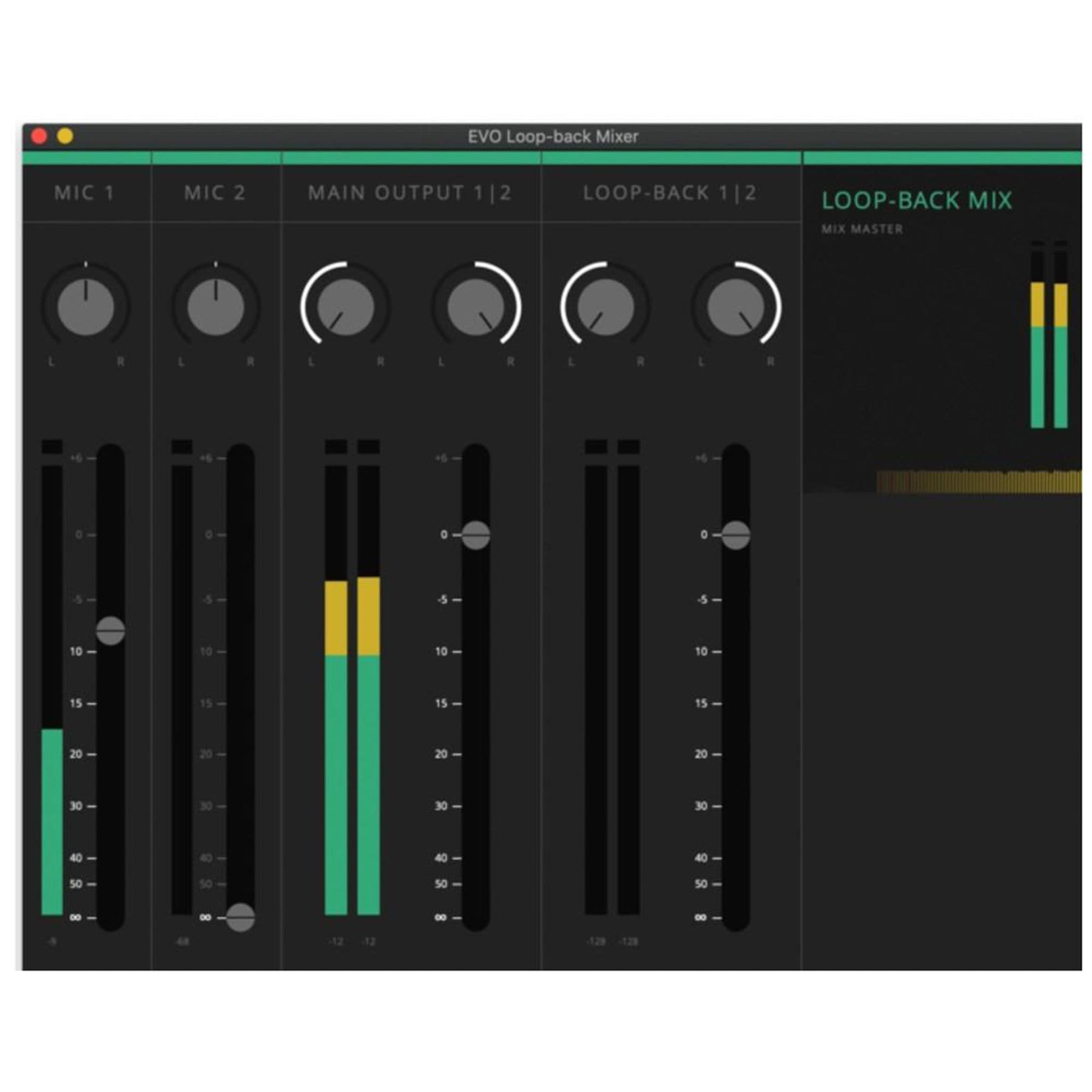

Audio Loop-back Mixer

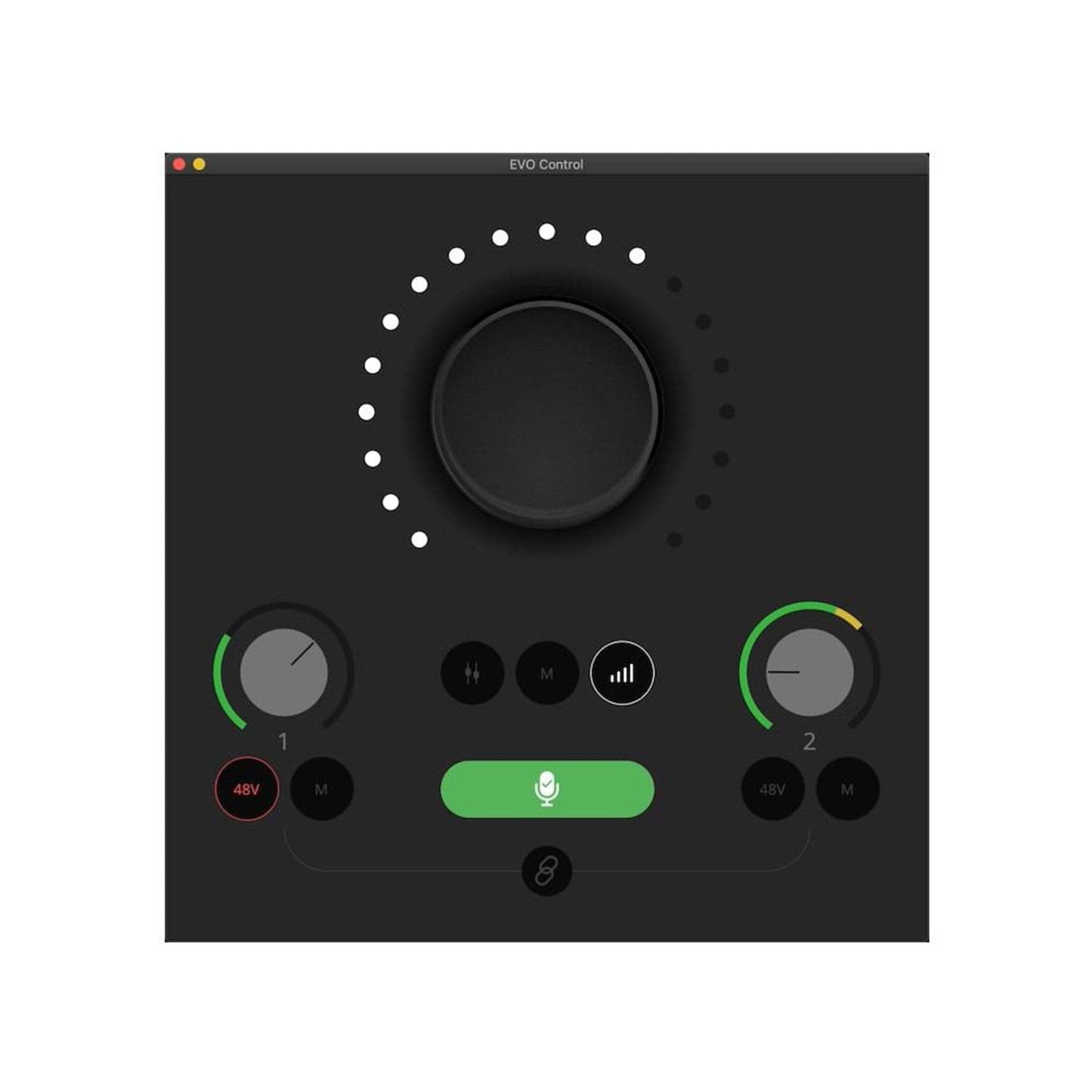

Software Control of your Hardware

EVO 4’s audio loopback feature can be configured via its own dedicated audio loopback mixer software, enabling you to combine audio sources and quickly route them between software.

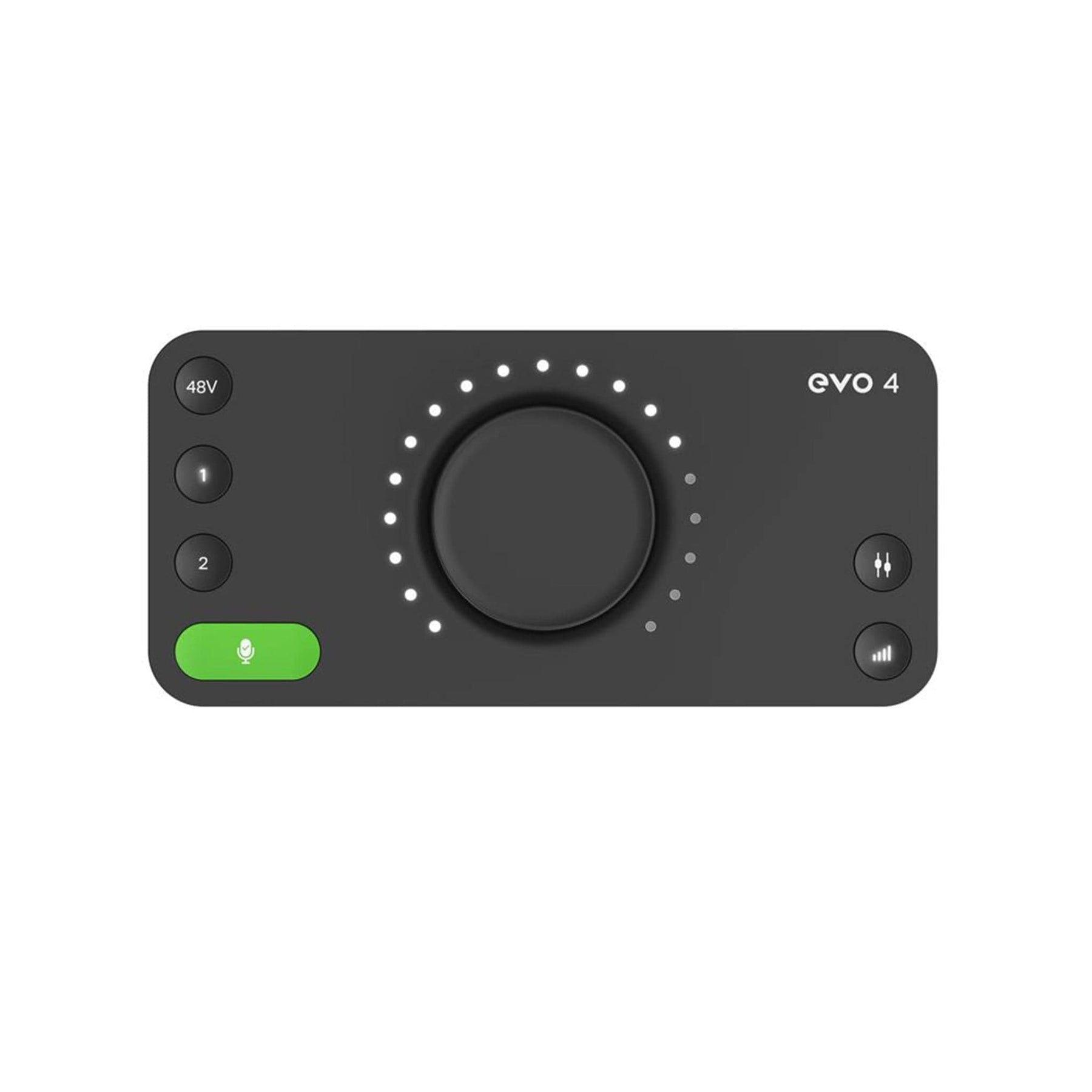

It’s all about the aesthetic…

From its custom-designed and robust control wheel to its iconic LED Ring lighting, EVO 4 not only feels great but will look stunning on your desktop.

Features:

• 2 x EVO Mic Pres
• Class Leading Converters
• Smartgain
• Smart Touchpoints
• JFET Instrument Input
• Speaker Outputs
• Headphone Output
• Compatible with Mac, Windows and iOS
• Monitor Mix
• Monitor Pan
• Audio Loop-back
• USB2.0 Bus Powered
• Phantom Power
• DAW Controlled Mic Pre
• 24bit / 96kHz
• Free Software + Plugins

Specifications:

Microphone Preamplifier

Mic Gain Range: 58dB
Line Gain Range: 58dB (-10dB pad)
Phantom Power: 48v +/-4v @ 10mA/Channel
Mic EIN: <-128dBu
CMRR: >85dB @ 1kHz
Maximum Input Level: +16dBu
Input Impedance (Mic): >3kΩ Balanced
Input Impedance (Line): >10kΩ Balanced
Frequency Response: +/-0.5dB 10Hz to 40kHz
Crosstalk: <-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): <0.0015%
SNR: 100dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I

D.I Gain Range: 58 dB
Maximum Input Level: +10dBu
Input Impedance: 1MegΩ Unbalanced
Frequency Response +/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 100dB
1/4” Jack: TIP (Hot) & SLEEVE (Shield)

ADC Inputs

Digital Reference Level: 0dBFS = +8dBu
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.001%
Dynamic Range: 113dB A-weighted

DAC Outputs

Maximum Output Level: +11dBu
Digital Reference Level: 0dBFS = +11dBu
Output Impedance: <100Ω Balanced
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: <-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Output

Output Impedance: <50Ω
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
Max Level Into 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack: TIP (Left), RING (Right) & SLEEVE (Shield)

DSP Mixer Roundtrip Latency:
(in to out)

44.1 kHz 0.594ms
48.0 kHz 0.552ms
88.2 kHz 0.302ms
96.0 kHz 0.281ms

DAW Roundtrip Software Monitoring Latency
@ 32 Sample Buffer (in to out)

44.1 kHz 5ms
96.0 kHz 4.1ms

Latency – performance may vary as stability at these low buffer sizes is dependant on many factors including CPU load, operating system and performance of other drivers.

USB 2.0 High Speed

No. Of Input Channels 2 Analogue
No. Of Output Channels 2 Analogue
Connector: USB Type-C
Included Cables: 1m USB 2.0 Type-C to USB Type-A
