DESCRIPTION
THE BEST AMP/DAC, HIGH-QUALITY SOUND

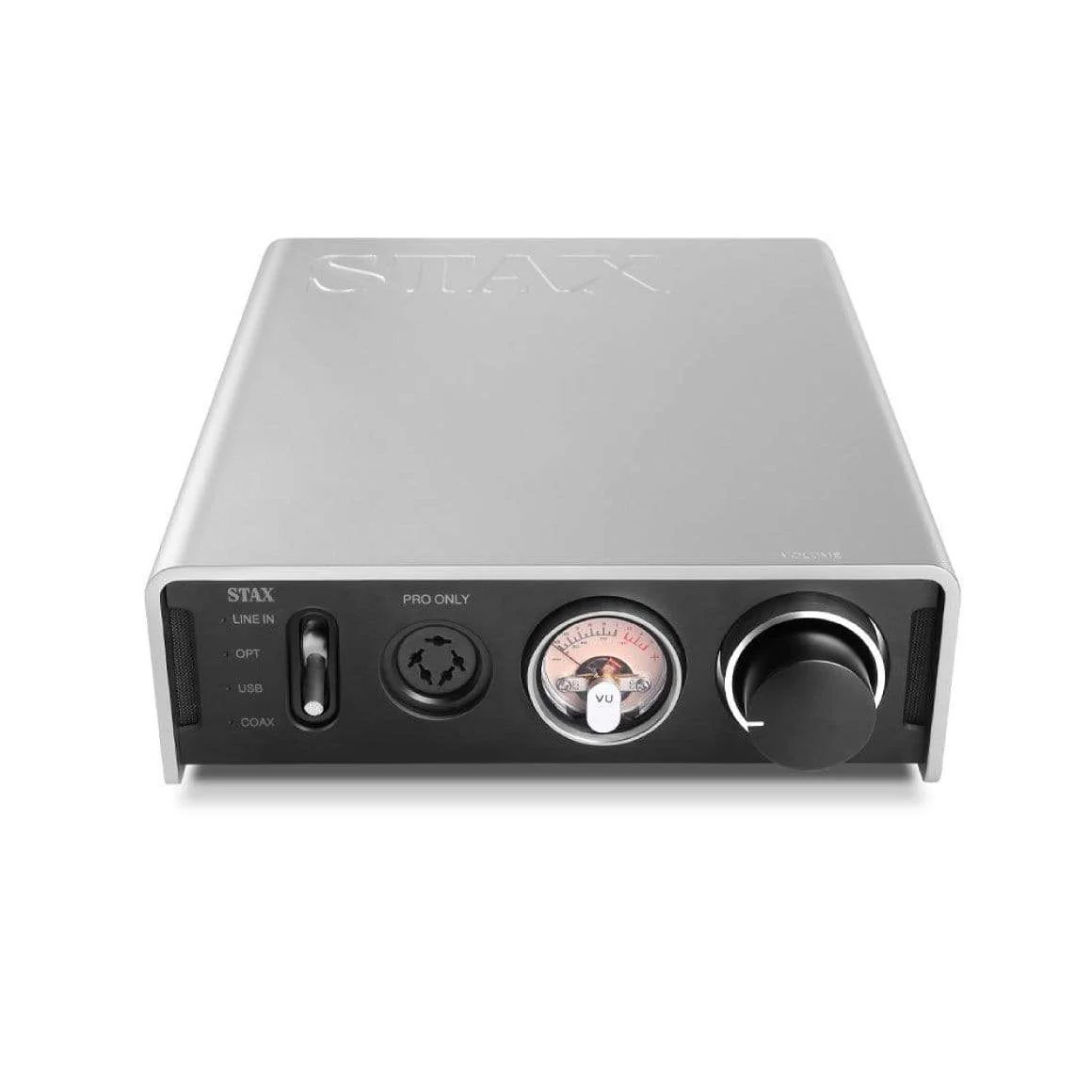

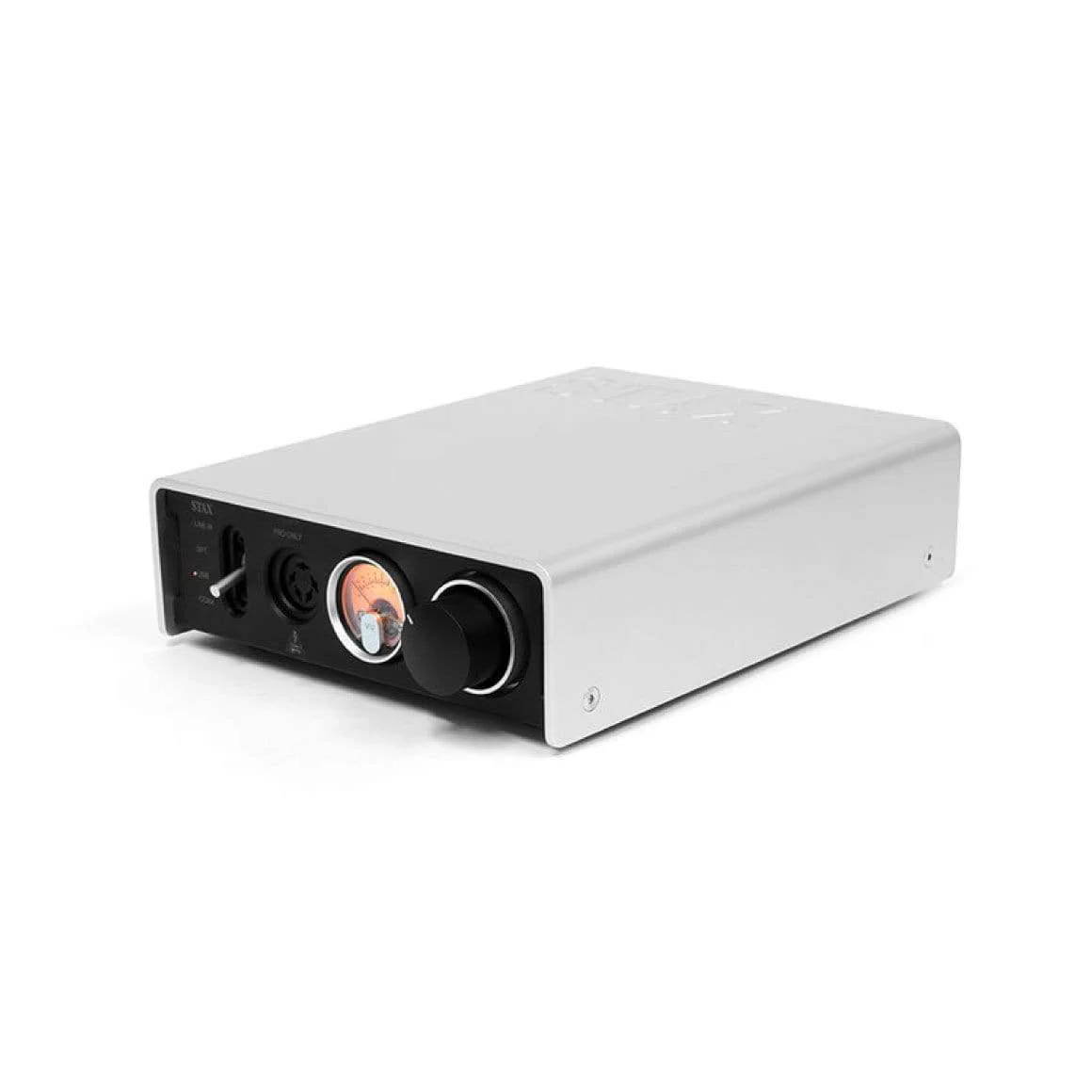

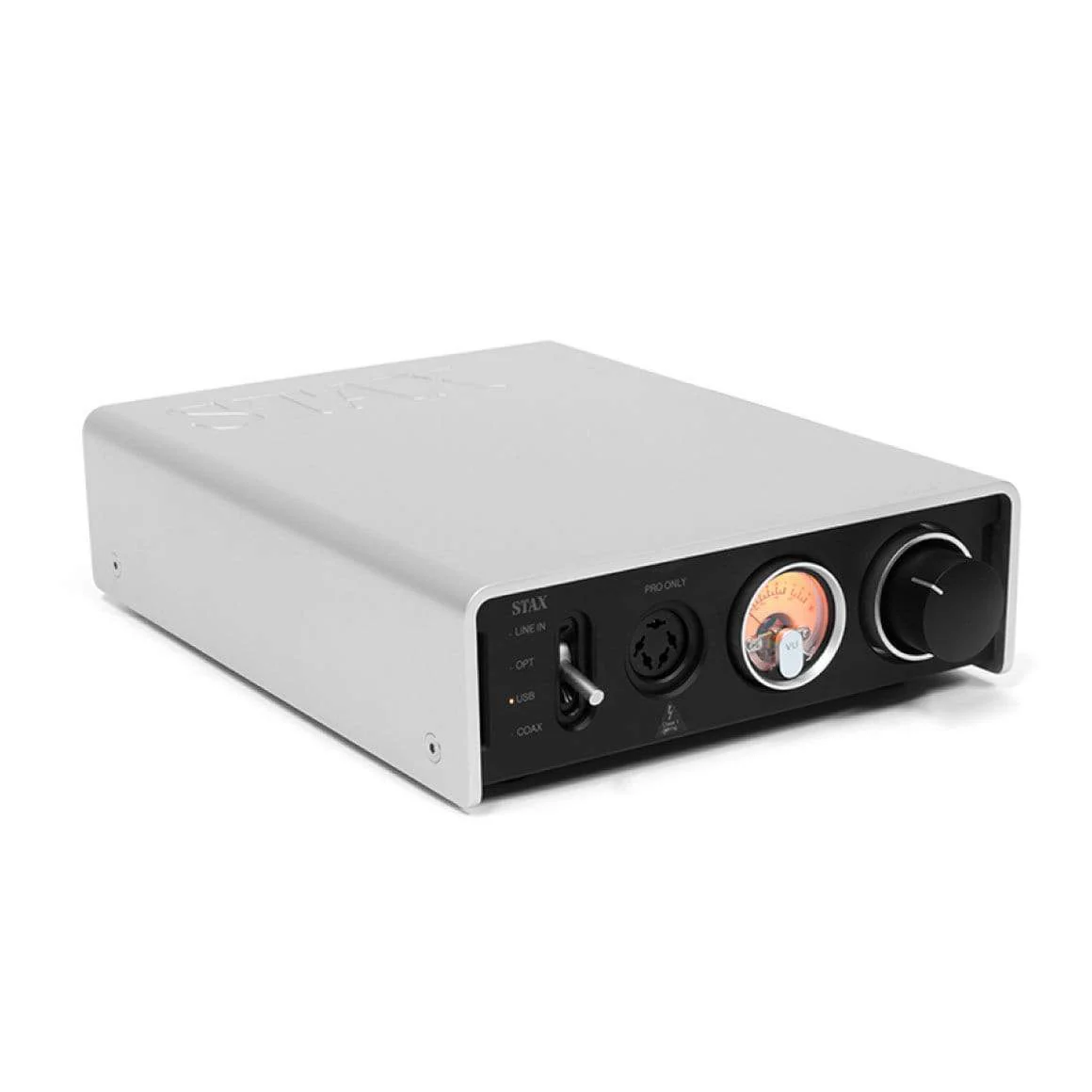

The STAX SRM-D50 is a desktop amplifier/DAC for STAX electrostatic headphones. It has an ESS ES9018 DAC chip. This coupled with a TI OPA1642 ultra-low distortion op amp gives you a bit-correct signal representation. The SRM-D50 supports high-resolution audio up to PCM 32/384KHz or DSD 5.6. The R core power transformer offers less leakage flux.
DURABLE & COMPACT, CONNECT EASILY

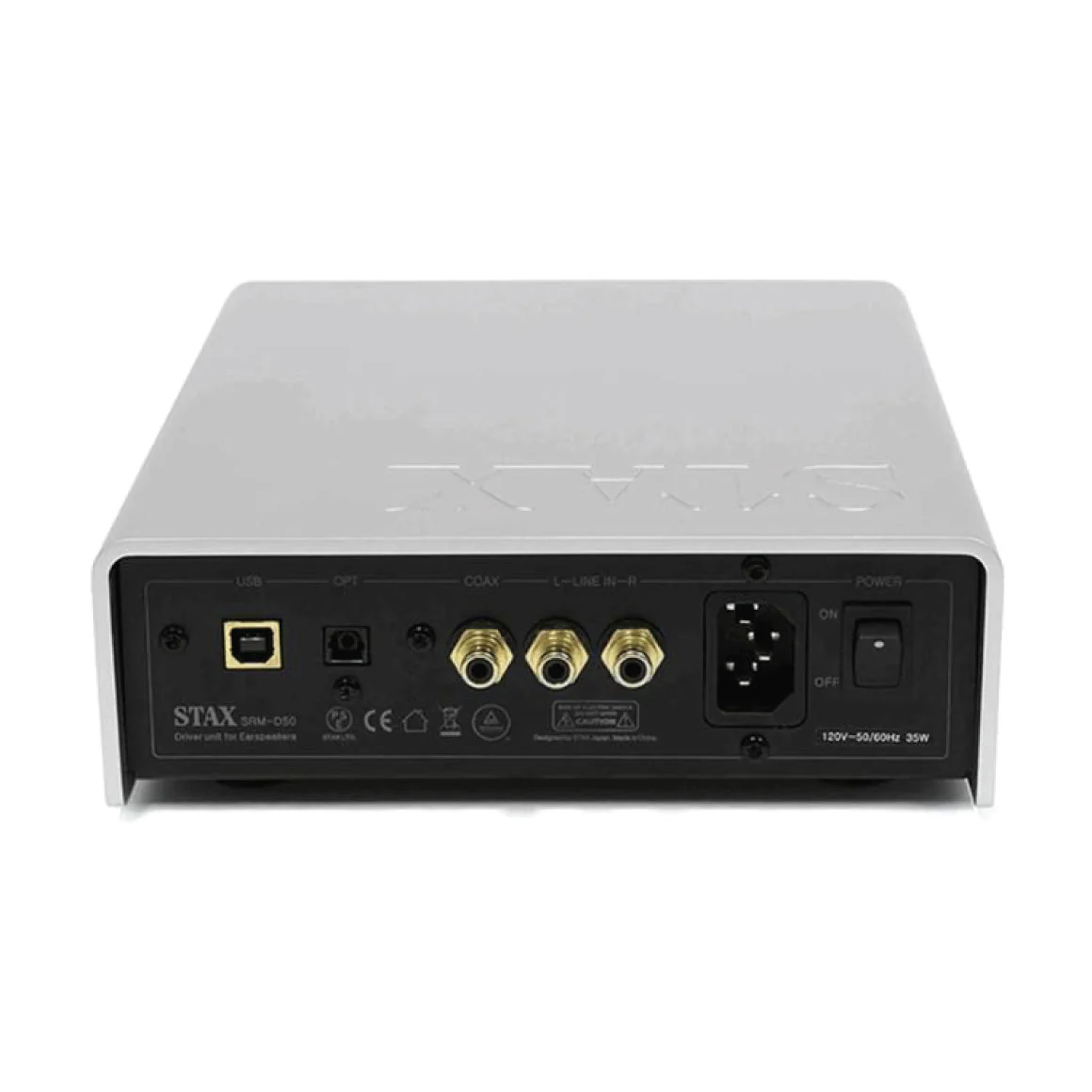

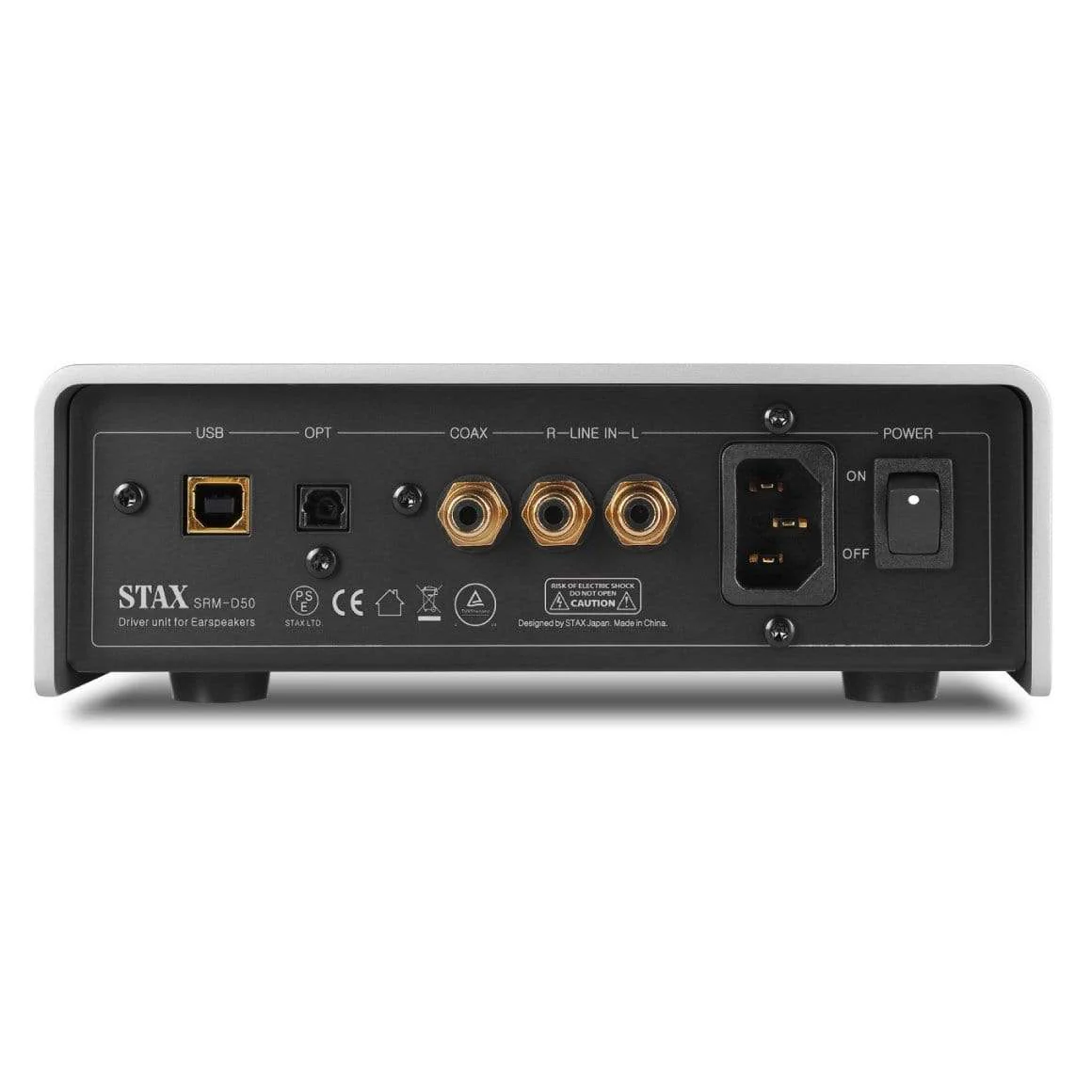

The SRM-D50 has been designed to be super-durable. The non-magnetic aluminium chassis is 4mm thick so that it is more robust. At the same time, it is also quite compact to easily fit on a table. The chassis contains one 5-pin output for your STAX Earspeaker and a VU meter. It also consists of various kinds of digital inputs like optical, USB and coaxial so that you can use your favourite source along with the SRM-D50.
SPECS
| FREQUENCY RESPONSE | 20Hz - 40kHz (+/-3dB) |
| HIGH HARMONIC DISTORTION | 0.025% or less/1kHz-10kHz /When use with SR-L series |
| MAX. OUTPUT VOLTAGE | 400V RMS (1130Vp-p) |
| BIAS VOLTAGE | DC 580V |
| GAIN | 59 dB |
| INPUT IMPEDANCE | 20kΩ (RCA) |
| RATED INPUT LEVEL | 130mV r.m.s |
| MAXIMUM INPUT LEVEL | 30V/ RCA, at minimum volume |
| DIGITAL INPUT | USB (type B) ×1、TOSLINK Optical ×1、COAX RCA ×1 |
| ANALOG INPUT | RCA ×1 |
| MAINS VOLTAGE | AC 110V / 60Hz |
| POWER CONSUMPTION | 35W |
| OPERATING TEMPREATURE | 0 to 35 degrees (Celsius) (less than 90% humidity, non condensing) |
| DIMENSIONS | 7.55(W) x 2.63(H) x 10.55(D) inches, 192(W)×67(H)×268(D) mm |
| WEIGHT | 9.9 lbs / 4.5 kg |
| BATTERY | Size AA battery x2 (Alkaline battery, Rechargable , Magnesium Dry Cell) |
| BOX CONTENTS | 1. STAX SRM-D50 Electrostatic Amp/DAC |
WARRANTY AND MEDIA REVIEWS
1 Year Warranty
Don't sweat it, this STAX SRM-D50 comes with a 1 year warranty from STAX that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.
