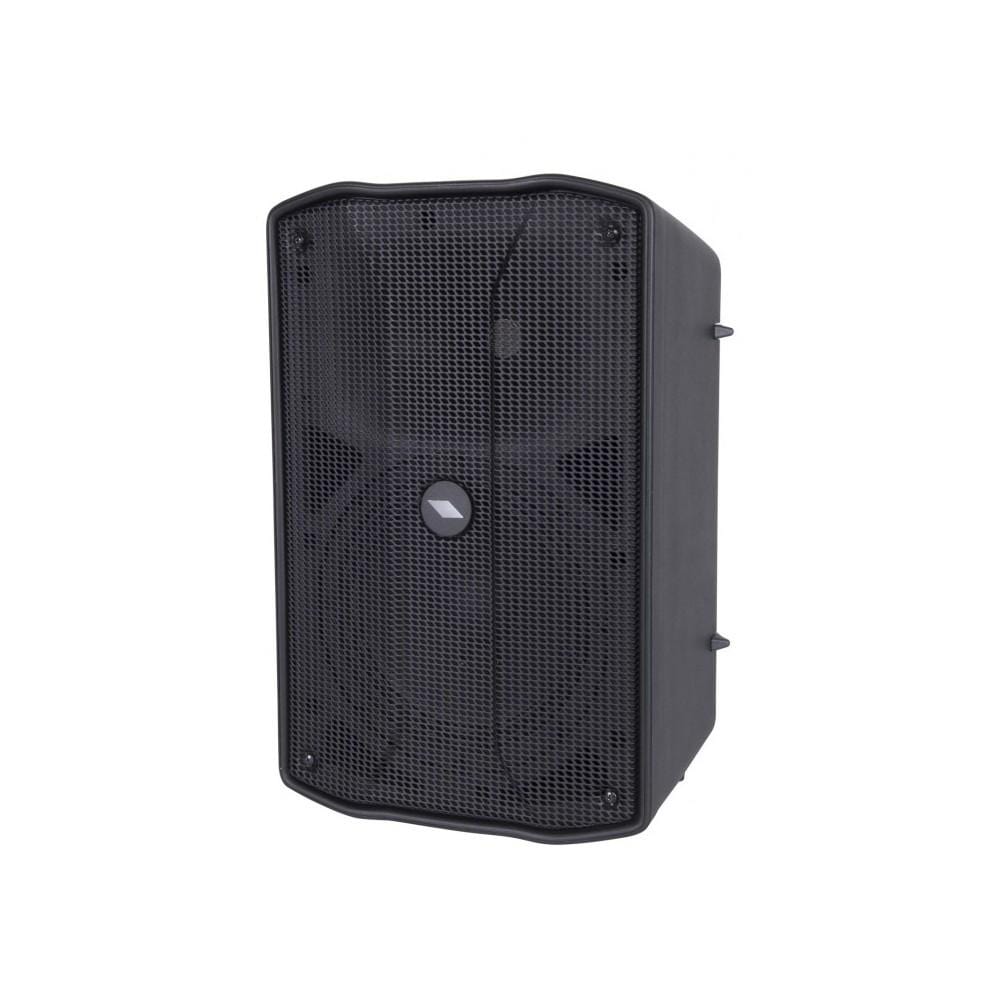

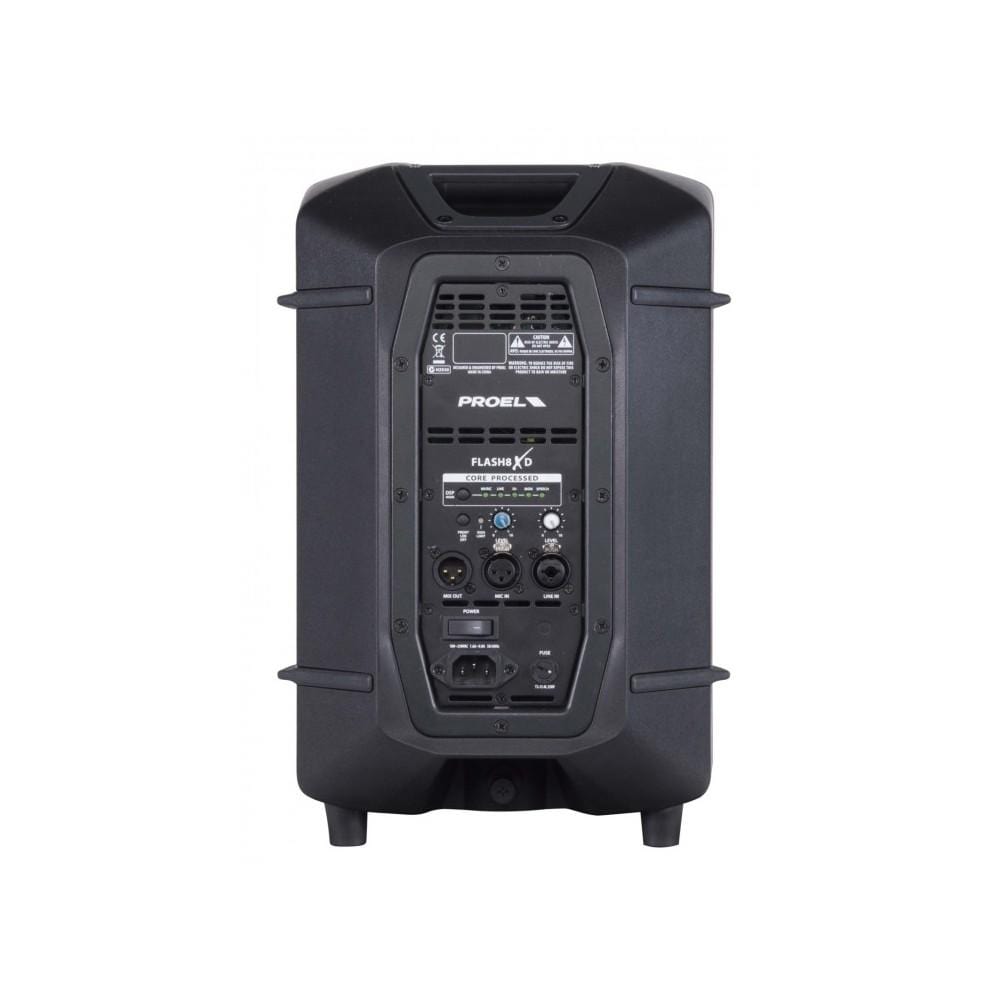

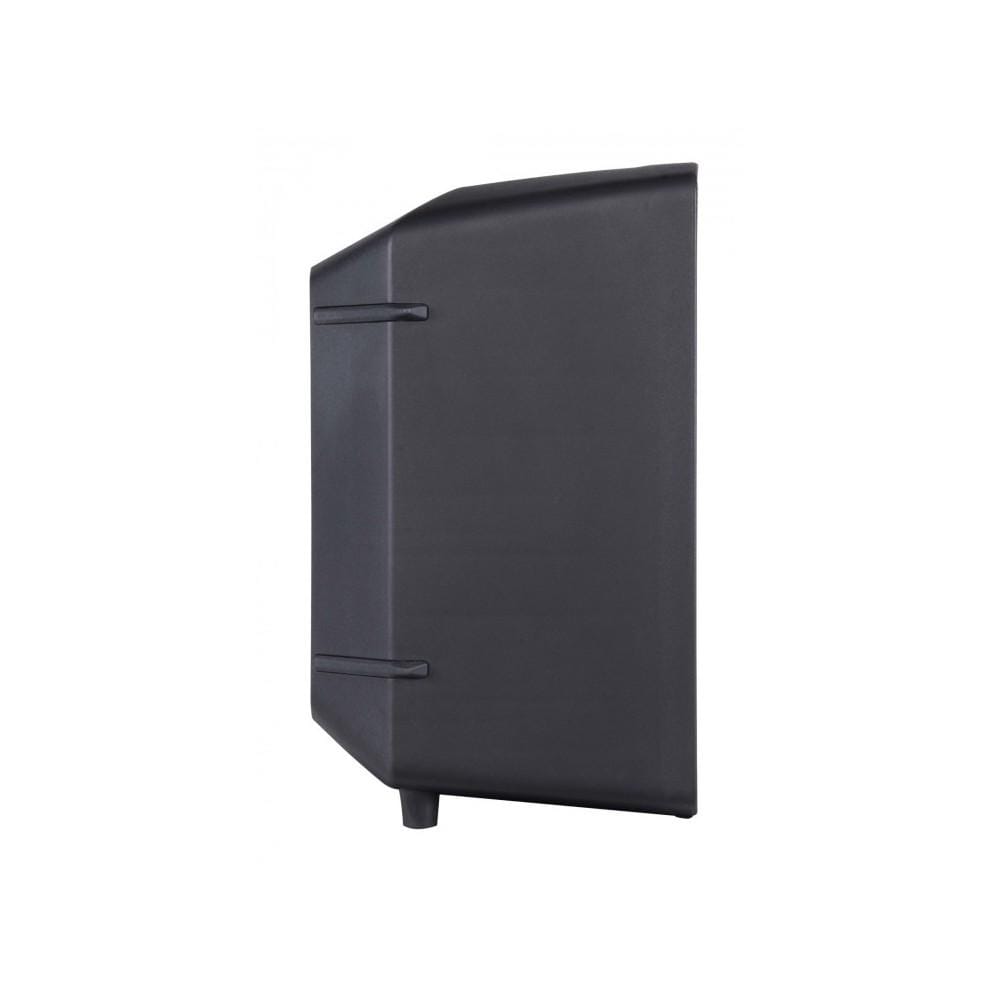

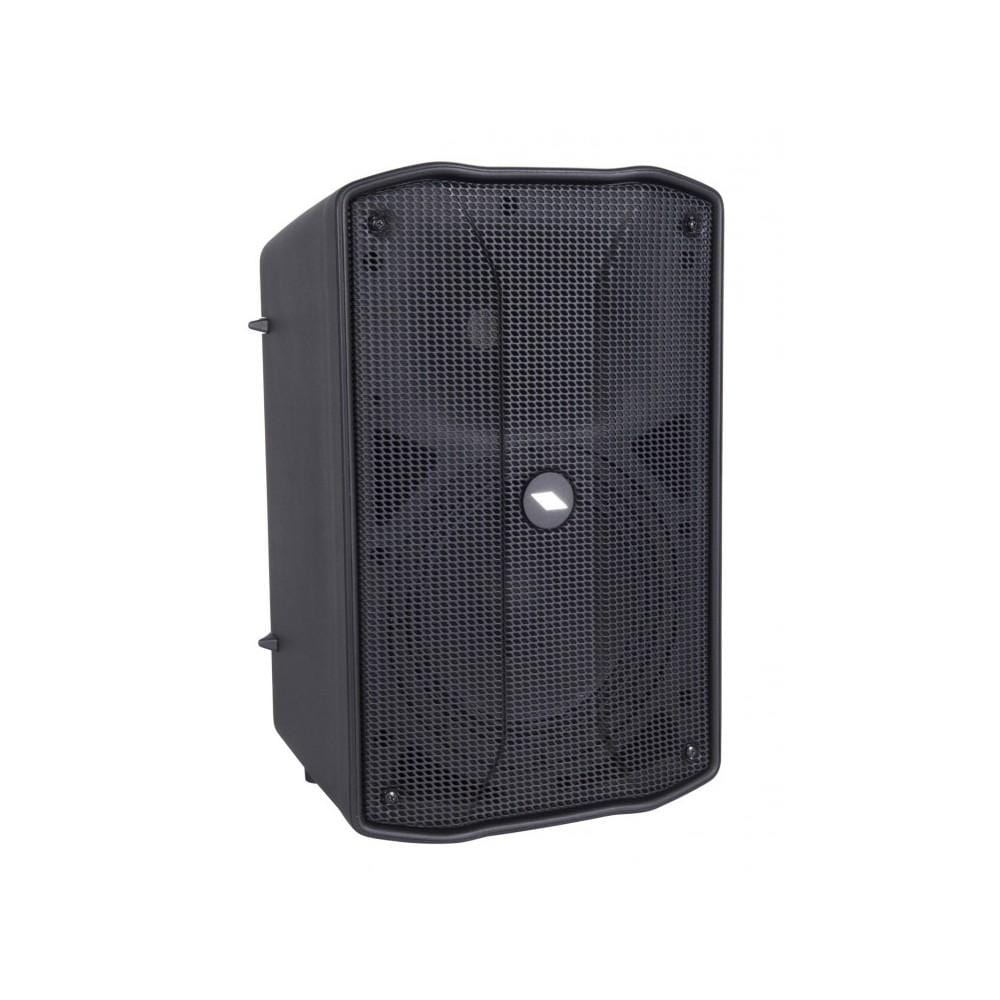

Proel FLASH8XD Active Processed 2-Way Active PA Speaker

Proel FLASH8XD Active Processed 2-Way Active PA Speaker Overview:

With FLASH X PROEL introduces the third generation of a series of loudspeakers that represented a reference for compact, portable systems for years. The new FLASH8XD and FLASH12XD continue a long history of high-definition sound, reliability and rugged construction in an affordable package, adding now significant steps forward in technology and a brand new style, and still offering the best-in-class performance, features and design.
FLASH XD are powered by newly designed amplifier modules able to provide up to 1000W or 600W of clean and undistorted power. The high-efficiency Class D output stages, combined with light-weight and compact Switch Mode Power Supply, give FLASH XD a massive punch and a consistent reserve of power. The built-in 2-channel mixer with independent LINE and MIC inputs can turn any FLASH XD system into an instant PA system.
The use of carefully selected and customized speakers, including high-definition compression drivers and long-excursion woofers, provide an accurate acoustic response and an amazing sound pressure level with very low distortion.
FLASH XD are controlled by the powerful PROEL CORE LT DSP, featuring high-performance signal processing and high-definition 24bit converters, capable to deliver an outstanding sound definition and a dynamic performance typical of top-end systems. The CORE DSP signal processing includes a sophisticated Dynamic EQ, able to shape accurately the system’s sound while maintaining a full dynamic range at any level. In addition the CORE LT DSP offers an extensive dynamic protection to the system, for getting always the maximum undistorted output. 5 EQ PRESETS (MUSIC, LIVE, DJ, SPEECH, MONITOR) can be easily selected to adapt the speakers to any kind of application.
Common features of FLASH X are compact and lightweight PP cabinets with extended internal ribbing and symmetrical wedge angle,
constant wide-coverage (90° x 60°) horns for a uniform and coherent sound dispersion, newly-designed ergonomic aluminum handles
and built-in flying points for the use in fixed installation.

Features:

• 2-way loudspeaker system
• 1” high-definition compression driver
• Wide-coverage 90° x 60° constant directivity horn
• 8” long-excursion woofer with 1.5” voice coil
• 600 W peak Class D power amplifier with SMPS
• High/definition CORE LT DSP with Dynamic EQ
• 5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)
• MIC and LINE inputs with independent level control
• SPL MAX: 122 dB
• Frequency response: 65 Hz - 20 kHz
• Lightweight, compact and ultra-durable PP cabinet
• Ergonomic aluminum handle for effortless transportation

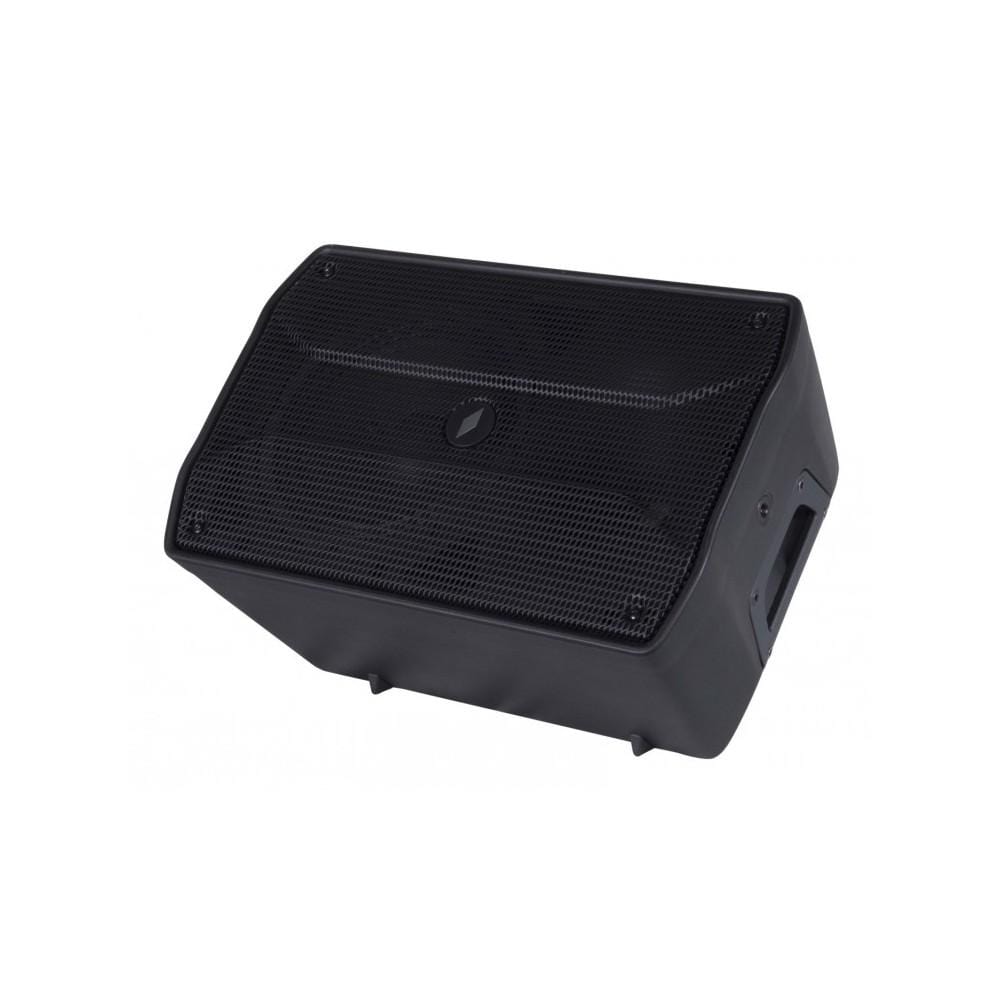

• Slanted symmetrical shape for the use as a stage monitor
• Four M8 flying points

Specifications:

• System type: 2-way vented enclosure
• High Frequency Device: 1’’ compression driver with 1” voice coil
• Low Frequency Device: 8 woofer with 1.5 VC
• Angular Coverage: 90° H x 60° V
• Total Peak Power: 600 W
• HF Amplifier Continuous Power: 50 W Class D
• LF Amplifier Continuous Power: 250 W Class D
• Power Supply: SMPS
• Processing: CORE LT digital processor
• Frequency Response: 65 Hz - 20 kHz
• Max SPL: 122 dB

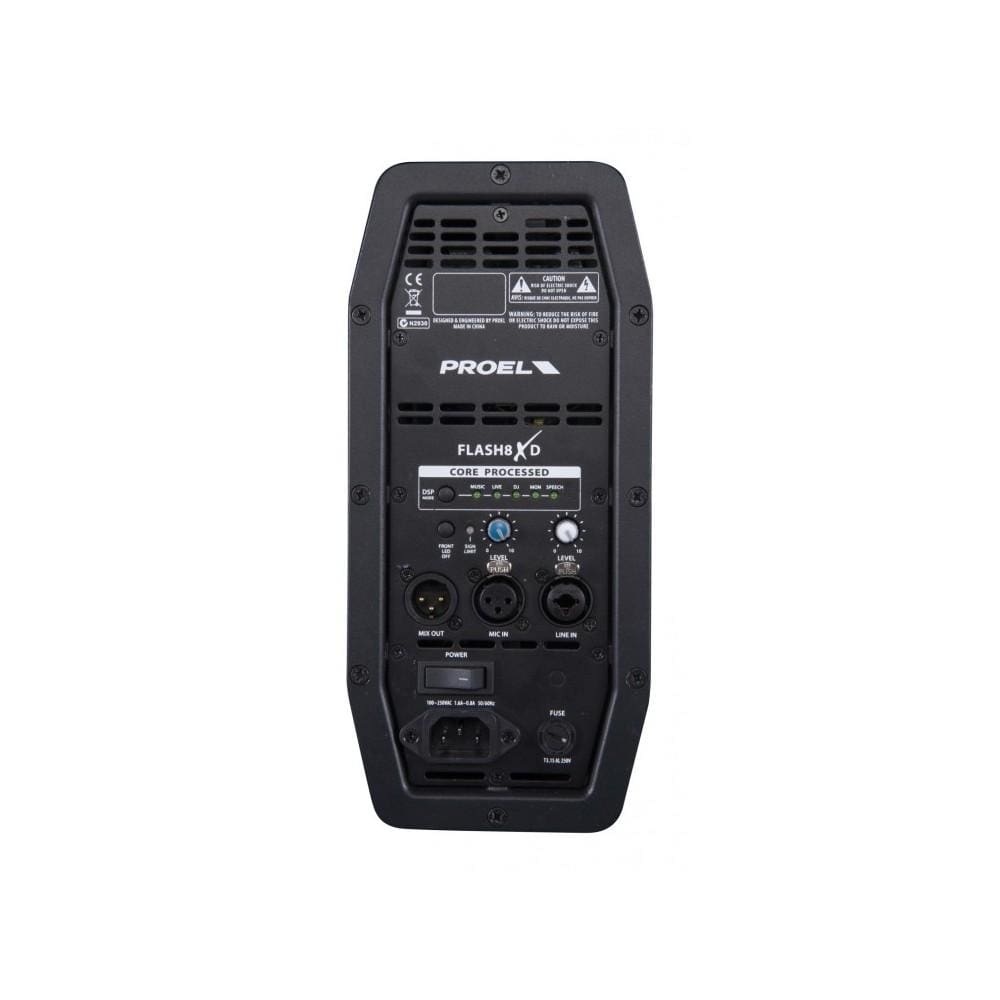

• Connectors: IN: Combo, XLR F MIX OUT: XLR M
• Controls: MIC LEVEL, LINE LEVEL, DSP MODE, GND LIFT
• Power Supply: 100-250 VAC 50/60 Hz
• Weight: 9.0 kg (19.8 lb)
• Floor Monitor Angle: 42°
• Flying System: 4 x M8 - top/bottom
• Cabinet Material: Polypropylene
• Handles: 1 x top aluminum
• Mounting Pole: 1 x bottom
• Dimensions (W x H x D): 270 x 422 x 250 mm

Made in China
