| Supports Upto 36 screens real-time preview | |
| Smart H.265 / H.265 / H.264 decoding | |
| Supports upto 8MP cameras | |
| ONVIF | |
| P2P via smartphone | |

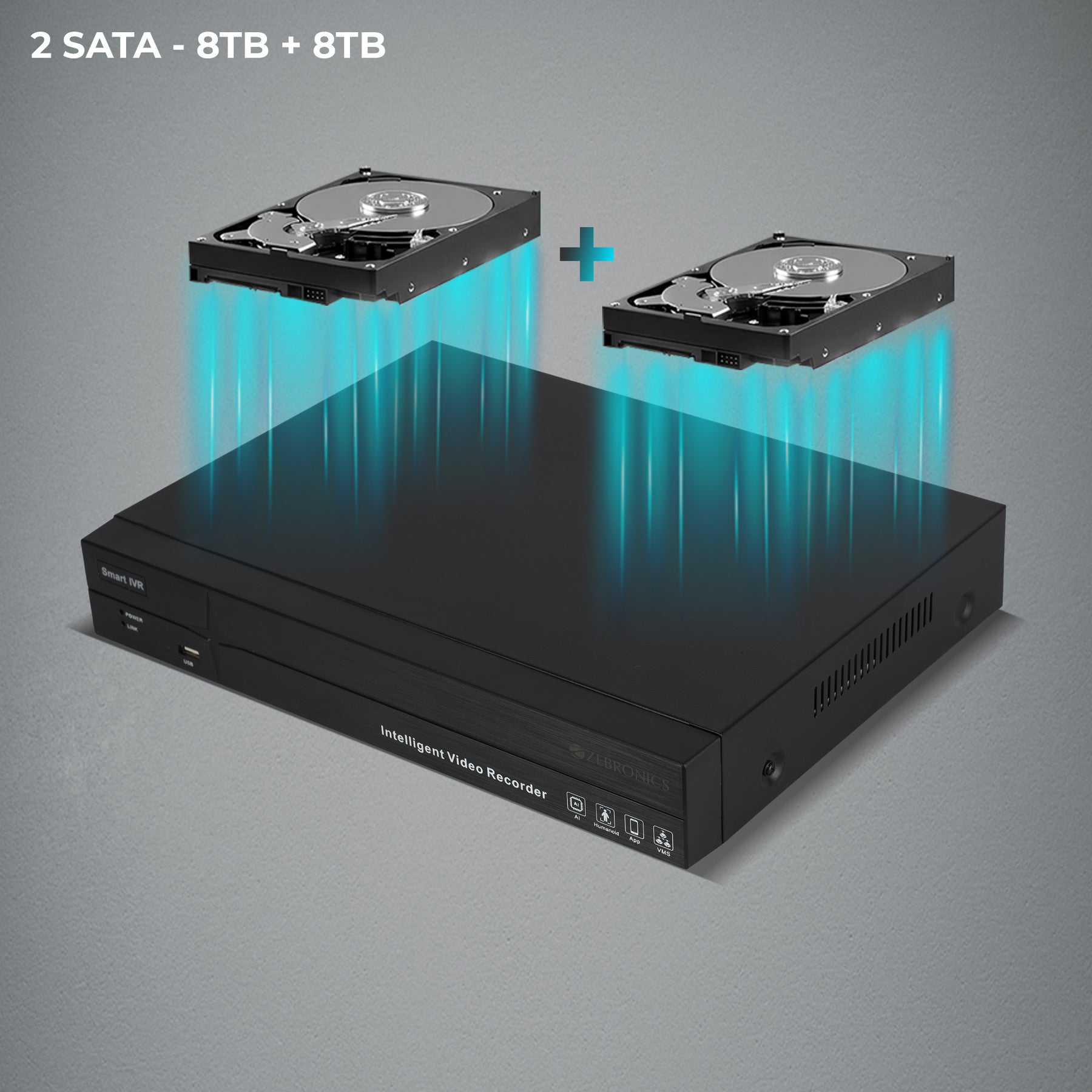

| 2 SATA - 8TB + 8TB | |
| Upto 9CH Simultaneous Playback | |
| upto 4K Resolution Video output | |
| CMS Compatible | |
| 2 way Audio |
Specifications
| Operating System | Embedded LINUX | |
| Video Input | 36 Channel IP | |
| Total Bandwidth | 150 Mbps | |
| Video Output | 1 x HDMI, 1 x VGA | |
| Audio Input | IPC Composite Stream Network Audio Input | |
| Audio Output | Support HDMI audio output, Audio output (3.5mm jack) | |
| External Ports | RJ45 - 10/100/1000M USB - 3 x USB 2.0 Ports |
|
| Display Resolution | 3840x2160@30Hz, 2560x1440@30Hz, 1920x1080@60Hz, 1440x900@60Hz, 1366x768@60Hz, 1280×1024@60Hz, 1280×800@60Hz, 1024×768@60Hz |
|
| Display Split | Support multi-screen split; 1/2/4/6/8/9/10/16/25/36 screen real-time preview | |
| Privacy Masking | Yes | |
| Video Compression | Smart H.265/H.265/H.264 decoding format | |
| Recording Resolution |
Support 720P/960P/1080P/3MP/4MP/5MP/4K | |
| Record Mode |
Support timing recording, Alarm recording, Timing or Alarm recording | |
| Storage |
2 x SATA Storage devices with upto 16TB compatibility | |
| Network Protocols |
Supports TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF,P2P, SMTP | |
| CMS software Compatibility |
Yes | |
| Win 10 and higher compatibility |
Yes | |
| Multiple browser compatibility |
Yes | |
| Motion Detection notification |
Yes | |
| Alerts via p2p connected devices |
Yes | |
| Smart Phone Compatibility |
Yes using apps | |
| Power Input | DC 12V, 3A (External Adapter) | |
| Working Temperature |
-10°C to 55°C | |
| Body Type |
Metal | |
| Physical Parameter | ||
| Product Dimension (W x D x H ) |
32.6 x 24.3 x 5.2 cm | |
| Packing Dimension ( W x D x H) | 44.7 x 8.3 x 31 cm | |
| Net. Weight | 1.16 kg | |
| Country of Origin | India | |
| Package Contents | ||
| Recorder |
1U |
|
| Power Adapter |
1U | |
| Mouse | 1U | |
| Hard Disk Mounting Kit | 1U | |
| QR Code User Guide | 1U |
