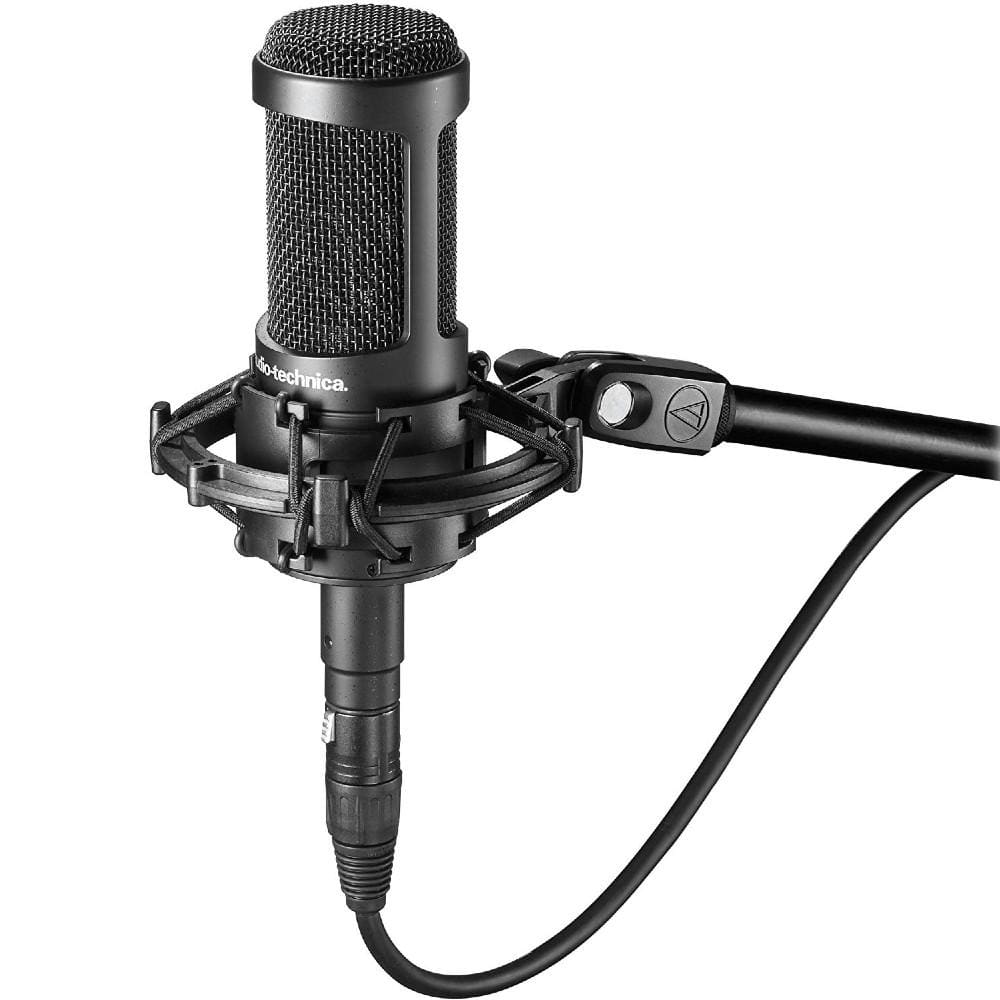

Audio-Technica AT2020 Cardioid Condenser Microphone
Amazing frequency response and excellent dynamic range

Audio Technica AT2020 TYO Condenser Microphone Overview:

AT2020 side-address microphone has long been praised for its affordability and performance, elevated by Audio-Technica's stringent quality and consistency standards. Now, the limited-edition AT2020TYO presents this studio condenser with a traditional AIIRO (indigo blue) finish, a colour used since ancient times in Japan.

With rugged construction for durable performance, the microphone offers a wide dynamic range and handles high SPLs with ease. The specially designed diaphragm provides a wide range of frequency characteristics and superior transient response.

AT-2020 TYO DETAILS

Features:

• The price/performance standard in side-address studio condenser microphone technology
• Ideal for project/home-studio applications
• Rugged construction for durable performance and wide dynamic range provide unmatched versatility for various scenes.
• Specially designed diaphragm provides a wide range of frequency characteristics and superior trasient response.
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.
• Includes a stand mount for easy and precise placement of the microphone.

Specifications:

• Element: Condenser
• Polar Pattern: Cardioid
• Frequency Response: 20 - 20,000 Hz
• Open Circuit Sensitivity: -37 dB (14.1 mV) re 1V at 1 Pa
• Impedance: 100 ohms
• Maximum Input Sound Level: 144 dB SPL, 1 kHz at 1% T.H.D.
• Signal to Noise Ratio: 74 dB, 1 kHz at 1 Pa
• Dynamic Range (Typical): 124 dB, 1 kHz at Max. SPL
• Phantom Power Requirements: 48V DC, 2 mA typical
• Noise: 20 dB SPL
• Weight: 12.1 oz (345 g)
• Output Connector: Integral 3-pin XLRM-type

The Audio-Technica  AT2020 Condenser Microphone is known for its output quality that has helped it stand apart from the rest of the microphones in the market. It is constructed in such a way that it performs exceptionally well in high-pressure environments. The microphone has a high SPL (Sound Pressure Level) that ensures smooth and distortion-free sound. One added benefit for choosing the AT2020 condenser microphone is its affordable price. Compared to other high-cost microphones in the market, the AT2020 provides the same quality without being heavy on your pocket. A pivoting, threaded mount is included with the microphone, which ensures simple installation.

Polar Pattern

This cardioid microphone features a polar pattern that allows one to choose the way he/she sounds on the microphone. This feature is considered very important in the case of playback singing or dubbing, where the vocalists can enact a particular scene by simply moving away or closer to the mic. They can also speak from the front or from the side to add uniqueness to their performance.

Keeps Unwanted Noises at Bay

The cardioid microphones is highly resistant to feedback, so you don’t experience any irritating disturbance while recording. It also keeps unwanted sounds and noise away and ensures a clear and smooth sound. These technical characteristics make the AT2020 condenser microphone an ideal choice for an open stage performance when there’s a lot of noise from both the audience and other musicians and technicians.

Custom-made diaphragm

The low-mass diaphragm is custom-engineered to deliver an excellent transient response. It ensures that your snare drum or tom-tom is heard clearly by the audience without experiencing any dampening.

Custom-made Mic

The low-mass diaphragm is custom engineered to deliver an excellent transient response. It ensures that your snare drum or tom-tom is heard clearly by the audience without experiencing any dampening. The AT2020 is subjected to a number of rigorous quality checks. The microphone’s full-metal construction makes it durable. This study metal construction increases the microphone’s resistance to daily wear.

Stunning Frequency Response

Whether your recording solo or in a group, the AT2020 condenser microphone performs exceptionally to give high-quality output. Its wide frequency response range of 20Hz to 20kHz catches every voice whether it is a soprano, tenor, baritone or alto vocalist or any other instruments of the these vocal ranges.

AT - 2020 Features & Specs

Features:

• Professional sound output thanks to condenser microphone technology
• Wide frequency and transient response for both vocalist and instruments
• Maximum Input Sound Power of 144 dB SPL for a distortion-free sound
• Full metal construction resists daily wear and increases the overall lifespan
• Pivoting, threaded stand mount ensures easy installation and positioning
• Soft protective pouch for convenient and safe transportation

Specifications:

• Element: Fixed-Charge Back Plate and Permanently Polarized Condenser
• Polar Pattern: Cardioid
• Frequency Response: 20-20,000 Hz
• Open Circuit Sensitivity: –37dB (14.1mV) re 1V at 1Pa
• Impedance: 100Ω
• Maximum Input Sound Level: 144dB SPL, 1kHz at 1% T.H.D.
• Noise: 20dB SPL
• Dynamic Range: 124dB, 1kHz at Max SPL
• Signal-To-Noise Ratio: 74dB, 1kHz at 1Pa
• Phantom Power Requirements: 48V DC, 2mA typical
• Weight: 12.1oz (0.345kg)
• Dimensions: 6.38-inch Long
• Maximum Body Diameter: 2.05-inch
• Output Connector: Integral 3-pin XLRM-type
• Accessories Furnished:
• Audio-Technica Case Style: R7

Accessories Furnished:

• Stand Mount for 5/8-inch 27 Threaded Stands
• 5/8-inch-27 to 3/8-inch-16 Threaded Adapter
• Soft Protective Pouch

Audio-Techinca AT2020V Limited Edition Silver Cardioid Condenser Microphone Overview:

Audio-Technica’s stringent quality and consistency standards set the AT2020 apart from other mics in its class. Its low-mass diaphragm is custom-engineered for extended frequency response and superior transient response. With rugged construction for durable performance, the microphone offers a wide dynamic range and handles high SPLs with ease. The AT2020: the new standard for affordable side-address studio condensers.

Accessories Included

• AT2020 (black model): Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
• AT2020V (limited-edition silver model): AT8458a shock mount; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch

Critically Acclaimed Sound
This is the iconic mic that brought professional audio into the home studio at an affordable price.

Perfect Mic for Creators
With its studio-quality articulation and intelligibility, the AT2020 is ideal for musicians, streamers, podcasters, and other content creators.

State-of-the-Art Design
Built to provide the consistent, reliable performance you expect from Audio-Technica.

Features:

• The price/performance standard in side-address studio condenser microphone technology
• Ideal for project/home-studio applications
• High SPL handling and wide dynamic range provide unmatched versatility
• Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• AT2020 (black model) Accessories Included: Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
• AT2020V (limited-edition silver model) Accessories Included: AT8458a shock mount; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch

Specifications:

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 20-20,000 Hz
• Open Circuit Sensitivity: -37 dB (14.1 mV) re 1V at 1 Pa
• Maximum Input Sound Level: 144 dB SPL, 1 kHz at 1% T.H.D.
• Noise: 20 dB SPL
• Dynamic Range: 124 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 74 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 2 mA typical
• Weight: 12.1 oz (345 g)
• Dimensions: 6.38" (162.0 mm) long, 2.05" (52.0 mm) maximum body diameter
• Output Connector: Integral 3-pin XLRM-type
• Accessories Included: AT2020 (black model): Stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
• AT2020V (limited-edition silver model): AT8458a shock mount; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
• Audio-Technica Case Style: R7

Country of Origin: China
