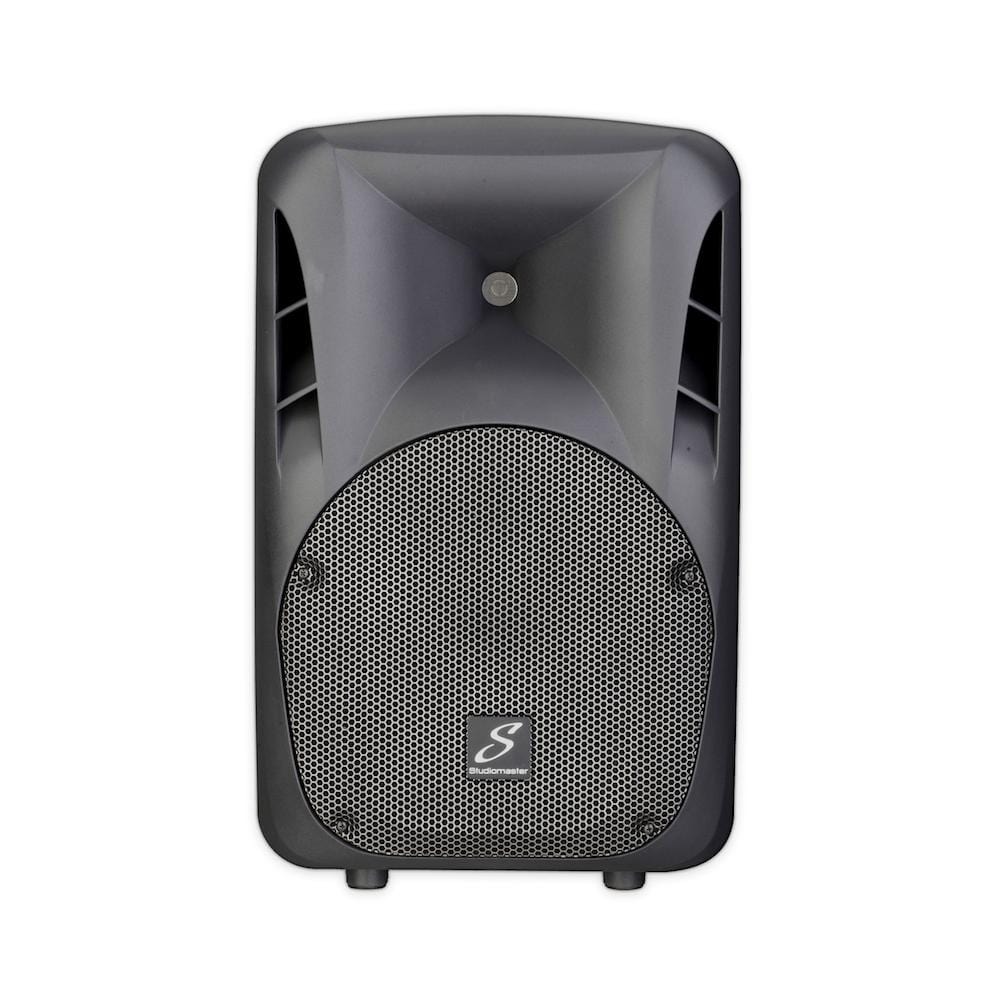

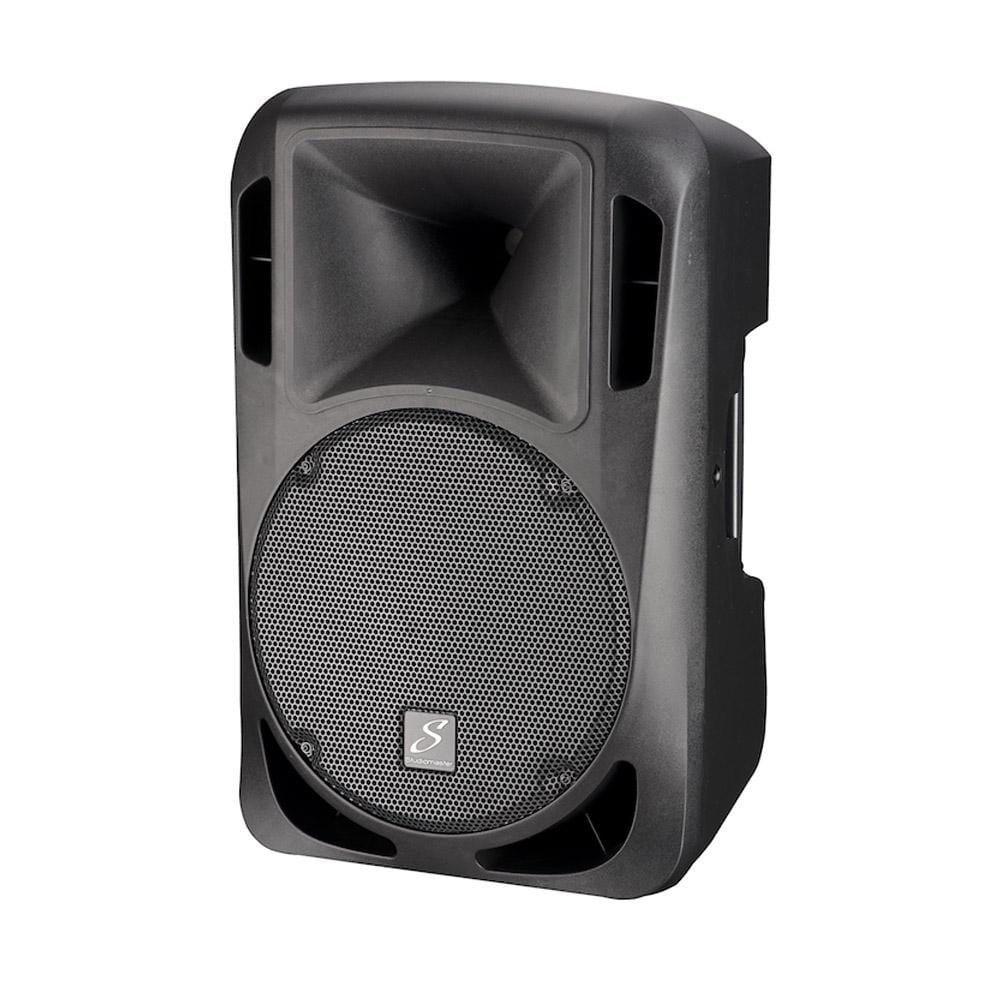

Studiomaster Drive 15AU Active PA Speaker

StudiomasterDrive 15AU Active PA Speaker Overview:

StudiomasterDrive 15AU Active PA Speaker the latest generation of class D amplifiers with combination XLR/jack socket inputs, LINK output and 3 band equalization.

Features:

• 15” model active model
• Lightweight
• 310W RMS, CLASS D amplification in active models
• 1” throat compression drivers
• High quality durable injection moulded cabinet

Specifications:

• 45Hz-20KHz Frequency Response
• 0dBu fixed gain Input Sensitivity LINE
• -16 to +36dB Input Sensitivity MIC
• 12kHz, 2.5kHz, 60Hz EQ, +-12dB
• 127dB Max SPL
• 620W Peak system power
• 34mm voice coil Compression driver
• 80 x 40 Coverage: Horizontal x vertical

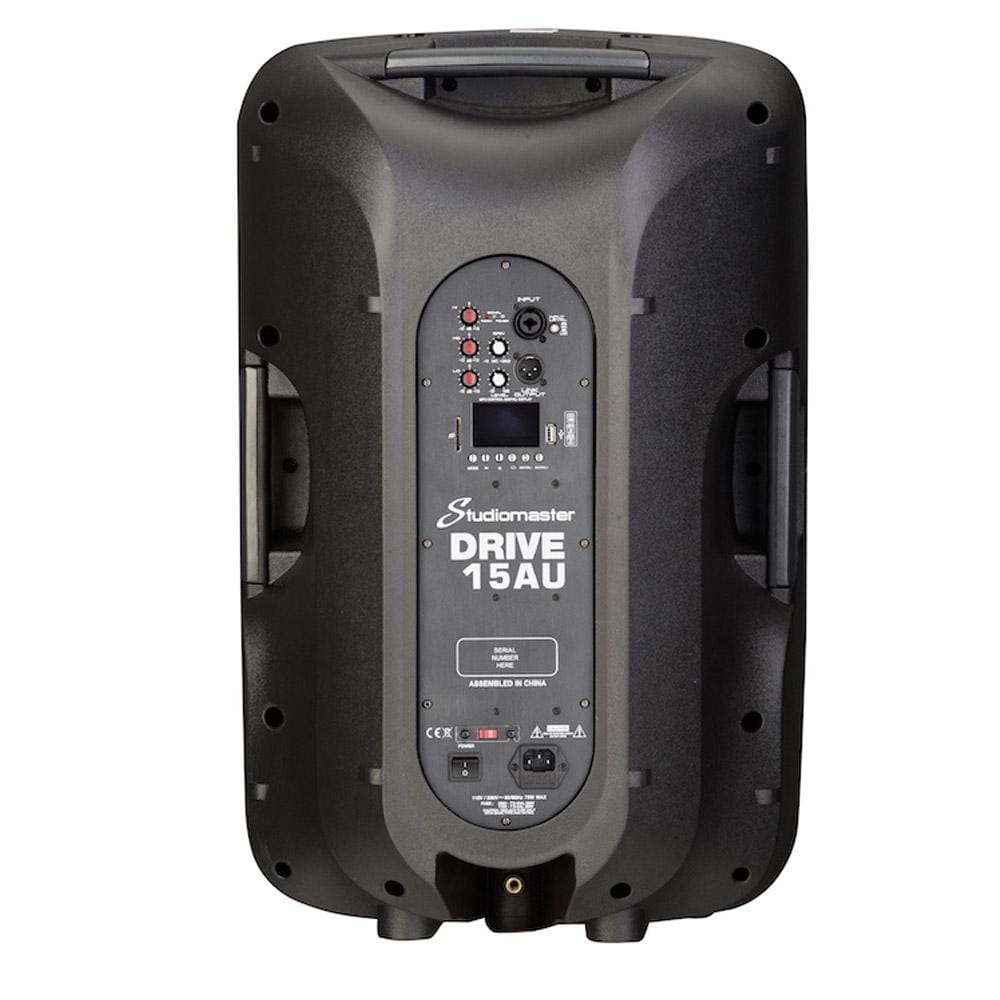

• XLR/Jack combo input, XLR LINK output Input connections
• 2.0kHz Crossover Frequency
• 15inch dia, 50mm voice coil Woofer
• 175W Max, 50/60Hz Power requirements
• 230V / 115V Voltage selector
• Input Connection: Jack/XLR
• Power voltage: 115V / 230V
• Hanging system: 5x M10 hanging points
• Dimension W*H*D: 450 x 710 x 370 (mm)
• Weight: 22KG

Made in China
