Operating System |
Embedded LINUX |
|
Video Input |
4 Channel Analog + 2 Channel IP | 6 Channels |
|
Total Bandwidth |
36 Mbps (Max.) |
|
Video Output |
1 x HDMI, 1 x VGA , 1 x BNC |
|
Audio Input |
IP camera audio / Analog camera audio + RCA audio Input |
|
Audio Output |
Support HDMI audio output, audio output (RCA ) |
|
External Ports |
RJ45 - 10/100 port x 1
USB - 2 x USB 2.0 Ports
|
|

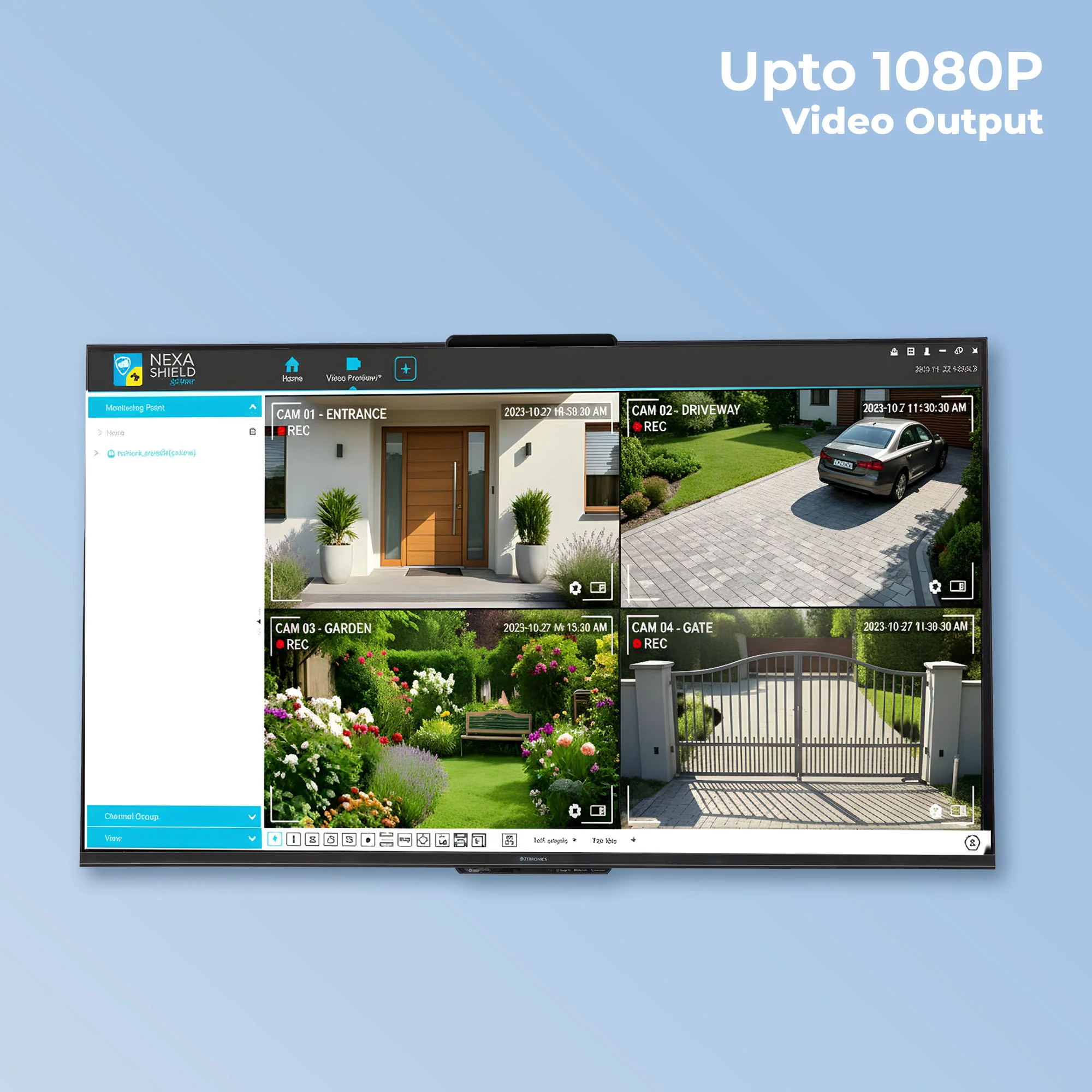

Display Resolution |
1920×1080,1280×1024,1024×768 , CVBS |
|
Display Split |
Support multi-screen split; 1/4/6/9 screen real-time preview |
|
Privacy Masking |
Yes |
|
Video Compression |
H.264/H.265/H.265+ decoding format |
|
Recording Resolution
|
8MP Lite/5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1 |
|
Record Mode
|
Timing, Manual, Motion Detection & AI Recording
(HD - SMD, Line Crossing, Intrusion | IP-Object abandoned / Missing) |
|
Storage |
1 x SATA Storage devices with upto 10TB compatibility |
|
Network Protocols
|
TCP/IP, HTTP, HTTPS, 802.1x, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, Ipv6, UDP, WebSocket, PPPoE, NMP, IGMP |
|
CMS software Compatibility
|
Yes |
|
Win 10 and higher compatibility
|
Yes |
|
Multiple browser compatibility
|
Yes |
|
Motion Detection notification
|
Yes |
|
Alerts via p2p connected devices |
Yes |
|
Smart Phone Compatibility
|
Yes |
|
Power Input |
DC 12V, 1.5A (External Adapter) |
|
Working Temperature
|
-10°C to 50°C |
|
Body Type
|
Metal |
|
Physical Parameter |
|
|
Product Dimension W x D x H
|
25.4 x 23.2 x 4.3 cm |
|
Package Dimension (W x D x H) |
36.5 x 8.7 x 29.5 cm |
|
Net. Weight |
720 g |
|
Package Contents |
|
|
Recorder
|
1U
|
|
Power Adapter
|
1U |
|
Mouse |
1U |
|
Hard Disk Mounting screws |
1U |
|
QR Code Guide |
1U |
