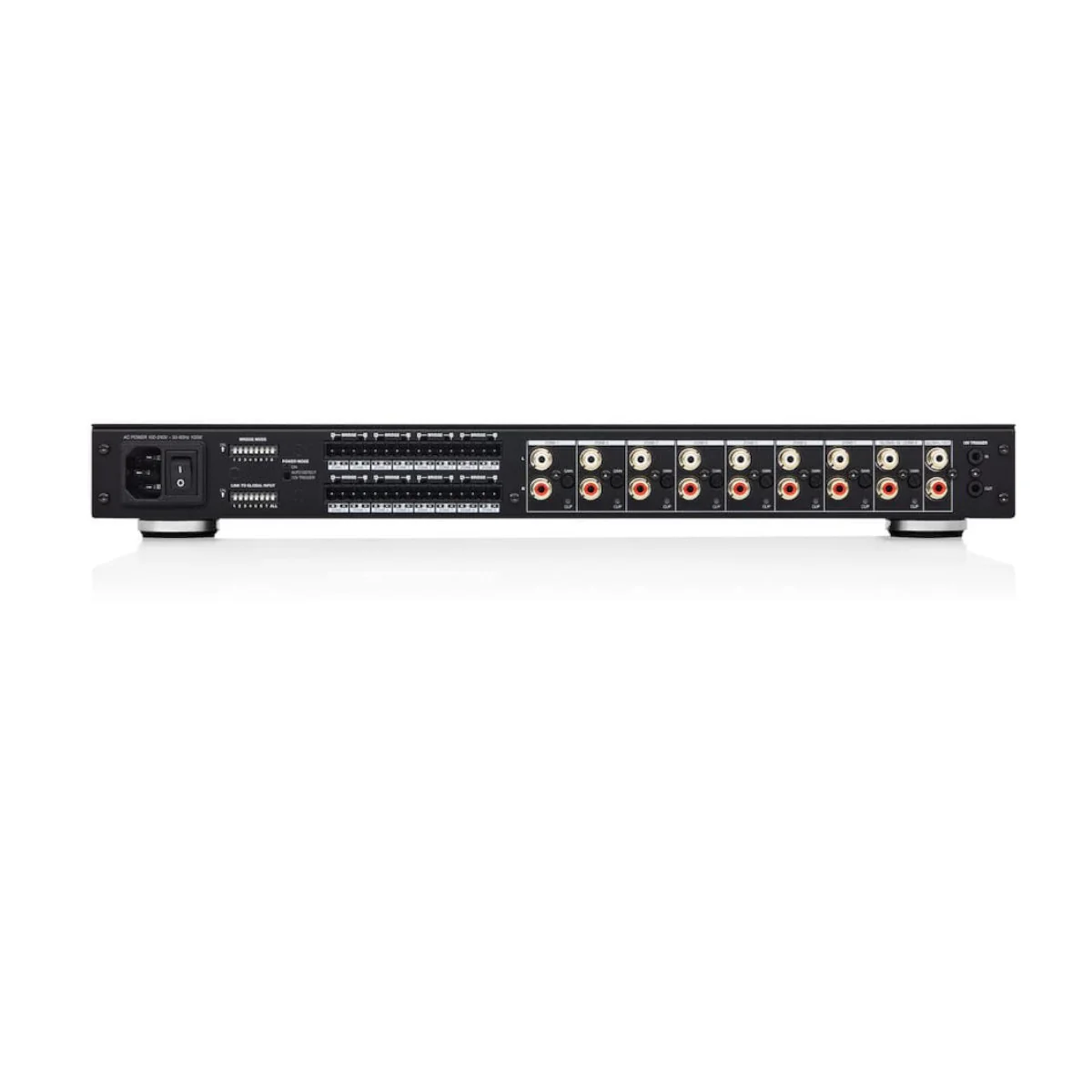

Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier

Q: I want to buy Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier

You can buy Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier at best prices at Ooberpad.

Q: I have questions about Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier

At Ooberpad, we will give you all the support you need to take the right buying decision about Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier

₹370,000

● In stockchecking live price…

View on Ooberpad store ↗

From the house of Ooberpad comes the dynamic Bowers & Wilkins (B&W) CDA-16 - 100 Watts x 16 Ch Distribution Power Amplifier. The CDA-16 distribution power amplifier can drive any Bowers & Wilkins custom installation speaker to new heights of performance. Offering 16 channels of power, the CDA-16 can enable your whole home with sound yet takes up minimal space attributable to its compact 1U design. Its configurable specification supports bridging its Class D stereo channels into even more powerful mono outputs if required.

Warranty

1-year manufacturer's warranty

Key Features:

100 W x 16 channels Distribution power amplifier from B&W
Compact 1U Design
Mighty Flexible

Benefits of Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier:

Get Impressed with Powerful yet Compact Distribution Amplifier

Ensure the best possible sound from your in-wall or in-ceiling Custom Installation loudspeakers with our powerful yet compact distribution amplifier.

Takes Minimal Space

Offering 16 channels of power, the CDA-16 can enable your whole home with sound yet takes up minimal space thanks to its compact 1U design.

Enjoy Unmatched Flexibility

CDA-16 has a configurable specification supporting bridging of its Class D stereo channels into even more powerful mono outputs when needed.

Where to buy?
Buy Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier online at the best price in Mumbai, Delhi, Bangalore, Chennai and all across India. Enjoy expert, prompt and courteous customer service from the Ooberpad team. We will help you choose better and give you all the support you need to take the right buying decision in India.

Technical Specifications of B&W CDA-16 Distribution Power Amplifier:

Brand & Model #	B&W CDA-16
Audio Specifications	Load impedance range: >3Ω per channel (>6Ω in bridge mode) Output Power perchannel, non-clipped: >50W into 8Ω >100W into 4Ω Output Power bridge mode,non-clipped: >200W into 8Ω Output Power total,all channels: >400W short term >200W continuous average DC offset voltage: <50mV Frequency Response (-3dB): <10Hz to >50kHz, any load impedance Frequency response accuracy 20Hz-20kHz: ±0.5dB Signal to Noise ratio (Ref. 50W/8Ω): >100dB A-Weighted THD+N (1kHz, 12.5W, 4Ω): typically 0.05% Voltage Gain: 34.9dB to - infinity, adjustable Input impedance: 15KΩ Maximum input voltage: 6.8V peak (4.8V rms sine wave) Signal sense threshold: 2.5mV (independent of Gain setting) Wake-up time: <0.2s (If other zones active): <2s (From all zones inactive) Turn-off time: 15 minutes from last signal detected 12V trigger input threshold: typically 3V (recommended input is 5-15V)
Controls & Indicators	Front panel: 1 x Power LED (unit active – White, Fault – Red) 8 x Zone status LEDs (Signal present – White, Fault – Red) Rear panel: 8 x 2-position DIP switches (link to global input) 1 x 3-position switch (power mode: on, auto detect, 12V trigger) 8 x input gain control with Clip indicator LEDs
Drive units	Input: 8 x RCA (pair) Phono socket, line in (global in shared with Zone 8) Output: 1 x RCA (pair) Phono socket (global out) 8 x 5.08mm Pitch 4-way Phoenix Combicon style 12V trigger control: 1 x 3.5 mm jack - 12V trigger IN 1 x 3.5 mm jack - 12V trigger OUT (Maximum 100mA pass-through)
Power	Power consumption: <0.5W All zones inactive <45W All zones idling 300W maximum average 1,000W peak AC supply: 100-240V 50/60Hz AC inlet: IEC C14, switched
Thermal dissipation	1.7 BTU/hr (standby), 150 BTU/hr (Idle), 400 BTU/hr (max)
Dimensions	Height: 44.5 mm (1.8in) 1U [55.5 mm (2.2in) plus feet] Width: 437 mm (17.2in) Depth: 310 mm (12.2in)
Net Weight	4.5kg (9.9lb)
Finish	Black

FAQ

I want to buy Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier
You can buy Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier at best prices at Ooberpad.

2. I have questions about Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier
At Ooberpad, we will give you all the support you need to take the right buying decision about Bowers & Wilkins (B&W) CDA-16 Distribution Power Amplifier

Delivery
