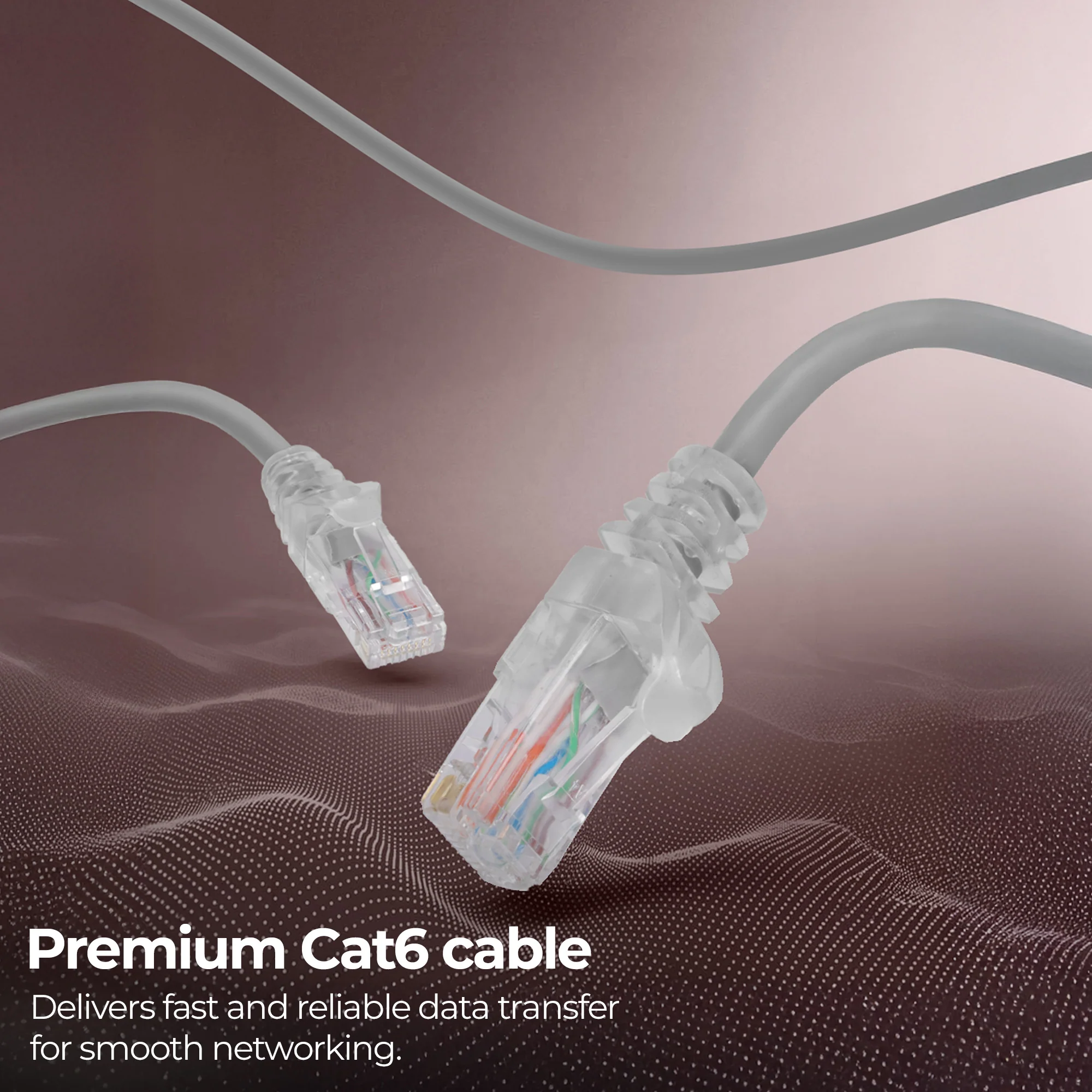

Zeb PC4PCAT6

Features

	CAT 6

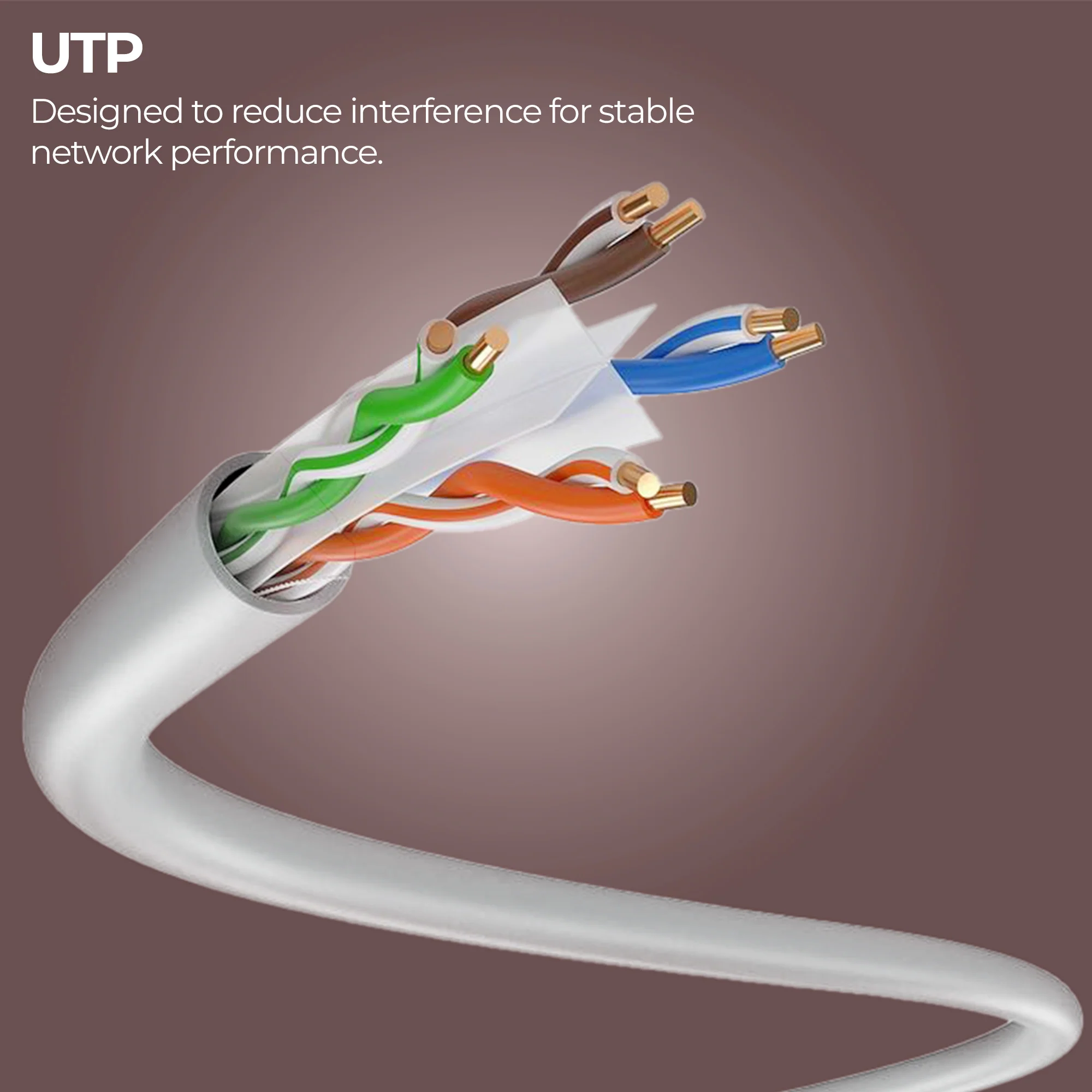

	UTP
	1.5M, 05M, 10M, 15M, 20M, 25M, 30M

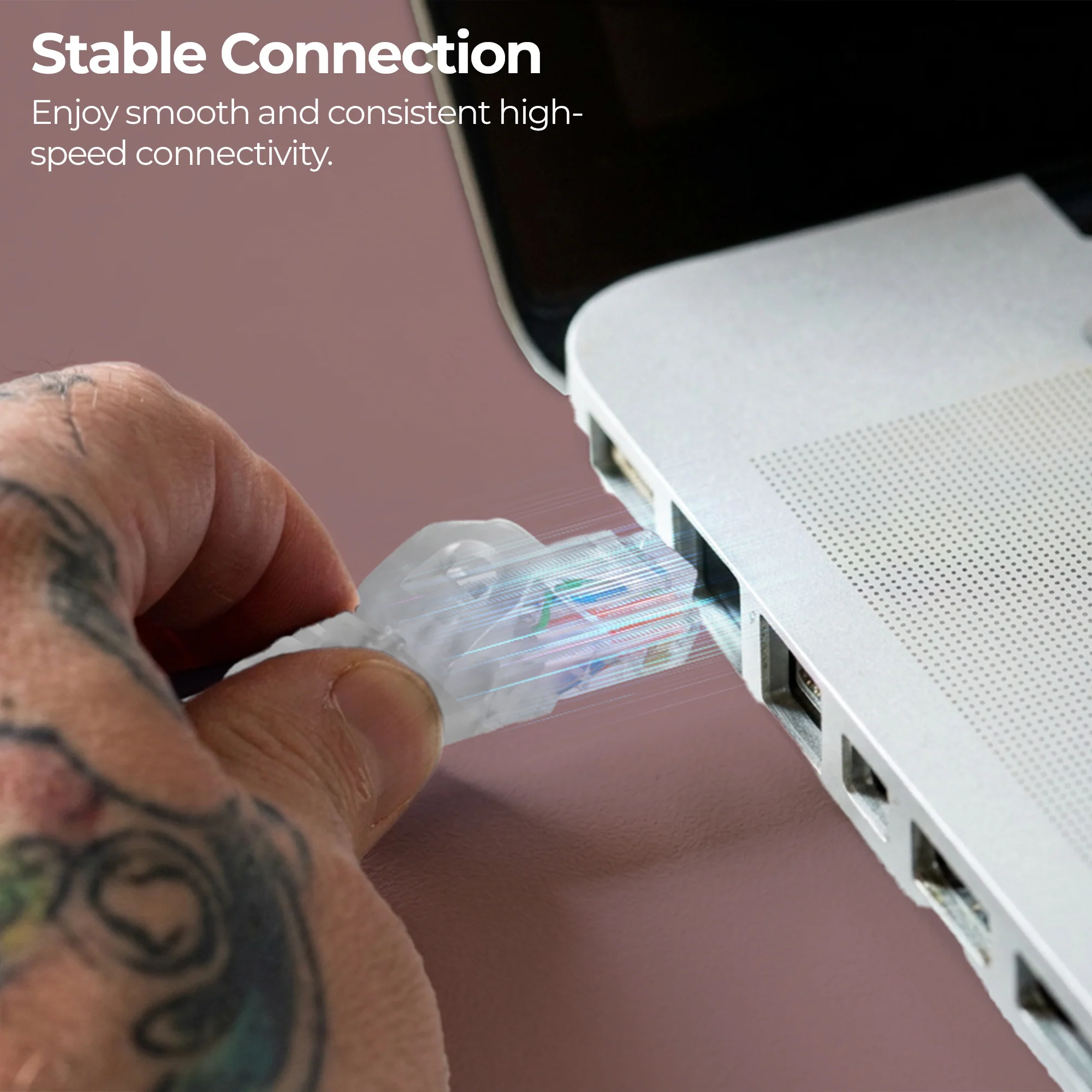

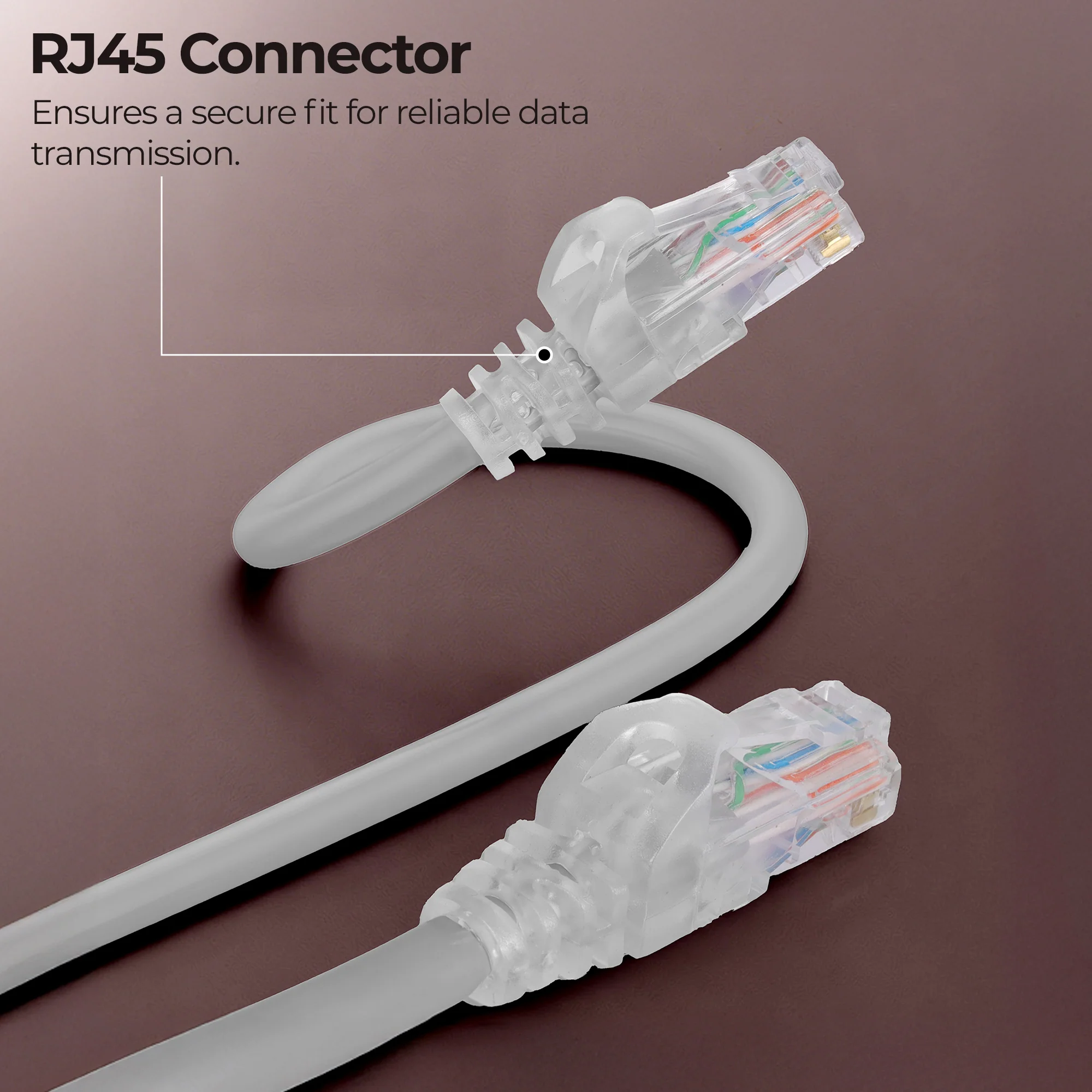

	RJ45 Connector
	Suitable for POE Switch, Router, IP Phones, Video Doorbell
	PC & Laptop

Specifications

	Model	ZEB-PC4PCAT6
	Connector Type	RJ45
	Ethernet Speed	1000BASE-T
	No. of wires	4 pairs
	Cabl;e Length	1.5M, 05M, 10M, 15M, 20M, 25M, 30M
	Conductor material	24 AWG CCA
	Construction diameter	5.9 mm
	Insulation material	High Density Polyethylene
	Insulation thickness	0.21mm
	Insulation diameter	0.91mm
	Jacket material	PVC
	Jacket thickness	0.60 mm
	Jacket diameter	5.9mm
	Jacket color	Gray
	Separator	PE Central cross separator
	Conductor resistance	<9.38Ω/km at 20°C
	Country of Origin	India
	Mechanical Properties
	Operation Temperature	-10°C to +70°C
	Storage Temperature	0°C to +50°C
	Bending Radius	<25.4 mm at -20°C to ±1°C
	Pulling Force	11.5 Kgs
	Package contents
	Cable	1.5M, 05M, 10M, 15M, 20M, 25M, 30M x 1U
