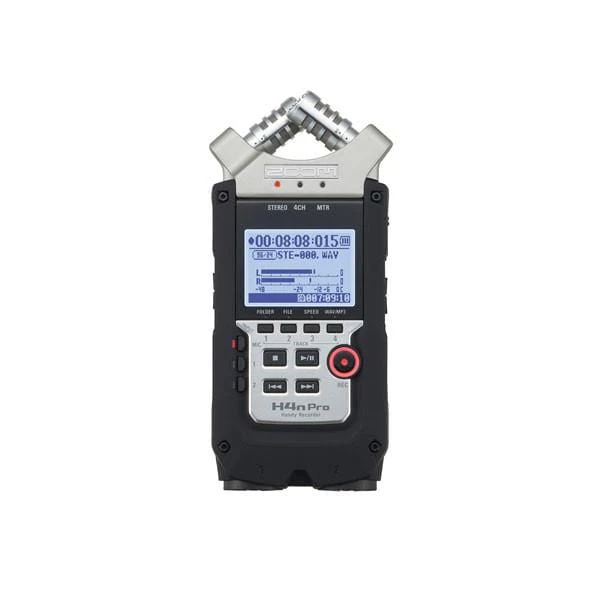

Zoom H4N Pro Portable Handy Recorder with Onboard X/Y Mic Capsule- Black

Zoom H4N Pro Portable Handy Recorder with Onboard X/Y Mic Capsule- Black Overview:

Advanced X/Y microphones, incredibly natural-sounding preamps, and built-in cutting-edge effects make the H4n Pro the ultimate portable 4 track recorder for musicians.

Professional Grade Preamps
The H4n Pro features high performance, low-noise mic preamps with recording resolutions up to 24-bit/96 kHz. The improved noise floor (-120 dBu EIN) captures audio at lower volumes with less noise and fewer artifacts.

USB Audio
Interface
Functioning as a 2-input/2-output USB audio interface for PC or Mac, the H4n Pro enables you to record directly to your computer.

Pre-Record
Capture two seconds* of audio before you hit RECORD with the Pre-Record function and never miss the start of a great take.

Auto-Record
The Auto-Record and Auto-Stop functions allow the H4n Pro to automatically start and stop recording according to your designated levels.

Three Recording Modes
Stereo Mode
Stereo Mode can be used with the built-in X/Y microphones or external mics, and is convenient for recording live performances, acoustic instruments, and more.
4-Channel Mode
4-Channel Mode records with the built-in X/Y mics and two external inputs to capture live room sound and a stereo board feed at the same time.
MTR Mode
Multi-Track Mode turns your device into a four-track studio, with built-in effects, overdub functions, and the ability to work with previously recorded sound files.

Inputs and Outputs
Inputs
The H4n Pro offers two locking XLR/TRS combo jacks, each with switchable phantom power. Additionally there is a mic/line input via the stereo 1/8” input jack.

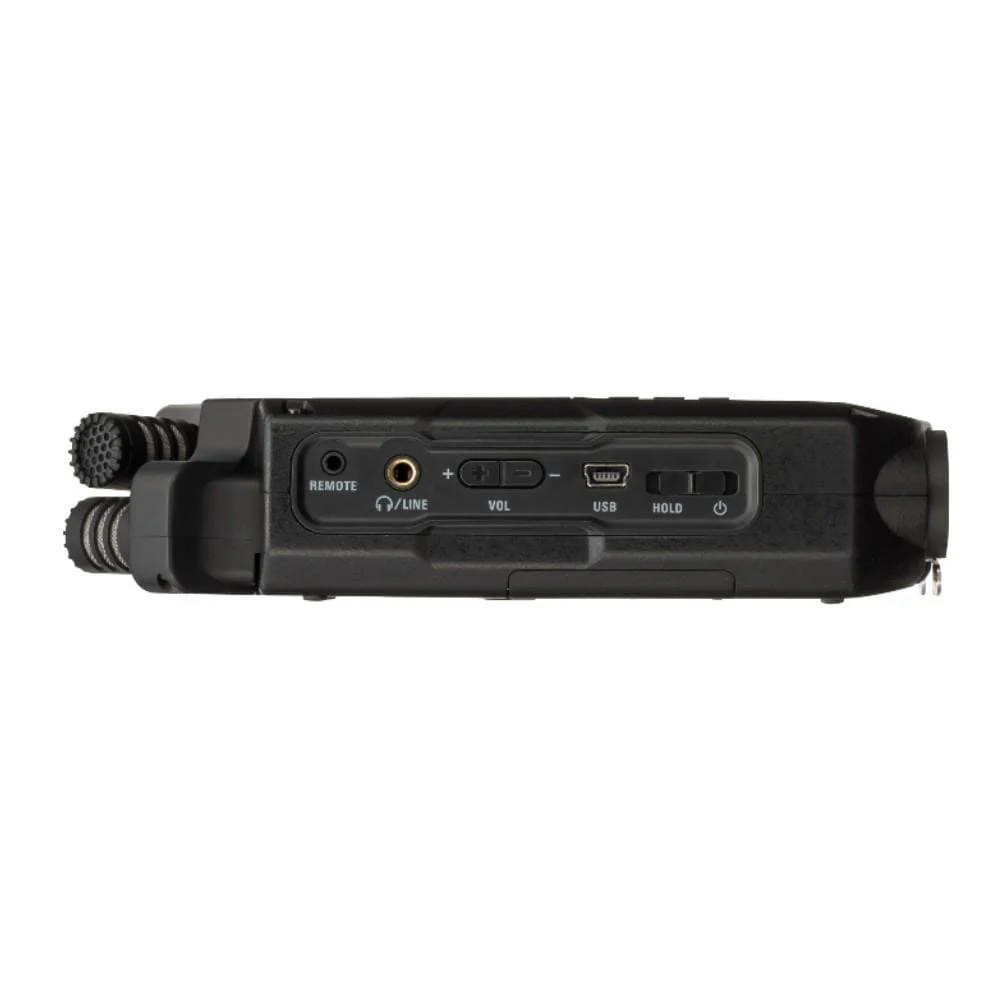

Outputs
Monitor your performance with headphones or connect to external devices using the stereo 1/8” line output with dedicated volume control.

Features:

• Four-track simultaneous recording
• High-fidelity mic preamps
• Built-in X/Y stereo microphones, adjustable between 90˚ and 120˚
• Record up to 140 dB SPL with X/Y microphones
• Two mic/line level inputs with XLR/TRS combo connectors
• Stereo 1/8" Mic In mini phone jack
• +24 or +48V phantom power for main inputs and Plug-in power (2.5V) via Mic/Line In mini phone jack
• Output/headphone jack with dedicated volume control
• Records directly to SD and SDHC cards up to 32 GB
• Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Built-in effects, including compression/limiting, low-cut filtering, modulation, reverb/delay and amp models
• 2-in/2-out USB audio interface for PC/Mac computers
• Mounts to mic stand or tripod, or directly to DSLR with optional Hot Shoe adapter
• Runs on 2 standard AA alkaline or NiMH rechargeable batteries with up to 6 hours of operation (up to 10 hours in Stamina mode)

SPECIFICATIONS:

GENERAL:

• Number of simultaneous recording tracks:
• 2 (STEREO mode), 4 (4CH mode), 2 (MTR mode)

Recording time 4 GB (SDHC):

• Approx. 380 minutes (WAV 44.1 kHz / 16-bit stereo track)
• Approx. 68 hours (MP3 44.1 kHz / 128 kbps stereo track)
• * Recording times are approximations. Actual times may differ according to recording conditions.

Maximum file size of simultaneous recording:2 GB
Projects:1000/card
Locate function:Hours/Minutes/Seconds/Milliseconds
Other functions: Punch-in/out, Bounce, A-B repeat
Effects modules:  2

• STEREO / 4CH Mode: LO CUT, COMP/LIMITER
• MTR Mode: PRE AMP module, EFX module

Types: 53
Patches: 60
Tuners:  Chromatic, Guitar, Bass, Open A/D/E/G, DADGAD
Metronome sound sources: 5
Variable beat: 1/4 - 8/4, 6/8, unaccentuated
Tempo: 40.0 - 250.0 BPM
A/D conversion: 24-bit × 128 oversampling
D/A conversion: 24-bit × 128 oversampling
Recording media: SD card (16 MB – 2 GB), SDHC card (4 GB – 32 GB)
Display: 128 x 64 dots Full-dot backlit LCD

DATA TYPE - WAV FORMAT (RECORD/PLAY)

• Quantization:  16- / 24-bit
• Sampling frequency:  44.1 / 48 / 96 kHz
• DATA TYPE - MP3 FORMAT (RECORDING)
• Bit rate:  32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps, VBR
• Sampling frequency: 44.1 / 48 kHz

INPUTS
Input [1] [2]:  XLR (balanced input) / standard phone (unbalanced input) combo jack

Input impedance:

• (Using balanced input) 3 kΩ or more, pin 2 hot
• (Using unbalanced input) 470 kΩ or more

Input gain:

• (Using balanced input) −16 dB to +43 dB
• (Using unbalanced input) -30 dB to +32 dB

Built-in stereo mic:

• Unidirectional condenser microphone
• Sensitivity: -45 dB/1 Pa at 1 kHz
• Input gain: -16 dB to +51 dB
• Maximum sound pressure input: 140 dB SPL

External mic:

• Mini stereo phone jack
• Input impedance: 2 kΩ or more
• Input gain: - 16 dB to +51 dB

OUTPUT

• Line/phone: LINE Output load impedance: 10 kΩ or more
• LINE rated output level: -10 dBu
• PHONE: 20 mW + 20 mW (into 32Ω load)
• Monaural speaker: 400 mW 8 Ω
• Phantom power: 48V, 24V, OFF
• USB: USB 2.0 High Speed Mass Storage Class operation, Audio interface operation
• (USB functions can be operated by USB bus power)
• Power requirements: DC 5V 1A AC from AC adapter (ZOOM AD-14), 2 x AA batteries
• Batteries: IEC R6 (size AA) x 2

Continuous recording time:
STEREO mode

• Using built-in mics at 44.1 kHz/16-bit without headphones connected
• About 6 hours using alkaline batteries or about 8 hours using NiMH (2450mAh) batteries

STAMINA mode

• Using built-in mics at 44.1 kHz/16-bit without headphones connected
• About 10 hours using alkaline batteries or about 12 hours using NiMH (2450mAh) batteries
• Dimensions: 73 (W) × 157.2 (D) × 37 (H) mm
• Weight: 294 g
