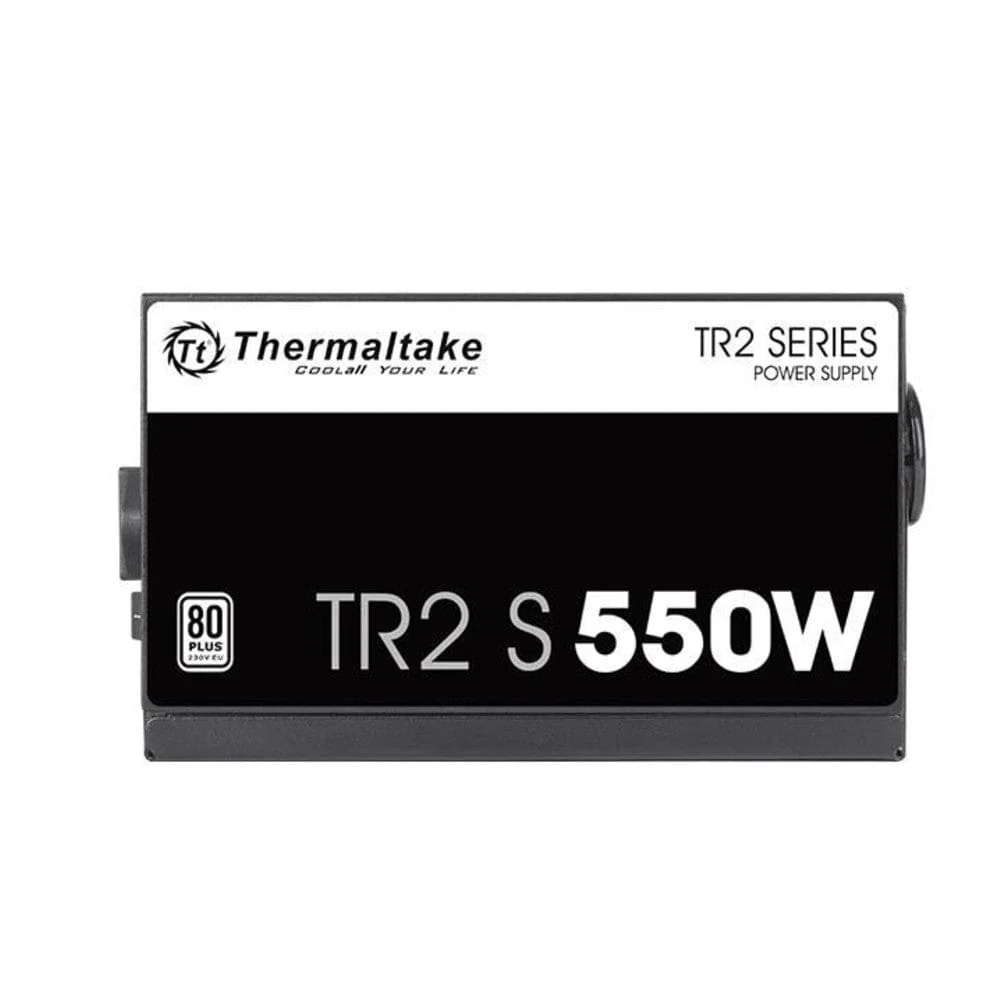

ThermalTake TR2 S Series Power Supply- Black

ThermalTake TR2 S Series Power Supply- Black Overview:

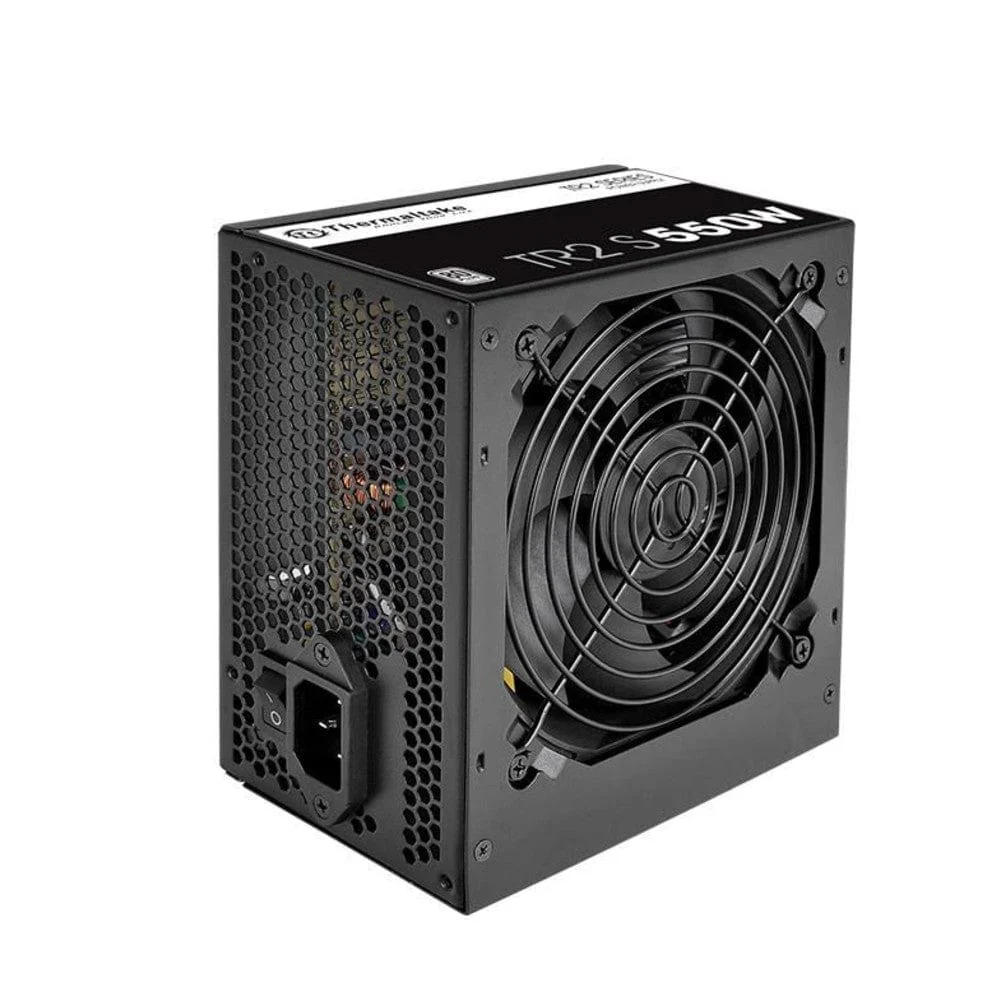

FOR 550W: TR2 S Series TRS-0550P-2 – 550W 80 PLUS® 230V Standard Certified APFC PSU

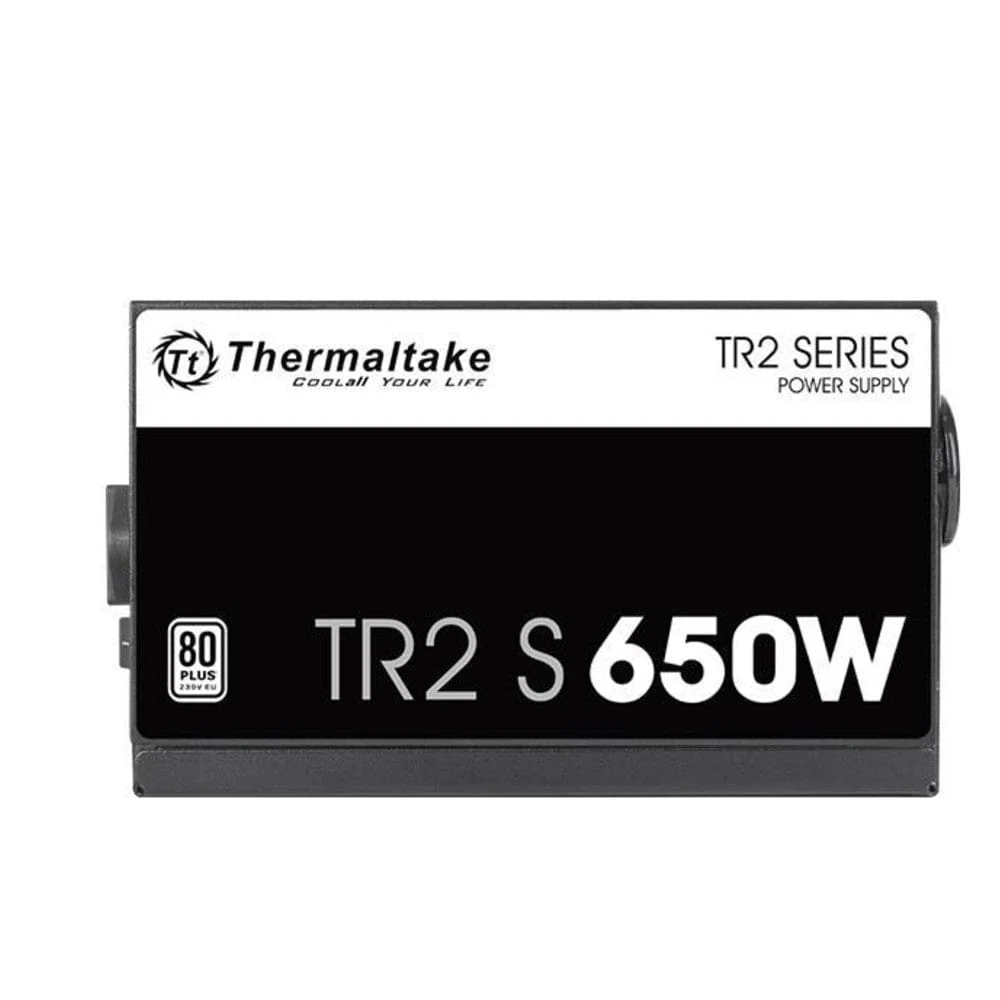

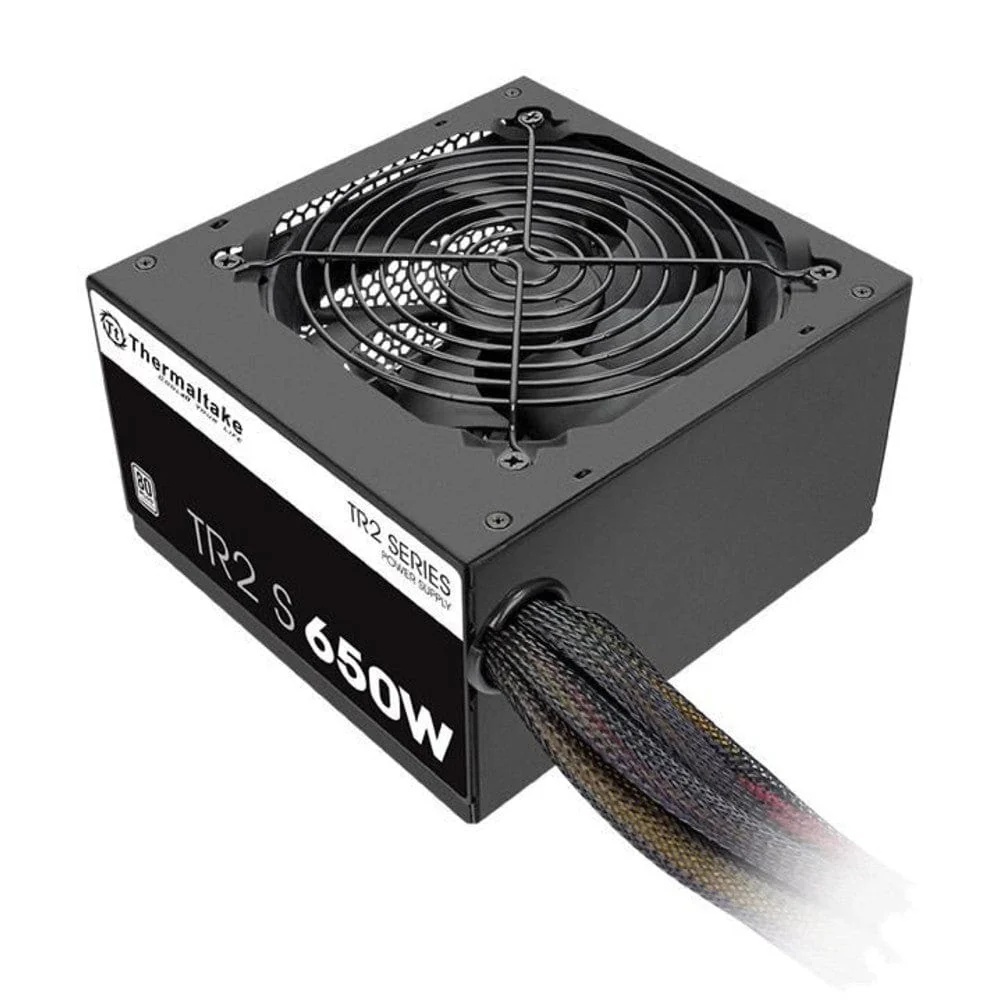

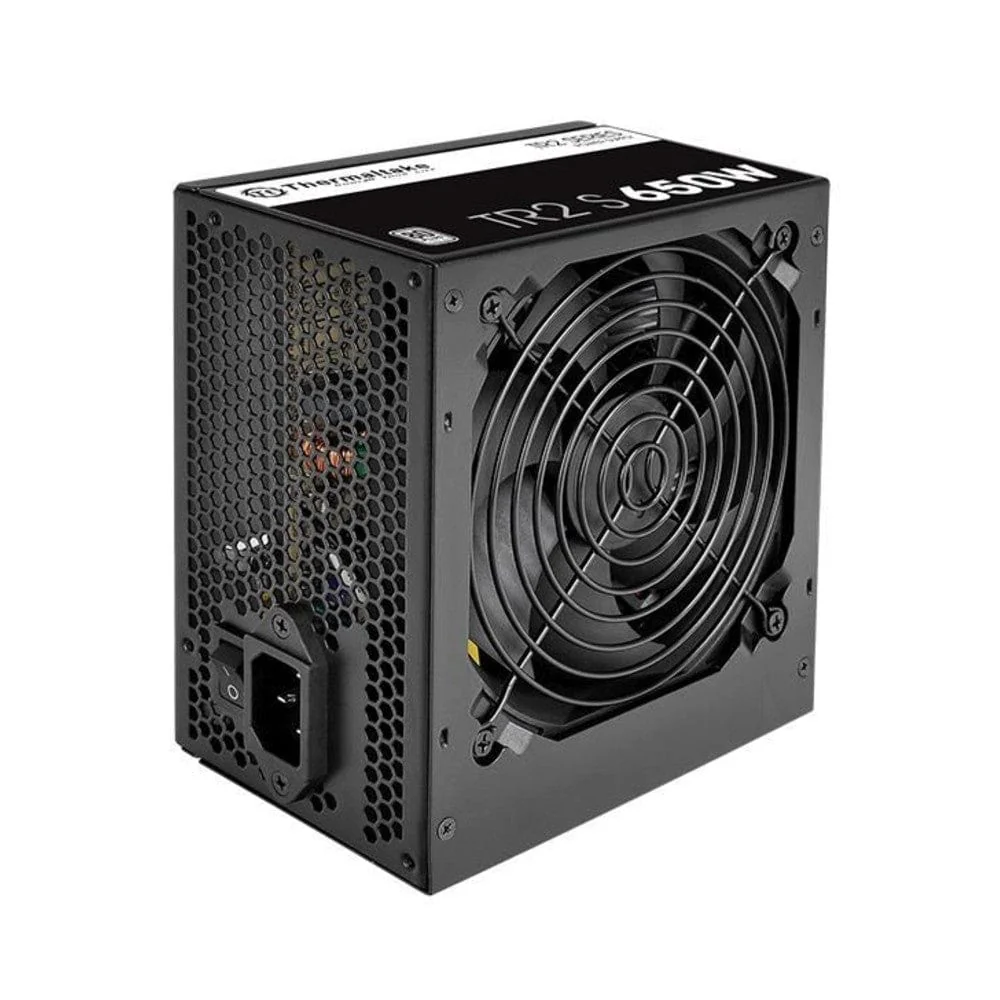

FOR 650W: TR2 S Series TRS-0650P-2 – 650W 80 PLUS® 230V Standard Certified APFC PSU

Thermaltake TR2 S
Incorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

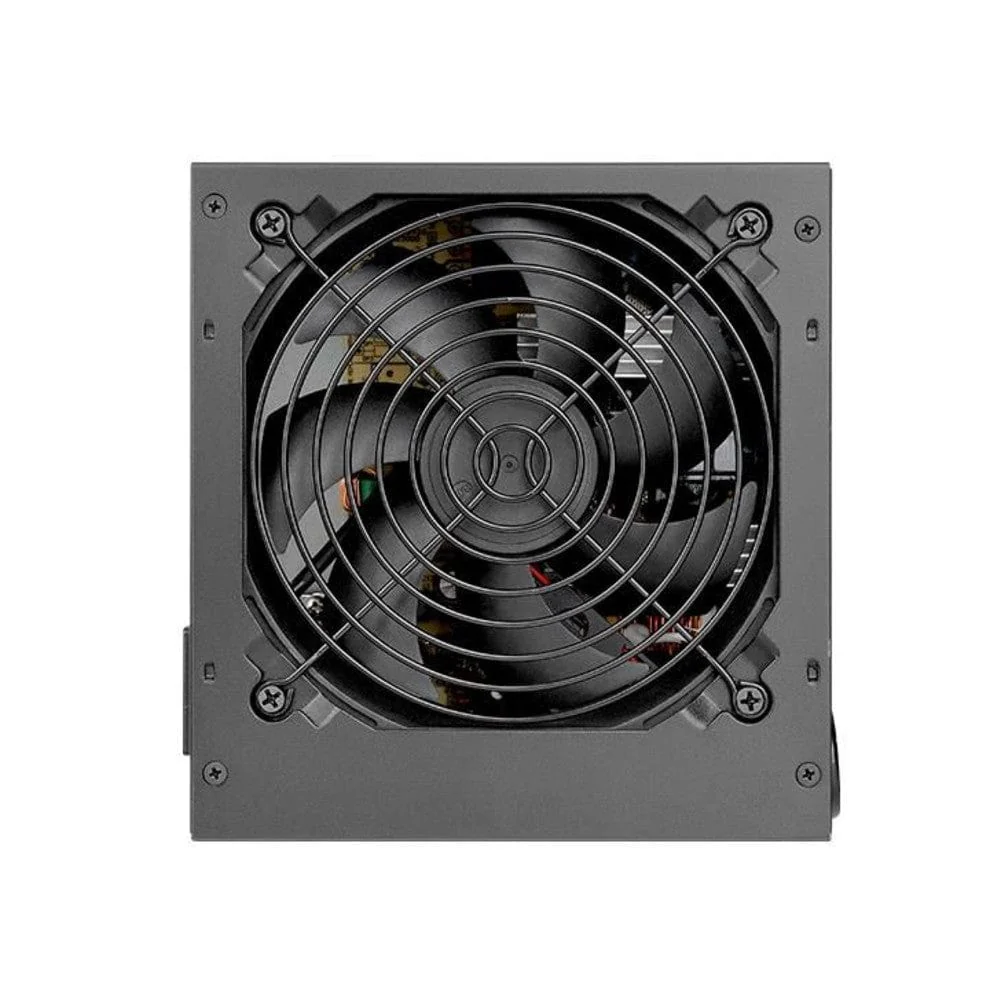

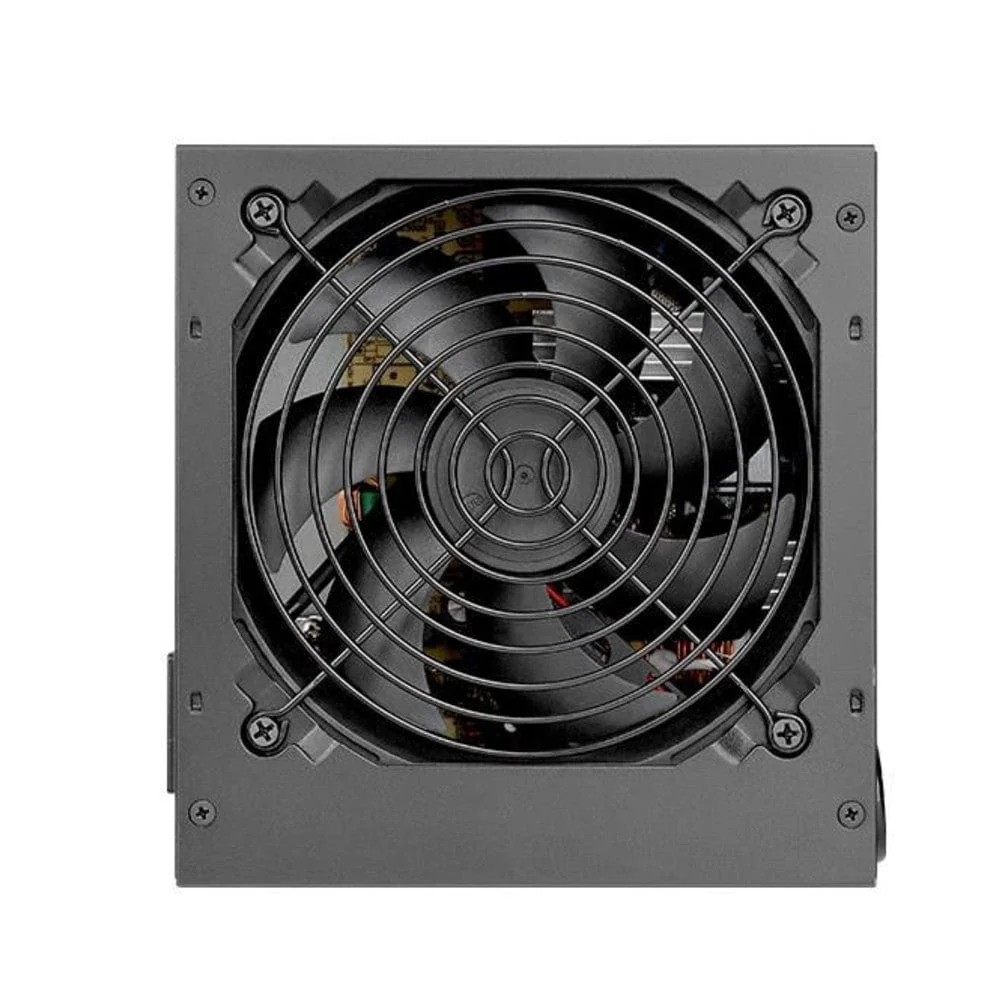

Ultra Quiet 120mm Fan
TR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

Multiple Connectors

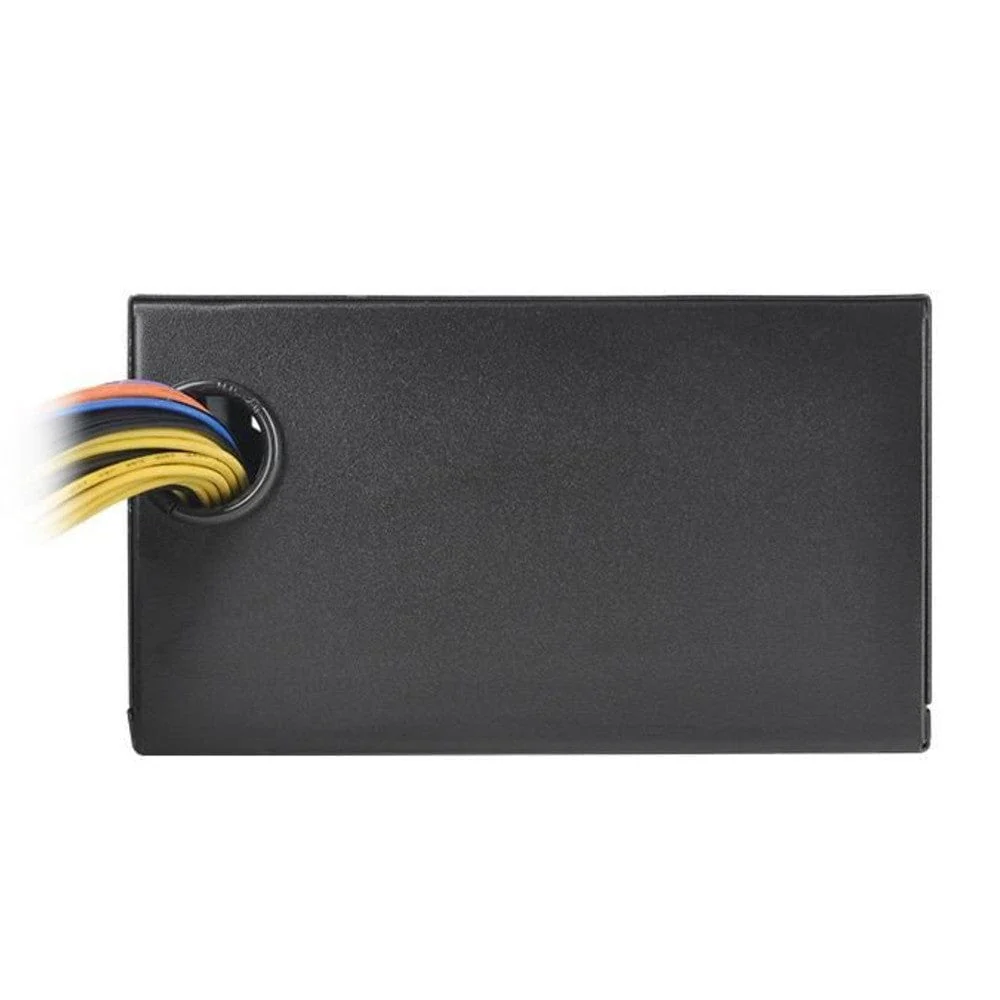

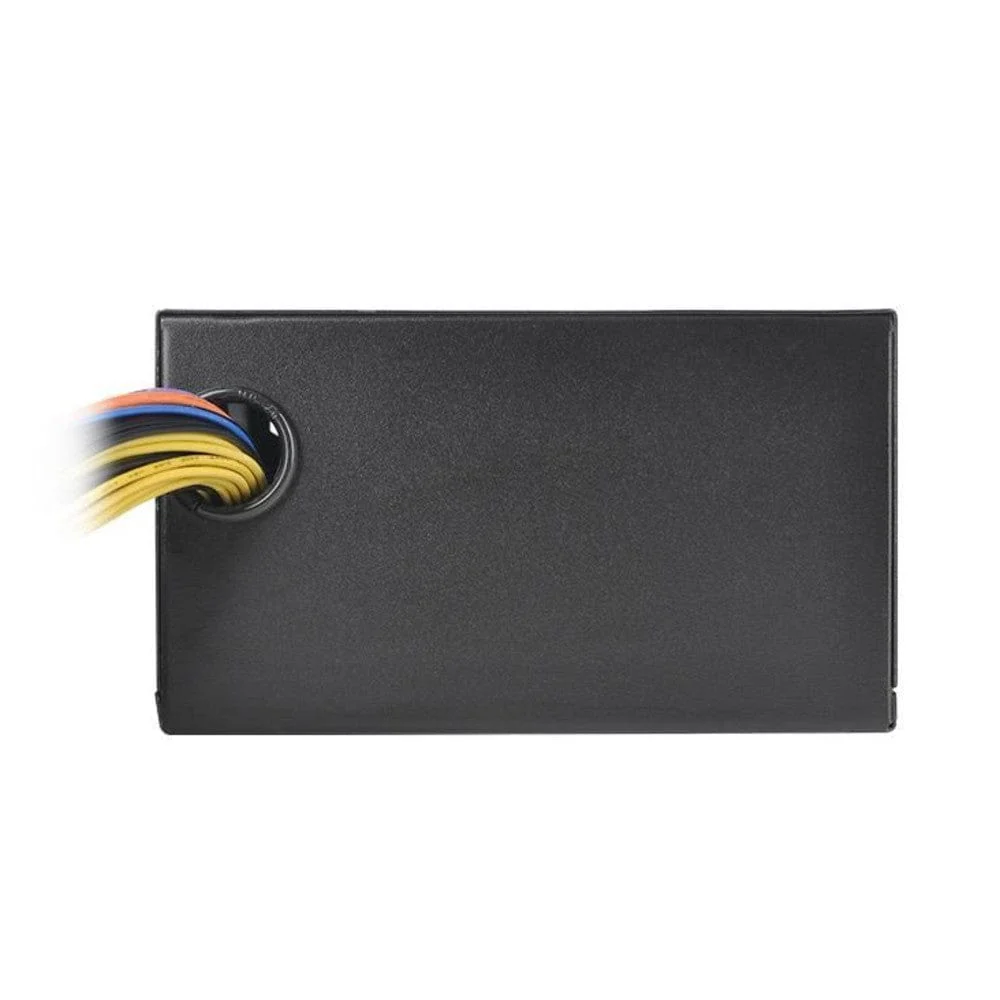

The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage.

80 PLUS 230V Standard Certified and Kaby Lake-Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.

82%, 85%, 82% efficiency at 20%, 50%, 100% Loading Guaranteed

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading.

SPECIFICATIONS:

• P/N: PS-TRS-0550NPCW**-2 &  PS-TRS-0650NPCW**-2
• WATTS: 550W & 650W
• VENTOLE RGB: No
• FATTORE FORMA: ATX
• MODEL: TRS-550AH2NK & TRS-650AH2NK
• TIPO: Intel ATX 12V 2.3
• MAX. OUTPUT CAPACITY: 550W
• COLOR: Black
• PFC (POWER FACTOR CORRECTION): Active PFC
• POWER GOOD SIGNAL: 100-500 msec
• HOLD UP TIME: 16msec (minimum) within 60% load
• INPUT CURRENT: 7A max
• INPUT FREQUENCY RANGE: 50 Hz - 60 Hz
• INPUT VOLTAGE: 230 Vac
• OPERATING TEMPERATURE: 5℃ to +40℃
• OPERATING HUMIDITY: 20% to 85%,non-condensing
• STORAGE TEMPERATURE: -40 ℃ to +55 ℃
• STORAGE HUMIDITY: 10% to 95%, non-condensing
• COOLING SYSTEM: 120mm Fan: 1800 R.P.M. ± 10%
• EFFICIENCY: 82-86% efficiency @ 20-100% load
• MTBF: 100,000 hrs minimum
• SAFETY APPROVAL: CE/CB/TUV
• PCI-E 6+2PIN: PCI-E 6+2pin x 2

Made in China
