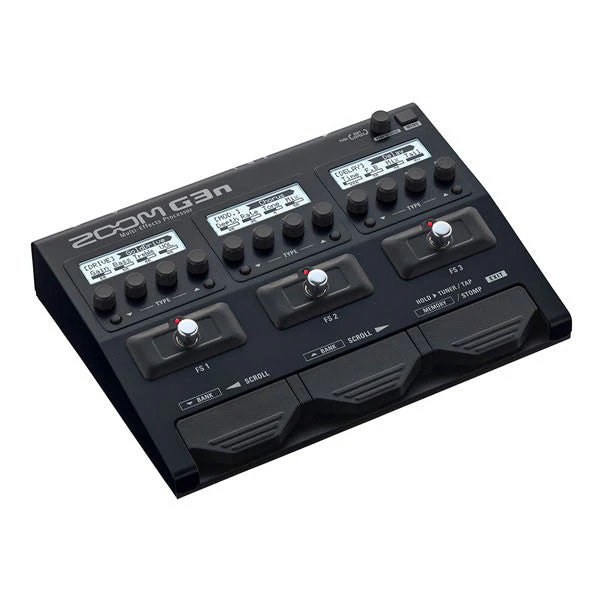

ZOOM G3n Intuitive Multi-Effects Guitar Processor

THE ZOOM G3n Intuitive Multi-Effects Processor for Guitarists
If guitar is your passion, you need freedom and flexibility to explore all of its sound possibilities. The Zoom G3n Multi-Effects processor removes any creative barriers in your way.
The G3n is a versatile multi-effects processor that lets you defy genre with the most realistic stompbox, cabinet, and amplifier emulations Zoom has ever created. Its high-quality sound, portable design, 80 second Looper, and intuitive interface make it the perfect addition to your pedalboard. To put it simply, the G3n offers all the sounds and tools you need to improve your tone and sound greater than ever.

Boutique Pedals, Legendary Amps, and Superior Effects
The G3n is pre-loaded with 70 expertly crafted and assembled DSP effects (68 effects, 1 looper pedal, and 1 rhythm pedal), plus 10 of the most realistic amp/cabinet emulators we've ever created. We’ve loaded the G3n with essential guitar sounds like overdrive, distortion, compression, EQ, delay, reverb, flanging, phasing, vibrato, and chorusing. Unique multi-effects such as Seq Filter, Reverse Delay, HD Hall, and OSC Echo are also included.

Create Complex Signal Chains
Use up to seven effects and amp/cabinet models simultaneously, chained together in any order you like. It's like having hundreds of fully loaded pedalboards all in one compact and easy-to-use device.

Accurate, Realistic Amp and Cabinet Emulation
Choose from five classic amp models and adjust the sound exactly as you would with the knobs and switches of the real thing—and then pair your amp with one of the five new cabinet emulators to complete the sound.

Features At A Glance

• 70 (68 effects, 1 looper pedal, and 1 rhythm pedal) onboard
• high-quality digital effects, including distortion, overdrive, EQ,
• compression, delay, reverb, flanging, phasing, and chorusing
• 5 new amp emulators plus 5 cabinet emulators
• 75 custom-designed factory patches
• Free ZOOM Guitar Lab Mac/Windows software allows
• downloading of additional effects and patches
• Use up to 7 effects simultaneously, chained together in
• any order
• 3 stompbox switches allow effects to instantly be brought
• in and out
• Intuitive user interface
• 3 independent editing displays
• Auto Save function for automatic saving of all patch parameters
• Onboard chromatic tuner with dedicated footswitch supports
• all standard guitar tunings, including open and drop tunings
• Tuner range of 435 - 445 Hz
• Stereo/mono Looper allows recording of up to 80 seconds
• of phrase recording
• 68 built-in rhythm patterns that can be used in conjunction
• with the Looper
• Tap Tempo with dedicated footswitch
• Input jack accepts standard guitar cable
• Auxiliary stereo input jack for connection of smartphones
• and music players
• Dual output jacks for connection to guitar amps and mono
• or stereo PA systems
• Dedicated stereo headphone output
• Control input for external expression pedal
• Included AC adapter

Specifications:
Effect types: 80 (70 DSP effects, 5 amp emulators, 5 cabinet emulators)
Number of simultaneous effects: 7
Number of user banks/patches: 150
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit with 128x oversampling
D/A conversion: 24-bit with 128x oversampling
Signal processing: 32-bit
Frequency characteristics: 20 – 20 kHz +1 dB, -3 dB (10 kΩ load)
Display: 128 x 32 dot-matrix LCD (x3)

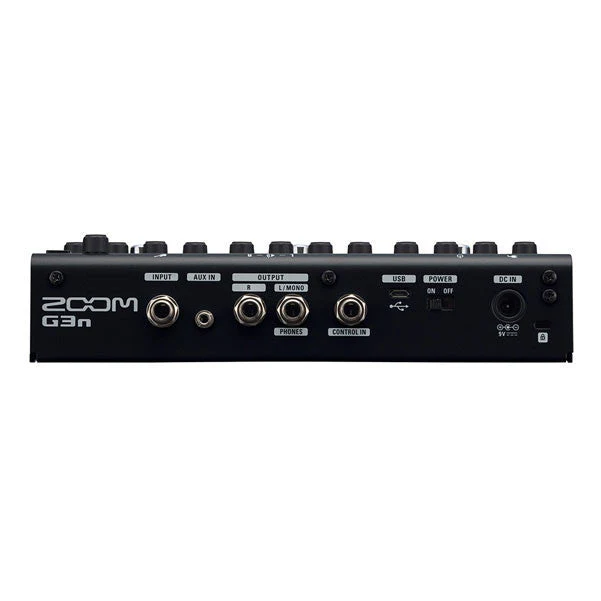

INPUTS
INPUT: Standard monaural phone jack
Rated input level: -20 dBu
Input impedance (line): 470 kΩ
AUX IN: Stereo mini jack (3.5 mm)
Rated input level: -10 dBu
Input impedance (line) : 10 kΩ

OUTPUTS
Output R: Standard monaural phone jack
Output R, maximum output level: Line +5 dBm (with output load impedance of 10 kΩ or more)
L/Mono/Phone: Standard stereo phone jack (combined line/headphone)
L/Mono/Phone, maximum output level: Line +5 dBm (with output load impedance of 10 kΩ or more)
Headphones 15 mW + 15 mW (into 32 Ω load)
Equivalent input noise: -119 dBu
Noise floor (residual noise): -100 dBu
Control input: Zoom FP02M

Power: AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16)
USB:

USB MIDI, USB Micro-B
Dimensions:
181 mm (D) X 234 mm (W) X 58 mm (H)
7.13" (D) X 9.21" (W) X 2.28" (H)
Weight: 1.28 kg / 2.8 lbs
