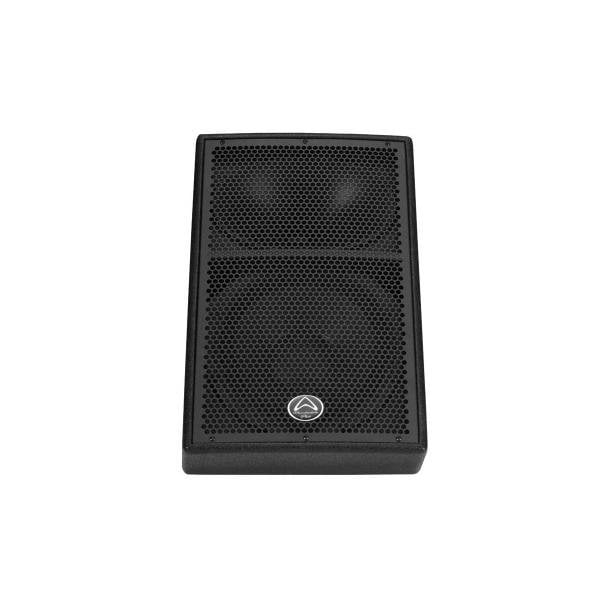

Wharfedale Pro Focus 15 2-Way 15-Inch Passive PA Speaker

Wharfedale Pro Focus 15 2-Way 15-Inch Passive PA Speaker Overview :

Music to the masses!
With the Wharfedale Pro Focus 12 point-source array system you now have a solution that provides not just exceptional quality sound but also a flexible cabinet and hardware configuration enabling you to meet the requirements of a wide variety of venues. Focus’s easy adaptability make it perfect for portable rentals, touring and fixed stage.

Key Features

• 700W RMS / 1400W Program /2800W Peak
• 135dB Max SPL
• 15" Woofer
• 3.2" HF Titanium Compression Driver
• Flexible point-source passive array series
• 100° x 10° long-throw waveguide
• Bi-amped modes
• Dual angle pole mount sockets
• M10 x 11 & Fly Track Rigging points
• Speakon inputs
• Fly individually / in pairs / in array formations
• Suitable for many different venues and formations

Optimized acoustic engineering
Focus tops and subs are superbly engineered to work together seamlessly and provide maximum efficiency. The two-way Focus 15 PA speaker employs a High-Q 100° x 10° long-throw waveguide horn geometry to project the sound to the back of large listening areas. All this comes together to create a point-source array system!

Sonic Impact
At peak output a single Focus-15 can pump out 135db SPL; maximum power handling is rated at 2800 watts peak. Focus subs put out an equally impressive 146dB peak SPL of pounding bass with a maximum power handing capacity of 8000 watts peak. Need more? Just double up! The Focus V-Tech side-by-side driver placement maximizes mutual coupling and boundary-effect reinforcement to move massive amounts of air and push the beat to the soul of your audience.

Super-fly
Focus hardware allows you to fly in a line-array configuration, fly independently and in pairs or stack PA’s on top of subs. Focus adapts perfectly to whatever challenges your venue presents you with!

SPECIFICATIONS

Configuration : 2-Way
Frequency Response : 45Hz - 20kHz
Power (RMS / Program / Peak) 700W /1400W / 2800W
Impedance : 8Ω
Max SPL : 135dB
Low Frequency Transducer : 15"
High Frequency Transducer : 3.2" Titanium Compression Driver
Nominal Coverage : 100° x 10°
Waveguide Type Square
Rigging Points : M10X11 & 4 Fly Track
Rigging Point Max Rated Weight : 500kg
Bi Amp Mode Switch : Yes
Input : 2 x Speakon
Net Weight : 34.1kg / 75lbs
Gross Weight : 36.5kg / 80.3lbs
Dimensions (H x W x D) : 625mm x 390/199.3mm x 370.7mm

Made in United Kingdom
