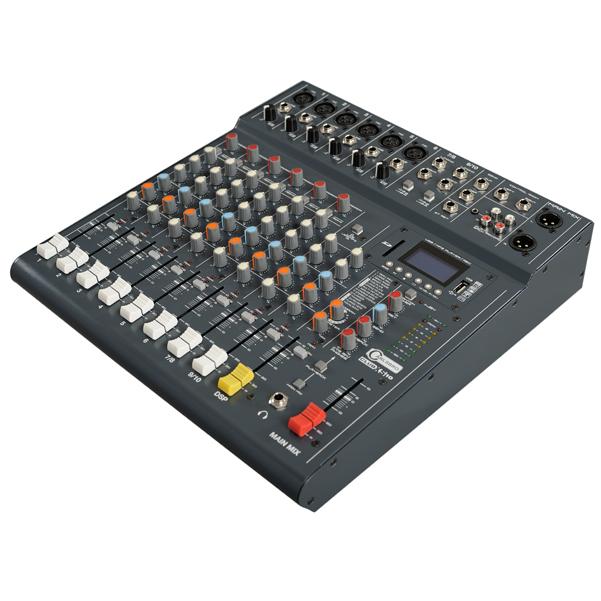

Carlsbro CLUB XS10 10 Channel Analog Mixer

• Inputs: 10
• Mic Input Channels: 6
• Stereo Input Channels: 2
• Gain: Min - Max
• Mic: -16dB - -60dB
• Line: +10dB - -34dB
• EIN: -100dB
• Frequency Response Mic Channel: 10Hz - 20kHz+1/-3dB
• THD Mic Channel: <=0.1%
• Signal to noise ratio: 80dB
• Output Levels Balanced: +26dB Max
• Output Levels Unbalanced: +20dB Max
• Channel EQ:
• Hi: 12kHz
• Mid: 2.5kHz
• Lo: 45Hz
• Lo Cut: 80Hz
• Mp3/USB/SD Audio playback: 2 channel playback
• USB/SD Audio Recording: 2 channel recording from mix output
• Bluetooth Playback: 2 channel playback
• DSP Effects: 16 presets with adjustable parameter
• Power Requirements: 100-240V ~ 50/60Hz
• Dimensions (W x H x D): 339 x 359 x 70 mm

Made in China
