Ld System 6.5" Active Installation Monitor - Black
Ld System 6.5" Active Installation Monitor - Black Overview:
\nThe LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.
\nThe bass-reflex design is loaded with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz - 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

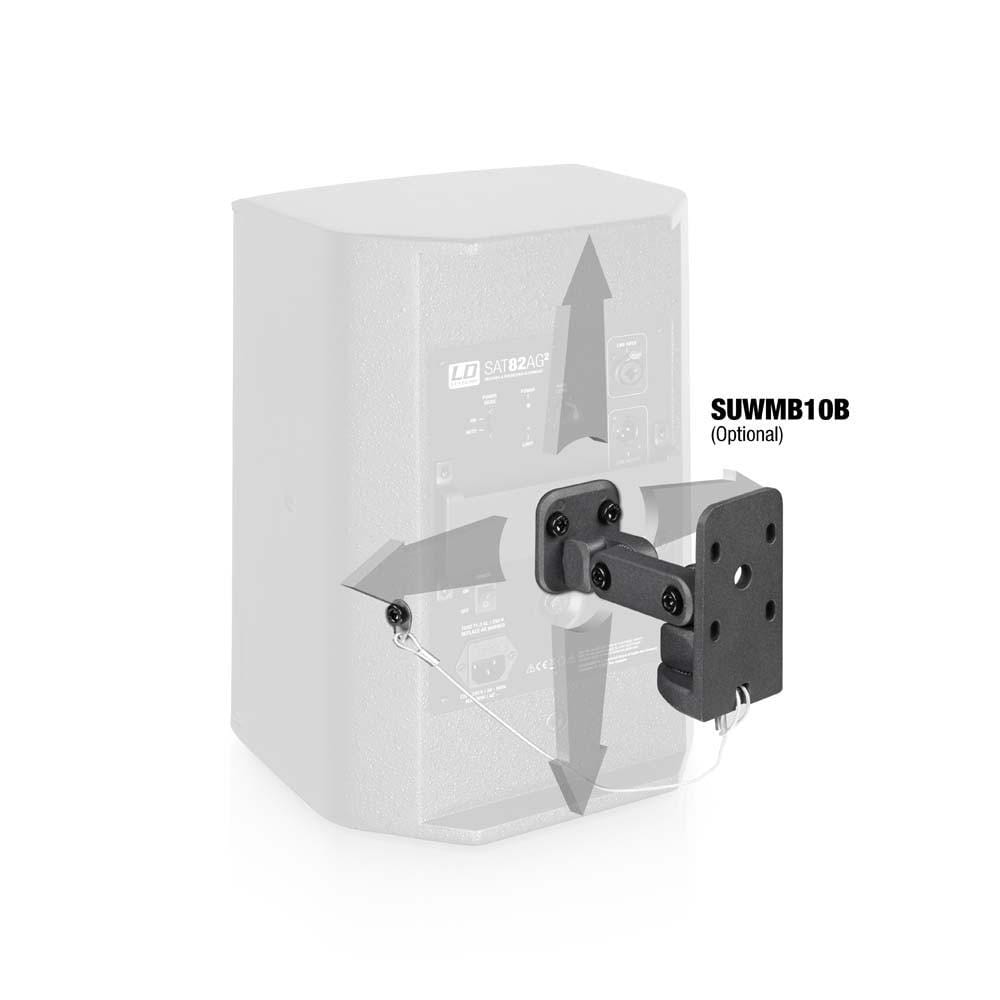

The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.
Specifications:
- Product type: Installation Loudspeakers
- Type: Wall-mounted Loudspeaker
- Low/mid driver dimensions: 6.5 " \n
- Woofer size: 165 mm \n
- Woofer magnet: Ferrite \n
- Woofer brand: Custom-made \n
- HF driver dimensions: 1 "
- HF Driver Size: 25 mm
- HF driver magnet: Ferrite
- HF driver brand: Custom-made
- Power amplifier (Class A): Class A/B
- Dispersion (H x V): 60 x 60
- RMS: 50 W
- Frequency response: 55 - 20000 Hz
- Max. SPL: 108 dB
- Protection circuits: HF Driver , over voltage
- Controls: mains switch (on/off) , switchable auto power mode , volume control
- Indicators: Power

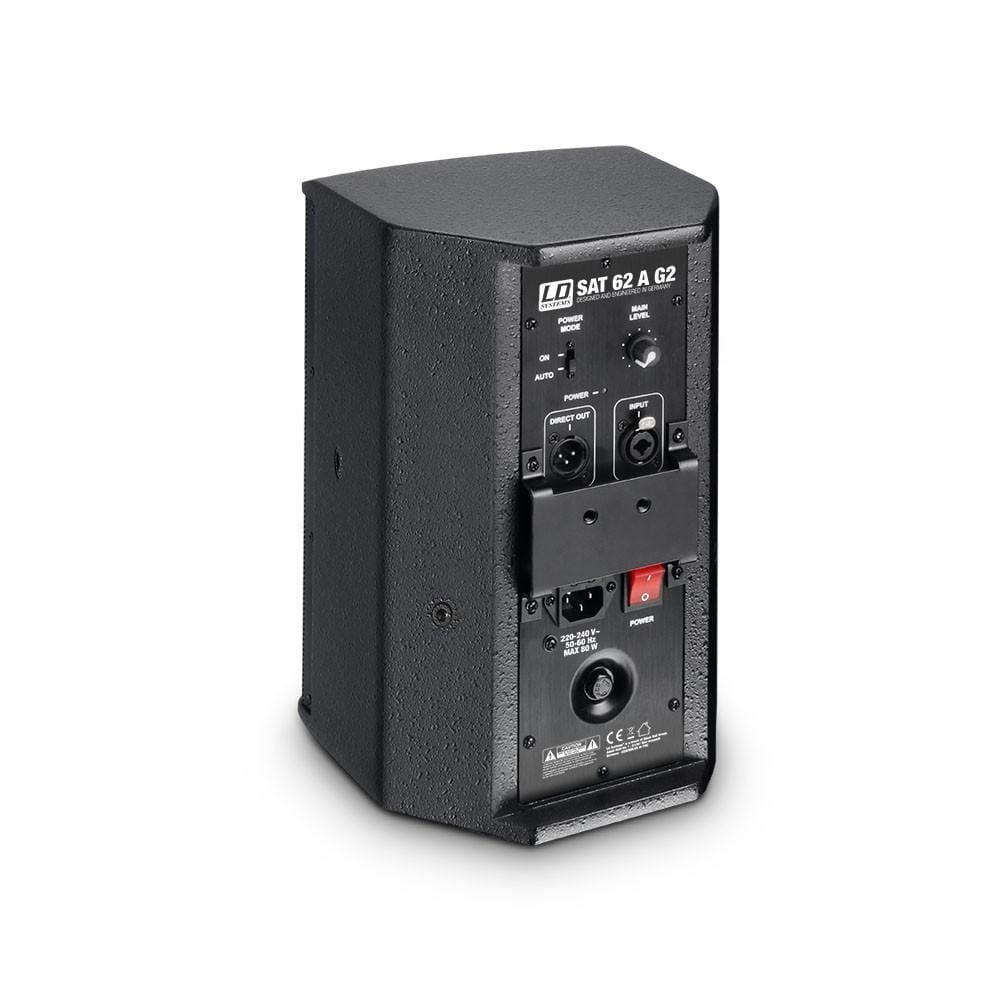

- Line input connectors: 6.3 mm jack , XLR
- Line output connectors: XLR
- Operating voltage: transformer
- Operating voltage: 220 V AC - 240 V AC, 50-60 Hz
- Cabinet material: 12 mm MDF
- Cabinet surface: texture paint
- Cabinet colour: Black
- Cabinet construction: Bass Reflex
- Width: 200 mm
- Height: 320 mm
- Depth: 200 mm
- Weight: 5,25 kg
- Features: Wall bracket
Made in China
